SD500-SDM Installation
Instructions
The SD500-SDM two-wire smoke module
allows you to connect a loop of conventional
detectors to a Silent Knight addressable fire
alarm control panel (FACP). Each loop can then
be assigned an address on the FACP.
Specifications
Compatibility
The SD500-SDM is compatible with all Silent
Knight addressable FACPs.
Wiring
Note: Installation and wiring of this device must be done in
accordance with NFPA 72 and local ordinances.
Important! All wiring is supervised and power limited.
Connecting the SD500-SDM
to the SLC Loop
The SD500-SDM connections to the 5815XL
internal and external are the same. Wire as
shown in Figure 1.

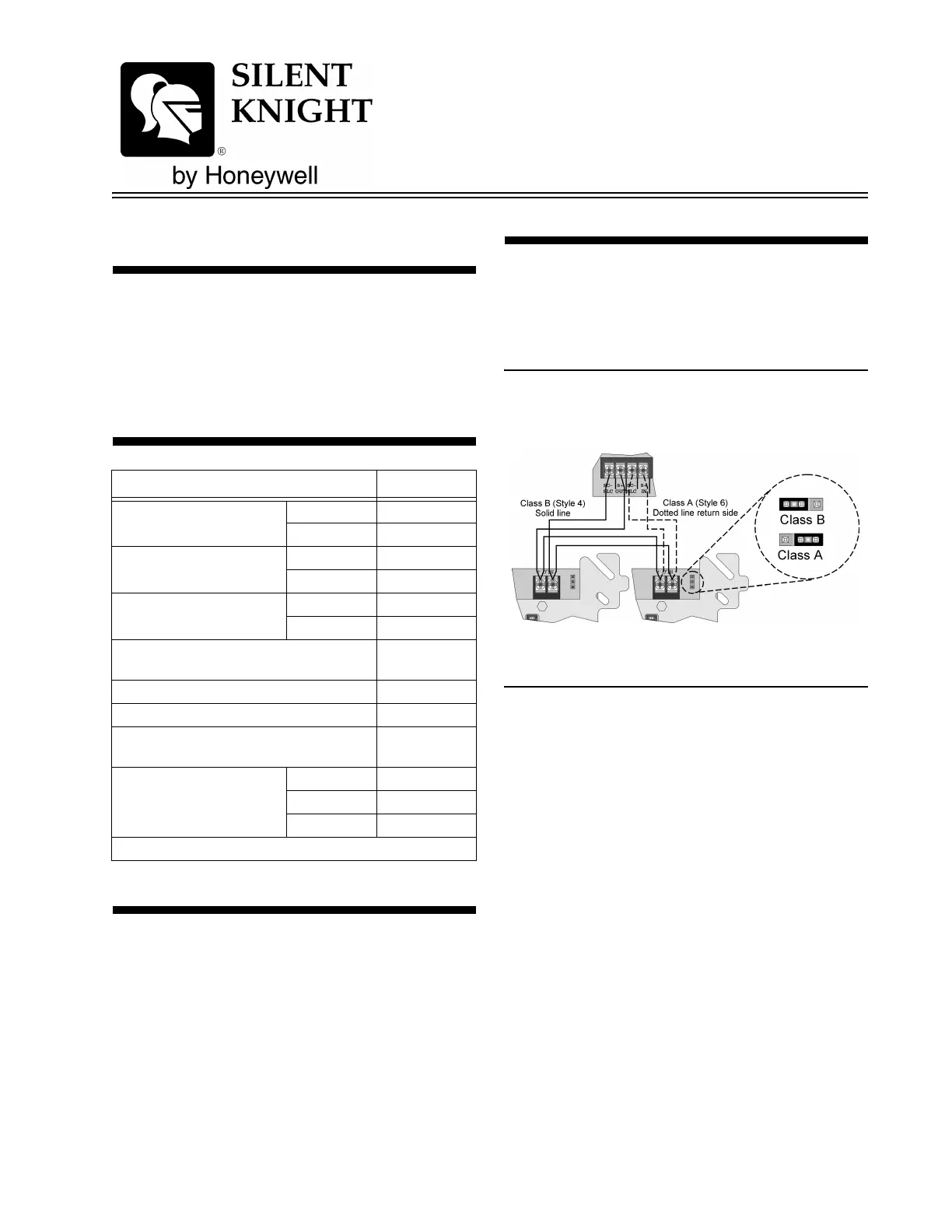

Figure 1: SLC Wiring
Smoke Detector Connections
This section contain instructions on how to
connect a 2-wire conventional smoke detector
loop to the SD500-SDM for either Class B (Style
B), or Class A (Style D).
Specification Parameter Rating
2-Wire Smoke Detector
Loop Current:
Standby: 2 mA max.
Alarm: 100 mA max.
Operating Voltage: SLC 32 VDC
Aux Power 24 VDC
SLC Current for battery
calculation:
Alarm: .55 mA
Standby: .55 mA
Operating Temperature: 32° - 120° F
(0° - 49° C)
Humidity: 10-85% RH
Max. SLC Loop Resistance: 50 Ω
Max. 2-wire Conventional Smoke Loop
Resistance
50 Ω
Dimensions: Length: 4-7/8”
Width: 4-7/8”
Depth: 7/8”
For indoor use only
SD500-SDM Installation Instructions
2 P/N 151193
Class B (Style B) Wiring
Wire Class B (Style B) conventional smoke
detector loop to the SD500-SDM as shown in
Figure 2. Place the jumper block in the Class B
(Style B) supervision position (see Figure 4).

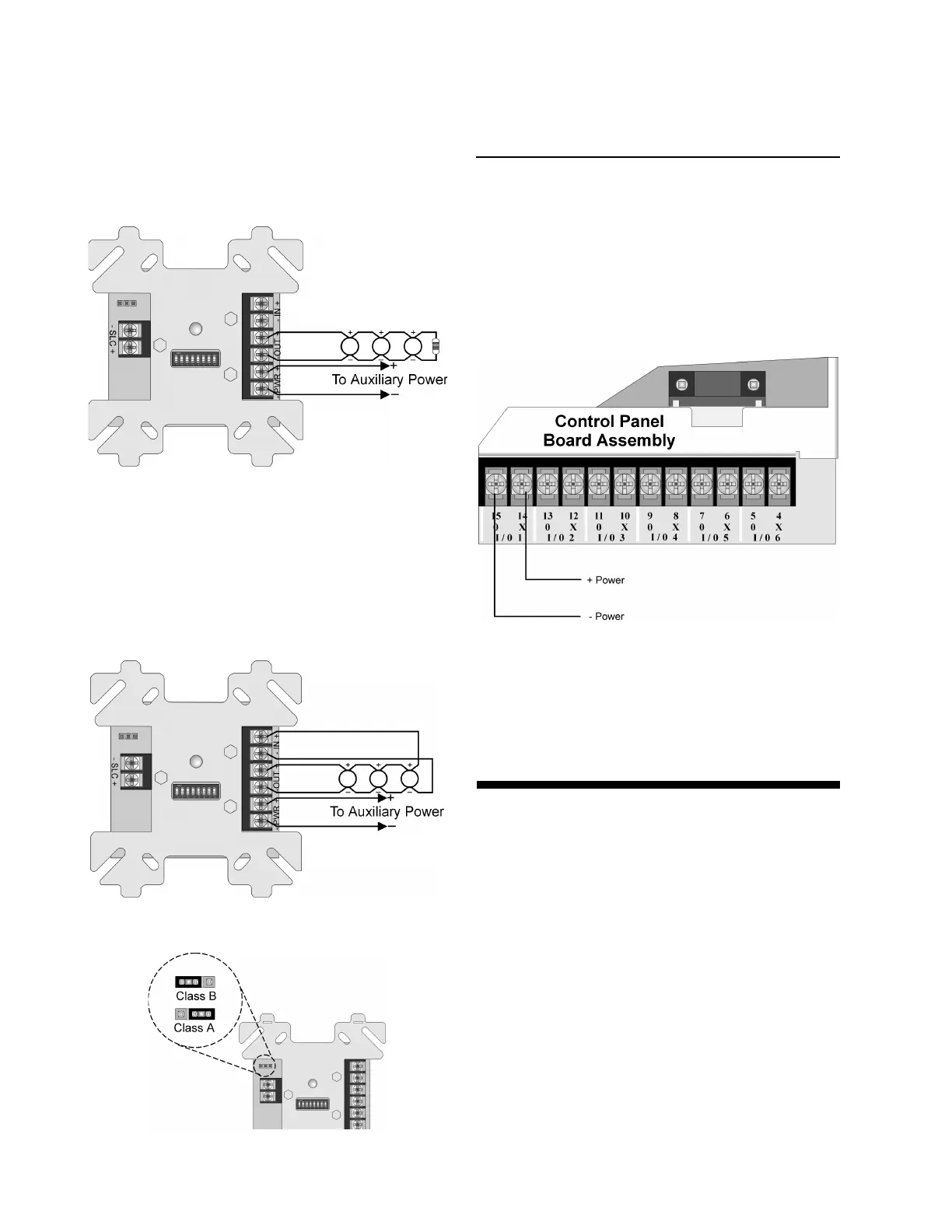

Figure 2: Class B (Style B) 2-Wire Detector Loop
Note: Auxiliary power is supplied by a Regulated UL listed
power supply for Fire Protective Signalling Systems.
Class A (Style D) Wiring
Wire Class A (Style D) conventional smoke
detector loop to the SD500-SDM as shown in
Figure 3. Place the jumper block in the Class A
(Style D) supervision position (see Figure 4).
Figure 3: Class A (Style D) 2-Wire Detector Loop
Figure 4: Supervision Selection Jumper
Auxiliary Power Using
Flexput™ Circuits
The SD500-SDM can use aux power from any
24 VDC source. The following describes how to
use the Flexput circuits as the auxiliary power
source:
1. Connect the aux power wires to the Flexput
terminals using “X” terminals as positive
and “O” terminals as negative power. See
Figure 5.
Figure 5: Flexput Auxiliary Power Output
2. Configure the auxiliary power output for
constant output through programming. Refer
to the FACP installation manual form more
information.
For More Information
This document is for quick reference. For more
information, refer to the FACP installation
manual.
SD500-SDM Installation Instructions
P/N 151193 3
Two-Wire Smoke Detectors
Table 1 lists two-wire smoke detectors that are compatible with the fire control panel. The table is
organized by manufacturer. The columns show the number of detectors per loop that can be used.
Note: The maximum number of smoke detectors per zone is determined by both the current draw and the impedance of the smoke
detector. If too many smoke detectors are used on any zone, false alarms could occur.
Do not mix different models of detectors on any zone; false alarms could occur.
Do not mix detectors of different models unless the system is specifically intended to be installed in that configuration.
Control unit Smoke Reset Time must be programmed for a number greater than or equal to the maximum reset time of the smoke
detector.
SD500-SDM
Identifier 24H
Operating Voltage Range 18.5–27.4 VDC
Table 1: Compatible Two-Wire Smoke Detectors
Manufacturer
Model Name or Number
(Base model name or number in
parentheses.)
Compatibility ID
# per Loop
Head Base
Apollo 55000-350 (45681-200) 55000-350 45681-200 24 / loop
55000-250 (45681-200) 55000-250 45681-200 24 / loop
ESL 429C (S10A) N/A S10A 30 / loop
429CRT (S11A) N/A S11A 30 / loop
429CST (S11A) N/A S11A 30 / loop
429CT (S10A) N/A S10A 30 / loop
609U01-11 S10 S00 40 / loop
609U02-11 S10 S00/S03 40 / loop
611U (601U or 602U) S10 S00/S03 40 / loop
611UD (601U or 602U) S10 S00/S03 40 / loop
611UT (601U or 602U) S10 S00/S03 40 / loop
612U (601U or 602U) S10 S00/S03 40 / loop
612UD (601U or 602U) S10 S00/S03 40 / loop
711U (701E or 701U) N/A S10A 25 / loop
712U (701E or 701U) N/A S10A 25 / loop
713-5U (702E or 701U) N/A S10A 25 / loop
713-6U (702E or 701U) N/A S10A 25 / loop
721-U (S10A) N/A S10A 30 / loop
721-UT (S10A) N/A S10A 30 / loop
Falcon 525 FDT1 N/A 17 / loop
525T FDT1 N/A 17 / loop
