Oldal 1/9

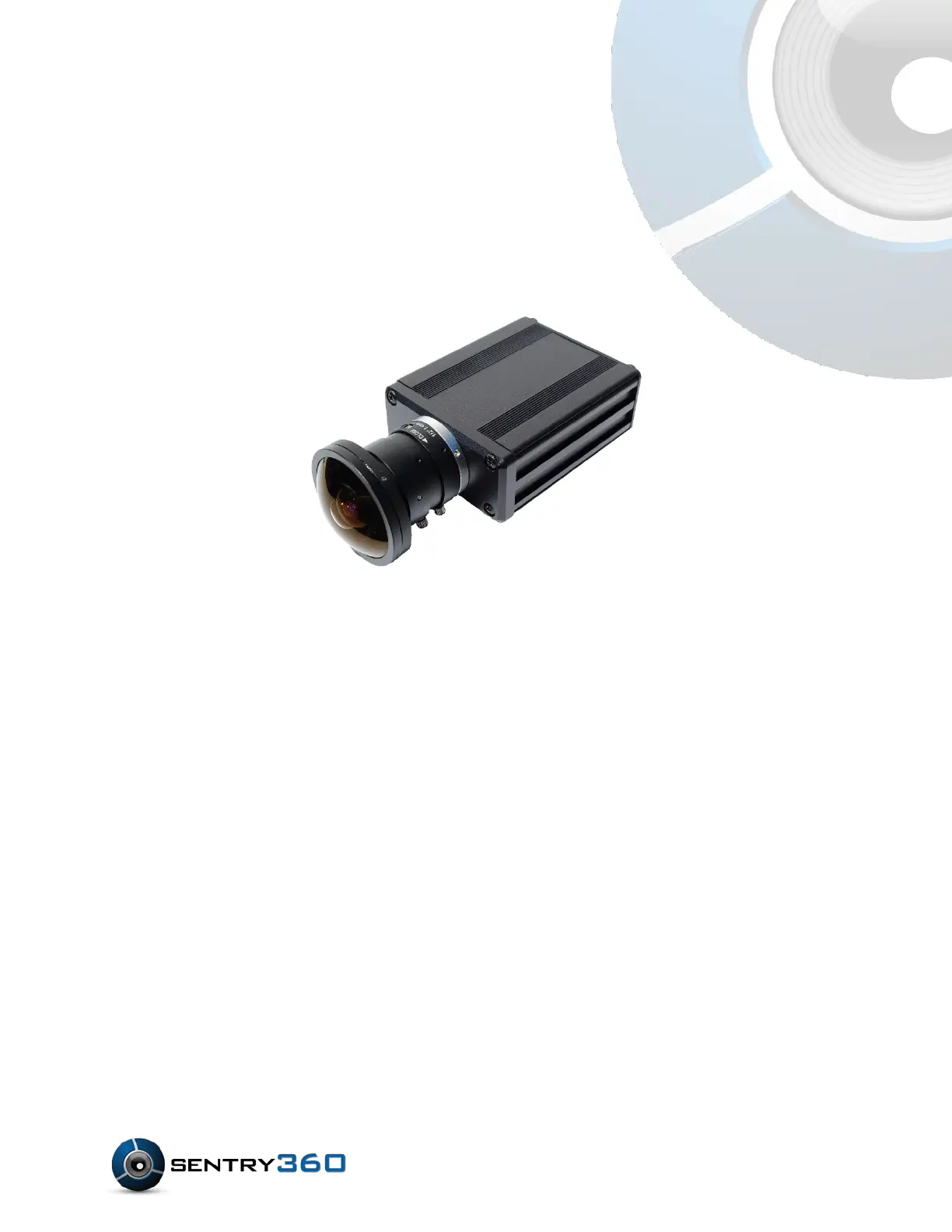

© Sentry360 2014
FS-IP5000-DN
User Manual
Ver 1.0
Table of Contents
1. Overview ............................................................................................................................ 3
1.1 Features ...................................................................................................................... 3
1.2 Package Contents........................................................................................................ 3
1.3 nsions Dime .................................................................................................................. 4
1.4 Connectors .................................................................................................................. 5
2. System Requirements 6......................................................................................................
3. Access Camera ................................................................................................................. 7
3.1 Web Browser Configuration ......................................................................................... 9
1. Overview
The FS DN camera is an MJPEG or H.264 encoding, 5.0 Megapixel resolution, IP -IP5000-
addressable, 360 degree camera. It is designed to deliver full motion, high- -definition,
progressive scan digital video across local area networks. The FS DN features a design -IP5000-
with no moving parts, creating a full 360 degree view with no blind spots. An optically corrected
fish-eye lens, designed exclusively for the FullSight™ camera, allows for immersive 360 degree
live view as well as pan zoom during playback with the use of Sentry360’s API or SDK wi- -tilt th
any 3rd party network video recording software certified partner. User Interface options of live or
playback can be one of the following: Panoramic Display, Quad Virtual Camera display, Single
Virtual PTZ camera display, or panoramic with 2 virtual camera displays with calibrated PTZ
capability between the panoramic image and virtual cameras. The FS DN is equipped -IP5000-
with a mechanical IR cut filter that filters infrared light to display high quality video images in -
low- light environments.
1.1 Features
• 5.0 Megapixel CMOS Sensor
• Maximum Resolution: 2592 x 1944
• Maximum Framerate: 12 fps
• IR Cut Filter
• Full Onvif Compatibility
• Motion Detection
• PoE 802.3af
• 0.5 Lux at F/1.2 (color)
• 100/10 LAN Connection
• Protocols: UDP, TCP, HTTP, TFTP, RTSP
• Automatic Exposure
• Automatic White Balance
• Brightness, Contrast, Saturation Controls
• - 1.4mm f theta Fisheye Lens
1.2 Package Contents
Please check the package contains the following items listed below.
• Camera with Lens
• Quick Start Guide
