Kelly Manufacturing Company Phone: (316) 265- 6868
555 S. Topeka Fax: (316) - 265 6687
Wichita, KS 67202 www.kellymfg.com
MODEL RCA 22
3” VACUUM HORIZON INDICATOR
The RCA 22 series has been designed with precision, reliability, and extended life in mind. Meets or exceeds
all requirements of the FAA TSO C4c, and the Aeronautical Standard AS396B .
The RCA22 Series of vacuum articial horizons are controlled by air driven precision gyro to present the an
pilot with pitch and roll information. Unless otherwise indicated all instruments have a blue/brown display, xed
pointer and are either lighted or unlighted (14 or 28VDC) .
All R.C. Allen vacuum gyros run o of 4.5 inch Hg, erect time is 3 min . Instruments equipped with a utes
warning ag will let you know when vacuum has dropped below 3.6 inch Hg. Flag retracts from view at 4.3
inch Hg.
A 1/4 -18 NPTF nylon tube slip tting is recommended for air/vacuum hose installation. A 1/8 - 27 NPTF nylon
tube slip tting is recommended for vacuum gage installation.
Performance Characteristics: Dimensions:
Roll indication: 360 Length: 6.50 in. M
ax
Pitch indication: Width: 3.38 in. M 30
ax
Pitch trim range to -5 Height: 3.38 in. M : 10
ax
Altitude operation: to 40,000 ft. Weight: 2.2 lbs. Max up
Accuracy: Operating temperature:
Settling error: 1 max. in roll and pitch -30 to +70 degrees Celsius.
Verticality error: 1 max
Tools for installation:
Vacuum Requirements:
4ea. 6-32 UNC-2B THD mounting screws.
Starting vacuum: 2 in. of Hg. M Starrett bi-directional level #134 or equivalent. ax
Operating vacuum: 4.5in. of Hg. Phillips screwdriver.
Rear threaded ports:
Installation: AIR: 1/4-18 NPTF nylon tting.
Level instrument in panel by placing VAC: (unmarked port) 1/4-18 NPTF nylon tting.
level upon front ledge of bezel VAC GAGE: 1/8-27 NPTF nylon tting.
against glass. Rotate unit left or
right to center bubble of level.
Tighten screws when level.
Kelly Manufacturing Company Phone: (316) 265- 6868
555 S. Topeka Fax: (316) - 265 6687
Wichita, KS 67202 www.kellymfg.com

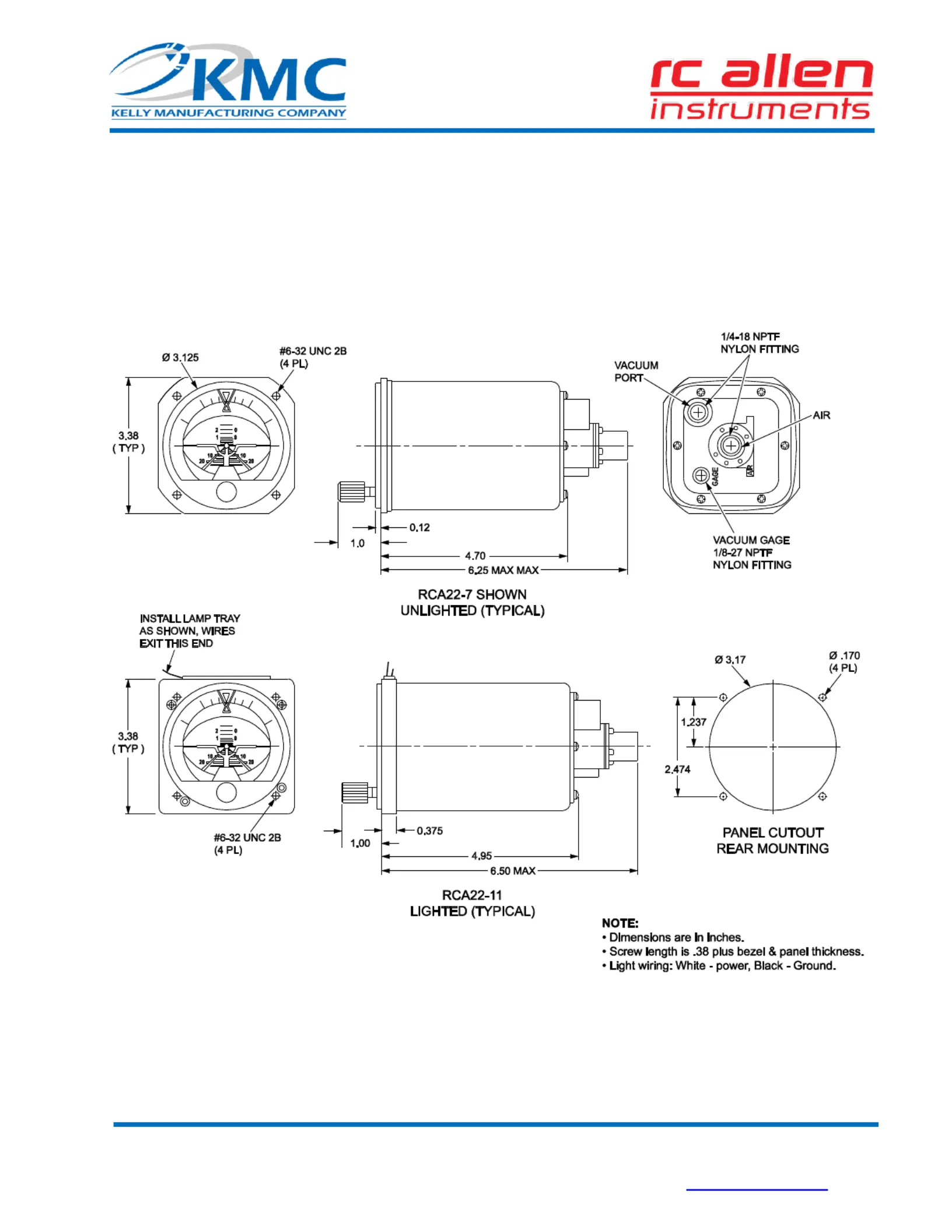

RCA 22 VACUUM GYRO HORIZON INDICATOR
INSTALLATION DIAGRAM
