Foreword
Thank You for purchasing this product.
This Stroboss 60 II camera flash applies to camera compatible with TTL autoflash. With this TTL
compatible flash, your shooting will become simpler. You can easily achieve a correct flash exposure
even in complex light-changing environments. This camera flash features:
•Approx. GN60 (ISO 100,@200mm), 81 steps from 1/1 to 1/256.
•Fully support TTL camera flash. Workable as Transmitter or Receiver unit in a wireless
flash group.
•Use dot-matrix LCD panel to make clear and convenient operations.
•With built-in 2.4GHz wireless remote system to support transmitting and receiving.
•Provided multiple functions, include HSS (up to 1/8000s), FEC, etc.
•Stable consistency and color temperature with good even lighting.
•Support with firmware upgrade.
Warning
•Always keep this product dry. Do not use in rain or in damp conditions.
•Do not disassemble. Should repairs become necessary, this product must be sent to an
authorized maintenance center.
•Keep out of reach of children.
Stop using this product if it breaks open due to extrusion, falling or strong hit. Otherwise,
electric shock may occur if you touch the electonic parts inside it.
•Do not fire the flash directly into the eyes (especially those of babies) within short
distances. Otherwise cisual impairment may occur.
•Do not use the flash unit in the presence of flammable gases, chemicals and other
similar materials. In certain circumstance, these materials may be sensitive to the strong
light emitting from this flash unit and fire or electromagnetic interference may result.
•Do not leave or store the flash unit if the ambient temperature reads over 50°C.
Otherwise the electronic parts may be damaged.
•Turn off the flash unit immediately in the event of malfunction.
Conventions used in this Manual
•This manual is based on the assumption that both the camera and camera flash's power
switches are powered on.
•The automatic light measurement system is marked in this manual with the , which isTTL
the correct abbreviation for the Sony brand, for other brands these are (Nikon), i-TTL
etc.
•The pictures show an example lamp for the Canon system.
•The following alert symbols are used in this manual:
The Caution symbol indicates a warning to prevent shooting problem.
The Note symbol gives supplemental information.
-2-
CONTENTS
2 Foreword
2 Warning
4 Name of Parts
4 - Body
4 - Control Panel
5 - LCD Panel
5 - LCD Panel in Three Modes
6 What's in the Box of Stroboss 60 II?
6Separately Sold Accessories
6 Loading and Unloading the Battery
6 Attaching to a Camera
7 Power Management
7 Flash Mode – TTL Autoflash
7- FEC (Flash Exposure Compensation)
7 - High-Speed Sync
8 - Second-Curtain Sync
8 M: Manual Flash
9 Multi: Stroboscopic Flash
9 Wireless Flash Shooting: Radio (2.4G) Transmission
10 - Wireless Settings
10 - Transmitter Unit's Flash OFF
11 - Setting the Comunication Channel
11 - Wireless ID Settings
11 - Scan the Spare Channel
12 - TTL: Fully Automatic Wireless Flash Shooting
13 - M: Wireless Flash Shooting with Manual Flash
14 - Multi: Wireless Flash Shooting with Manual Flash
14 Other Applications
14 Sync Triggering
14 Auto Focus Assist Beam
14 Bounce Flash
15 ZOOM: Setting the Flash Coverage
15 Low Battery Warning
16 C.Fn: Setting Custom Functions
16 Protection Function
17 Technical Data
18 Troubleshooting
18 Firmware Upgrade
18 Compatible Camera Models
18 Maintenance
-3-

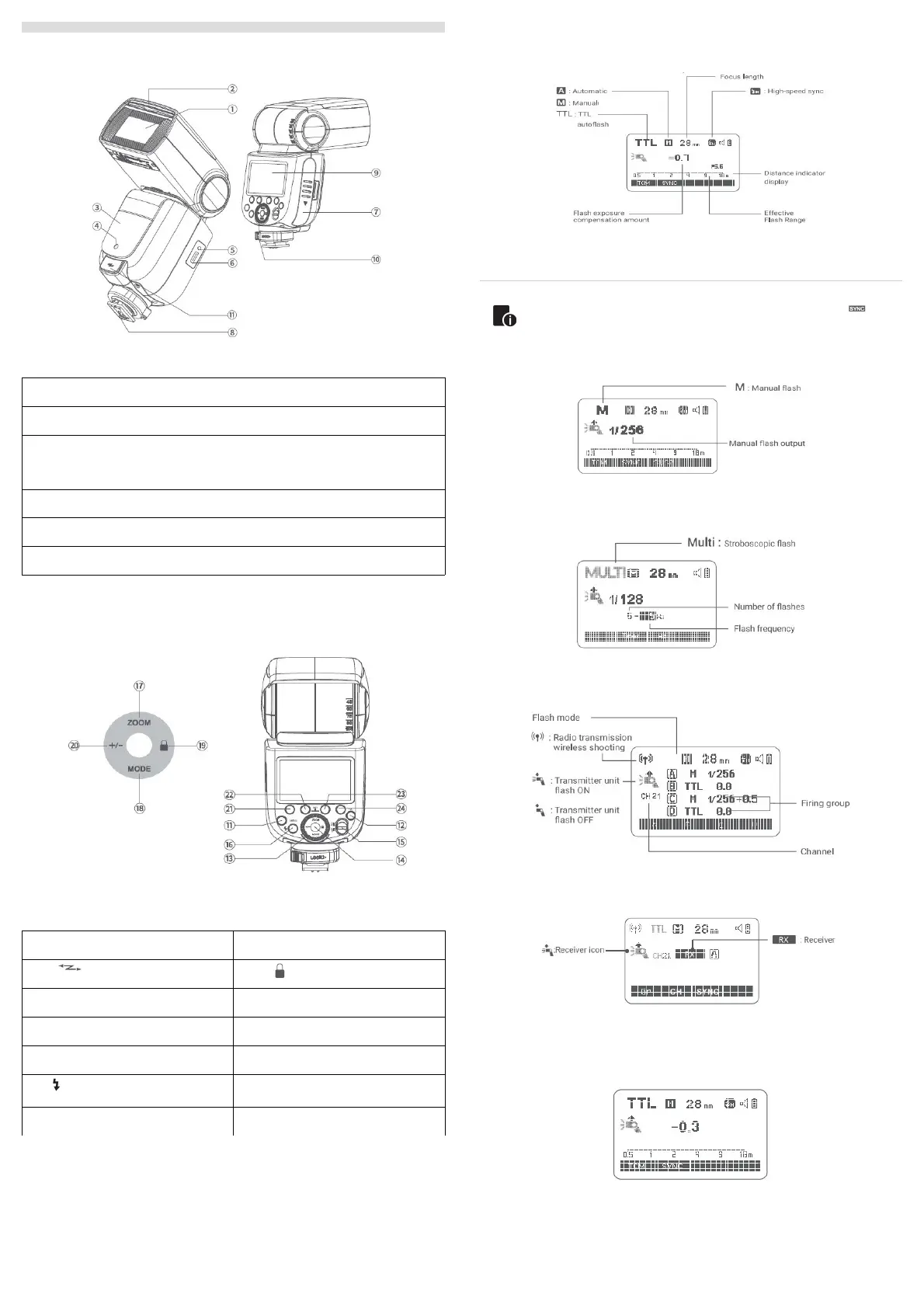

Name of Parts
Body
01 Flash Head 07. Battery Cover
02 Built-in Wide Panel 08. Hotshoe
03. Wireless Sensor 09. LCD Panel
04. Focus Assist Beam 10. Hotshoe Fixing Buckle
05. Sync Cord Jack 11. External Charging Port
06. Type-C USB Port
Control Panel
11. <MENU> Flash Menu Button 18. <MODE> Mode Selection Button
12. < > Wireless Selection Button 19. < > Lock Setting
13. Select Dial 20. <+/-> Power Output
14. Set Button 21. Function Button 1
15. ON/OFF Power Switch 22. Function Button 2
16.< > Test Button Flash Ready Indicator 23. Function Button 3
17. <ZOOM> Focus Length Setting 24. Function Button 4
-4-
LCD Panel
(1) TTL Autoflash
•The display will only show the settings currently applied.
•The functions displayed above function buttons 1 to 4, such as and
<M/A/B/C>, change according to setting's status.
•The LCD panel will lighten on when buttons and dials are operated.
(2)M: Manual Flash
(3) Multi Flash
(4) Radio Transmission Shooting
Transmitter Unit (TX)
Receiver Unit (RX)
LCD Panel in Three Modes
Attached to the Camera
-5-
2.4G Radio Transmission: As a Transmitter Unit
2.4G Radio Transmission: As a Receiver Unit

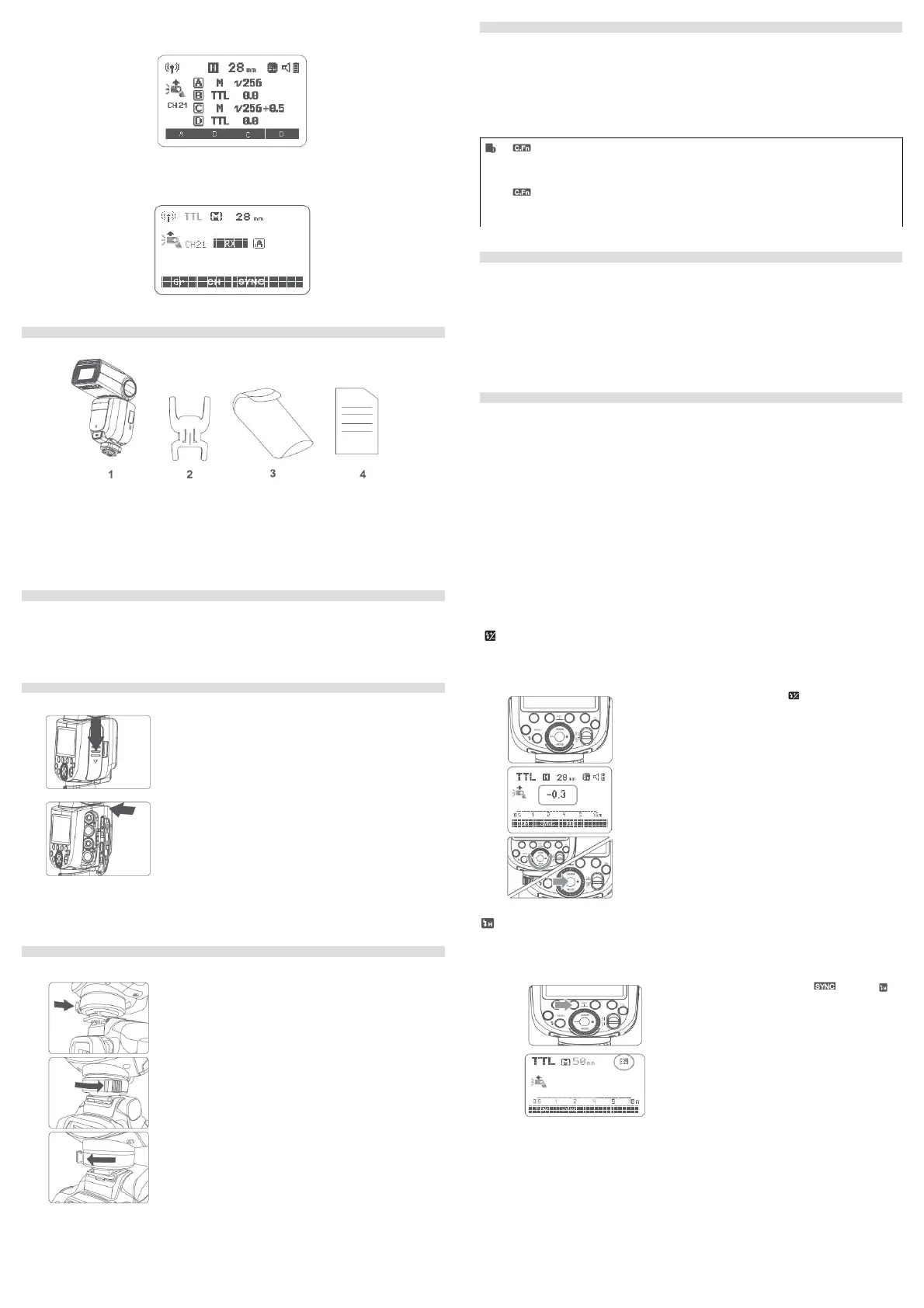

What's in the Box of Stroboss 60 II?
1. Flash Unit
2. Mini Stand
3. Protection Case
4. Instruction Manual
Separately Sold Accessiories
This product can be used in combination with the following accessories sold separately, so as to
achieve best photography effects:
Quadralite Navigator XC, Quadralite Navigator, Quadralite S-holder, etc
Loading and Unloading the Battery
1. To unload the battery, hold down the battery and press
compartment and push the battery downwardly to take it out.
2. Put 4 batteries in with the correct polarity after opening the
battery compartment, then close and push it to the top.
Attaching to a Camera
1. Attach the Camera Flash.
Rotate the hotshoe fixing buckle to the left and insert the
camera flash into the camera's hotshoe.
2. Secure the Camera Flash.
Rotate the hotshoe fixing buckle to the right until it locks up.
3. Detach the Camera Flash.
Press the button and rotate the hotshoe fixing buckle to the
left until it is loosened.
-6-
Power Management
Use ON/OFF Power Switch to power the flash unit on or off. Turn off if it will not be used for an
extended period of time. Setting as a transmitter flash, it will turn the power off automatically after a
certain period (approx. 90 seconds) of idle use. Pressing the camera shutter halfway or pressing any
flash button will wake up the flash unit. Setting as a receiver flash, it will enter sleep mode after a
certain period (adjustable , 60 minutes by default) of idle use. Pressing any flash button will wake it up.
Disabling Auto Power Off function is recommended when the flash is used off camera
(C.Fn-STBY)
Receiver Auto Power Off Timer is set to 60 minutes by default. Another option "30
minutes" is available (C.Fn-RX STBY).
FLASH MODE-TTL Autoflash
This flash has three flash modes: Manual ( ), and Multi (Stroboscopic). In mode, the TTL, M TTL
camera and the flash will work together to calculate the correct exposure for the subject and the
background. In this mode, multiple TTL functions are available: FEC, HSS, second curtain sync,
modeling flash, control with the camera's menu screen.
Press < Mode Selection Button and three flash modes will display on the LCD panel one by MODE>
one with each pressing.
TTL Mode
Press < Mode Selection Button to enterTTL mode. The LCD panel will display.MODE>
•Press the camera release button halfway to focus. The aperture and effective flash range
will be displayed in the viewfinder.
•When the shutter button is fully pressed, the flash will fire a pre-flash that the camera will
use to calculate exposure and flash output the instant before the photo is taken.
FEC: Flash Exposure Compensation
With FEC function, this flash can adjust from -3 to +3 in 1/3
rd stops. It is useful in situations where
minor adjusting of the TTL system is needed based on the environment.
1. Press the (+/-> button. The icon and flash exposure
compensation amount will be highligted on the LCD panel.
2. Set the flash exposure compensation amount.
Turn the Select Dial to set the amount.
"0.3" means 1/3 step, "0.7" means 2/3 step.
To cancel the flash exposure compensation, set the
amount to "+0".
3. Press Set Button again to confirm the setting.
High-Speed Sync
High Speed Sync (FP flash) enables the the flash to synchronize with all camera shutter speeds. This
is convenient when you want to use aperture priority fo fill-flash portraits.
1. Press Function Button 2 < > so that < is
displayed.
2. Press MENU or Fn button on SONY camera
to enter Flash Mode and choose Fill-flash, then
set the camera shutter.
-7-
