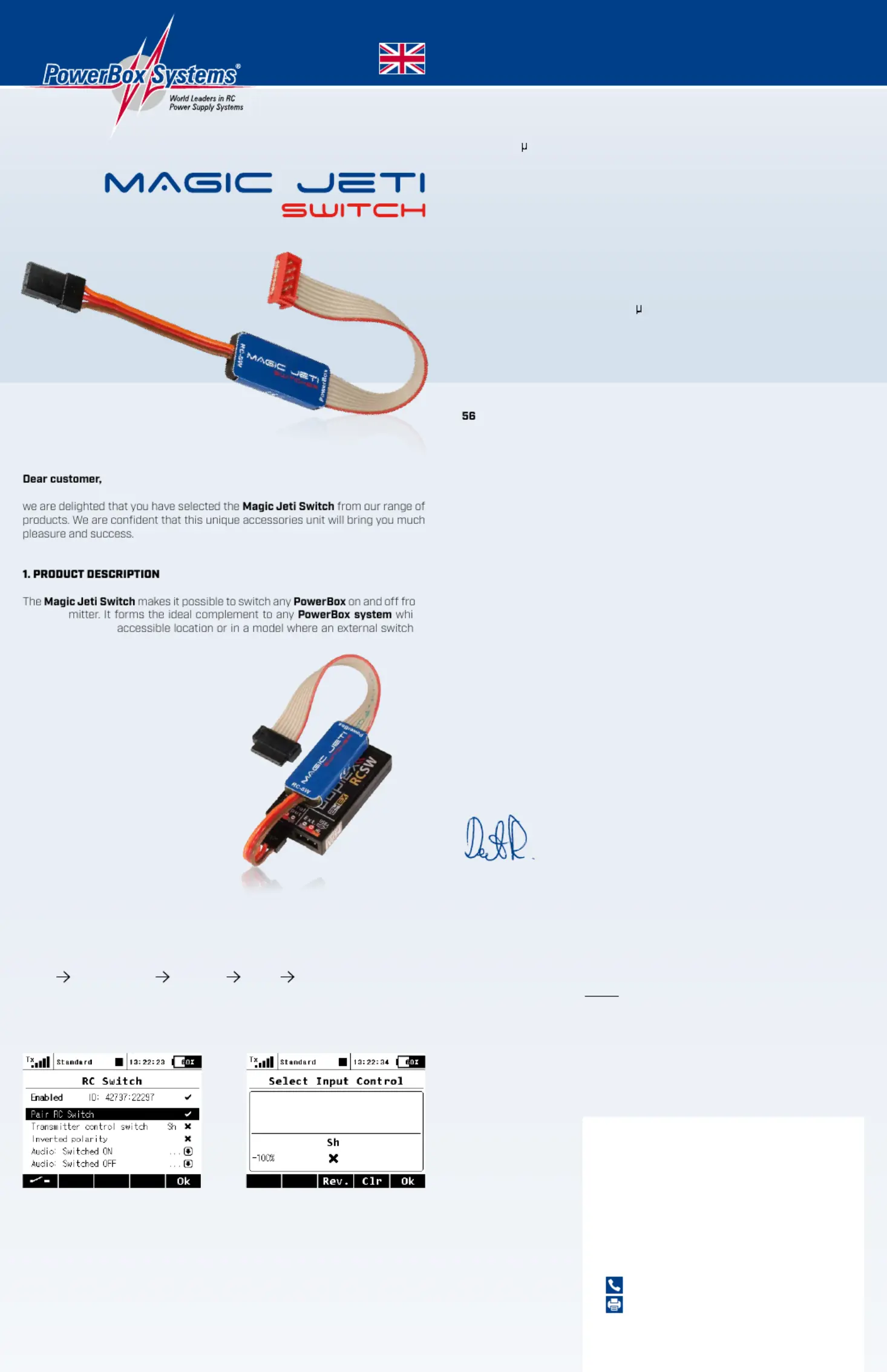

Dear customer,
we are delighted that you have selected the from our range of Magic Jeti Switch
products. We are confident that this unique accessories unit will bring you much
pleasure and success.
1. PRODUCT DESCRIPTION
The Magic Jeti Switch makes it possible to switch any on and off from PowerBox
the transmitter. It forms the ideal complement to any which PowerBox system
is installed in an inaccessible location or in a model where an external switch is
not desirable.
2. MOUNTING AND CONNECTION
To be able to switch the model on and
off from the transmitter you requi-
re the “RCSW” switch available from
Jeti. The Magic Jeti Switch is stuck
onto the Jeti RCSW, and connected as
shown in the illustration below. This
results in a compact, wireless swit-
ching unit which takes the switching
signal from the Jeti RC-Switch and
“translates” it for the . PowerBox
3. DAY TO DAY OPERATIONS
The combination of Jeti RCSW and Magic Jeti Switch draws a very low idle cur-
rent (< 200 µA), but nevertheless we recommend that you disconnect the switch
from the if flying is unlikely for a protracted period, e.g. over the winter.PowerBox
The Magic Jeti Switch is a latching type, i.e. if the connection to the Jeti RC-SW
or between the and the is interrupted, the model PowerBox Magic Jeti Switch
remains switched on!
4. TECHNICAL DATA
Powersupply: PowerBox
Current drain Power-on state: 4mA
Current drain Standby: 100 Aµ
Dimensions: 30 x 12 x 4 mm
Weight: 5g
Temperature range: -30°C to +75°C
EMV Test: EN 55014-1:2006
CE test: 2004/108/EG
5610, red connector: Evolution, BaseLog, Professional, Competition
(SRS), Cockpit (SRS)
5612, black connector: Champion SRS and Royal SRS
5. GUARANTEE CONDITIONS
That is why we are able to grant a 36 month guarantee on our Magic Jeti Switch
from the initial date of purchase. The guarantee covers proven material faults,
which will be corrected by us at no charge to you.
The guarantee does not cover damage caused by incorrect usage, e.g. reverse
polarity, excessive vibration, excessive voltage, damp, fuel, and short-circuits. The
same applies to defects due to severe wear.
6. LIABILITY EXCLUSION
We are not in a position to ensure that you observe our instructions regarding ins-
tallation of the Magic Jeti Switch, fullfil the recommended conditions when using
the unit, or maintain the entire radio control system competently.
For this reason we deny liability for loss, damage or costs which arise due to the
use or operation of the Magic Jeti Switch, or which are connected with such use
in any way. Regardless of the legal arguments employed, our obligation to pay
damages is limited to the invoice total of our products which were involved in the
event, insofar as this is deemed legally permissible.
We wish you every success using your new Magic Jeti Switch!
Donauwoerth, november 2017
Insert the Bind plug in the RCSW, then connect the Magic Jeti Switch to the Po-
werBox. Navigate through your transmitter menu as follows:
Model Device Explorer RC Switch Enable Pair RC Switch
You now have to move to the Transmitter control switch point and assign a
switch whose exclusive purpose is to switch the model on and off.
At the transmitter the switching process can be triggered using any switch, and
confirmed on-screen with a button. This procedure eliminates the possibility of
switching the model off accidentally. You can also set audible confirmation for the
switching process by means of an audio file.
quick start guide
PowerBox-Systems GmbH
certificated according to DIN EN ISO 9001:2008
Ludwig-Auer-Straße 5
D-86609 Donauwoerth
Germany
+49-906-99 99 9-200
+49-906-22 45 9
www.powerbox-systems.com
7. SERVICE NOTE
We make every effort to provide a good service to our customers, and have esta-
blished a Support Forum which covers all queries relating to our products. Please
use the Support Forum you contact us by telephone:before
www.forum.powerbox-systems.com
