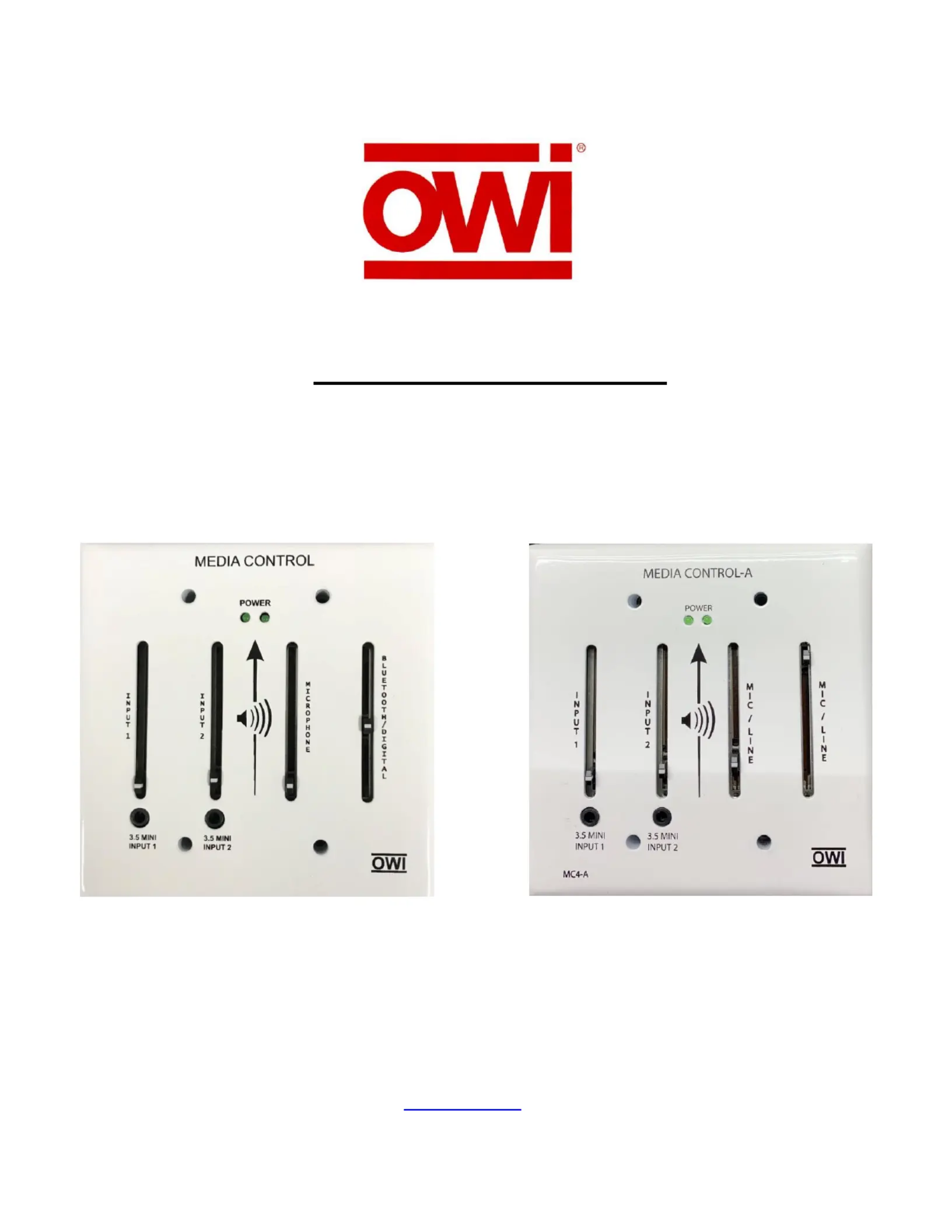

Model MC4-A, MC4-D or MC4- BT
MEDIA CONTROL by OWI
Established 1978
Installation Instructions
Media Control 4-Channel Audio Mixer
Fits on double gang American electrical box a
MC4- MC4-D MC4-A BT &
OWI Incorporated
17141 Kingsview Ave. Carson CA 90746 USA
Tel. 310-515-1900
www.owi-inc.com
Technical Support: 310- 5-1900 51
Filename: MC4- MC4- , M -D MANUAL A, BT C4
OCT 2020

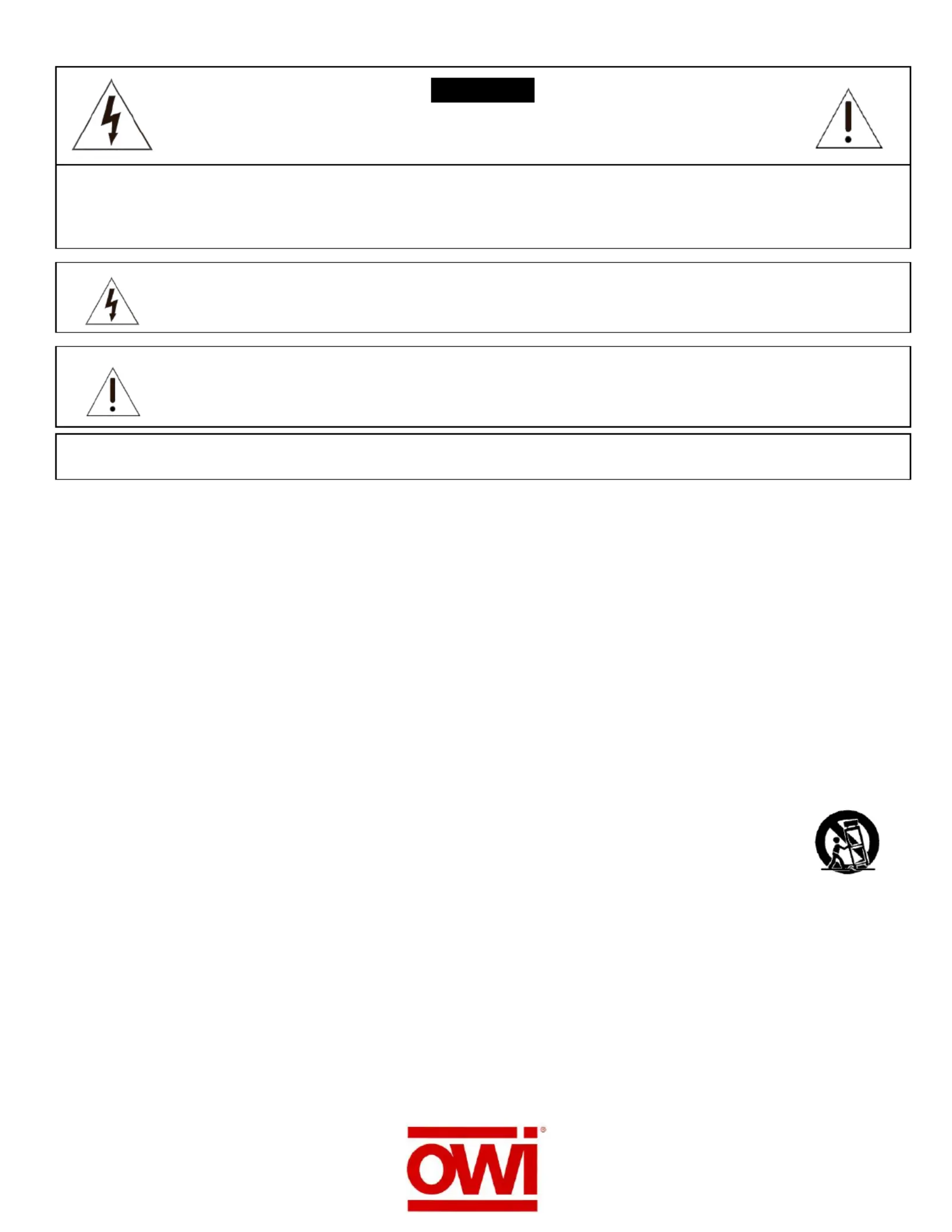

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure that may be of sucient magnitude to constitute a risk
of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the appliance.
The apparatus shall not be exposed to dripping or splashing and that no objects lled with liquids, such as vases, shall be
placed on the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions - All the safety and operation instructions should be read before this OWI product is operated.
2. Keep these instructions - The safety and operating instructions should be kept for future reference.
3. Heed all warnings - All warnings on this product and in these operating instructions should be followed.
4. Follow all instructions - All operating and other instructions should be followed.
5. Do not use this apparatus near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming
pool, swamp or salivating St. Bernard dog, etc.
6. Clean only with dry cloth.
7. Do not block any ventilation - This OWI product should be situated so openings. Install in accordance with the manufacturer’s instructions.
that its location or position does not interfere with its proper ventilation. For example, the Component should not be situated on a bed, sofa, rug, or
similar surface that may block any ventilation openings, or placed in a bui -in installation such as a bookcase or cabinet that may impede the ow of lt
air through ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug
does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit the apparatus.
11. Only use attachment/accessories specied by the manufactures.
12. Use only with the cart, stand, tripod, bracket or table specied by the manufacturer, or sold with the apparatus. When a cart
is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped. The user should not attempt to service this OWI product beyond
those means described in this operating manual. All other servicing should be referred to the OWI Service Department.
15. To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
16. To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully
inserted to prevent blade exposure.
17. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced
hearing loss, but nearly everyone will lose some hearing if exposed to suciently intense noise for a period of time. The U.S. Government's
Occupational Safety and Health Administration (OSHA) has specied the permissible noise level exposures shown in the following chart.
According to OSHA, any exposure in excess of these permissible limits could result in some hearing loss. To ensure against potentially dangerous
exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels use
hearing protectors while the equipment is in operation. Ear plugs or protectors in the ear canals or over the ears must be worn when operating the
equipment in order to prevent a permanent hearing loss if exposure is in excess of the limits set forth here.
18. OWI recommends that this apparatus is to be placed on a switched power outlet, one that switches both sides of the line and has contact
separation of at least 3mm.
Filename: MC4- MC4- , M -D MANUAL A, BT C4
OCT 2020
Page 3 of 6
Media Control (MC4) Model ’s
MC4-A (ANALOG) - MC4- (BLUETOOTH - MC4-BT (DIGITAL BT ) )
Installation Instructions
MC4 carton includes the following items:
One (1) ch MC4-A, MC4- or MC4-D (Media Control Mixer)ea BT,
One (1) each 15V DC, Level V, UL Liste Power Supplyd
Four (4) each 6:32 Truss head screws
Introduction:
Congratulations on purchasing the MC4 Media Control Mixer by OWI.
A double gang electrical box four channel Media Control Audio Mixer, Model numbers 4-A, MC4- or MC4-D will allow MC4 MC BT,
either Line, Mic, optical level inputs on designated channel. It has an additional four set of level controls to provide a xed secondary
output not eected by any of the changes on the front panel level input controls. Typical uses of the secondary output would be “Hard
of hearing”, “Room combiner” or priority feed that is not aected by input controls. The Four (4) audio inputs: 3.5 mini jack,
Balanced input, TosLink (MC4- , MC4-D), Bluetooth (MC4- ). The Normal input accepts an unbalanced input via a 3.5 Mini BT BT
Jack. 1 Balanced input via a Phoenix style screw terminal plug.
Specications: Two Gang Electrical box, Four Channel Mixer with both Microphone and ne Audio Mixer Li
MODEL
MC4-A
MC4- BT
MC4-D
Power
15 Volts DC
15 Volts DC
15 Volts DC
Current
170 mils
170 mils
170 mils
Channels
Four
Four plus a Bluetooth Input
Four
Voltage Levels
Line (-14 to +4 dB m)
Line (-14 to +4 dB m)
Line (-14 to +4 dB m)
Audio Outputs
Three (3)
Three (3)
Three (3)
Output Types
All Outputs Mono
All Outputs Mono
All Outputs Mono
Balanced on Euro Block
Balanced on Euro Block
Balanced on Euro Block
unbalanced 3.5 stereo minijack
unbalanced 3.5 stereo minijack
unbalanced 3.5 stereo minijack
RJ45 for OWI Amplified speakers only
RJ45 for OWI Amplified speakers only
RJ45 for OWI Amplified speakers only
Input types
Input # 1
3.5mm stereo Jack
3.5mm stereo Jack
3.5mm stereo Jack
Input # 2
3.5mm stereo Jack
3.5mm stereo Jack
3.5mm stereo Jack
Input # 3
Balanced (Mic/Line selectable)
Balanced (Mic/Line selectable)
Balanced (Mic/Line selectable)
Input # 4
Balanced (Mic/Line selectable)
Optical Toslink
Optical Toslink
Other input
NA
Bluetooth
NA
Wireless Bluetooth
NO
YES
NO
Front Panel Inputs
YES - 2 EACH 3.5mm stereo Jacks
YES - 2 EACH 3.5mm stereo Jacks
YES - 2 EACH 3.5mm stereo Jacks
Input Controls
Slider/Fader on the face
Slider/Fader on the face
Slider/Fader on the face
Input # 1
Trim Gain Pot
Trim Gain Pot
Trim Gain Pot
Input # 2
Trim Gain Pot
Trim Gain Pot
Trim Gain Pot
Input # 3
Trim Gain Pot
Trim Gain Pot
Trim Gain Pot
Input # 4
Trim Gain Pot
NA
NA
