CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number Decal
(under frame)
Model No. NTEX02910.0
Serial No.
Write the serial number in the
space above for reference.
USER'S MANUAL
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-825-2588
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
www.nordictrack.com
2

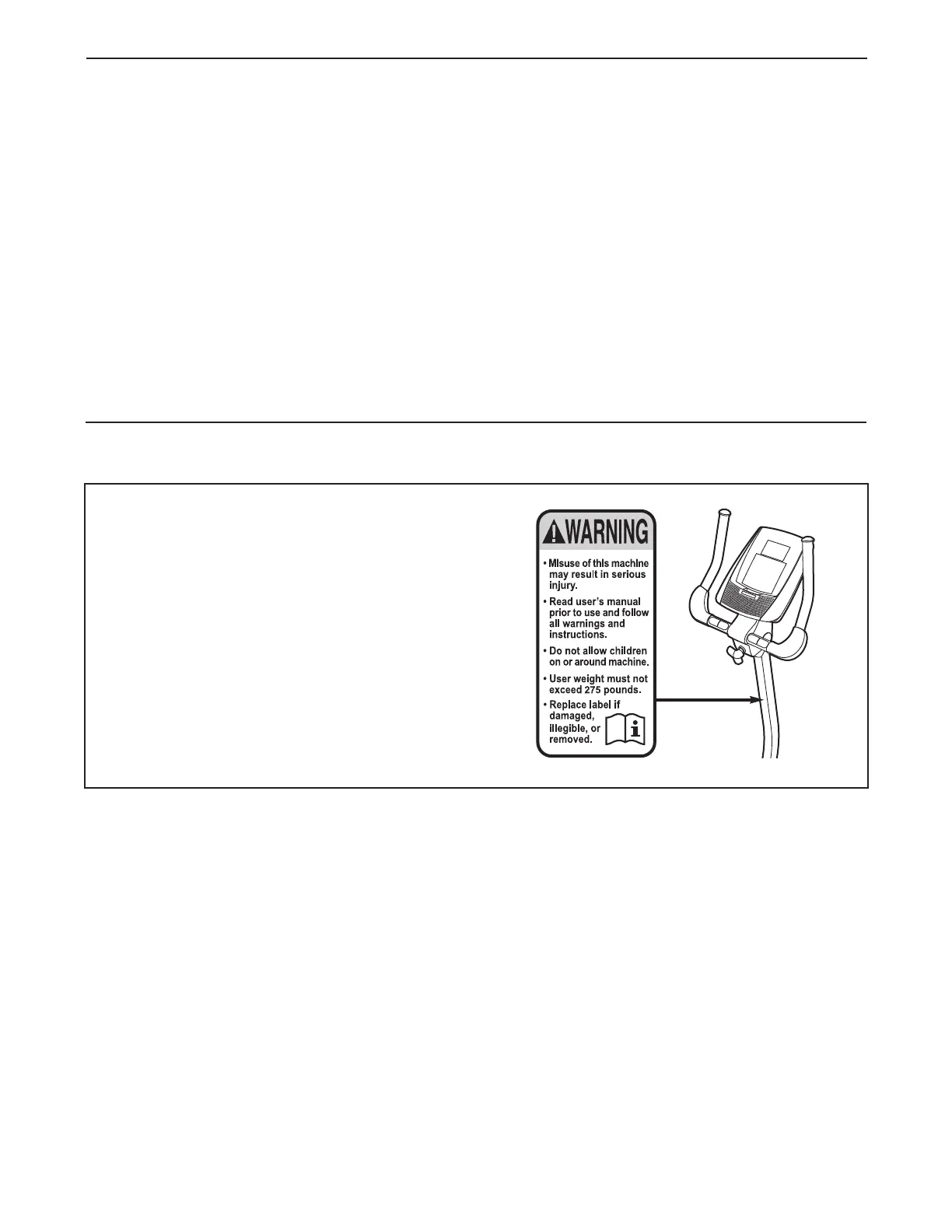

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see the
front cover of this manual and request a free
replacement decal. Apply the decal in the location
shown. Note: The decal(s) may not be shown at
actual size.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE EXERCISE BIKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
NordicTrack is a registered trademark of ICON IP, Inc.
3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 275 lbs.
(125 kg).
11. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. Always keep your back straight while using
the exercise bike; do not arch your back.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS
4
Handgrip Pulse Sensor
Seat
Seat Post
Seat Adjustment Knob
Leveling Foot
Leveling Knob
Wheel
Pedal/Strap
Console
Handlebar
Seat Post Knob
Adjustment Knob
BEFORE YOU BEGIN
T hank you for selecting the revolutionary NordicTrack®
GX 2.0 exercise bike. Cycling is an effective exercise
for increasing cardiovascular fitness, building
endurance, and toning the body. The GX 2.0 exercise
bike provides an impressive selection of features
designed to make your workouts at home more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
5
M4 x 16mm
Screw (90)–6
M4 x 5mm
Bright Screw
(91)–1
M10 x 95mm Patch
Screw (76)–4
M8 x 20mm
Patch Screw
(74)–4
M8 Split
Washer (75)–8
M8 Washer
(43)–2
M8 Locknut
(72)–4
M6 x 60mm Bolt Set (51)–1
M6 x 70mm Bolt Set (50)–1
M4 x 22mm
Screw (94)–2
ASSEMBLY
To hire an authorized service technician to assemble the exercise bike, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
6
1.
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 95mm Patch Screws (76).
2. Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 95mm Patch Screws (76).
1
2
3
2
76
76
1
1
To make assembly easier, read the
information on page 5 before you begin.
3
6
Adjustment
Holes
127
3. Loosen the Adjustment Knob (27) in the Frame
(1) a few turns.
Orient the Seat Post (6) as shown. Then, pull
the Adjustment Knob (27) outward and insert
the Seat Post into the Frame (1).
Slide the Seat Post (6) upward or downward to
the desired position, and release the Adjustment
Knob (27).
Move the Seat Post (6) upward or downward
slightly to make sure that the Adjustment
Knob (27) is engaged in one of the adjust-
ment holes in the Seat Post. Then, tighten the
Adjustment Knob.
7
4
23
24
75
72
26
91 6
4. Orient the Seat (23) and the Seat Carriage (24)
as shown.
Attach the Seat (23) to the Seat Carriage (24)
with four M8 Locknuts (72) and four M8 Split
Washers (75).
Slide the Seat Carriage (24) onto the Seat Post
(6). Then, slide the Seat Carriage all the way
forward and tighten the Seat Adjustment Knob
(26).
Attach an M4 x 5mm Bright Screw (91) to the
rear of the Seat Post (6).
5. Apply some of the included grease to an M6 x
70mm Bolt Set (50).
Orient the Handlebar (5) and the Upright (4) as
shown.
While a second person holds the Handlebar (5)
near the Upright (4), insert the Extension Wire
(59) upward through the Handlebar.
Tip: Avoid pinching the Extension Wire (59).
Attach the Handlebar (5) to the Upright (4) with
the M6 x 70mm Bolt Set (50) and two M8
Washers (43).
Then, attach an M6 x 60mm Bolt Set (51)
through the lower bracket on the Handlebar (5).
5
59
5
43
43
50
51
51
50
4
Grease
Avoid pinching the
Extension Wire (59)
8
6
90
6. While another person holds the Console (13)
near the Handlebar (5), connect the console
wires to the Extension Wire (59) and the Pulse
Wire (61).
Insert the excess wire downward into the
Handlebar (5) or upward into the Console (13).
Tip: Avoid pinching the wires. Attach the
Console (13) to the Handlebar (5) with four M4
x 16mm Screws (90).
Avoid pinching
the wires
13
Console
Wires 61
59
5
7
7. Orient the Upright (4) assembly and the Pivot
Cover (12) as shown.
Slide the Pivot Cover (12) upward to the
Handlebar (5). Tip: Bend and flex the Pivot
Cover slightly to slide it over the Handlebar.
Attach the Pivot Cover (12) to the Handlebar (5)
with two M4 x 16mm Screws (90) and two M4 x
22mm Screws (94).
Pivot the Handlebar (5) until the hole in the
Handlebar is aligned with an adjustment hole in
the Upright (4).
Tighten an Adjustment Knob (27) into the
Handlebar (5) and an adjustment hole in the
Upright (4). Make sure that the Adjustment
Knob is engaged in one of the adjustment
holes.
4
12
94
94
90
90
27
Hole
Adjustment
Holes
5
9
8
75
75
75
74
74
58
59
8. Slide the Front Shield Cover (7) upward onto
the Upright (4).
While another person holds the Upright (4) near
the Frame (1), connect the Extension Wire (59)
to the Main Wire (58).
Insert the Upright (4) into the Frame (1).
Tip: Avoid pinching the wires. Attach the
Upright (4) with four M8 x 20mm Patch Screws
(74) and four M8 Split Washers (75).
Slide the Front Shield Cover (7) downward to
the Frame (1) and press it into place.
4
7
1
Avoid pinching
the wires
9
9. Identify the Right Pedal (21), which is marked
with an “R.”
Using an adjustable wrench, thefirmly tighten
Right Pedal (21) into the Right Crankclockwise
Arm (19).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
IMPORTANT: Tighten both pedals as firmly
as possible. After using the exercise bike for
one week, retighten the pedals. For best per-
formance, keep the pedals tightened.
Adjust the strap on the Right Pedal (21) to the
desired position, and press the ends of the
straps onto the tabs on the Right Pedal. Adjust
the strap on the Left Pedal (not shown) in
the same way.
19
Strap
Tab
21
10
10. Plug the Power Adapter (67) into the receptacle
on the frame of the exercise bike.
To plug the Power Adapter (67) into an outlet,
see HOW TO PLUG IN THE POWER
ADAPTER on page 11. 67
11. Make sure that all parts are properly tightened before you use the exercise bike. Note: Some hard-
ware may be left over after assembly is completed. Place a mat under the exercise bike to protect the
floor or carpet.
10
Termékspecifikációk
| Márka: | NordicTrack |
| Kategória: | Szobakerékpár |
| Modell: | GX 2.0 |
Szüksége van segítségre?
Ha segítségre van szüksége NordicTrack GX 2.0, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek
Útmutatók Szobakerékpár NordicTrack
27 Augusztus 2024
27 Augusztus 2024
27 Augusztus 2024
26 Augusztus 2024
26 Augusztus 2024
26 Augusztus 2024
26 Augusztus 2024
26 Augusztus 2024
20 Augusztus 2024
19 Augusztus 2024
Útmutatók Szobakerékpár
- Szobakerékpár Tunturi
- Szobakerékpár Medion
- Szobakerékpár Crivit
- Szobakerékpár Medisana
- Szobakerékpár Toorx
- Szobakerékpár Reebok
- Szobakerékpár Crane
- Szobakerékpár Tacx
- Szobakerékpár Body Sculpture
- Szobakerékpár Horizon Fitness
- Szobakerékpár Hammer
- Szobakerékpár Horizon
- Szobakerékpár Bremshey
- Szobakerékpár Kettler
- Szobakerékpár Christopeit
- Szobakerékpár Lanaform
- Szobakerékpár Taurus
- Szobakerékpár Domyos
- Szobakerékpár Capital Sports
- Szobakerékpár Thane
- Szobakerékpár Maxxus
- Szobakerékpár Dunlop
- Szobakerékpár Finnlo
- Szobakerékpár LifeSpan
- Szobakerékpár Life Fitness
- Szobakerékpár Stamina
- Szobakerékpár Infiniti
- Szobakerékpár DS Produkte
- Szobakerékpár Abtronic
- Szobakerékpár Precor
- Szobakerékpár Tel Sell
- Szobakerékpár Body Solid
- Szobakerékpár BH Fitness
- Szobakerékpár VirtuFit
- Szobakerékpár Batavus
- Szobakerékpár Jocca
- Szobakerékpár Nautilus
- Szobakerékpár Bowflex
- Szobakerékpár Vision Fitness
- Szobakerékpár Marcy
- Szobakerékpár LifeGear
- Szobakerékpár Skandika
- Szobakerékpár SportsArt
- Szobakerékpár York Fitness
- Szobakerékpár Kayoba
- Szobakerékpár Hastings
- Szobakerékpár Sportplus
- Szobakerékpár Elite
- Szobakerékpár Matrix
- Szobakerékpár Flow Fitness
- Szobakerékpár Jetstream
- Szobakerékpár Body Action
- Szobakerékpár Xterra
- Szobakerékpár Cardiostrong
- Szobakerékpár Magene
- Szobakerékpár Inspire
- Szobakerékpár Fit Bike
- Szobakerékpár Vermeiren
- Szobakerékpár Weslo
- Szobakerékpár DKN
- Szobakerékpár Energetics
- Szobakerékpár Darwin
- Szobakerékpár Weider
- Szobakerékpár Joy Sport
- Szobakerékpár Slazenger
- Szobakerékpár Hollandia
- Szobakerékpár Schwinn
- Szobakerékpár Focus Fitness
- Szobakerékpár Vitalmaxx
- Szobakerékpár Rambler
- Szobakerékpár Quality Sports
- Szobakerékpár Life Gear
- Szobakerékpár Klarfit
- Szobakerékpár Senz Sports
- Szobakerékpár Tommy Teleshopping
- Szobakerékpár DC Athletics
- Szobakerékpár ProForm
- Szobakerékpár Ergo-fit
- Szobakerékpár Sportop
- Szobakerékpár Pro-form
- Szobakerékpár Waterrower
- Szobakerékpár Sole Fitness
- Szobakerékpár Sportstech
- Szobakerékpár Stairmaster
- Szobakerékpár StarTrac
- Szobakerékpár Technogym
- Szobakerékpár S Sports
- Szobakerékpár RB Sports
- Szobakerékpár Athlett
- Szobakerékpár Kroon
- Szobakerékpár MPF
- Szobakerékpár Rossler
- Szobakerékpár Fuel Fitness
- Szobakerékpár Omni
- Szobakerékpár Media Shop
- Szobakerékpár StrengthMaster
- Szobakerékpár Stamm
- Szobakerékpár Viking Choice
- Szobakerékpár Motion
- Szobakerékpár Gymform
- Szobakerékpár Everfit
- Szobakerékpár Beny Sports
- Szobakerékpár Vasa
- Szobakerékpár Emotion Fitness
- Szobakerékpár Sporttronic
- Szobakerékpár Wonder Core
- Szobakerékpár Fitmaxx
- Szobakerékpár Icon
- Szobakerékpár Perfectum Fitness
- Szobakerékpár Proteus
- Szobakerékpár Vibrofit
- Szobakerékpár Kendox
- Szobakerékpár Spokey
- Szobakerékpár U.N.O.
- Szobakerékpár Yellow Sport
- Szobakerékpár Powerpeak
- Szobakerékpár Rebblo
- Szobakerékpár Keiser
- Szobakerékpár Delta Sport - Lidl
- Szobakerékpár Eco Run
- Szobakerékpár LEG MAGIC
- Szobakerékpár Assault Bike
- Szobakerékpár Vibroplate
- Szobakerékpár Bremshey Sport
- Szobakerékpár Blumill
- Szobakerékpár BodyCraft
- Szobakerékpár Wahoo
- Szobakerékpár First Degree
- Szobakerékpár MP Products
- Szobakerékpár BodySculpture
- Szobakerékpár Icon Sport
- Szobakerékpár Bodystrong
- Szobakerékpár Motive Fitness
- Szobakerékpár Elite Fitness
- Szobakerékpár Spirit
- Szobakerékpár Star Uno
- Szobakerékpár Van Speijk
- Szobakerékpár Octane Fitness
- Szobakerékpár Vibrafit
- Szobakerékpár Dr.Kern
- Szobakerékpár MX Select
- Szobakerékpár HMM
- Szobakerékpár Body Action - Tommyteleshopping
- Szobakerékpár Impec
- Szobakerékpár Xelus
- Szobakerékpár Body Bike
- Szobakerékpár Assault Fitness
- Szobakerékpár Striale
Legújabb útmutatók Szobakerékpár
10 Április 2025
10 Április 2025
10 Április 2025
10 Április 2025
10 Április 2025
10 Április 2025
10 Április 2025
10 Április 2025
10 Április 2025
10 Április 2025
