Oldal 1/12

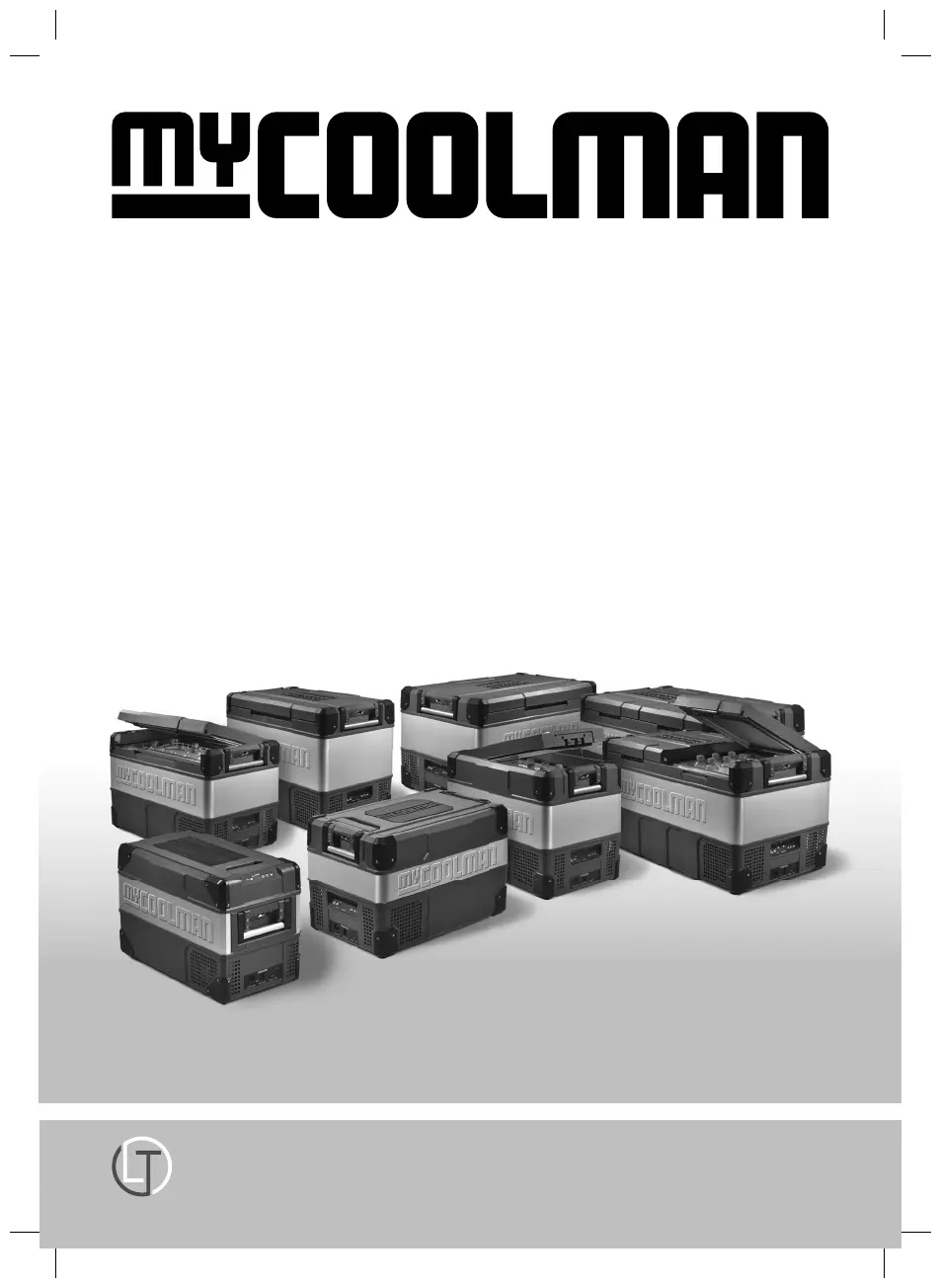

CCP FRIDGE·FREEZER
LEISURE-TEC Australia Pty Ltd
Operation Manual
for AC/DC Fridge·Freezer
Single Zone Models CCP 30 / 36 / 44 / 60 / 73 / 105
Dual Zone Models CCP 69 / 85 / 96
www.mycoolman.com.au
Important Safety Warnings page 2
Important Product Information page 3
Product Features page 3
LED Control Panel & Operation Instructions page 4-5
Bluetooth Mode Instructions page 6
Two Way Opening and Removable Lid page 7
Emergency Override page 8
Cleaning & Maintenance page 8
Troubleshooting page 9
Status Indicator page 10
Notes page 11
Product Specications page 12
Warranty Terms & Conditions page 12
• DO NOT use if any of the electrical cables or
plugs are worn or frayed. Replace with original
manufacturers parts.
• ALWAYS check cables for mechanical damage,
cuts in the insulation, heat / moisture
damage before use. If in any doubt REPLACE.
• DO NOT handle electrical exes with wet
hands.
• DO NOT place electrical items in refrigerator.
• If your fridge/freezer has been o with food
stored, do not consume if in any doubt!
• Repairs should only be carried out by a
suitably qualied and authorized person.
Poor repair could be dangerous.
• DO NOT store dangerous items in the
appliance, such as spray cans, explosives,
and ammable liquids / propellants.
• ALWAYS leave room for airow around the
contents stored in the refrigerator to ensure
optimum performance.
• DO NOT operate this appliance in the rain.
• DO NOT allow children to play with the
appliance.
• Small children must be supervised when
around all electrical appliances.
• DO NOT allow children or pets to climb inside
appliance.
• ALWAYS disconnect before cleaning.
• Food must be stored in suitable and
appropriate containers.
• If your appliance is plugged in to a DC vehicle
socket – ensure that you disconnect from
power when you stop. Or use the battery
protection (page 5).
Don’t come back to a at battery!
• DO NOT ll appliance with ICE, WATER
or other liquid.
• DO NOT attempt to remove frost with scraper
or knife. Serious damage to cooling system
could occur.
• Buildup of heat in a vehicle can be extreme,
‘shutdown‘ will occur if cooling is not possible.
CCP FRIDGE·FREEZER
Contents
Important Safety Warnings
page 2
• Best performance is achieved in ambient
temperatures between +10 °C and + 43 °C.
• Temperatures above +32 °C may see a slight per-
formance drop, and power consumption increase.
• The lower the ambient temperature, the lower
the power usage. In order to maximize effi ciency,
keep the unit in a cool location out of direct
sunlight.
• When using the unit ensure the circuit being used
has a fuse or circuit breaker, recommended size
for DC 12 Volt is 10 Amp, DC 24 Volt is 5 Amp.
• Make sure the voltage is within the correct
range for socket and cable being used.
• Do not place any electrical devices inside
the refrigerator as they may be damaged.
• Your unit requires good ventilation, especially
around the vents of the refrigerator; allow a
gap of at least 100 mm around all vents.
• Do not allow a large amount of frost to
build up on the inside walls as this may
impair cooling.
• Defrost by turning the unit o . Once frost
has melted, remove the bung plug to
drain any excess water and wipe out any
remaining moisture with a clean cloth.
• It is recommended to operate the unit on a at
surface, but it will operate at angles up to 30 º.
12
11
10
9
87
5
5
4
3
2
1
6
13
1 Powered by 12/24 Volt DC compressor
2 Two way opening lid (not CCP 30/36/44)
3 Bottle openers on both sides
4 Flat carry and tie down handles
5 Digital display for each compartment
(only Dual Zone models)
6 Multi-voltage system AC (240v) and
DC (12/24v) with battery protection
DC inlet on two ends
7 USB port and charger with 3000 mA
8 Stylish robust corners for protection
9 LED interior light
10 Divided compartment storage
11 Fully refrigerated stepped compartment
12 Headroom for upright standing bottles
13 Bluetooth App for mobile use
Damage may occur if the DC cable supply is
undersized. This will cause low voltage.
As a guide, from the battery to the appliance
follow this guide.
Important Product Information
Product Features
page 3
NOTE:
At inclinations of more than 15 ° the
compressor noise level may increase
(without any e ect on the cooling
performance).
CCP FRIDGE·FREEZER
Cable cross
section
12v maximum
cable length
24v maximum
cable length
mm² Metre Metre
2,5 2,5 5
4 4 8
6 6 12
10 10 20
