Használati útmutató Motorola ROKR 820
Olvassa el alább 📖 a magyar nyelvű használati útmutatót Motorola ROKR 820 (50 oldal) a Speaker kategóriában. Ezt az útmutatót 2 ember találta hasznosnak és 2 felhasználó értékelte átlagosan 4.5 csillagra
Oldal 1/50
Model: ROKR 820
QUICK START GUIDE / SNELSTARTGIDS / GUIDE DE DÉMARRAGE
RAPIDE / KURZANLEITUNG / SKRÓCONA INSTRUKCJA OBSŁUGI /
PŘÍRUČKA PRO RYCHLÉ POUŽITÍ / PRÍRUČKA RÝCHLYM
SPUSTENÍM / GUÍA DE INICIO RÁPIDO / GUIDA RAPIDA
ALL'AVVIO / HURTIG START GUIDE / GUIA DE INÍCIO RÁPIDO /
SNABBSTARTSGUIDE / HIZLI BAŞLANGIÇ KILAVUZU / КРАТКОЕ
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ / КОРОТКЕ КЕРІВНИЦТВО
КОРИСТУВАЧА / 快速入门指南 / / 快速入門指南 クイックスタートガイ
ド / 빠른 시작 안내서
2
English (EN)
1. INTRODUCTION
Congratulations on your purchase! This manual includes information about “ ” Bluetooth Party Speaker. We ROKR 820
encourage you to take a few minutes to read this manual, which describes the product and includes step-by-step
instructions to help you to set up and get started. Read and understand all the safety instructions before using your
product.
2. WHAT’S IN THE BOX
1) Mainunit
2) DC adaptor
3) Aux cable
4) microphone
5) User manual
3. PRODUCT OVERVIEW
1 53 7
8
9 11 13 15
10 12 14
2 4 6
17
16
18
1) Mic volume -/+
2) USB port
3) Volume -/+ knob
4) Aux in jack
5) Mic 1 jack
6) Mic 2 Jack
7) Echo -/+
8) Power and Mode(BT/FM/USB/AUX)
9) Light control button
10) Bluetooth button
11) EQ / TWS button
12) Skip -
13) Play/Pause
14) Skip +
15) Bass boost
16) LED Display
17) Handle
18) DC jack (12V/1.5A)
4. POWER/CHARGING
1) Connect the DC pin of the DC adaptor into the speaker’s DC in charging port. Connect the other end of the adaptor
to an external power source. It takes about 6-8 hours to fully charge the speaker.
2) Press and hold the Power button 0
3 second to turn on the speaker.
3) Press the power button 0 3 seconds to turn off the speaker.
4) When powered on you can use this speaker as a battery charger for your rechargeable USB devices.
Connect your USB device to the USB port on the top of this Speaker.
The speaker is powered by the built-in rechargeable battery. After power-on, the display shows the battery level
immediately, you can check the status of the Speaker battery by display.
STANDBY MODE
The product will enter into sleep mode after 15 minutes without operation.
• If the Speaker is powered by the battery, it will auto power off if no action for 15 minutes.
• If the Speaker powered by AC or DC power source, the product will enter standby(Off) mode if no action for 15
minutes.
3

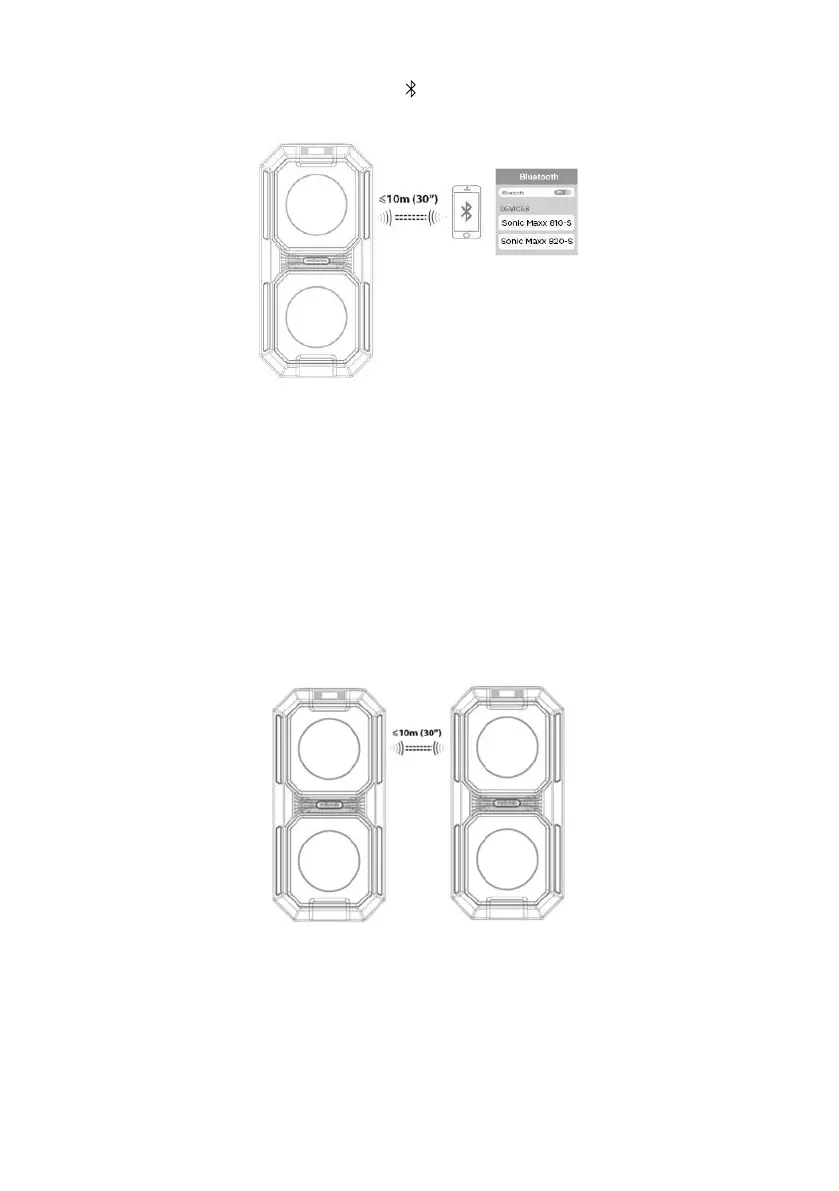

5. BLUETOOTH CONNECTION
You can use your Speaker “ ” as an external speaker for your Bluetooth enabled smartphone or tablet. ROKR 820
1) Press Mode button to set to Bluetooth mode, or press button to direct to Bluetooth pairing mode. (you can Press
and hold the Play/Pause button to erase the previous connectings).
2) Choose “ on your mobile device to connect. ROKR 820"
3) Once successfully connected, audio will stream from your Bluetooth device to this speaker.
NOTES:
• This speaker can memorize a maximum of 8 paired devices. The ninth paired device will replace the first one.
• The operational range between this speaker and a Bluetooth device is approximately 10 meters (30 feet).
• If a PIN code is requested while connecting a Bluetooth device, enter “0000”.
• Bluetooth performance can be affected by the distance between this product and your Bluetooth device and the
environment of operation.
TO TERMINATE THE BLUETOOTH-ENABLED DEVICE:
• Turn off this speaker;
• Disable Bluetooth on your device;
• Move this speaker beyond the Bluetooth operational range.
TO RECONNECT THE BLUETOOTH-ENABLED DEVICE:
• When you turn on this speaker next time, it will reconnect to the last connected device automatically;
• If not, manually select “ on your Bluetooth device to start a connection.ROKR 820"
TWS MODE
Use two “ speakers can connect to each other in TWS mode. ROKR 820"
1) Press and hold the TWS button of either speaker for 3 seconds, then release, TWS connection will be made with the
master speaker. By default, the speaker which connected to your smartphone is the master speaker (R channel), the
other one is the slave speaker (L channel).
2) In TWS mode, press and hold the TWS button for 3 seconds on either speaker or power off the speaker to exit the
TWS mode.
Termékspecifikációk
Márka: | Motorola |
Kategória: | Speaker |
Modell: | ROKR 820 |
