Oldal 1/7
Listed by
Underwriters
Laboratories
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
MONOGRAM 30" FULLY INTEGRATED CUSTOMIZABLE
REFRIGERATORS FOR DUAL INSTALLATION
ZIC30GNNII/
ZIK30GNNII
Product Specification Revised 8/19

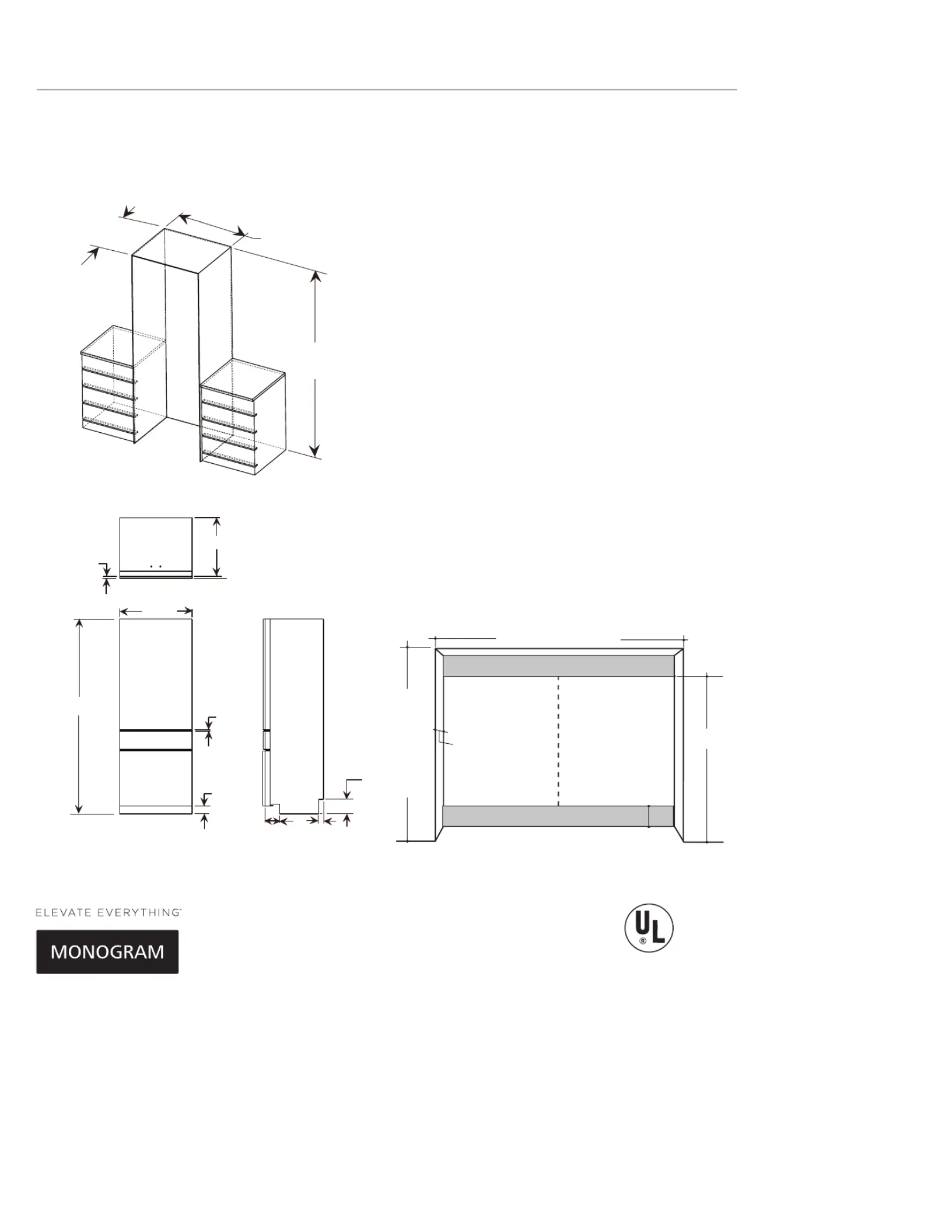

The Installation Space
The finished cutout width must be 30". The cutout depth must be 25" for flush installations.
- The front face of the refrigerator fits flush with 25"
depth adjacent cabinets.
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install a
properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be
located on rear wall as shown.
Note: GFI (ground fault interrupter) is not
recommended.
Water Line
- A cold water supply is required for automatic
icemaker operation. The water pressure must be
between 40 and 120 p.s.i.
- Route 1/4" OD copper or GE SmartConnect™ plastic
tubing between the house cold water line and the
water connection location.
- Tubing should be long enough to extend to the
front of the refrigerator. Allow enough tubing to
accommodate a bend leading into the water line
connection.
- Water line can enter an opening through the floor or
back wall.
- Install a shut-off valve between the icemaker water
valve and cold water supply in the home.
Note: When two units are placed side
by side, order heater kit ZUG30.
60" ed Widthsh
Wall
View
84"
max
80"
min
Finished
Opening
25"min. Cutout
epth
77"
6"
Anti-tip location do not obstruct
Water Tube & Electrical Outlet
Fini
D
3/4"
23-3/4"
29-3/4"
1/8"
1-1/4"
4"
3-1/8"
Height adjustable
from 79-3/8" to 80-3/8" *
4"
Height options
80" or * 84"
25" min. depth
30" Finished Width
Listed by
Underwriters
Laboratories
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
MONOGRAM 30" FULLY INTEGRATED CUSTOMIZABLE
REFRIGERATORS FOR DUAL INSTALLATION
ZIC30GNNII/
ZIK30GNNII
Product Specification Revised 8/19
Customization Basics:
These refrigerators are factory set for a right hinged
door swing. The door swing is reversible. Choose
an RH model with hinge on the right side; the door
swings left to right. Choose an LH model with hinge
on the left side; the door will swing right to left.
Note:
For 84" panels, the top space behind the top panel
can be enclosed with wood and stained by the
cabinet maker to match adjacent cabinetry.
Door Handles
Custom handles of your choice, supplied by your
cabinetmaker, can be installed. If desired, you may
order the Monogram Contemporary or Pro stainless
steel handle kits for custom panels.
Optional Accessory Kits
ZUG30: For side-by-side installation
Minimalist Collection
Handle Kit: ZKGC3H3CNSS
Statement Collection
Handle Kit: ZKGC3H3PNSS

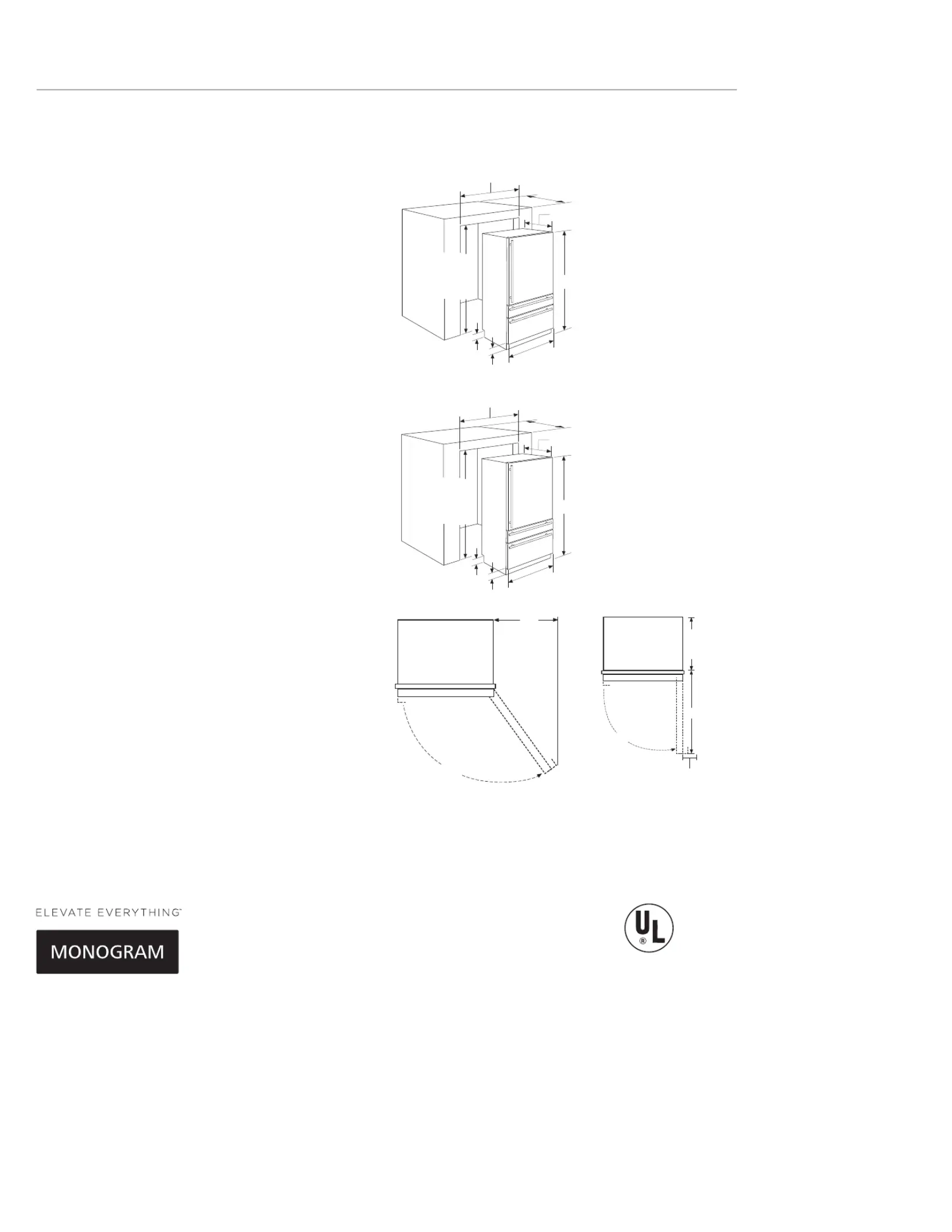

Door Swing Clearances
The installation must allow for clearances to adjacent
walls or cabinets. These refrigerators are equipped
with a 2-position door stop. The factory-set 115°
door swing can be adjusted to 90° if clearance to
adjacent cabinets or walls is restricted.
Product Dimensions
Allow 17" minimum clearances for a full 115° door swing.
- 4" minimum clearance is required when the door swing
is adjusted to 90°.
- See door swing illustrations to determine interaction
with adjacent cabinets or countertops.
17"
Min. to
Wall
115˚
115 Door Swing˚
23-7/8"
Behind
Frame
36-3/4"
90˚
90 Door Swing˚
4" Min. to Wall
30"
Finished Width 25"
Cutout Depth
29-3/4"
Case Width
* 80" High installation.
The refrigerator can
be adjusted to fit
into a cutout that
is 79-1/2" min. to
80-1/2" max. height.
Use leveling legs
and wheels for a
maximum 1" height
adjustment.
80-1/2" Max.*
79-1/2" Min.
Finished
Opening
4"
4"
80"*
24-3/4"
* 84" High installation.
The refrigerator can
be adjusted to fit
into a cutout that
is 83-1/2" min. to
84-1/2" max with
the appropriate door kit.
Use leveling legs
and wheels for a
maximum 1" height
adjustment.
30"
Finished Width 25"
Cutout Depth
29-3/4"
Case Width
84-1/2" Max.*
83-1/2" Min.
Finished
Opening
4"
4"
84"*
24-3/4"
Listed by
Underwriters
Laboratories
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
MONOGRAM 30" FULLY INTEGRATED CUSTOMIZABLE
REFRIGERATORS FOR DUAL INSTALLATION
ZIC30GNNII/
ZIK30GNNII
Product Specification Revised 8/19

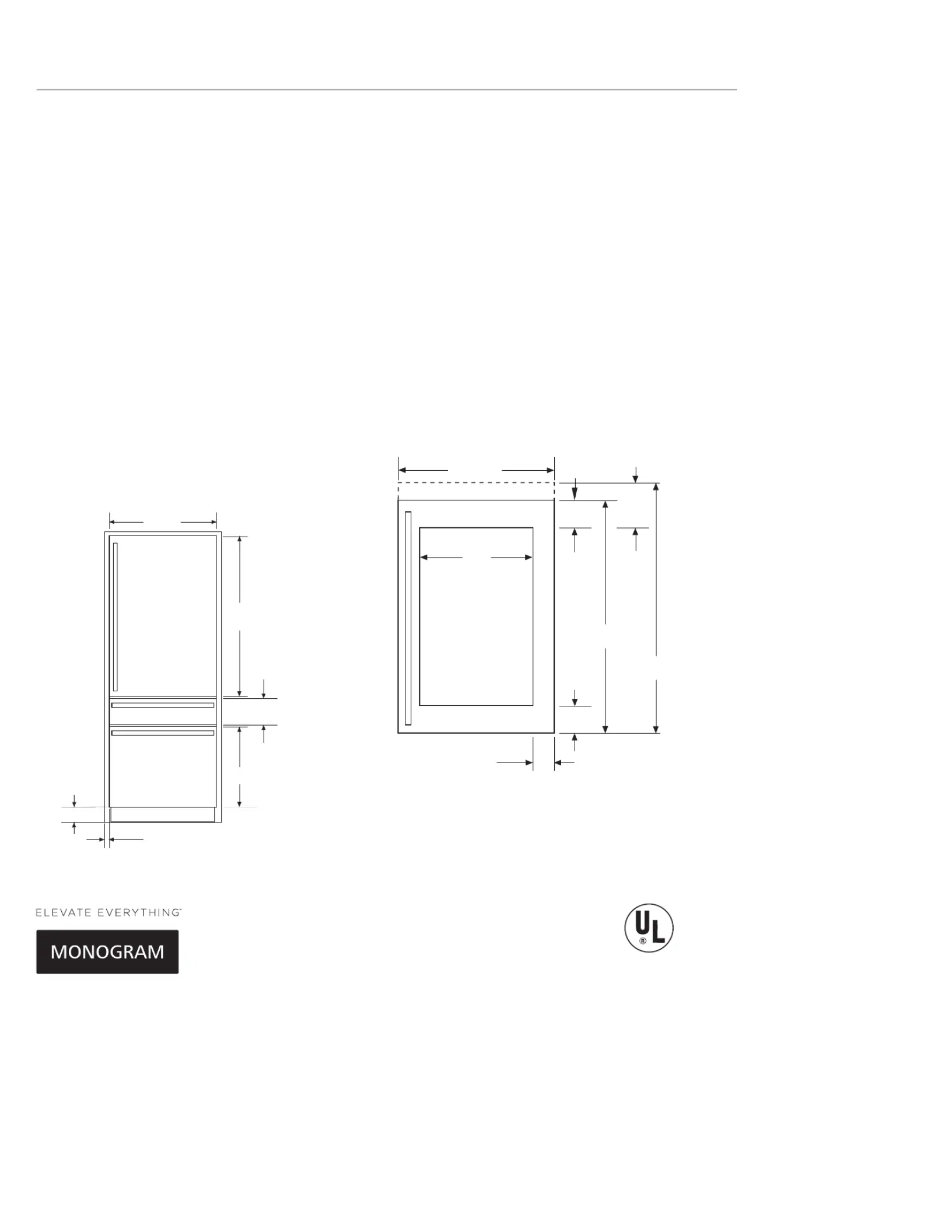

SS PANEL ACCESSORY & DIMENSIONS
3/4"-Thick Solid Door Panel Options
For 80" High Installation
- LH Solid SS Door - Model ZKSSN809NLH
- RH Solid SS Door - Model ZKSSN804NRH
For 84" High Installation the door panel is not
reversible for the 84" installations. A left or right-
hand door panel accessory must be purchased.
- LH Solid SS Door - Model ZKSSN849NLH
- RH Solid SS Door - Model ZKSSN844NRH
Note: Each kit also contains matching freezer
and cutomizable drawer panels and toekick.
3/4"-Thick Frame for Glass Door Options
For 80" High Installation
- LH Glass Door - Model ZKGSN809NLH
- RH Glass Door - Model ZKGSN804NRH
For 84" High Installation The door panel is not
reversible for the 84" installations. A left or right-
hand door panel accessory must be purchased.
The top space behind the top panel can be
enclosed with wood and stained by the cabinet
maker to match adjacent cabinetry.
- LH Glass Door - Model ZKGSN849NLH
- RH Glass Door - Model ZKGSN844NRH
Note: Each kit also contains matching freezer
and convertible drawer panels and toekick.
*Pro style window is slightly smaller.
Optional Accessory Kits#:
- Side-by-Side Installation Kit - ZUG30
- Minimalist Collection Handle Kit: ZKGC3H3CNSS
- Statement Collection Handle Kit: ZKGC3H3PNSS
45-3/8" for 80" Installation
49-3/8" for 84" Installation
Fresh
Food
Cabinets
29-3/4"
7-9/16"
22-3/4"
Ice Drawer
Freezer
Convertible
Drawer
4"
1/8" Min.*
29-3/4"
Glass Panel
for Fresh
Food
10"
84"
Install.
6"
80"
Install.
3-3/8"
6"
23"
45-3/8"
49-3/8"
