VAC N BLO VNB SERIES

ALL MODELS ARE: Sturdy All HP Twin Fan; 10.8 Amps; 1,170 Watts; Steel; 4.0 12’ Cord w/ Halo End

Cap to wrap cord. 2 Speed or Variable Speed; Shoulder Strap, 2-20 Extension Wands, Upholstery Nozzle,

Crevice Tool,

Different models and what they come with:

VNB4FBR ( -112730):112 Dual Power Unit with dual mounted legs and cord storage wrap, wall/table

mounting bracket, 2 x 6 Ft. Flexible Hose, Deluxe 4 Piece Micro Detailing Attachments, Blower Nozzle,

Inflator Adapter, Upholstery Nozzle & Dust Brush.

VNB-83BA (112-112273): Crevice Tool, Blower Nozzle, Dust Brush, Micro Tool Kit, Inflator Adaptor. &

locks), Floor/Wall Brush, Round Dust Brush, Fabric Tool, Upholstery Nozzle 3 Disposable Bags.&

VNB-94BD (112-112327): 1 x 6 Ft. Flexible; Blower Nozzle, Combo Swivel Floor Brush, Dust Brush, Micro

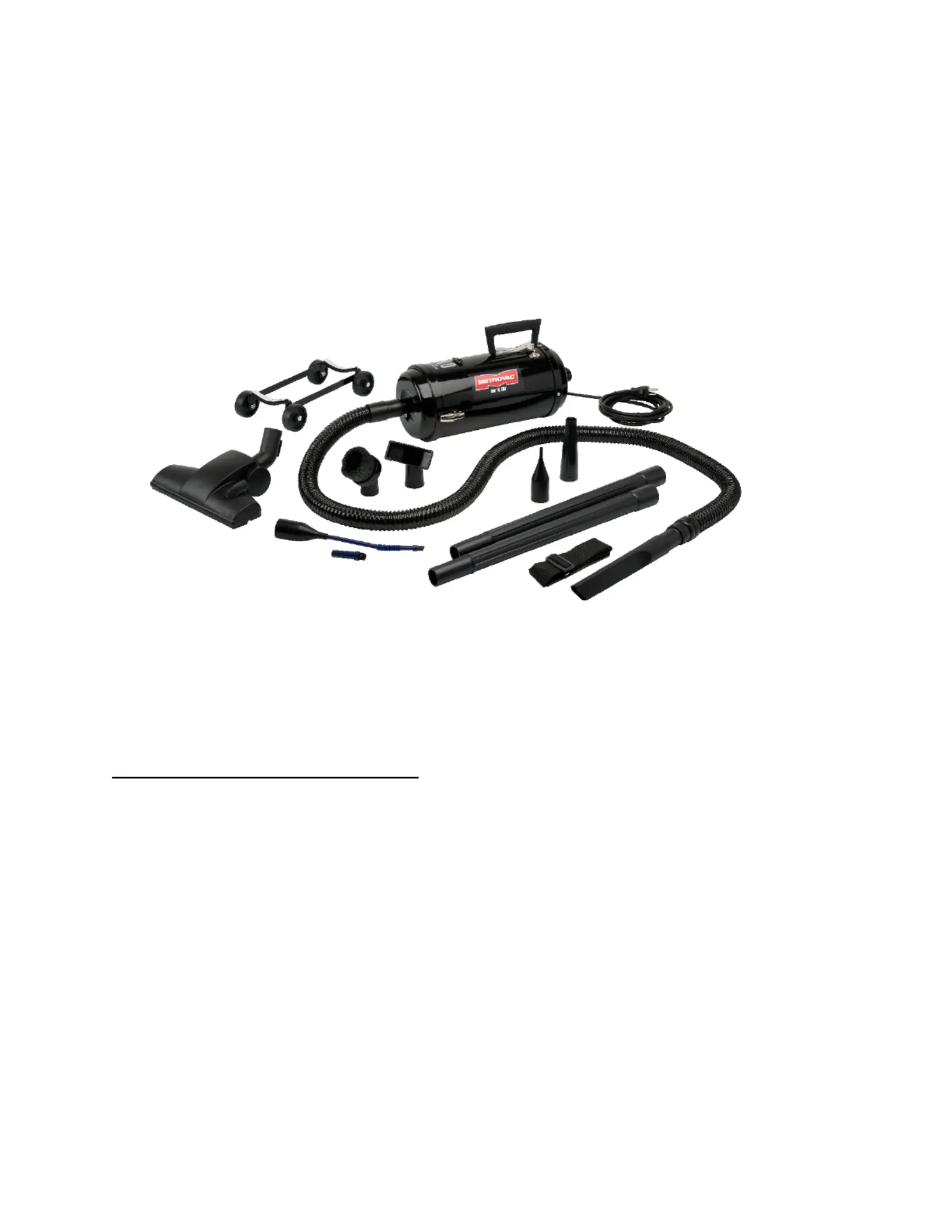

Tool Kits, Inflator Adaptor, Upholstery Nozzle & 4 Wheel Dolly. (Model shown.)

VNB-73B (112-045014): Dual Power Unit, 3-foot Flexible Hose, Inflator Adaptor & Upholstery Nozzle.

INSTRUCTIONS (Instructions are general for all VNB Models. Some of the below information may not

pertain to your specific model. Check list above for parts and accessories that go with your machine):

VACUUM:

• Depress buttons on hose coupling; insert into vacuum front end cap.

• To reach those inaccessible areas, connect the Extension Wands to the hose. Eliminate bending to

clean low areas and stretching to reach the high areas.

• Start the vacuum by pushing the On/Off Switch (2 speed) to the left or right depending on speed

desired, or turn the knob clockwise to desired strength (variable).

• The Combo Floor/Rug Tool: Attach to the steel chrome extension wands to clean carpeting.

Depress pedal for bare floors or carpeting. The swivel action permits proper contact with all

surfaces.

• Floor & Wall Brush: Used with extension wands for cleaning walls, hardwood, tile, cement or

linoleum surfaces.

• Crevice Tool: Cleans those hard to reach, tight spots.

• Dust Brush: The long, soft bristles gently loosen dust furniture, blinds, moldings, windowsills, etc.

• Crevice Tool: Allows you to clean those hard- -reach places. to

• Pik-All Nozzle: Cleans stairs, upholstery, draperies, and more.

BLOWER:

To use as a blower, release clamps and remove front end cap and cloth bag, but leave foam filter in place.

Attached coupling and hose to exhaust end.

TO INFLATE INFLATABLES

To use as an inflator, release clamps and remove front end cap, cloth bag and leave filter in place. Attach

hose to exhaust end.

Inflator Adaptor: When inflating air mattresses, boats, rafts, insert hose onto exhaust end. Inflator adapters

sold separately.

ADDITIONAL PARTS FOR PURCHASE (the below items are available for purchase on our website

www.MetroVac.com; use the provided product # in the search):

• Foam Filter MVC- –56F

• Disposable Paper Bags -5PBRP –DV

• Disposable Bags with Adaptor Tube 5PBA –DV–

• Cloth Dust Bag (4 ½”) –- MVC 65

• Dusting Brush MVC 206BBB – –

• Rubber Blower Nozzle MVC 196AB – –

• Air Concentrator MVC 196AA – –

• Mini Attachment Kit MVC- –212–SK

• 6” – –Handheld Turbine Driven Rotating Brush MVC 200B

• 10 ½" Turbine Driven Revolving Brush MVC 200C – –

• 9” Swivel Brush – – MVC 190B

• Combo Carpet Nozzle / Floor Brush MVC 200A – –

• Crevice Tool MVC 188 – –

• Shoulder Strap MVC 49C – –

• Roll Round 4 Wheel Dolly 4WD –A – –

• Roll Round 4 Wheel Dolly w/ Swivel Wheels 4WDSW –A – –

• 3 – – – Piece Hadle MVC 47

• Carbon Brushes ABC –3

• 25 Ft. Cord MVC 289A – –

• Front End Cap w/ Riveted Buttons MVC 57BL – –

• Single Speed Switch MVC – –74

• Plastic Tube Adapter MVC – –55

• Halo Cord Holder MVC 83 – –

• 18/3 Cord MVC 285 – –

• 4.0 HP Twin Fan Motor MVC 157D – –

• Extension MVC 194 – –

• Combo Swivel Floor Brush w/ Large Rear Wheels MVC 200E – –

• Inflator Adapter MVC 211C – – –AS

• 3/16” Inflator Adapter – – – MVC 211D AS

• “Pik All” Utility Nozzle – –- MVC 185A

• AirForce Mounting Bracket AFBR ( ) – –1 Only for use with VNB4AFBR

• Hoses:

o 6’ Standard Flexible Hose – – MVC 202A

o Deluxe 6.5’ HeavyDuty Flexible Hose – – AFTM 211

o 3’ Flexible Hose – MVC-178A

Filtration includes paper disposable bag, permanent cloth bag, foam filter. To protect your motor,

and for maximum efficiency and log life, dispose of the used paper bag. Frequently check the

permanent cloth bag for dust/dirt buildup and caking. Shake out the permanent cloth bag

frequently. Check and replace the foam filter and filter 3 to 4 times a year.

CAUTION: If your machine has suction but does not clean when the hose is attached, remove the

hose from the suction end and place it on the blower end. Blow out the hose, it may be clogged.

Replacing / Cleaning Filter (Filter MVC-56F):

1. Take out the filter from behind the cloth bag and replace it with new or shake out.

a. You can rinse the filter and reuse, BUT IT MUST BE COMPLETELY DRY BEFORE

PUTTING BACK INTO THE MACHINE.

b. Replace it with a new filter after 3 rinses.

2. Put filter back behind cloth bag

Replacing carbon brushes (ABC-3: see additional parts list above; should be changed after about

500 hours of use):

1. Remove front endcap.

2. Find wire going to carbon brush and use flathead screwdriver to loosen tab.

3. Use Philips screwdriver to remove carbon brush mounting bracket.

4. Install tab into new carbon brush and replace mounting bracket.
