Lutron ®| 1www.lutron.com/radiora2
product specifi cations 05.15.12
369-222d
RadioRA 2 Tabletop Designer Keypads®
10 Button
5 Button
RadioRA® 2 Tabletop Designer Keypads provide
homeowners with a simple and elegant way to operate lights,
shade / draperies, motorized screens, and many other devices.
RadioRA® 2 Keypads feature large, easy-to-use buttons, plus
a unique backlit engraving option that makes the Keypads
readable any time of the day or night. The Keypad buttons
are rounded, allowing engraving to be displayed at an upward
angle, increasing readability.
The versatile design of RadioRA® 2 Tabletop Designer Keypads
allows them to be mounted on a wall, placed on top of a table,
or used as a cordless Keypad. The Keypads can be powered
by a DC adapter (see Low-Voltage Transformer spec P/N
369561, includeded with -RR models) or with 2 AAA batteries.
Models
15 Button
Model Number* Description Frequency Region
RR-T5RL-XX* 5 button with Raise /
Lower, All On and All Off.
434 MHz
North
America,
Brazil (BA
models
only
RR-T5RL-XX*-BA
RR-T10RL-XX* 10 button with Raise /
Lower, All On and All Off.
RR-T10RL-XX*-BA
RR-T15RL-XX* 15 button with Raise /
Lower, All On and All Off.
RR-T15RL-XX*-BA
RRK-T5RL-XX* 5 button with Raise /
Lower, All On and All Off.
868 MHz Europe
RRK-T10RL-XX* 10 button with Raise /
Lower, All On and All Off.
RRK-T15RL-XX* 15 button with Raise /
Lower, All On and All Off.
RK-T5RL-XX*-E Engraved Replacement Kit
RK-T10RL-XX*-E Engraved Replacement Kit
RK-T15RL-XX*-E Engraved Replacement Kit
* See below.Colors and Finishes
Colors and Finishes
Midnight
MN
Snow
SW
2 | Lutron®
product specifi cations 05.15.12369-222d
Technical Assistance: United States 1.800.523.9466
Europe +44.(0)20.7680.4481
Specifi cations
Model Numbers Keypads: RR-T5RL-XX, RR-T5RL-XX-BA, RR-T10RL-XX,
RR-T10RL-XX-BA, RR-T15RL-XX, RR-T15RL-XX-BA, RRK-T5RL-XX,
RRK-T10RL-XX, RRK-T15RL-XX
Replacement Kits: RK-T5RL-XX RK-T10RL-XX RK-T15RL-XX-E-E, -E,
Power Adapter Powered: 9 V 300 mA
See Low-Voltage Transformer spec (Lutron® P/N 369561)
Battery powered: 2 AAA alkaline (included) 1.5 V each
Typical Power
Consumption
0.6 W
Test conditions: all backlights on medium intensity, nightlight mode
enabled, six LEDs on (two presets active per column), Keypad powered
by 9 V adapter.
Regulatory Approvals Tabletop Keypad (-RR only): cULus Listed / FCC certifi ed / Industry
Canada certifi ed / COFETEL certifi ed / ASEP certifi ed / CRC certifi ed /
INDOTEL certifi ed / SUTEL certifi ed
Tabletop Keypad (-BA only): ANATEL certifi ed
Tabletop Keypad (-RRK only): CE marked
Adapter (T120-9DC-3-BL or -WH): cULus Listed; NOM certifi ed
Environment Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C),
0% to 90% humidity, non-condensing. Indoor use only.
Communications
Tabletop Designer Keypads communicate with the system through Radio
Frequency (RF) and must be located within 30 ft (9 m) of a repeater.
System devices operate on frequencies between 431.0 MHz to
437.0 MHz or 868.125MHz to 869.850 MHz.
ESD Protection Tested to withstand electrostatic discharge without damage or memory
loss, in accordance with IEC 61000-4-2.
Surge Protection Tested to withstand surge voltages without damage or loss of operation,
in accordance with IEEE C62,41-1991 Recommended Practice on
Surge Voltages in Low-Voltage AC Power Circuits.
Power Failure Power failure memory: should DC or battery power be interrupted, the
Keypad will return to its previous state when power is restored.
Mounting Mounting bracket included for optional wall mount applications.
Warranty 1 Year Limited Warranty. http://www.lutron.com/resiinfo
RadioRA 2 Tabletop Designer Keypads®
• At the press of a single button, lights fade ON
or OFF to desired levels and shades / draperies
open or close to desired positions.
• Light levels and shade / drapery positions can
be fi ne-tuned by pressing and holding the
raise / lower buttons.
• Programmable to select whole-house or single-
room preset levels or positions.
• Adjustable backlight intensity.
Design Features
• Prepaid engraving included. Redeemable for
one engraved button kit.
• Two “Wake-up” options for cordless
operation:
— “Wake-up and Activate” (default) - Single
button press will “wake up” and activate
selected button.
— “Wake-up Only” - Single button press will
“wake-up” and show status. Subsequent
press will activate button.
Lutron ®| 3www.lutron.com/radiora2
product specifi cations 05.15.12
369-222d

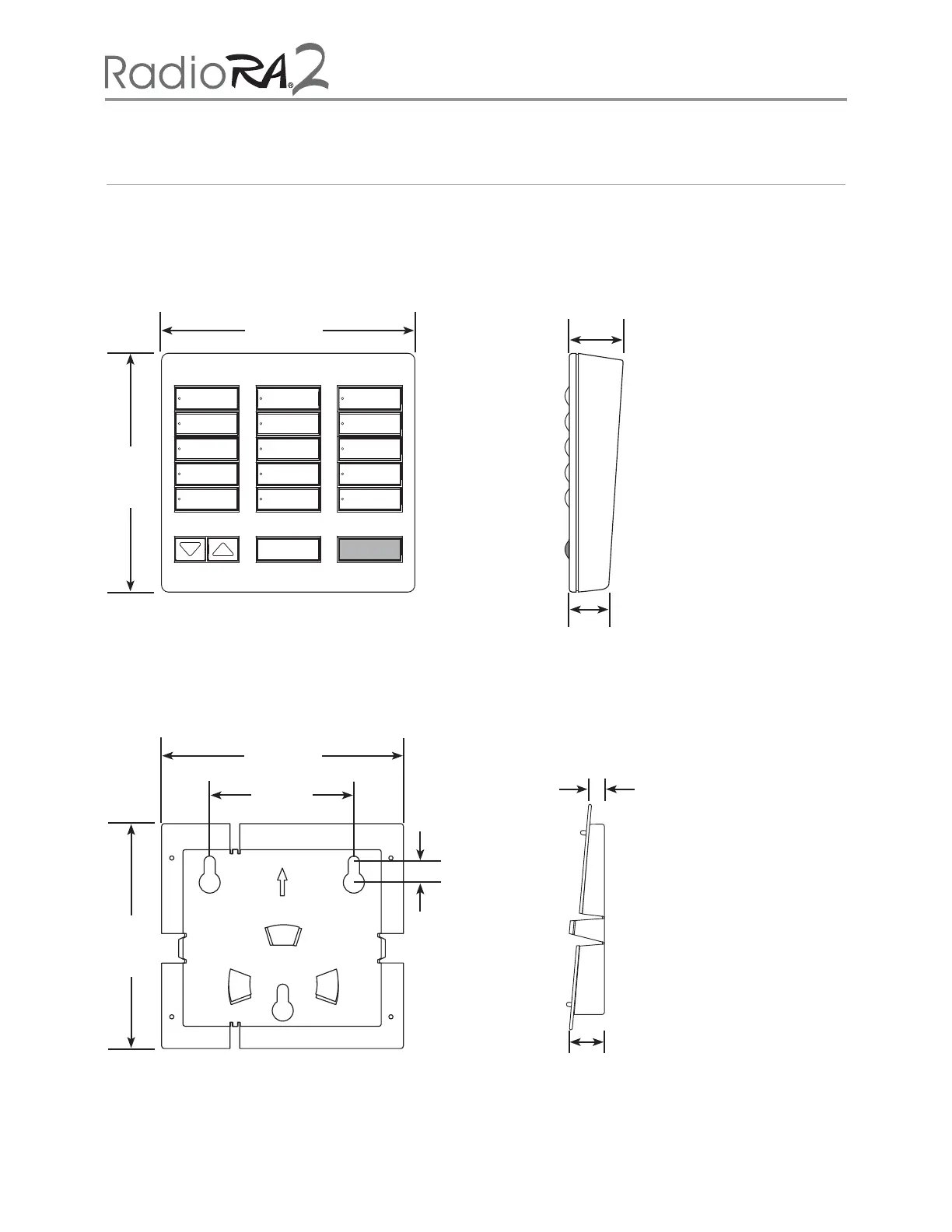

Dimensions
All dimensions are shown as
UP
2
(51)
Keypad Front View Keypad Side View
RadioRA 2 Tabletop Designer Keypads®
Mounting Bracket Front View Mounting Bracket Side View
3/4
(18)
1
(25)
2
15⁄16
(74)
3 1⁄4
(82)
3/8
(10)
3/8
(10)
5/8
(15)
3 1⁄4
(82)
3 9⁄16
(91)
in
(mm)
