Oldal 1/30

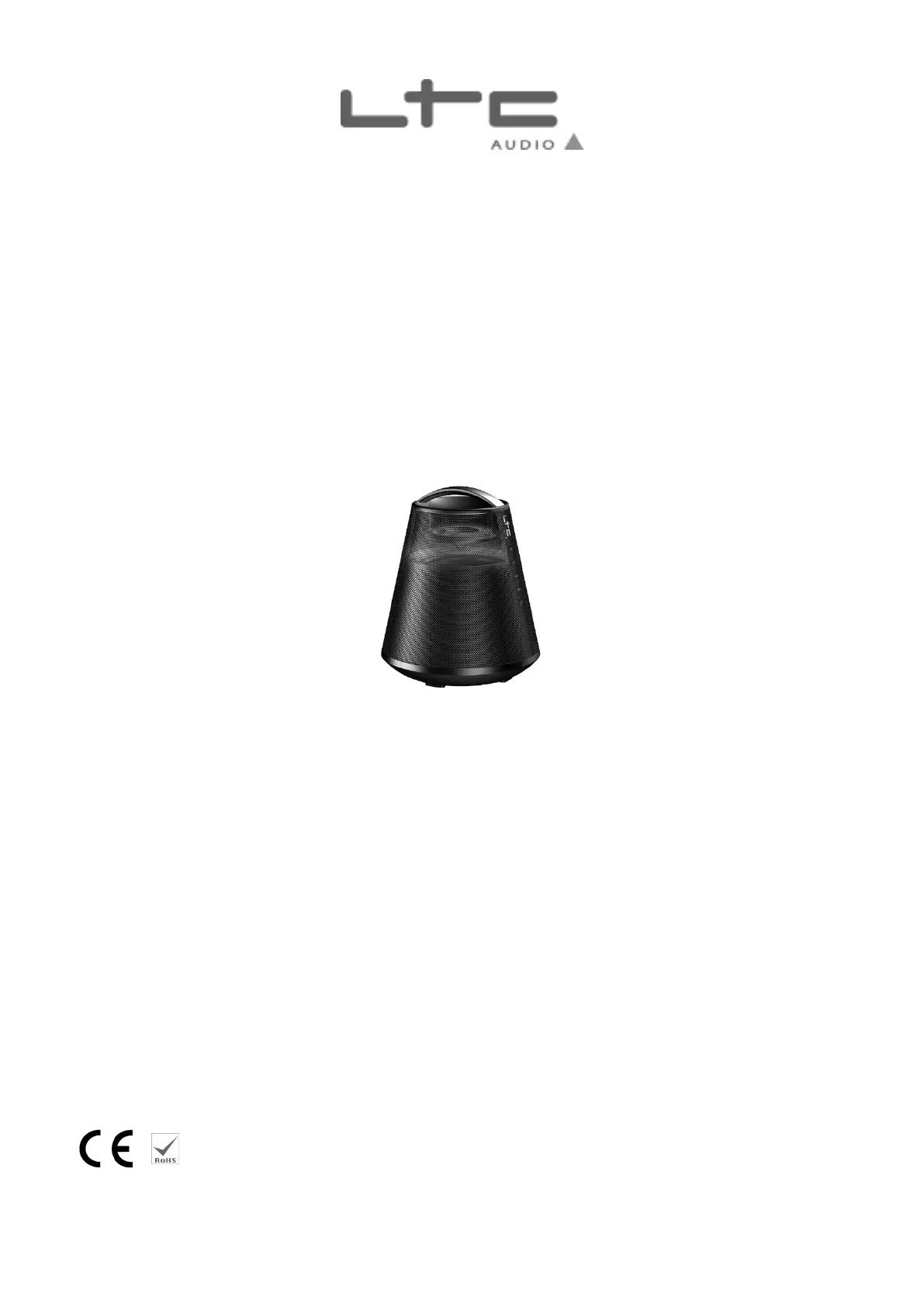

©Copyright LOTRONIC 2015 FREESOUND65 1
STAND-ALONE, LED-ILLUMINATED BLUETOOTH BOX – 6.5"/16cm 100W
ENCEINTE BLUETOOTH AUTONOME A LED 6.5"/16cm – 100W
MOBILE BLUETOOTH BOX MIT LED-BELEUCHTUNG 6.5"/16cm – 100W
STAND-ALONE, LED- – VERLICHTE BLUETOOTH BOX 6.5"/16cm 100W
SAMOSTOJNI, LED-OSVETLJEN – BLUETOOTH ZVOČNIK 6.5"/16cm 100W
BOXA BLUETOOTH STAND-ALONE CU LED 6.5"/16cm – 100W
ALTAVOZ BLUETOOTH AUTONOMO DE LED 6.5"/16cm – 100W
COLUNA 6.5”/16CM AUTÓNOMA COM BLUETOOTH, ILUMINAÇÃO LED E 100W DE POTÊNCIA
FREESOUND65- - - BK (10 7083) Black
FREESOUND65- -SI (10 7084) - Silver
FREESOUND65- -WH (10 7085) White-
GB - INSTRUCTION MANUAL
F - MODE D’EMPLOI
D - BEDIENUNGSANLEITUNG
NL - HANDLEIDING
SLO - NAVODILA ZA UPORABO
RO - MANUAL DE UTILIZARE
E - MANUAL DE USO
P - MANUAL DE INSTRUÇÕES
Imported from China by LOTRONIC SA – – B-Av. Z. Gramme 9 1480 Saintes
©Copyright LOTRONIC 2015 FREESOUND65 2
Please read the manual carefully and keep it for future reference.
The lightning flash with arrowhead symbol, within an equilateral Triangle, is intended to alert the user to the
presence of not insulated dangerous voltages within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION:
1. Do not place any recipients filled with , such as glasses or vases, on top of or directly next to liquids
the appliance. They could fall over, causing water to enter the appliance. Never pour out liquids
over the appliance. Do not place small , such as coins or paper clips, on the appliance since objects
they could fall inside the appliance ! If any liquid or and cause fire or a shock hazard objects enter
the appliance, pull immediately the mains plug out of the socket and contact a specialist.
2. 0nly pull the mains plug out of the socket by the intended gripping surface. Do not pull it by the
cable.
3. Never plug the mains plug in or out with damp or wet hands
4. Electrical appliances must be kept out of the reach of children. Be particularly careful if children are
present. Children are not aware of the hazards involved in handing electrical appliances
improperly. pliance Children could attempt to poke objects into the ap . There is a life-threatening
danger of electrocution.
5. Never place the appliance on an unstable or could be injured or the mobile surface. Persons
appliance damaged by it falling down.
6. AII persons involved in operating, installing and servicing the appliance and putting it into service
must be trained and qualified accordingly and observe these operating instructions.
7. Defective mains cables may only be replaced by specialists. Danger of shock hazard!
8. If you are not sure about the correct connection or if questions arise which are not answered by
the operating instructions, please do not hesitate to contact support or a specialist of your choice.
Consult a specialist if you are in doubt the operating principle or the safety of the product.about
9. Pleas ite unplug the the unit adaptor and switch off if you don’t use for a long time, to avoid damage
due to . voltage surges
Introduction:
This speaker can be used with any audio output device such as personal computer, DVD, VCD, LD, TV, MP3,
FM radio, Bluetooth etc.,
The speaker has a - built in lead acid battery offering more stability and capacity. It can work 2 3.5 hours after -
being fully charged.
The FM function requires an external FM antenna (if you want to receive FM channels, please switch to
FM mode and connect the supplied Jack lead)
Specification
Output Power ............................................................................................ 25W
Frequency range ...........................................................................80HZ- 20KHZ
S/N Ratio .................................................................................................. 70DB
Sensitivity .................................................................................. 500mV+- V 50m
Input Voltage ...................................................... AC110V-240V 50/60HZ+- 10%
GB
©Copyright LOTRONIC 2015 FREESOUND65 3
Remote Control
1. Mode key (Choose from AUX/USB/SD/BLUETOOTH/FM)
2. Mute
3. Echo+
4. LED
5. Record key (Press to start and again to stop recording)
6. - Echo
7. Sound mode key (Choose from rock, pop, jazz)
8. Repeat key (single repeat, repeat all)
9. 0-9 keys
10. Previous song
11. Volume+
12. Next song
13. Treble+
14. - Treble
15. Power on/Standby
16. Mic.vol+
17. - Mic.vol
18. Play/pause (the sound will be muted when paused)
19. - Volume
20. Bass+
21. Bass-
22. Reset
23. Replay (plays the recorded files
from the USB/SD input)
Use of the Remote Control
Please operate the remote control within a distance of 6m and 30° between the remote and the appliance.
Aim the remote at the sensor. Remove all obstacles between the remote and the sensor.
The remote control might not work properly if the sensor is exposed to strong sunshine.
If the remote control doesn’t work properly, please check the batteries.
Speaker Description
1. AUX INPUT (connect the supplied lead for FM reception)
2. MIC INPUT (TO INSERT WIRED MIC)
3. CHARGING INPUT JACK (DC INPUT): Charging led is on
during charging process
4. USB
5. SD CARD
6. POWER SWITCH (POWER ON/OFF)
7. MODE - (SWITCH TO USB/SD/BLUETOOTH/FM/AUX IN)
8. VOLUME+
9. VOLUME -
10. PREV (PREVIOUS SONG)
11. PLAY (PLAY/PAUSE MUSIC)
12. NEXT (NEXT SONG)
13. REC (RECORD TO USB/SD CARD)
14. MIC.VOL+
15. MIC.VOL-
