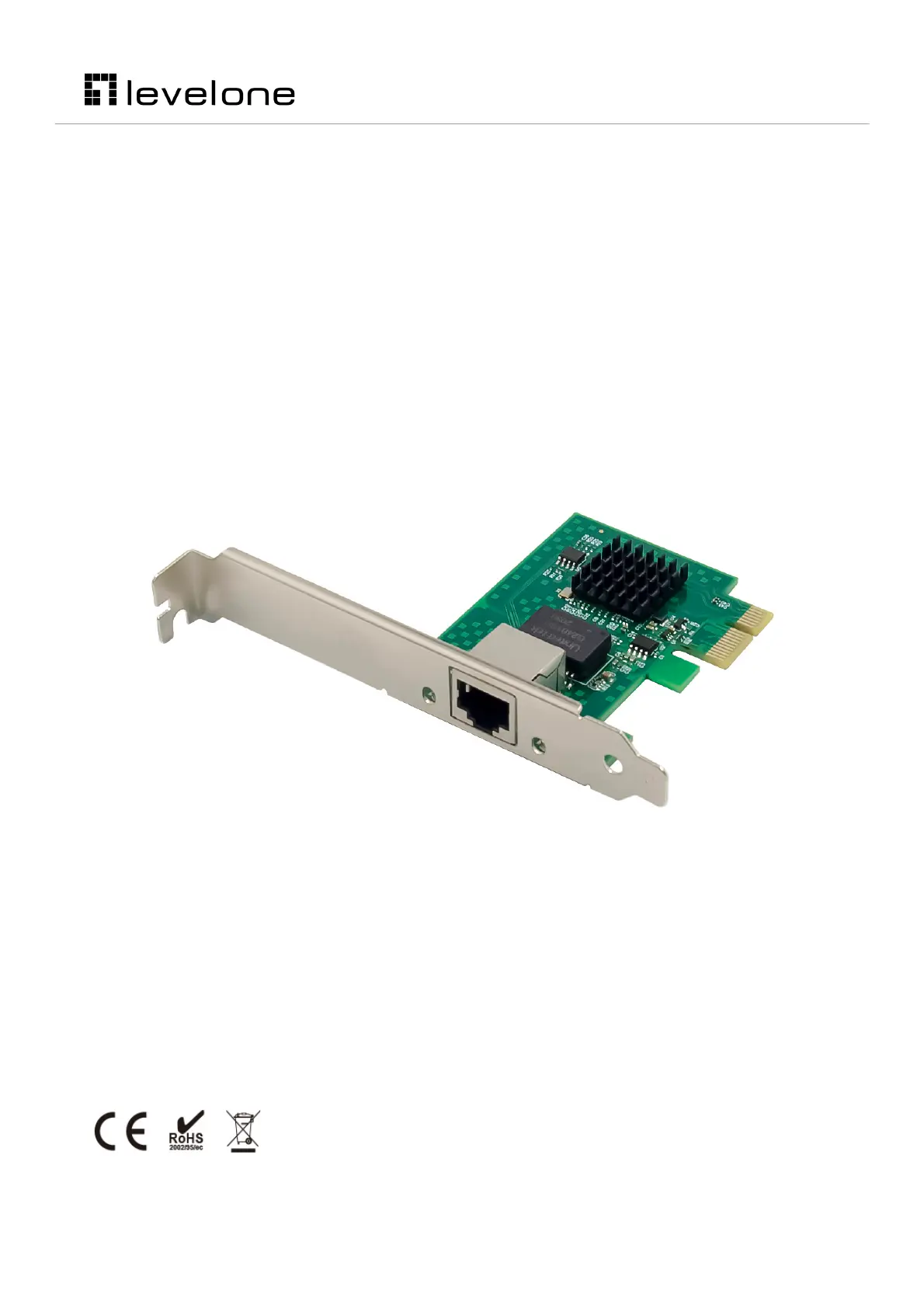

User Guide
EN ver2.01
GNC- 0113
2.5-Gigabit PCIe Network Card, 1 x RJ45
User Guide
- - 2
De scription
PCIe Intel I225 2.5G Network card adopts a high performance- network controller I225-
V. This controller with Base T copper networking interface, provides compact, single- -
port integrated multi-gigabit (up to2.5G) –MDI (Copper) standard IEEE802.3 Ethernet
interface for 2500BASE- - -T, 1000BASE T, 100BASE TX, 10BASE-TE connections, and it can
also support Intel vPro○
R technology on specific Intel platforms. It is designed for use
on any mobile, desktop, workstation, value-server, or industrial designs that have
critical space constraints.
Specification
! Compliant with PCI Express specification Revision 3.1 (5GT/s)
! MDI(Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s
! Complies with single port 1GbE RJ45 port (copper)
! Complies with the MDI standard IEEE802.3 Ethernet interface for 2500BASE-
T,1000BASE T,- 100BASE 10BASE- TX, -Te application (IEEE802.3bz, IEEE802.3ab,
IEEE802.3u and IEEE802.3)
! IEEE802.3 Auto-negotiator
! IEEE802.3x and IEEE802.3z compliant flow control support with software-
controllable RX thresholds and TX pause frames.
! Automatic cross-over detection function (MDI/MDI- X)
! IEEE 1588 Protocol and 802.1AS implementation
! Supporting Time Sensitive Networking (TSN) Capabilities
! S -upport IEEE802.3az Energy Efficient EEE)Ethernet (
! Full Wake- - On Lan support
! TCP/UDP, IPv4 checksum offloads (Rx/Tx)
! Transmit Segmentation offloading (TSO)(IPv4, IPv6)
! Support for packets up to 9.5KB Jumbo Frames
! Drivers for Windows○
R10 32 or 64bit
- - 3
Package content
! Quick Installation Guide
! User Guide
! Resource CD (Driver)
! Low Profile Bracket
System Requirements
l Microsoft Windows○
R10 Version 1809 and later 32 or 64bit
l Available PCI Express x1/x4/x8/x16 slot
Hardware installation
1. Turn off the computer and unplug the power cord.
2. Remove the computer cover and the adapter slot cover from the slot that matches
your adapter.
3. Insert the adapter edge connector into the slot and secure the bracket to the chassis.
4. Replace the computer cover, then plug in the power cord.
5. Power on the computer
Install Drivers
Windows
○
○
○
○○
R Operating Systems
You must have administrative rights to the operating system to install the drivers.
1. insert the CD driver bound with Intel network driver into your CD-ROM
drive(also you can download the latest drivers from support website)
2. if the Found New Hardware Wizard screen is displayed, click Cancel.
3. start the autorun located in the software package, the autorun may
automatically start after you have extracted files.
4. Click install Drivers and Software
5. Follow the instructions in the install wizard to finish it.
Digital Data Communications GmbH
Im Defdahl 10 F, 44141 Dortmund, Germany
Email: support@level1.com
