OPERATING
MANUAL
Super 8 ForU
Introduction
With the Supe
r
8 ForU , you have now purchased a product which
has been manufactured in accordance with the newest technical
capabilities and based on the highest operating comfort.
We have placed great value on the simplest possible operation and
long service life in both construction and material selection.
A large variety of useful accessories rounds off our range in addition
to the ForU scooter.
This Operating Manual assumes that the suitability of the user
for scooter usage has been discussed with a doctor, therapist
and/or dealer before operation.
The operating manual will help you get to know the function of our
ForU scooter and, in addition, describes
• operation
• care and maintenance
• repair
The manual has been drawn up using information available at the time
of printing with regard to construction and operation of the scooter.
We reserve the right to make changes due to technical improvements.
If you have any other questions about this scooter please contact
your retailer or supplier.
3
Contents
1.0 Safety instructions ................................................................……………….8
1.1
1.2
1.3
1.4
1.5
1.6
1.7
Symbols used .............................................................................. 8
Intended use ................................................................................ 8
General Information ..................................................................... 9
Safety when driving .................................................................... 10
Safety during transport, assembly and maintenance .................... 11
Safety when handling batteries ................................................... 12
Safety - information about electronics.......................................... 12
2.0
3.0
4.0
5.0
6.0
Versions ............................................................................................ .13
Extent of delivery ............................................................................. .13
Components ..................................................................................... .14
4.1 The Midi XMB scooter ................................................................. 14
4.2 The dashboard - displays and controls ...................................... 14
Brief instructions ............................................................................. .15
5.1 Driving ..................................................................…15
5.2 Transporting the scooter… ............................................................17
Setting up the scooter…....................................................................... 19
6.1
6.2 Adjusting the seat height ........................................................... 19
Adjusting the seat position ......................................................... 21
6.2.1
6.2.2
6.2.3
Adjusting the distance between seat and tiller ................ 21
Adjusting the armrest width ............................................ 21
Adjusting the armrest height ........................................... 22
6.3 Adjusting the tiller angle ............................................................. 23
7.0 Information about safe driving ........................................... 24
7.1
7.2
7.3
7.4
Driving up inclines and down slopes .......................................... 25
Overcoming obstacles ............................................................... 26
7.2.1 Driving Information – Overcoming kerbs .......................27
Overload protection - motor protection ....................................... 28
Battery charging state = driving range ........................................ 29
7.4.1
7.4.2
7.4.3
Battery charging state .................................................... 29
Driving range .................................................................. 30
Overdischarge protection - battery protection .................. 30
8.0 Driving ........................................................................... 31
8.1
8.2
8.3
8.5
8.6
4
Getting on and off ...................................................................... 31
Turning the seat ......................................................................... 33
Switching on ............................................................33
8.3.1 Operation indicator and fault display ...............................33
Adjusting the speed ................................................................... 34
Before driving ............................................................................ 34
Contents
8.7
8.8
8.9
Driving ....................................................................................... 35
Using the motor brake ................................................................ 35
Using the horn ........................................................................... 36
9.0
10.0
11.0
12.0
13.0
8.10 Switching off / parking .............................................. 36
Pushing .......................................................................... 37
Attaching the shopping basket .......................................................37
Charging the batteries .....................................................................38
11.1Charging the batteries ................................................................39
11.1.1Charging the batteries in via the tiller
............................................39
....
11.1.2 LED information at battery charger during charging ........40
11.2After charging ............................................................................ 40
Things to know ................................................................................ 41
12.1 The battery charger - functioning principle ..................................41
12.2 The Batteries ............................................................................. 41
12.2.1 What are batteries for cyclic use? ..................................42
122.2 When do the batteries achieve their maximum
performance? .................................................................. 42
12.2.3 How do I make sure the batteries achieve their
best service life? ............................................................ 42
12.3 Anti tipping wheels ..................................................................... 42
12.4 Wheels and tyres ....................................................................... 42
12.5 The drive unit ............................................................................. 43
12.6 The working principle ................................................................. 43
12.7 The control unit .......................................................................... 44
12.8 The auto switch-off .................................................................... 44
12.9 Brakes ..............................................................44
12.10 Driver´s licence ...................................................................... 45
12.11 Insurance ................................................................................45
12.12 Approval for road traffic use ....................................................45
Transporting the scooter .................................................................. 46
13.1 Transport information ................................................................. 46
13.2 Transporting the complete scooter ............................................. 46
13.3 Preparation for transport - separating components ..................... 46
13.3.1 Working step summary ...................................................47
13.3.2 Removing the seat ..........................................................47
5
Contents
13.3.3 Removing the batteries .............................................47
13.3.4 Folding the tiller down ..................................................... 48
13.3.5 Disengaging the drive unit from the chassis .................... 48
Cleaning ........................................................................................... ..49
Maintenance and Inspection ........................................................... ..50
15.1 Daily maintenance before start of journey .................................. .50
15.3 Annual inspection - inspection timetable ..................................... 51
Troubleshooting ................................................................................ 54
16.1 Before troubleshooting ................................................................ 54
16.2 Troubleshooting ............................................................................55
16.3 Operation indicator blink codes ................................................... 57
16.3.1 Blink list ..................................................................... 57
Repairs .............................................................................................. 58
17.1 Information about safety at work ................................................ 58
17.2 Tools .......................................................................................... 58
17.3 Wheels - removal and replacement……………………................. 59
17.5 Replacing the tyre ...................................................................... 62
17.6 Fuses ........................................................................................ 63
17.7 Batteries .................................................................................... 64
17.7.1 Disposal of used or damaged batteries ..........................64
17.7.2 Refitting battery cables ......................................64
18.0 Temporary storage ........................................................................... 66
Appendix .......................................................................................... 67
19.1 Specifications ............................................................................ 68
19.1.1 General data ..................................................................68
6
Contents
20.0
19.2 Torque for fixing screws ............................................................. 69
19.3 Disposing of the scooter ............................................................ 69
Warranty information ....................................................................... 69
Work shop use only....................................................... 70
7
Safety information
1.0
1.1
Safety instructions
Symbols used
This instruction manual contains the following symbols which are used
to highlight special hazards in dealing with the product or information for
simplifying the handling.
Caution!
This symbol identifies safety information which notifies you of
hazards when dealing with the product.
N
O
T
E
You will also find information about dealing with the product
under this symbol.
1.2 Intended use
The KYMCO Healthcare scooter is constructed for use both indoors
(Suggest general use - indoors )and outdoors .
It is intended to increase the mobility of persons who are both
physically and mentally capable of assessing any driving situations
correctly and reacting correspondingly to them at any time.
The Super 8 models are classified as an “invalid carriage” for use
indoors, on pavements, footpaths, pedestrian zones and areas free
from motor traffic.
They must not be driven on public roads with the exception of crossing
or when no pavements are available.
8
Safety information
1.3 General Information
Read the entire operating manual thoroughly before using the
Super 8 ForU!
Ensure that:
• the operating manual is read by all people who drive, care for and
service the scooter.
• all persons who drive, care for, service or repair the scooter have
access to the operating manual at any time.
Any damages resulting from nonobservance of this operating manual are
excluded from the guarantee.
Risk o
f
accidents!
•
Do
NOT
use
the scooter if your driving capability is impaired
through consumption of
medicine
or alcohol.
• Only
use
the scooter for its correct intended use.
• Only
use
the scooter
when
it is in perfect working order.
• If
any
breakdowns
occur
, stop using the scooter immediately
and
secure
it against unauthorized use.
• It
is
imperative that
you
always
rectify any faults which
could
influence the function and safety of the scooter
immediatel
y
.
• Observe
maximum
loading
= see Specifications
• O
nly
use
accessories
and
spare parts authorized by
KYMCO Healthcare UK Limited.
• The scooter
is
only
authorized for transport of one person.
•
Do
not
carry
out
any
seat adjustments while driving.
Tipping hazard!
•
Do
not adjust the seat if the scooter is standing on an incline.
•
Do
not
lean
out
over
the armrest to the sides or over the
bac
krest to the
rear
.
9
Safety information
1.4 Safety when driving
Risk of accidents!
•
Check
correct functioning of the brakes before every journey.
•
Check
the tyre
air
pressure
regular
ly.
• Always
use
the seat belts
when
driving.
•
Do
not switch the scooter off while driving.
•
Do
not
drive
up
or
down
gradients which are too steep, over
obstacles
on
gradients
or
up
and down ramps.
Observe
maximum
climb
angle
= see Specifications
• Only
drive
through restricted widths, around bends, inclines
and
ramps
with
reduced
suitable speed.
• Only
drive
up
or
down
inclines
when the backrest has been
adjusted to
ver
tical.
• Don´t
drive
too
close
to
open
waters.
Tipping hazard!
• Do not carry out any seat adjustments while driving.
• Only drive over obstacles and up kerbstones at the lowest point
and at right angles.
• Avoid sudden changes of direction and speed.
• Avoid steep gradients where there is a danger of skidding
(ice, snow, wet surfaces etc.).
• Avoid loose surfaces whose characteristics you are not able to
assess (woodlands, turf, beaches, gravel etc.)
• Always drive straight up and down gradients - do not drive in
zigzags.
• Do not turn around on inclines.
• Do not drive down steps.
• Do not drive backwards down gradients, stairs or kerbstones, or
over obstacles.
10
Safety information
Danger due to unintentional movement!
• Always turn the scooter off using the keyswitch if you:
-
want to get
on
or
off
-
intend to stop for
long
periods
-
are
putting the scooter
a
way.
1.5 Safety during transport, assembly and maintenance
If the scooter is transported in the vehicle when fully
assembled:
- no persons may sit on the scooter during loading!
- no persons may sit on the scooter during transport!
Clamping and crushing hazard!
Increased hazards due to clamping or crushing result due to the
high component weight (such as batteries) during preparation
for transport and maintenance work.
• Always
carry
out
any
work
to be done with great care.
• Always try to get
help
from a second person, especially when
sto
wing
par
ts f
or
tr
anspor
t.
• Only
carry
out
any
work
described
if you are used to working
with the tools required.
• Only
carry
out
work
using
suitable tools.
Injury hazard due to improper assembl
y
!
• Ensure that
all
components in the Scooter have been
correctly assembled.
• After
assembly
,
check
that all locking devices are holding
correctly.
Accident hazard
d
uetoincorrectly
b
o
lted
c
o
nnecti
o
ns!
• If bolted connections
have
self-locking nuts, ensure
that these
are
replaced
when
reassembling.
•
Do
not
replace
self-locking nuts with normal nuts.
• If bolted connections
have
lock washers, check lock
washers
when
reassemb
ling and replace if necessary.
11
Safety information
1.6 Safety when handling batteries
Fire hazard!
•
Do
not
cover
the battery
charger
and ventilation slot while
charging
batteries.
• Only
use
the battery
charger
in well-ventilated areas.
Risk of accidents!
• Only
use
the
original
battery charger (included in delivery).
• Let
your
dealer
replace
your
battery.
• Only
use
batteries
as
detailed in the chapter entitled
“Specifications”.
• Observe
warning
information given by the battery
manu
facturer.
• Batter
ies
are
e
xtremely
hea
vy.
Burn hazard due to damaged batteries!
Batteries discharging acid can lead to serious burns.
•
Do
not touch
damaged
batteries with your bare hands. Use
rubber
gloves!
• If
acid
should
contact
your
skin, wash the affected area
immediately with plenty of
w
ater and contact a doctor.
• If
acid
should
come
in
contact with your eyes, rinse them out
immediately with lots of
w
ater and visit a doctor.
• Always
change
any
clothing soiled with battery acid
immediatel
y
.
Safety - information about electronics
Accident hazard due to failures!
Radio, television, radio transmission devices and mobile phones
produce electromagnetic fields. These can negatively influence
the scooter electronics functions.
•
Do
not
drive
close
to strong
radio
or television transmitters
(transmitter masts).
• Switch the scooter off if
you
are using your mobile phone.
Interference caused to other devices!
The scooter produces an electromagnetic field which can
negatively affect functioning of electrical devices such as
medicinal devices, radio receivers or mobile telephones within
the vicinity.
1.7
12
V
ersions
2.0
V
ersions
3.0 Extent
o
f
delivery
A
fter receiving
y
our ForU scooter,
please check the following:
• that the delivery is complete in
accordance with the list below
• the delivery condition using the
inspection plan (chapter 14.2)
If any faults are apparent or
components are missing, please
contact your supplier or dealer.
The following items areincluded in
delivery in addition to the scooter:
1. Shopping basket
2. Two vehicle keys for switching
the on/off
3. Battery charger
4. Operating Manual
13
Components
4.0 Components
4.2 The dashboard - displa
y
s and controls
14
Dashboardwi
t
hcontrols

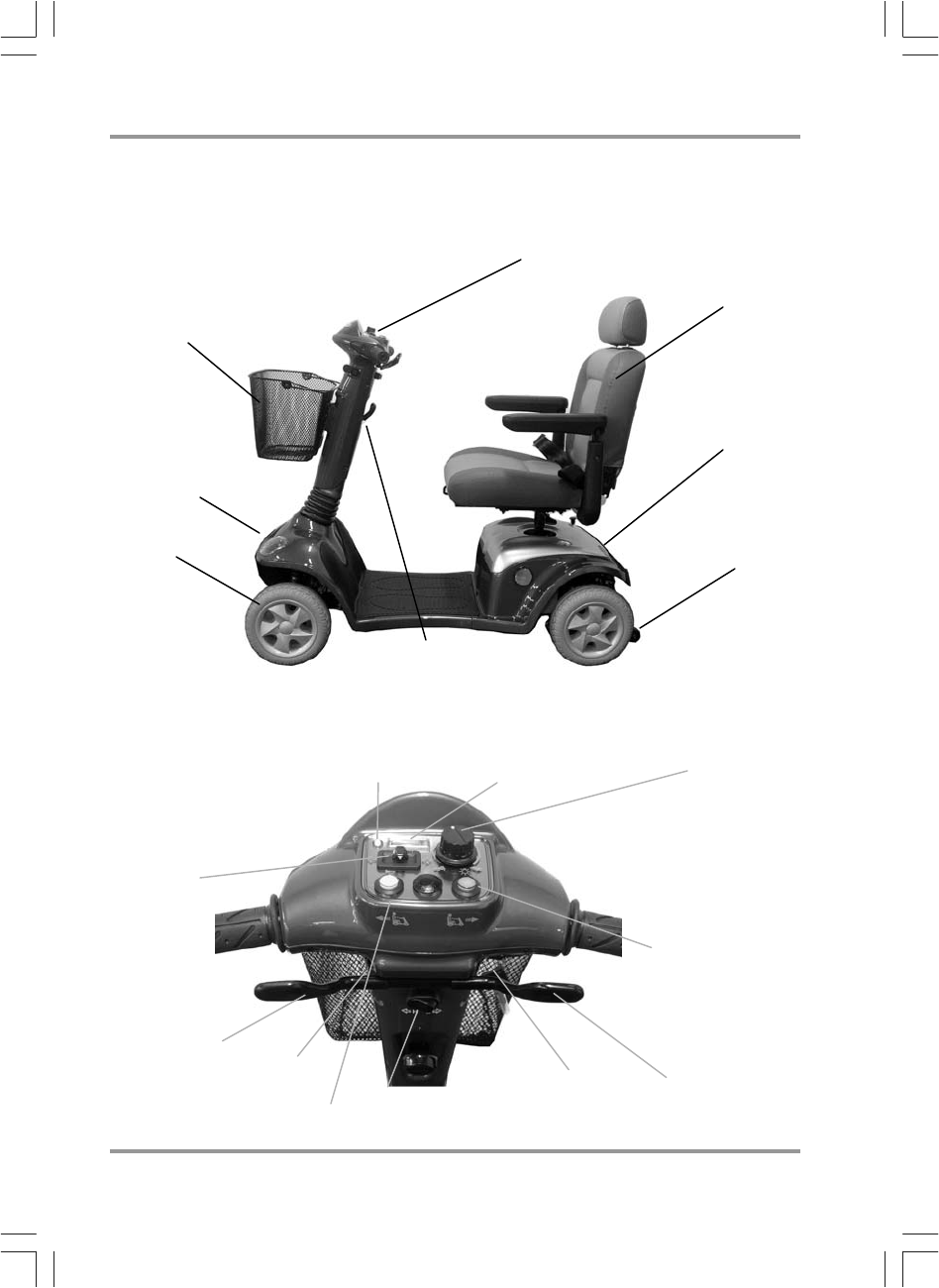

4.1 The ForU scooter
Seat unit with
head and armrests
Shopping baske
t
A
nti tipper
Steering wheel
Tiller
Indicators and
position light
Indicators and
position light
Speed contoller
Operation indicator
(fault display) Battery charge
display
Drive lever
(reverse)
Horn
Headlight
switch
Drive lever
(forward)
Indicator
switch
Key switch
Charging
socket H/ L speed
switch
Brie
f
instructions
5.0 Brie
f
instructions
The following brief instructions should enable people to quickly get used
to operating the scooter after a long period of non-use and to refresh
existing knowledge of operation.
It is imperative that you follow the instructions given in the main
manual!
5.1 Driving the scooter
NOTE
Before starting driving, adjust the seat height, the
backrest and the armrests to a comfortable position.
Your specialist dealer would be very glad to help.
1.)
T
urn the seat to the outside. 2.) Get in - turn the seat in the
direction of travel
3.)Switchonthescoote
r
15
ON
Brie
f
instructions
4.) Check the battery
charging state 5.) Set the maximum speed
= lowest possible driving
speed (approx. 4mph)
= highest possible driving
speed (approx. 6mph)
6.) Driving
Operate the drive lever slowly until the required speed has been reached
The drive le
v
er position controls the
speed variably right up to maximum
driving speed.
1
Standstill
(brake engaged) Standstill
(brake engaged)
Re
v
erse Fo
r
wards
8.) Ho
r
n 9.)position ligh
t
7.) Braking = release dri
v
e
lever (1)
16
Red-reserve
Yellow-medium
Green-full
(1) (8) (9)
Brie
f
instructions
5.2
T
ransporting the scooter
Dismantling the scooter (stages 1 to 9)
2.)Remo
v
ingthe rear panelling
1.) Remo
v
e the sea
t
4.) Remove the battery plug
and front connector
17
3.)
R
emove
t
he l ighting cable
6.) Fold the tiller down
5.)
R
emove
t
he battery belts and
batteries
Brie
f
instructions
Reassembling the scoote
r
(Stages 9 to 1)
The scoote
r
dismantled:
1. Chassis
2. Batteries
2. Drive unit
3. Rear panelling
4. Seat unit
18
7.
)
Unlock the drive uni
t
8.
)
Tilt the drive unit awa
y
9.
)
Remove the chassis
Step{
Step|
Step}
{|}}
~
A
djusting
the seat
height
6.0 Setting
up
the
scooter
The following passage describes how to set up your scooter in order to
ensure that you have a comfortable and safe drive.
6.1 Adjusting the seat height
NOTE!
The seat must be removed from the scooter in order to adjust th
e
seat height. You should try to get help from a second person if
possible or contact your dealer.
Removing
t
he sea
t
Removing the seat:
Tilt the backrest forwards.
Lift the seat while pulling the seat
lock (a) out of the seat support (1).
19
Adjusting the seat height: Remo
v
ing the clamping
bolt and hold bolt
Remove the clamping bolt (1)
and hold bolt.(2)
Out of the seat support (3).
1xRing spanner, size 12mm
1x Hexagon bolt.
(a)
{|
(1)
}
A
djusting
the seat height
20
The seat height (h) is adjusted using the
five holes (1-4) in the seat support.
Pull the seat support (4) out as far as
the required height until the correct
hole (1-4) appears in the seat tube
hole (5).
Push the clamping bolts (6) into the seat
tube from the front.
h
4 holes
~
In order to avoid danger
when driving. Please
adjust the height of seat,
and then confirm if the
seat’s bolt is at the right
position, otherwise, the
seat would be shaked.
A
djusting
the seat height
21
Inserting the seat:
Pull the seat lock (a) and guide the seat
into the seat support (1) from above.
Let go off the seat lock and engage
the rotational adjustment by turning the
seat a little one way then the other.
Inserting the seat
N
O
T
E
If after inserting the seat it is
not possible to turn the seat or
to pull the seatlock, the seat is
not properly locked.
(a) (1)
A
djusting
the
seat
22
6.2 Adjusting the seat position
Adjusting the distance between seat and
tiller
Pull the locking lever (1) upwards and move
the seat forwards or backwards to the
required distance.
Let go of locking lever and engage the
locking mechanism by pushing the seat
slightly forwards and backwards.
Mo
v
ing the seat
Accident hazard due to
non-engaged seat!
• Ensure that the seat
is
properly
engaged
after adjustment by
pushing
the seat slightly forwards
and
then backwards.
A
djusting the armrest
width
6.2.2 Adjusting the armrest width
Loosen both clamping screws (2).
Pull both armrests (3) simultaneously
to the required width.
Secure the armrests by tightening
the clamping screws.
CAUTION!
•
Do
not
pull
the
ar
mrests further
out than the
marking
(a)
for
maximum
armrest width.
6.2.1
(1)
(2)
(3)
(a)
A
djusting
the seat
23
6.3 Adjusting the tiller angle
Always adjust the tiller so that you can
reach all displays and controls easily at any
time. The tiller can be variably adjusted.
adjusting the tille
r
Turn and loose the locking lever(1)
Pull the tiller for backwards into the
required position .
Tighten the locking lever .
Ensure that the tiller is engaged
properly by moving slightly forwards
and backwards.
Accident hazard due to
non-engaged tiller!
• Ensure that the tiller
is
properly
engaged
after adjustment by
pushing
it slightly forwards and
then backwards.
(1)
24
Driving informatio
n
7.0 Information
about sa
f
e
dri
v
ing
Always carry out the safety information described in
chapter 1.4 “Safety when driving“!
Driving is very simple and after a few practice sessions you will
Find it very easy.
The following information should help you to drive safely through traffic:
•alwa
y
s ma
t
ch your speed to the driving situation in which you find
yourself.
always reduce the speed when you are driving through:
- unclear areas
- narrow gaps
- tight curves
- inclines
- ramps
take a trial run with your scooter in an area with no pedestrians,
or in a closed-off area.
always steer the scooter using both hands on the handlebars.
always keep your feet in the foot area while driving .
•
•
•
•
25
Driving informatio
n
7.1 Driving up inclines and down slopes
Climb angle examples:
a 1 metre long ramp should not be higher than. 18 cm
a 2 metre long ramp should not be higher than. 36 cm
•
A
v
oid driving across an incline
(always try to drive in the direction
of the incline / decline).
Tipping
hazard!
There is an increased dange
r
of tipping
when climbing or descending gradients if:
• the scooter is loaded at the back and
additionally the seat has been adjusted
to its rear position.
You can achie
v
e increased tipping safet
y
if:
• you adjust the seat in a more forward
position.
• you lean your upper body slightly
forwards (see sketch).
Inc
r
eased
tipping safety
The scooter will slow down to a safe reduced speed to protect the
motor if in overload/ over heated conditions.
Please switch off and allow the motor to cool down before
continuing your journey.
Y
ou may need to choose an alternative more suitable route i
f
overload trip re-occurs.
26
Driving information
7.2 Overcoming obstacles
The scooter can climb over obstacles
such as kerbstones up to height of 8
cm without any problem.
Please observe the following points to make
sure that your scooter doesn’t tip over while
climbing obstacles:
• don’t try to drive over obstacles which
are too high
example: kerbstones
remedy: always climb up kerbstones
at lowered entry areas
such as driveways.
• Do NOT try to climb an obstacle when on
an incline.
•
•approach the obstacle at a rightangle
try to clear the obstacle in one go.
•DO NOT dri
v
e o
v
er the obstacle with just
one wheel.
•DO NOT dri
v
e backwards o
v
er an obstacle.
•DONOT dri
v
e backwards down a ker
b
.
•DO N
O
T dri
v
e down stairs or steps.
6 cm 6 cm
8
8
Driving information
27
7.2.1 Dri
v
ing Info
r
mation
–
O
v
ercoming ke
r
bs
Risk of accidents!
Neogating kerbs needs some practice.
• Please
observe
the
maximum
obstacle hights of 8 cm.
• Please start practicing kerb climbing with small kerbs.
A
pp
r
oach at a right angle
A
pproach the kerb at a righ
t
angle.
Stop in front of the kerb
Stop approximately 0.5 Meter
/
19 inches in front of the kerb.
A
djust the speed-
controller
A
djust the speed controller to maximum
speed.
Press the drive lever fully forward and try
to clear the kerb in one go.
The speed of the scooter should only be
at 1 mph when the front wheels hit the
kerb.
O
v
ercome kerb
Keep the dri
v
ele
v
er in the fully forwards
position until the rear wheels have cleared
the kerb.
Driving information
28
7.3 Overload protection - motor protection
The overload protection switches the drive off if the motor becomes
overloaded by trying to climb over too high an obstacle such as a
kerbstone, or if you try to climb too steep of an incline.
If the motor is overloaded, the following happens:
• the
scooter becomes noticeably slower and then stops
• the control system switches the scooter off
To rectify this:
Switch the scooter off and allow it
t
o cool down for a few minutes.
Switch the scooter on again and ...
... reverse away from the obstacle (such as kerbstone) and then
try again at a lower point.
... be careful turning the scooter around on inclines, and always
reverse away very slowly.
Tipping hazard!
There is an increased tipping hazard if the incline is very steep.
• T
ry
to get
help
from
a
second
person
when turning your
scooter around.
Accident hazard in push mode!
If the incline is too steep, there is a danger that you will not
be able to hold onto the scooter and that it will roll down the
incline uncontrolled.
• T
ry
to get
help
from
a
second
person when turning your
scooter around.
Driving informatio
n
29
7.4 Battery charging state = driving range
7.4.1 Batte
r
y charging state Batte
r
y
cha
r
ge displa
y
Batte
r
y cha
r
ge displa
y
:
The battery charger display on the
dashboard shows the battery charging state.
Display
r
anges
Full = maximum range
Medium = decreased driving range, charge
batteries after journey
Reserve = minimum driving range, end
journey as soon as possible,
charge batteries
Important information about reading the batte
r
y
charge displa
y
:
•If the scoo
t
er is at standstill, it is often the case that the battery
charging state is shown higher than it actually is.
The display can vary greatly while the vehicle is travelling (depending
on load).
If the vehicle is under heavier loading (for example heavy
acceleration, driving up hills), the pointer can sometimes go to the red
area of the display. This is not critical and does not indicate the actual
charging state of the batteries.
If the pointer has gone into the red area of the display after the
journey, it will often show green after the scooter has been turned off
for a long period.
This does not indicate the actual charging state of the batteries!
If the pointer is in the red area of the display at the end of the journey,
the batteries must be charged before continuing the journey.
Disregarding this can lead to destruction of the batteries!
•
•
•
Determining the actual charging state:
Drive at a constant speed for about 200 m along a straight level
route. The value shown by the display during the journey is the
actual battery
charging
state.
Red-reserve
Yellow-medium
Green-full
Driving informatio
n
30
7.4.2 Dri
v
ing range
The driving range is dependent on the following conditions in addition
to battery charge:
-
-
-
-
landscape conditions (level or steep)
weight of user
weather conditions (cold, rain)
driving with headlights (if fitted)
For this reason, informationabout the driving range isonly given as a
guideline. The more experienced you are in using scooter, the easier
it will be for you to determine the driving range using the battery
charging state.
You will be able to achieve the best possible driving range if you:
•
•
•
•
•
ensure that the tyres are inflated correctly
avoid steep inclines as much as possible
do not carry any unnecessary luggage
drive at an even speed
do not accelerate or brake unnecessarily.
The dri
v
ing
r
ange will be dec
r
eased if
y
ou:
•
•
•
drive with headlights
drive in cold weather
drive in hilly regions
NOTE
please see the information about batteries in the Appendix.
7.4.3 O
v
e
r
discha
r
ge protection - batte
r
y
p
r
otection
In order to protect the batteries from over-discharging, the control unit
switches off. This takes place when the battery voltage falls below
17 Volts.
Displa
y
:
the battery charger display pointer is pointing to
the left at the end of the red area.
To rectify this:
You must not drive any longer!
Connect the Scooter to the battery charger and
charge the batteries for at least 12 hours.
Batte
r
y
charge
display
N
O
TE
If the battery voltage falls below 16 Volts, the batteries can no
longer be charged with the battery charger supplied. In this case
you must contact your dealer.
31
Driving
8.0
8.1
Driving
Getting on and off
Please observe the following before
getting on or off:
•The scoote
r
must be standing on firm, level
and non-slippery ground.
The engaging lever for push mode must be
in the drive position (see chapt. 9.0)
Turn off and remove the key.
Tilt the steering column forwards
(see chapt. 6.3)
When getting in and out, ensure that your
clothing does not get caught on the drive
lever.
T
urning the seat
•
•
•
•
getting on
After you have got onto the scoote
r
, pul
l
the seat lock (1) forwards again, turn the
seat to face the direction of travel (4)
and engage.
Accident hazard due to
non-engaged seat!
• Ensure that the seat
is
properly
engaged
after getting
on
by
turning the seat slightly
left
and
right.
32
Driving
NOTE!
If you feel you are safe enough, you
can of course get onto the scooter
without turning the seat round.
• You can lift up the armrest on the
side where you are standing and
then get on.
Driving
33
8.2
T
urning the seat
The seat can be turned to both sides of the
angle, and firmly engaged in 8 positions
(each position turns 45°).
T
urning the seat:
Pull the turning lock (1), turn the seat
in the required direction or position (2)
and engage.
Accident hazard due to
incorrect seat position!
• Always turn the seat to face
forwards
and
engage
it before
driving.
If the seat has been turned, the
possibility of tipping is increased.
• Before turning the seat,
always
ensure
that the scooter
is
on an
even
and
solid
surface.
8.3 Switching on
The switch is located on the dashboard.
Insert the key into the switch and turn it to
the right to switch on.
Switching on
8.3.1 Ope
r
ation indicato
r
and fault displa
y
This light shows that the scooter is switched
on and ready for driving.
It also displays any errors in the scooter
electronics and electrical system. Fault
display takes place using different blinking
speeds or blink sequences. You can find more
information in the chapter entitled
“Troubleshooting”.
Operation indicato
r
ON
180°
135°
90°
45°
0°
45°
90° 135°
Driving
34
8.4 Adjusting the speed
Your maximum driving speed can be variably adjusted using
the speed controller.
Maximum driving speed = drive lever pressed as far as stop
Controlle
r
symbols:
= lowest possible maximum driving
speed (approx.4mph)
Speed cont
r
olle
r
= highest possible maximumdriving
speed (approx. 6 mph)
Adjust the required maximum driving
speed by turning the speed controller.
N
O
T
E
Use the controller to adjust the speed to suit local conditions.
Select a lower speed if you are driving through narrow gaps,
on inclines or through crowds.
8.5 Before driving
Checks before driving:
•
A
re the batteries charged? Check the display! in working order!
•
A
re the brakes working?
T
o check, dri
v
eslowly
and stop again! in working order!
•
A
re the tyres and wheels
undamaged and is the
air pressure correct? Visual check of tyres
and wheels! in working order!
• Is the tiller locking Obser
v
e
chapter 13.3.4 ! in working order!
Only start driving i
f
ever
y
thing is in working
order! Get defects repaired immediately.
Driving
35
8.6 Driving
Accident hazard due to locked tiller!
• Before
driving
off, turn the tiller to check that it is not locked.
Observe chapter 13.3.4.
Hold the tiller firmly in both hands.
Press the drive lever (1) in the direction
of travel until the required speed has
been reached.
Handle Handle
= driving forwards
= driving in reverse
The drive le
v
er position controls the
speed variably right up to maximum
driving speed.
Standstill
(brake engaged) Standstill
(brake engaged)
Fo
r
wards
Re
v
erse
8.7 Using the motor brake Moto
r
brake
Let go of the drive lever (1).
The drive lever stops in the central position
- the scooter uses the motor to brake.
Emergency braking = let go o
f
the drive lever!
The drive lever automatically returns to the central position if
you let go. The FOR U automatically brakes using the motor.
1
Driving
36
8.8 Using the horn
Press the horn button (5).
It will sound for as long as you hold the
button down.
Using the horn
8.9 Switching of
f
/ parking
Turn the key to the left to switch off.
Always turn off using the key switch
if you:
• want to get on or off.
• intend to stop for long periods.
Always remove the key from the key
switch if you:
• want to park tand get off.
Switching off
OFF
Pushing
37
Disengaging the dri
v
e
9.0
Pushing
In order to be able to push the scooter you
must disengage the drive motor.
The disengaging lever (1) is located on the
right-hand side of the scooter
No one is permitted to sit on the scooter
when it is being pushed.
= Pushing (a):
Switch off.
Push the disengaging lever (1) forwards
as far as the stop (limit position).
=Dri
v
ing (b):
Pull the disengaging lever (1) to the rear
as far as the stop (limit position).
NOTES
• Always switch off to push it.
• If a pre-set speed is exceeded while you are pushing ,
the drive motor will switch on automatically and brake the scooter.
Risk of accidents!
•
Do
not
pull
the
disengaging
lever while driving.
•
Never
switch to push mode when somebody is sitting
on
the scooter.
• The
engaging
lever
always
needs to engage securely at the
limit position.
•
Do
not
disengage
the motor when on an incline.
10
.
0
Attaching the shopping basket
Push the shopping basket (1) from
above into the basket holder receptacles
(2) on the tiller.
NOTE
Use the shopping basket only for
small loading.
38
11
.
0
charging
the batteries
Please also see the information given in the chapter entitled “Things to
know“.
Charging information:
•The surrounding temperature should be between 10° and 30° Celsius.
The charging time will increase at lower temperatures.
Only use the original battery charger (included in delivery).
Only use the battery charger in a dry and well-ventilated room.
Do not cover the battery charger and ventilation slot while charging
batteries.
The battery charger has an automatic switch-off device which
prevents overcharging the batteries. Do not leave the battery
charger connected to the scooter for more than 24 hours.
- The batteries can be charged overnight.
Switch the scooter off before charging the batteries.
•
•
•
•
•
When is charging
r
equi
r
ed?
•
•
•
the battery charge display is in the red area
after the final journey of the day
at least once per week
Charging times:
Between 8 and 14 hours depending on current battery charge state.
NOTE
The battery charger is designed to be able to charge completely
discharged batteries within eight hours to 80% of their capacity.
Charging the batteries
40
Charging the batteries
11.1.2 LED information atbatter
y
charge
r
during
charging LED
LED -> Colou
r
(a) -> Red
-> Meaning
-> battery charger
-> Orange -> charging in progress
-> Green -> charging complete,
Remo
v
ing
the mains
plug
11.2 After charging
(1.) Switch off and remove the battery
charger plug from the mains socket.
Removing the batte
r
y
charger
(2.) Pull the battery charger jackplug out
of the jack socket.
(a)
|.
41
Thi
ngs t
o
know
12
.
0
Things
to know
12.1 The battery charger - functioning principle
The battery charger regulates the voltage (Volt)
and the current (Ampere) from your mains
connection down to the voltage required for
charging your batteries (24 Volt). The amount of
charging current required is dependent on the
charging state of the discharged batteries.
Batteries mostly discharged = more charging current
Batteries half discharged = decreased charging current
Batteries completely charged = no charging current
Since no charging current is flowing when the batteries are full,
the batteries cannot be overloaded.
12.2 The Batteries
The entire power supply is taken over by
two 12 V batteries.
These are located below the motor
cover under the seat.
The batteries used in the scooter are
known as batteries for cyclic use.
Only enclosed maintenance-free
batteries are used.
Thi
ngs t
o
know
12.2.1 What are batteries for cyclic use?
Batteries for c
y
clic use are designed, in contrast to starter batteries as
used in cars, so that they deliver continuous energy over a longer
period of time and allow a considerable number of charging phases.
12.2.2 When do the batteries achie
v
ethei
r
maximum perfo
r
mance?
Fixed cycle batteries achieve a maximum performance after four or five
charging and discharging cycles. Only at this point is their internal
chemical equilibrium achieved so that they can produce maximum
performance and service life.
12.2.3 H
o
w do I make sure the batte
r
ies achie
v
ethei
r
best se
r
v
ice life?
•
•
•
A
lways charge yourbatteries completely after use.
Charge your batteries regularly.
Only store completely charged batteries in the vehicle.
A
nti tipping wheels
12.3 Anti tipping wheels
The anti tipping wheels (1) reduce the
danger of tipping during extreme
manoeuvres when fixed to the rear of the
scooter.
It is not permitted to drive the scooter
without anti tipping wheels.
Wheels and t
y
res
12.4 Wheels and t
y
res
The Super 8 is fitted with
260 x85x4(solid tyres)
42
Thi
ngs to know
12.5 The drive unit
The complete drive unit is located in the
rear of the scooter and consists of the
following main components:
• the batteries(2)
• the drive motor with rear axle (3)
• the control unit (4)
D
r
i
v
eunit
12.6 The working principle
The drive consists of the drive motor, the
gearbox and the rear axle.
Drive takes place from the drive motor via
the gearbox and rear axle to the rear
wheels .
43
Thi
ngs to know
12.7 The control unit
The control unit is a programmable
electronic regulating unit. It regulates drive
characteristics such as acceleration,
maximum speed and braking behaviour.
The drive characteristics can be set to
match the user’s requirements by altering
the programming.
Reprogramming may only be carried out by
specialist dealers.
12.8 The auto switch-o
f
f
The auto switch-off automatically switches
the scooter off after 10 minutes at a
stand- still.
This protects the batteries from being
discharged if the ForU was inadvertently
not switched off.
12.9 Brakes
The scooter is automatically braked if the
drive lever (1) is in the central position.
To apply the brakes, simply let go off the
drive lever which is then returned to its
central position by a spring.
The scooter is then braked by the drive
motor. When the scooter is at a standstill
or has been switched off, it is braked by
a magnetic brake.
Dri
v
ele
v
e
r
44
Thi
ngs t
o
know
12.10 Driver´s licence
Not required!
12.11 Insurance
As a scooter user you must be aware of the risks involved to both
yourself and others. It is recommended that you take out third party
insurance to cover you against any possible claims. Advice and
policies are available from insurance companies or alternatively ask
your scooter supplier for details.
12.12 Approval for road traffic use
Super 8 ForU models are not defined as motor vehicles, but are a Class
2
Type invalid carriage. This type of scooter is for use on pavements and
pedestrian areas with the exception of crossing roads.
Use on public roads only permissible when no pavement is available.
45
T
ransport
ing the scooter
13.0
T
ranspor
ting the scooter
13.1
T
ransport in
f
ormation
Depending on the size of the transport vehicle, the scooter can be
dismantled in a few steps so that it can also be easily transported in
smaller vehicles.
When transporting, take particular care to ensure that the batteries are
securely fastened and make sure components cannot tip over.
No liability can be accepted for damage caused by transportation.
13.2
T
ransporting the complete scooter
No persons are permitted to sit on the scooter during loading!
No persons are permitted to sit on the scooter during transport!
Drive or push the scooter up a ramp into thevehicle.
Switch the engaging lever to drive mode.
Secure the scooter against tipping over by fastening it to th
e
transport vehicle with transport straps.
‘
13.3 Preparation for transport - separating components
Clamping and crushing hazard!
Increased hazards due to clamping or crushing result due to the
high component weight (such as batteries) during preparation fo
r
transport.
• Always
carry
out
any
work
to be done with great care.
• Always try to get
help
from a second person, especially when
sto
wing
par
ts f
or
tr
anspor
t.
46
47
In just a few steps you can
dismantle the scooter down t
o
the following components to
make it ready for transport:
1. Chassis
2. Batteries
3. Drive unit
4. Rear panelling
5. Seat unit
13.3.1
W
orking step summar
y
1. Remove the seat unit.
2. Remove the rear panelling.
3. Remove the batteries.
4. Fold the tiller down.
4. Disengage the drive unit from the chassis.
13.3.2 Removing the seat and rear panelling
Tilt the seat backrest forwards.
Lift the seat while pulling the seat lock
(a) out of the seat support (1).
Pull the rear panelling(b) off the scooter
upwards.
13.3.3 Removing the batte
r
ies
Press the locking device on the plug and
disconnect connecting plugs on the cable.
Remove the battery belts.
Remove the batteries.
T
ransport
ing the scooter
{|}}
~
(a)(1)
(b)
Folding the tille
r
down
13.3.4 Folding the tille
r
down
Pull the locking lever(1) and fold the
tiller to the rear (2) until it is horizontal.
48
13.3.5 Disengaging the drive unit from
the chassis
(a) Separate the front unit connecting
plug.
(b) Open the clamping bolt camping
lever and fold the claming bolt
upwards.
(c) The drive unit to the rear onto the
anti tip wheels.
(d) Remove the frames upwards from
the holding bolts on the drive unit.
13.3.6 Installing step in the reverse
order of removal.
T
ransport
ing the scooter
(2)
(1)
49
Cleaning
14.0
Cleaning
NOTE
• Only use mild detergents without scouring agents to clean any
surfaces.
• Please observe instructions for use on the detergents to avoid
damage to the component surfaces.
• Do not use any sharp-edged tools such as knives, metal
scrapers or aggressive solvents for cleaning.
• Do not use high-pressure cleaners to clean the scooters.
• Never direct water spray onto the fittings on the tiller or drive unit
components.
Light soiling or dust is best removed using soft cloths.
Heavy soiling can best be removed with damp cloths and
slightly soapy water.
Use a dry cloth to dry the scooter off after cleaning!
All lacquered surfaces can be cleaned and preserved using car
polish.
15
.
0
Maintenance and Inspectio
n
If you find any faults on your scooter during maintenance which are not
covered by the repair information, please contact your dealer.
Always remove faulty scooters from operation and secure them against
unauthorized use (remove key).
15.1 Daily maintenance before start o
f
j
ourney
Check the brakes by driving slowly and then braking.
Make a visual check of wheels and tyres for damage.
50
Cleaning
Maintenance an
d
inspection
15.2 Annual inspection - inspection timetable
Take your scooter once per year to your dealer for an inspection.
He will have the necessary tools and experience to service you
r
scooter correctly.
51
Description
(Component / inspection for) Assessment
OK
Defective
Component : Seat
Seatbelt / no damage
fixed securely
can be easily adjusted
closed securely
Armrest padding / no damage, fixed securely
Armrest, folding mechanism / no play in joint
functions easily
Armrests, width adjustment / no damage
functions easily
Backrest upholstery / no damage
fixed securely
Backrest adjustment / no play in joint
functions easily
Seat upholstery / no damage
fixed securely
Seat and back frames / no damage
Seat support - chassis connection / no damage,
no play in connection
Maintenance and inspection
52
Description
(Component / inspection for) Assessment
OK
Defective
Component : Tiller
Panelling / no damage
fixed securely
Grip rubbers / no damage
fixed securely
Tiller, folding mechanism / no play in joint
functions easily
Component :
chassis
Connections / no damage
Frames / no damage
no corrosion
Reflectors / no damage
Steering mechanism / no damage
no play in joint
functions easily
Wheels / no damage
fixed securely
Tyres / no damage
Antitipper wheels / no damage
rollers turn easily
Maintenance and inspectio
n
53
Description
(Component / inspection for) Assessment
OK
Defective
Component :
Displays
and
controls, electric system,
electronic system
Drive lever/ No damage
Easy functioning over the entire
lever movement
Returns to central position after releasing
from any position
Secure blockage of magnetic brakes
when lever is in central position
( scooter can not be pushed)
Dashboard switches / no damage
safe function
Dashboard displays / no damage
safe function
Indicator lamps / no damage
safe function
Charger jack socket / no damage
Batteries / no damage
fixed securely
Check battery voltage (12-14 Volt per battery)
Check battery capacity
Control unit / no damage
fixed securely
Cables and connecting plugs / no damage
fixed securely
Maintenance and inspection
16.0
T
r
oubl
es
hoo
t
ing
16.1 Before troubleshooting
Before you start troubleshooting, please
observe the following points to avoid
simple error sources.
Swi
t
ch off.
Ensure that the main plug (1)
and the battery plug(2) for a
tight fit.
Switch on again.
If the error should occur again, you
can find information about
troubleshooting and appropriate
remedies in the lists in sections 16.2
and 16.3.
54
Description
(Component / inspection for) Assessment
OK
Defective
Component :
Drive
Motor, drive / no damage
fixed securely
drive noise
Motor, magnetic brake / holding force OK
(Scooter can not be pushed with engaging lever in drive-
position)
Engaging lever / no damage
functions easily
lever engaged
(lever remains engaged)
T
r
oubleshooting
16.2
T
roubleshooting
55
Fault Cause Remedy
Scooter does not run /
no display at the dashboard Scooter not Switch the scooter
switched on on (chapter 8)
Power
supply
interrupted
Battery not pluged
in
Front unit connector
not plugged in
Check the battery
fuses
(chapter 17)
Check fuse in
power supply to
tiller head
(chapter 17)
Batteries Charge the
discharged batteries
(chapter 10)
Batteries Replace
batteries defective (dealer)
Scooter does not run Check battery Charge the batteries
charge display (chapter 10)
(battery discharged).
switched Switch to drive
to push mode mode (chapter 9)
Drive lever Release
drive lever pressed
while switching on
Fault on drive Visit your dealer
lever
Automatic switch- Switch scooter off
off (overload and switch scooter
off protection) active on again a few
seconds later for the
unit to reset.
Operation Check blink code
indicator blinking (chapter 16)
T
r
oubleshooting
batte
r
y
cable
Batteries
56
Fault Cause Remedy
Main fuses blow frequently Batteries defective
Motor defective
Fault in control Visit your dealer
unit
Short-circuit in
electrical
equipment
Battery charge display moves
rapidly to discharged during
journey
Motor jerks during driving
Batteries Charge the batteries
discharged (chapter 10)
Batteries defective
Motor defective Visit your dealer
Batteries do not charge Defective fuse in
power supply to Visit your dealer
tiller head
Defective fuse in Visit your dealer
Front unit Plug in front unit
connector not connector
plugged in (chapter 13)
Battery charger
defective Visit your dealer
completely
discharged
T
r
oubleshooting
16.3 Operation indicator blink codes
The operation indicator (1) on the dashboard
is also designed as a display for error
messages.
Various faults in the drive electronics are
displayed using blink sequence is as listed.
16.3.1 Blink list
57
Instrument indicator
Error code LED indicator Cause
slight blink Auto switch off(scootor stay 10min )，KEY-ON again
002,003 8xblink Fault in ECU or wires fall off
0203,0204 8xblink Fault in ECU or wires fall off
0810 0814~1
7
7xblink Fault in drive lever, Lever does not reset
1000 blinking quickly Charging the scootor, scootor does not run
1400 3xblink Fault to motor brake or wires fall off
1500 ~1502 9xblink Fault to motor brake
1600 10xblink Battery voltage too low
1705 8xblink Fault in ECU or wires fall off
1802 1805 8xblink Fault in ECU or wires fall off
1B20 8xblink Fault in ECU or wires fall off
1D02 7xblink Fault in drive lever, Lever does not reset
1E03 6xblink Charging the scootor, scootor does not run
2102 8xblink Fault in ECU or wires fall off
2C00,2C01
1
xblink contiute slowl
y
Batteries voltage too low
2D01 8xblink Fault in ECU or wires fall off
3100 3102 8xblink Fault in ECU or wires fall off
3210 3213 8xblink Fault in ECU or wires fall off
3600~360E 8xblink Fault in ECU or wires fall off
3B01 2xblink Motor cable short-circuited
4401 8xblink wires fall off
7000~7001 4xblink Parking brake off
{
58
Repairs
17.0
Repairs
The following repair information should enable you to carry out small
repairs on your vehicle yourself. You should, however, only carry out
such work if you are used to working with the tools described here since
it is impossible to fully prevent injury hazards when handling tools. If
you are not sure, you should try to get help from a second person if
possible or contact your dealer.
In order to guarantee that all nuts and fixing screws are fitted tightly
after repairs, you should ensure that these are tightened using the
torque specified.
17.1 Information about safety at work
Clamping and crushing hazard!
Pay particular attention to hazards caused by clamping and
crushing while carrying out any repair work. This applies
particularly to all rotating and adjustable parts of the scooter such
as around the steering wheels.
The scooter must be lifted in order to carry out certain work such as
removing the wheels.
Before you lift the scooter, make sure you prevent it rolling away by
wedging it securely.
Make sure the vehicle cannot fall down when raised by using
suitable supports such as wooden blocks.
Always place the blocks under metal components such as frames,
drive units.
Do not support the scooter by the plastic panelling!
Tools
The following tools are necessary to carry out the
repairs described:
1 x screwdriver; Phillips head No. 2
1 x screwdriver
1 x ring spanner, size 10mm
1 x ring spanner; size 12 mm
1 x ring spanner; size 14 mm
1 x ring spanner; size 17 mm
1 x socket spanner, size 19 mm
17.2
59
Repairs
17.3 Wheels - removal and replacement
Tools required:
Front wheel: 1 x socket spanner, size 17 mm
Rear wheel: 1 x socket spanner, size 19mm
Removing the wheels:
Frontwheel
Unscrew the valve cap(1)
Loosen the self-locking bolt (2) for the
wheel fastening.
Secure against rolling away.
Lift the scooter and support it
Remove the self-locking bolt for the
wheel fastening.
Pull the wheel off the stem.
Realwheel
N
O
T
E
Do not use force to remove the
wheels from the axles.
Your specialist dealer has the
necessary special tools.
{
|
{
|
Repairs
Fitting the front wheel
Fitting the front wheel:
Push the wheel onto the stem (3) as far
as the wheel stop.
Screw the wheel fixing self-locking bol
t
(4) and tighten it (size 17 mm).
Lower the scooter.
Retighten the self-locking bolt (4).
Fitting the
r
ea
r
wheel: Locating the axle ke
y
Place the key (5) in the slot in the drive
shaft (6).
NOTE
The key is rectangular. Place
it with its widest side in the
axle slot.
Fittingthe
r
ea
r
wheel
Push the wheel onto the stemand align
the wheel hub groove (7) with the key in
the drive shaft.
Push the wheel on as far as the drive
shaft stop.
60
Repairs
Locating the washer
Place the washer (8).
Securingthe rea
r
wheel
Screw the wheel fixing self-locking bolt
(9) and tighten it (size 19mm).
Lower the scooter.
Retighten the self-locking bolt.
61
17.4 Replacing the wheel
Remove the damaged wheel.
(wheel with tyre is one set)
The wheel to be replaced
with a new set
Front wheel
62
Rear wheel
Repairs -
fuses
17.5 Fuses Wiringdiagram
A
wiring diagram with fuse sizes is located
on the control unit cover.
The scooter is fitted with the following fusible
fuses.
The fuses are located back the control unit
cover.
63
(1)2A fuse= power supply to tiller.
(2)10A fuse= light.
(3)10A fuse= charging socket.
(4)40A fuse= in each battery positive cable
To replace Fuse:
(A) Open fuse holder.
(B) Pull out fuse and replace it.
(C) Close fuse holder.
1 2 3
4
Repairs -
b
atteries
65
17.7.2 Refitting battery cables
Fire and burn hazard if battery terminal is
short-circuited!
•
Never
touch both battery terminals simultaneously with
tools
(shor
ting out).
• T
erminals
are
protected with insulating caps. Only ever
remove
the insulating
cap
from the terminal which you
are
going
to loosen.
T
ools required:
2 x ring spanner; size 10 mm
Remove the batteries from the scooter .
Refitting the batte
r
y
cable:
First (1) loosen the terminal on the
battery negative terminal (black cable)
and remove the cable.
Then (2) loosen the terminal on the
battery positive terminal (red cable)
and remove the cable.
Replacing the battery and connect the
battery cable in reverse order:
First connect the cable to the battery
positive terminal (2).
Then connect the cable to the battery
negative terminal (1).
Reinserting the batteries into the scooter
66
T
emporary stora
g
e
18.0
T
emporary stora
g
e
If you are not intending to use your scoote
r
for longer periods (e.g. over the winter, you
should prepare it as follows:
Remove soiling and dust.
Charge the batteries completely.
Place the scooter on supports. Lift high
enough so that the tyres are no longer
touching the floor.
Front support
Ca
r
e during storage:
Recharge the batteries once a month
(see chapter 10).
Rea
r
support
A
ppendix - specifications
19.1 Specifications
19.1.1 General data
Version ........................................................... Super 8 ForU
Turning radius ................................................1560 mm
Speed ............................................................. 9.6 kph (6 mph)
Maximum range*
…………………............................................... approx. 35km(21miles)
Maximum climable incline ............................... 10°
Maximum climable obstacle ........................... 80 mm
Total weight (ready for driving incl. Batteries)....90 kg
weight heaviest part ....................................... 26.1 kg
Maximum working load (user weight) .............. 160 kg (350lb)
Tyre size ...............................................…….260/85 – 4 (solid tyres)
Working voltage (battery voltage) ................... 24 Volt
Batteries ......................................................... 12V36AHX2
Main fuse ....................................................... 1 x 40 A
Storage temperature .......................................- 40°C to + 65°C
Ambient temperature ...................................... - 25°C to + 50°C
Bulbs:
Position light .................................................24 Volt / 5 Watt
Rear position light .........................................12 Volt / 5 Watt
Front indicator ............................................…24 Volt / 10 Watt
Rear indicator ............................................… 24 Volt / 10 Watt
67
A
ppendi
x-t
ightening
t
o
rques
19.2
T
orque
f
or fixing screws
Front wheel central self-locking bolt
Rear wheel central self-locking bolt
General torque for nuts and bolts:
=50Nm
= 60 Nm
M
5
M6
M8
M10
M12
= 4.5 to 6 Nm
= 8 to 12 Nm
= 18 to 25 Nm
= 30 to 40 Nm
= 50 to 60 Nm
19.3 Disposing o
f
the scooter
The scooter consists of metal and plastic components, electronic
components, electrical cables and batteries.
Disposal of the individual materials must be carried out in accordance
with environmental and disposal regulations in the relevant country, and
may only take place after the scooter has been dismantled.
To dismantle the electromobile and to separate and dispose of the
materials, you would be advised to hand it over to your specialist dealer.
Batteries may not be disposed of in domestic waste, and must be
disposed of according to national regulations
68
Warranty
20.0
Warra
n
ty
in
f
ormation
The Super 8 ForU Model scooters are warranted for 12 months from date of
purchase.
Important!
•During the warranty period any parts that ha
v
e become defecti
v
e due
to faulty workmanship or material will be repaired or replaced without
charge by KYMCO HEALTHCARE supplier / dealer.
The warranty excludes tyres and all items that have been subject
to undue wear and items subjected to misuse.
Unauthorized changes or modifications will forfeit your warranty.
If a defect or fault is discovered, KYMCO Healthcare supplier / dealer
from whom the scooter was purchased should be notified immediately.
•
•
•
Limitation of liabilit
y
The warranty does not extend to the consequential costs resulting from
fault clearence, in particular freight and travel costs, loss of earnings,
expenses, etc.
The manufacturer will not accept responsibility for any damage or injury
caused by misuse or non-observance of the instructions set out in this
user manual.
69
Work Shop use only-- Replacing the ECU(1)
70
ECU Version:
The control unit is a programmable electronic regulating unit. It
regulates drive characteristics such as acceleration, maximum
speed and braking behavior.
The drive characteristics can be set to match the user's
requirements by altering the programming.
Reprogramming may only be carried out by specialist dealers.
Work Shop use only-- Replacing the ECU(2)
71
z Switch the Scooter off.
z Remove the seat unit.
z Removing the rear panelling.
z Remove the lighting cable.
z Remove ECU protect cover bolts and battery plug and front
connector.
z Disassemble the battery plugs (+)(-)and (1)(2) as picture--
z Disassemble the ECU’s plug as picture--
z Remove ECU bolts --.
z Disassemble the ECU--.
z Installation is in the reverse order of removal.
z Attached to wire diagram.
Termékspecifikációk
| Márka: | Kymco |
| Kategória: | Mobilitási robogó |
| Modell: | Super 8 ForU |
Szüksége van segítségre?
Ha segítségre van szüksége Kymco Super 8 ForU, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek
Útmutatók Mobilitási robogó Kymco
24 Augusztus 2024
19 Augusztus 2024
18 Augusztus 2024
4 Augusztus 2024
4 Augusztus 2024
31 Július 2024
27 Július 2024
14 Július 2024
Útmutatók Mobilitási robogó
- Mobilitási robogó Afikim
- Mobilitási robogó Pride
- Mobilitási robogó Mango Mobility
- Mobilitási robogó RVS
- Mobilitási robogó Handicare
- Mobilitási robogó Invacare
- Mobilitási robogó Excel
- Mobilitási robogó Sterling
- Mobilitási robogó Meyra
- Mobilitási robogó Vermeiren
- Mobilitási robogó Shoprider
- Mobilitási robogó Di Blasi
- Mobilitási robogó INCA
- Mobilitási robogó UltraLite
- Mobilitási robogó Dietz
- Mobilitási robogó Rascal
- Mobilitási robogó Freerider
- Mobilitási robogó Travelux
- Mobilitási robogó Medipoint
- Mobilitási robogó Drive
- Mobilitási robogó Electric Mobility
- Mobilitási robogó Life-Mobility
- Mobilitási robogó Medema
- Mobilitási robogó Quingo
- Mobilitási robogó Strider
- Mobilitási robogó Baja Mobility
- Mobilitási robogó Sunrise Medical
- Mobilitási robogó Van Oss Medical
- Mobilitási robogó Revatak
- Mobilitási robogó Days
Legújabb útmutatók Mobilitási robogó
14 Január 2025
13 Január 2025
12 Január 2025
12 Január 2025
28 December 2024
27 December 2024
27 December 2024
5 Október 2024
29 Szeptember 2024
23 Szeptember 2024
