Oldal 1/21
KM10 | KM12
KMF10 | KMF12
Manual del Propietario | Español
ALTAVOZ PARA SONIDOS GRAVES
Benutzerhandbuch | Deutsch
KM TIEFTÖNER
Manuel d’utilisation | Française
HAUT-PARLEUR D’EXTRÊMES GRAVES KM
KM
Subwoofers
Owner’s Manual
2
KM Subwoofers Owner’s Manual
INSTALLATION
Wiring: Carefully place the speaker wire in a location that is clear of standing water and moving
components of the boat. The terminal cover is removable for wiring installation and, when locked
in place, it aids in ignition protection. Connect the speaker wire to the speaker terminals. Loop the
positive and negative wires into the pocket in the cover, then together and through the slot.
Authorized KICKER Dealer:
Purchase Date:
Speaker Serial Number:
Remove Terminal Cover
Route wire through
Terminal Cover Slot
Terminal Cover Pocket
Connect wire to terminals
MODEL: KM10 KMF10 KM12 KMF12
Rated Impedance [Ω] 2 or 4 2 or 4 2 or 4 2 or 4
Fs [Hz] 28.7 46.8 29.9 47.5
Sensitivity [1W, 1m] 86.24 86.27 88.1 87.46
Qts 0.419 0.655 0.47 0.744
Qms 16.699 9.457 15.331 11.044
Qes 0.43 0.704 0.485 0.798
Re [4Ω] 3.64 3.62 3.68 3.63
Vas [ft³, L] 1.54, 43.75 .58, 16.540 2.36, 66.96 .83, 23.542
Xmax (Linear Excursion) [mm] 10.3 10.3 10.3 10.3
Continuous Power Handling [Watts RMS] 175 175 175 175
Outer Woofer Dimension [in, cm] 10-11/16, 27.1 10-11/16, 27.1 12-9/16, 31.9 12-9/16, 31.9
Mounting Depth [in, cm] 5, 12.7 5, 12.7 5 1/2, 14 5 1/2, 14
Mounting Cutout Hole Diameter [in, cm] 9-1/4, 23.5 9-1/4, 23.5 11, 28 11, 28
Frequency Response [Hz] 30 - 500 30 - 500 30 - 500 30 - 500
IMPORTANT SAFETY WARNING
PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER, SPEAKER,
OR SUBWOOFER IN A DISTORTED, CLIPPED OR OVER-POWERED
MANNER CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY
CATCHING FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR
COMPONENTS AND/OR VEHICLE. AMPLIFIERS REQUIRE UP TO 4
INCHES (10CM) OPEN VENTILATION. SUBWOOFERS SHOULD BE
MOUNTED WITH AT LEAST 1 INCH (2.5CM) CLEARANCE BETWEEN
THE FRONT OF THE SPEAKER AND ANY SURFACE.
3

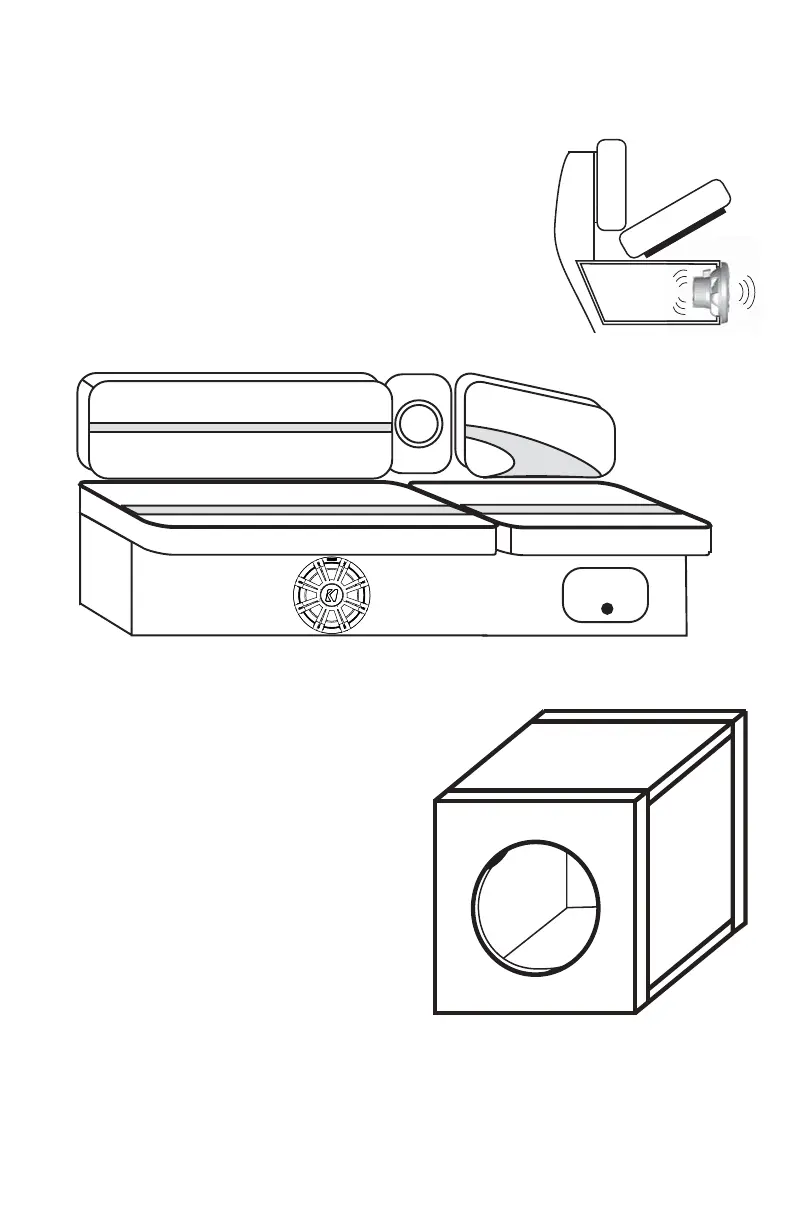

Free Air Mounting: The Free-Air subwoofers (KMF10, KMF12) do not require an enclosure,
however, it is important to isolate the sound coming off the front of the driver from the sound
radiating from the back of the driver. This isolation is usually accomplished by using the driver in a
factory speaker location, or in a location with a semi-isolated rear chamber.
Infi nite Baffl e Mounting: The infi nite baffl e mounting method
effectively utilizes the storage space of most boats. Use caution
when mounting speakers through any panel of the boat. Please
be aware of wiring harnesses, springs, hinges, and folding seat
mechanisms that may interfere with the operation of the boat or
speaker system. Mark the panel for the hole cut-out diameter of the
subwoofer and cut the hole.
Storage Space
Sealed Enclosures: KM subwoofers perform
well in any size sealed enclosure between the
minimum and maximum volume recommendations.
These systems will exhibit benefi ts of both designs:
Smaller enclosures will produce tight punchy bass,
while the larger enclosures will deliver extended
low-frequency performance.
These enclosure recommendations have been
calculated with the airspace inside the enclosure
and include the displacement of the woofer.
Pro Tip: You are one KXM Amplifi er and a few cables away from a complete, high-quality system
with rock-solid bottom end as only available from KICKER! Please ask your dealer about KICKER
KXM amplifi er upgrades.
