Instruction Manual
Electric Fan
FD-764DC
For Household Use Only
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
WARNING – To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This
Fan With Any Solid-State Speed Control Device.
WARNING – To Reduce The Risk Of Electric Shock, Do Not Expose to Water
or Rain.
WARNING – This is a fan – not a toy! To reduce the risk of personal injury
and electric shock, it should not be played with or placed where small children can
reach it.
When using electric appliances, basic safety precautions should always be
followed, including the following:
1. Do unplug or disconnect the appliance from the power supply before servicing.
2. Do not use gasoline, thinners, solvents, ammonias or other chemicals for
cleaning.
3. Do not operate any fan with a damaged cord or plug. Discard fan or return to
an authorized service facility for examination and/or repair.
4. Do not run cord under carpeting. Do not cover cord with throw rugs, runners,
or similar coverings. Do not route cord under furniture or appliances. Arrange
cord away from traffic area and where it will not be tripped over.
5. Do not use this product outdoors.
6. Do not use this product on wet surfaces.
7. Do not use this product in a bathtub or shower.
8. Do not use near furnaces, fireplaces, stove or other high-temperature heat
sources.
9. Do not immerse this product in water or allow water to drip into the motor
housing.
P2-14606
P1-14606

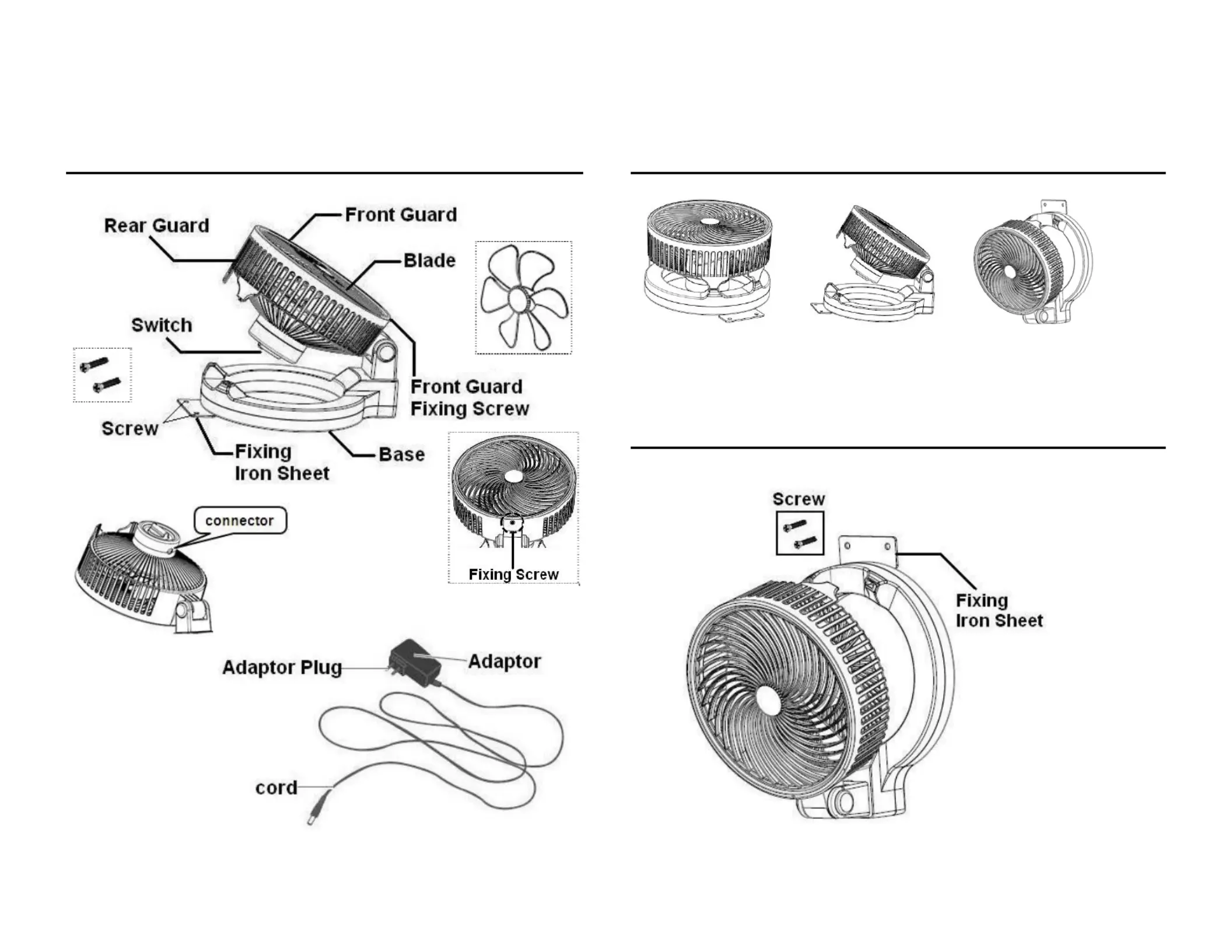

Know Your Fan
Parts and Features
Multi-function
Upward air circulator desk fan wall fan
Installation Guide
The attached screws are for mounting iron sheet directly to a wooden wall.
P4-14606
P3-14606
How to Operate
OFF Adjust the switch knob counter clockwise to the OFF
position, product operation to stop.
MIN Adjust the switch knob clockwise fan began to
operation.
MAX
Adjust the switch knob in a clockwise direction, air
volume grew stronger, to counter clockwise air
volume gradually weaken.
1. The adaptor cord inserted inside the mouth tightly inserted into the connector,
the adaptor plug inserted into the outlet of 120V power supply.
2. After use, the adapter plug and cord pull out from the outlet and product
respectively.
Cleaning and Maintenance
Use in a dry place, free of excessive humidity and water.
Keep fan clean, wipe away dirt with a clean cloth.
Use a vacuum cleaner to clean the front grid and blade. Do not use gasoline
or thinner to clean fan.
Before putting the fan in storage, clean thoroughly then cover with a vinyl bag
and store in a dry place.
How to Remove Front Guard for Cleaning
1. Use tool to unlock the screw of the guard, turn counter clockwise remove the
front guard.
2. After cleaning, turn clockwise to assemble the front guard, and use tool to lock
the screw of the guard.
P6-14606
P5-14606
