TABLE OF CONTENTS
BEFORE USING ELECTRIC HOME SHOWER EN2
SAFETY PRECAUTIONS ………………………… EN2
ACCESSORIES …………………………………… EN4
PARTS IDENTIFICATION ………………………… EN5
HOW TO USE ELECTRIC HOME SHOWER EN6
HOW TO USE ……………………………………… EN6
WATER FLOW RATE ADJUSTMENT …………… EN7
MAINTENANCE …………………………………… EN7
TROUBLESHOOTING …………………………… EN8
SPECIFICATIONS ………………………………… EN8
HOW TO INSTALL ELECTRIC HOME SHOWER EN9
BEFORE INSTALLATION ………………………… EN9
HOW TO INSTALL …………………………………EN10
TEST OPERATION ………………………………… EN14
ⴤᖋ
ⴤᖋ
ⴤᖋ
ⴤᖋⴤᖋ
ֵ
⭞⭫✣㣧⍈ಞࢃ
ֵ
⭞⭫✣㣧⍈ಞࢃ
ֵ
⭞⭫✣㣧⍈ಞࢃ
ֵ
⭞⭫✣㣧⍈ಞࢃ
ֵ
⭞⭫✣㣧⍈ಞࢃ CS2
ᆿޞ亱⸛ …………………………………………… CS2
䞃Ԭ ………………………………………………… CS4
䴬Ԭ〦 …………………………………………… CS5
ྸ֋
ֵ
⭞⭫✣㣧⍈ಞ
ྸ֋
ֵ
⭞⭫✣㣧⍈ಞ
ྸ֋
ֵ
⭞⭫✣㣧⍈ಞ
ྸ֋
ֵ
⭞⭫✣㣧⍈ಞྸ֋
ֵ
⭞⭫✣㣧⍈ಞ CS6
ֵ
⭞ᯯ⌋……………………………………………… CS6
⍷≪䠅䈹᮪…………………………………………… CS7
㔪ؤ ………………………………………………… CS7
⭕᭻䳒ᰬ ………………………………………… CS8
㿺Ṳ…………………………………………………… CS8
⭫✣㣧⍈ಞᆿ㻻⌋
⭫✣㣧⍈ಞᆿ㻻⌋
⭫✣㣧⍈ಞᆿ㻻⌋
⭫✣㣧⍈ಞᆿ㻻⌋⭫✣㣧⍈ಞᆿ㻻⌋ CS9
ᆿ㻻ҁࢃ……………………………………………… CS9
ᆿ㻻⌋ ………………………………………………CS10
⎁䈋⌋ ………………………………………………CS14
Thank you for purchasing the KDK product.
This appliance is intended for household use only.
For optimum performance and safety, please carefully read
this Operating and Installation Instructions and keep this
documentation in a safe place for future reference.
᝕䉘ᛞ䍣Ҧ
KDK
⭫✣㣧⍈ಞȾ
↚ӝ૷בᇬᓣ
ֵ
⭞Ⱦ
ѰҼ⺤ؓ
↙⺤
ֵ
⭞㔪ᣚᛞⲺᆿޞθ䈭䈜㓼䰻䈱↚
ֵ
⭞䈪᱄Ҝθ
ᒬؓᤷ൞ᆿޞⲺ൦ᯯԛבᵠᶛ৸㘹Ⱦ
Operating and Installation Instructions
Electric Home Shower (Household Use)
ᆿ㻻ૂᬃ֒䈪᱄Ҝ
⭫✣㣧⍈ಞ (
ᇬቻ⭞䙊
)
ϛМ
EN2

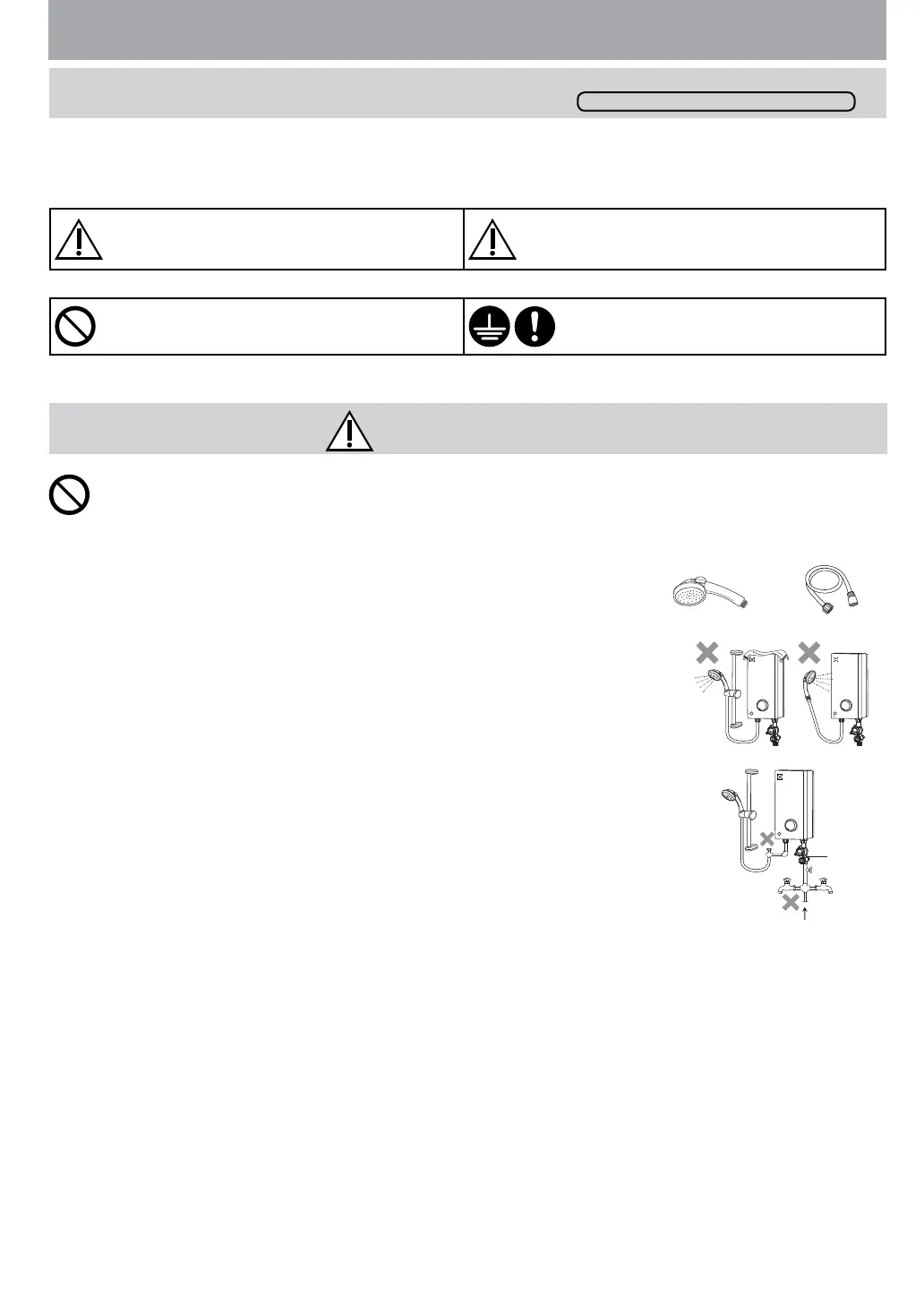

Before operating, please read the following "Safety Instructions" carefully.
To prevent personal injury, injury to others and property damage, the following instructions must be followed.
■Incorrect operation caused by failure to follow instructions will cause harm or damage, the seriousness of which is
classified as follow:
WARNING
This sign warns of
death or serious
injury.
CAUTION
This sign warns of
injury to users or
damage to property.
■The instructions to be followed are classified by the following symbols:
This symbol (with a white background) denotes an
action that is PROHIBITED.
This symbol (with a black background)
denotes action that is COMPULSORY.
SAFETY PRECAUTIONS
To be followed absolutely
WARNING
●If the ELB Reset Lever cannot be reset even if you push it up or if it soon slides down during operation, please do
not use the Electric Home Shower Unit and contact the authorized dealer immediately to avoid a hazard to users
such as damage to property, serious injury or death. Never fi x the ELB Reset Lever forcibly with tape, etc.
●Do not insert fi nger or other objects into the Unit to avoiding physical and electric shock hazards.
●Do not replace the Shower Head, Shower Hose or any other parts of the Unit with spare parts other than genuine
parts. 
Shower Head Shower Hose
• Parts for other models will not fi t to this model and may cause hazardous
condition to user.
●Do not spray water to the Unit, nor put wet towels on it to avoid from
ELBTest
Reset
Off
ELB
High
On
OFF
MA
OFF
MA
OFF
MA
OFF
MA
CL
EANING
FILTER
OFF
MA
OFF
MA
OFF
MA
OFF
MA
CL
EANI N G
FILTER
ELBTest
Reset
Off
ELB
High
On
coming into contact with any live parts etc., in order to prevent smoke
emission, ignition, fi re and electric shock hazards.
●This appliance is not to be used for a potable water supply.
●Do not install, remove and reinstall the unit by yourself.
ELBTest
Reset
Off
ELB
High
On
OFF
MA
OFF
MA
OFF
MA
OFF
MA
CLEANI N G
FILTER
Filter
Body
Assembly
Water InletWater Outlet
• Improper installation will cause leakage, electric shock or fi re. Installation
and wiring must be done by competent personnel.
●Do not share the inlet or outlet pipe of Home Shower unit with other outlets.
• The pressure may drop duo to water being drawn off at other point.
The shower temperature may become very hot.
BEFORE USING ELECTRIC HOME SHOWER
EN3
English
WARNING

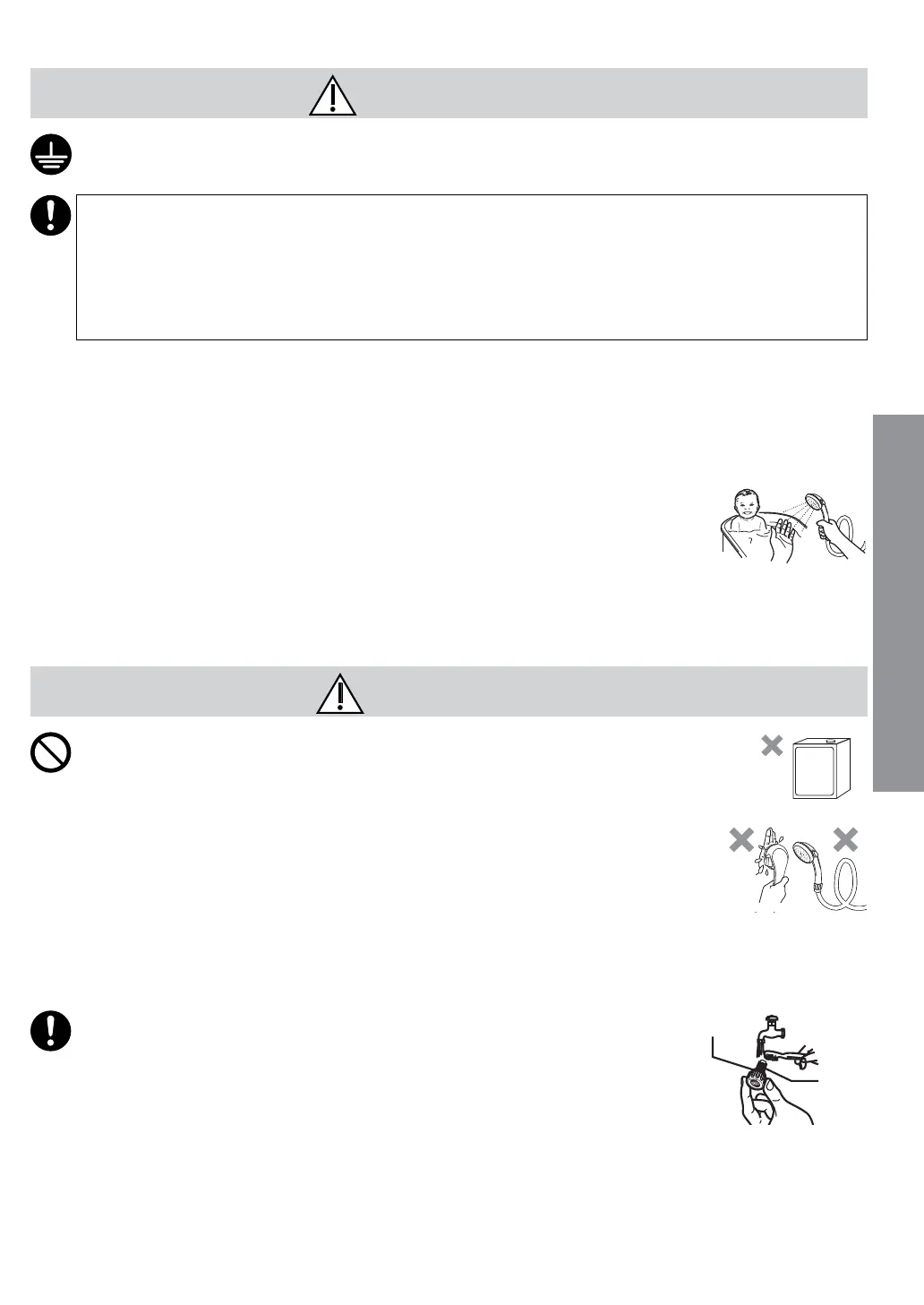

●The Unit must be earthed.
• Improper grounding could cause electric shock.
●Stop using the Unit when any abnormality / failure occurs and turn "OFF" the Miniature Circuit Breaker (MCB).
(Risk of smoke / fi re / electric shock / scalding)
Example of abnormality / failure:
• The ELB Reset Lever cannot be reset. Please refer to “TEST OPERATION” at page EN14.
• Burnt odor or smoke is detected during operation.
• The Front Plate / Back Plate is deformed or abnormally hot.
• The outlet water temperature become extremely hot and cannot be controlled using the Power Knob.
→ Contact your authorized dealer immediately for maintenance / repair.
●Switch off the Miniature Circuit Breaker (MCB) before any service to avoid electric shock hazards.
●In time of lightning / thunder, switch "OFF" the Miniature Circuit Breaker (MCB) in advance to protect the Electric
Home Shower Unit against possible damage.
●Inspect on the built-in ELB (once a month) to avoid a hazard to users such as damage to property, serious injury or
death. Please refer to “TEST OPERATION” at page EN14.
●Each time shower water is turned ‘ON’, check the water temperature by hand before showering.
●When the shower is used by someone such as child, old person, sick person and physically handicapped person,
the person responsible for their safety is kindly requested to pay attention
and check the shower temperature by using hand from time to time.
●Pay attention to shower temperature when reducing the volume of water.
• The shower temperature will become very hot if the water fl ow rate is too low.
●This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
CAUTION
●Never use benzene, thinner, bleaching agent, etc. for cleaning purpose to avoid smoke
THINNER
emission, ignition, fi re and electric shock hazards.
●Avoid using dirty water as it may affect heater performance and other components.
●Do not block the Shower Head with hand, towel or bend the hose. The water

fl ow rate will drop and water temperature may become very hot.
●In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied
through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and
off by the utility.
●Please make sure the O Ring is not removed and shall be free from foreign
O
P
E
N
C
L
O
S
E
O Ring
Filter
Unit
particle to avoid water leaking.
