6.2 Receiver Panel
No. Name Function Description
1 Power LED When the HDMI input port is active
and the HDMI signal is detected, the
green LED will be on.
2 DC 24V DC 24V power supply port.
3 FW Firmware update port.
4 HDBaseT IN Connect to the HDBaseT OUT port of
Transmitter with a CAT6/6a/7 cable.
5 HDMI OUT HDMI output port, connect to HDMI
display device.
6 HDMI IN HDMI input port, connect to HDMI
source device.
7 AUDIO OUT Analog audio output port.
8 USB port Two USB ports for KVM function.
Note:
This transmitter supports automatic/manual mode for source signal input. In
manual switching mode, press the SOURCE button to select HDMI/ USB-C
input source. In automatic switching mode, the last connected or the currently
connected source signal will be selected automatically; When both HDMI and
USB-C ports are connected to active signal, HDMI signal input is preferred;
When both HDMI and USB-C ports are not connected to active signal, it will
switch to the source signal of the Receiver.
VER.1
Thank you for purchasing this product
For optimum performance and safety, please read
these instructions carefully before connecting,
operating or adjusting this product. Please keep this
manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components
that may be damaged by electrical spikes, surges,
electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to
protect and extend the life of your equipment.
Table of Contents
1. Introduction...................................................................................1
2. Features...........................................................................................1
3. Package Contents......................................................................2
4. Specifications..............................................................................2
5. Product Dimensions.................................................................4
6. Operation Controls and Functions.....................................4
6.1 Transmitter Panel......................................................4
6.2 Receiver Panel............................................................6
7. Application Example................................................................7
1. Introduction
The KanexPro WP-EXTHDTC70 wall plate is a 2x1 switcher
and transmitter with HDMI and USB-C input. It features a US
one-gang enclosure for Decora-style wall plate openings with
interchangeable black and white wall plates and faceplates.
The USB-C input provides an ideal AV interface for
connecting with new Apple notebooks and Windows ® PCs
as well as smartphones and tablets. Support video resolution
up to 4K@60Hz 4:4:4. The product is remotely powered by the
receiver via POC (Power over Cable).
2. Features
• Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
• Support 18Gbps video bandwidth
• Video resolution up to 4K@60Hz 4:4:4
• HDBaseT output can extend video transmission distance
up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a
single CAT6/6a/7 cable
• Support HDR10 and HDR10+
• Audio formats support Dolby Atmos,TrueHD, Digital+,
Digital; DTS X, HD Master Audio, HD High Resolution
Audio, 5.1; PCM 2-8Ch
• Support HDMI and USB-C input
• US one-gang enclosure for Decora-style wall plate openings
• Input signal selection supports automatic mode and manual mode
• USB2.0 extension with Receiver
• Support POE function (only from Receiver to Transmitter)
• With USB-C charging port
• Available in white or black coating
3. Package Contents
1x 18Gbps 70M with USB-C/HDMI & KVM Function Wall Plate
Transmitter
1x Receiver
1x User Manual
4. Specifications
Technical
HDCP Compliance HDMI 2.0b, DisplayPort 1.2a
Video Bandwidth 18Gbps
Video Resolution 4096x2160@24/25/30/50/60Hz,
3840x2160@24/25/ 30/50/60Hz,
2048x1080p,1080p@23.98/24/25/29.97
/30/50/59.94/60Hz,1080i@50/59.94/60Hz,
720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit
HDMI Audio
Formats
Dolby Atmos,TrueHD, Digital+, Digital; DTS
X, HD Master Audio, HD High Resolution
Audio, 5.1; PCM 2-8Ch
Transmission
Distance
Max distance (1080p) : 230ft / 70m over
CAT6/6a/7 Max distance (4K): 131ft / 40m
over CAT6/6a/7
ESD Protection Human body model - 8kV (Air-gap dis-±
charge) & 4kV (Contact discharge)±
Connection
Transmitter Inputs: 1x HDMI Type A [19-pin female] 1x USB-C
Outputs: 1x HDBaseT Out [RJ45, 8-pin female] 1x
USB-C (only for charging)
Control: 1x USB-B [Micro USB, Update port]
Receiver Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HD-
BaseT IN [RJ45, 8-pin female]
Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x
AUDIO OUT [Phoenix jack]
Control: 2x USB [USB A TYPE]
1x FW [Micro USB, Update port]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Wall plate:
33.3mm [W] x 65.7mm [D] x 68.7mm [H]
Faceplate:
69.9mm [W] x 3mm [D] x 114.3mm [H]
Receiver:
200mm [W] x 98mm [D] x 23mm [H]
Weight Wall plate: 196g, Receiver: 511g
Power Supply POE (only from Receiver to Transmitter)
Power
Consumption
Wall plate: 9W (Max), Receiver: 11W (Max
Operating
Temperature
32 - 104°F / 0 - 40°C
Storage
Temperature
4 - 140°F / -20 - 60°C
Relative
Humidity
20 - 90% RH (no condensation)

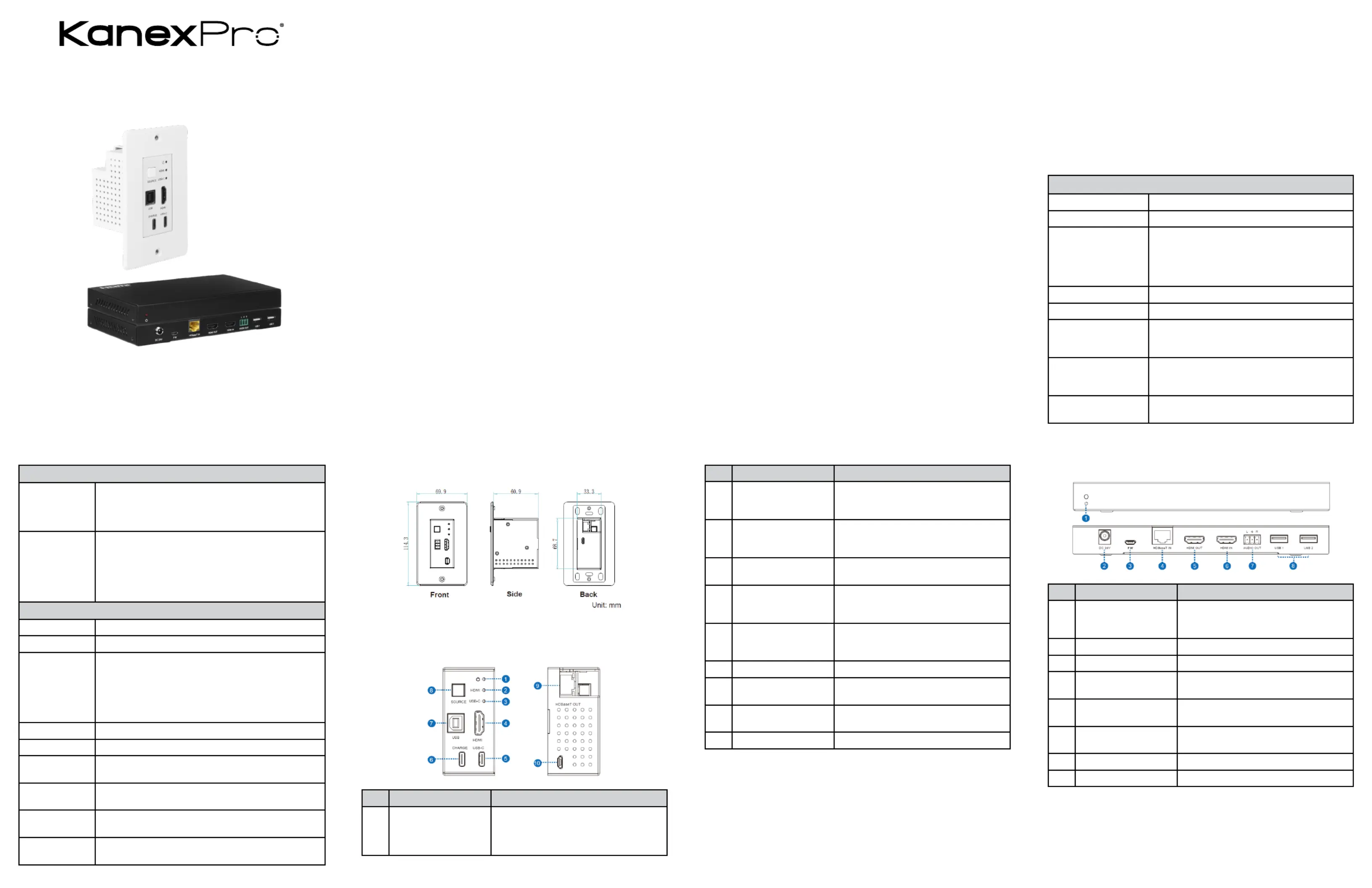

5. Product Dimensions
6. Operation Controls and Functions
6.1 Transmitter Panel
No. Name Function Description
1 Power LED The power LED indicator will illuminate
in green when the product is powered
on, and red when the product is on
standby.
No. Name Function Description
2 HDMI LED When the HDMI input port is active
and the HDMI signal is detected, the
green LED will be on.
3 USB-C LED When the USB-C input port is active
and USB-C signal is detected, the
green LED will be on.
4 HDMI port HDMI input port, connect to HDMI
source device
5 USB-C port 1. USB-C signal input port.
2. Charging port for devices with
USB-C port.
6 CHARGE port Connect this port to power supply,
then the USB-C port will power the
connected device.
7 USB-B port Connect to the computer’s USB port.
8 SOURCE button Used to switch HDMI / USB-C input
signal.
9 HDBaseT OUT Connect to the HDBaseT IN port of
Receiver with a CAT6/6a/7 cable.
10 Micro-USB Firmware update port.
18Gbps Premium 70M with USB-C/HDMI
& KVM Function Wall Plate Transmitter
MPN: WP-EXTHDTC70
7. Application Example
