4K MEMORY CARD CAMERA RECORDER
GY-HM250U/GY-HM250E
GY-HM180U/GY-HM180E
INSTRUCTIONS
.
The illustration here shows how the handle unit is attached using the unit supplied.
The specifications and appearance of this product are subject to changes for further improvement
without prior notice.
Please check the latest version of the INSTRUCTIONS from the following Mobile User Guide. You can
also download the PDF from the Mobile User Guide.
Mobile User Guide
When you are outside, you can refer to the instructions from your Android phone or iPhone.
http://manual3.jvckenwood.com/pro/mobile/global/
You can view the Mobile User Guide using the browser on your Android phone or iPhone.
Thank you for purchasing this product.
Before operating this unit, please read the
instructions carefully to ensure the best
possible performance.
In this manual, each model number is
described without the last letter (U/E) which
means the shipping destination.
(U: for USA and Canada, E: for Europe)
Only “U” models (GY-HM250U/GY-HM180U)
have been evaluated by UL.
Please read the following before getting started:
For Customer Use:
Model No.
Serial No.
Enter below the Serial No. which is located
on the body.
Retain this information for future reference.
GY-HM250U/GY-HM180U
IM 1.01 B5A-2647-00
2
.
1. Read these instructions.
2. Keep these instructions.
IMPORTANT SAFEGUARDS
4.
5.
6.
7.
8.
These are general IMPORTANT SAFEGUARDS and certain items may not
apply to all appliances.
3.
FOR USA
9.
10.
11.
12.
13.
For USA-California Only
This product contains a CR Coin Cell Lithium Battery which contains Perchlorate
Material – special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
CAN ICES-3 A / NMB-3 A
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
IMPORTANT SAFEGUARDS 3
Introduction
Safety Precautions
.
CAUTION
FOR USA AND CANADA
CAUTION:
TO REDUCE THE RISK OF
ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR
BACK).
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
The lightning flash with
arrowhead symbol, within
an equilateral triangle is
intended to alert the user to
the presence of uninsulated
“dangerous voltage” within
the product’s enclosure that
may be of sufficient
magnitude to constitute a
risk of electric shock to
persons.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in
the literature accompanying
the appliance.
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
.
This device complies with Part 15 of
FCC Rules. Operation is subject to the
following two conditions: (1) This
device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
Changes or modifications not
approved by JVC could void the
user’s authority to operate the
equipment. This equipment has been
tested and found to comply with the
limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is
operated in a commercial
environment.
This equipment generates, uses, and
can radiate radio frequency energy
and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. Operation of this
equipment in a residential area is
likely to cause harmful interference in
which case the user will be required
to correct the interference at his own
expense.
4Safety Precautions
Introduction
.
POUR CANADA
RISQUE
D’ELECTROCUTION
NE PAS OUVRIR
CAUTION:
The mains plug shall remain readily
operable.
Remove the mains plug immediately if
the camera functions abnormally.
WARNING:
The battery pack, the camera with
battery installed, and the remote control
with battery installed should not be
exposed to excessive heat such as direct
sunlight, fire or the like.
ATTENTION:
POUR EVITER TOUT RISQUE
D’ELECTROCUTION NE PAS
OUVRIR LE BOITER. AUCUNE
PIECE INTERIEURE N’EST A
REGLER PAR L’UTILISATEUR. SE
REFERER A UN AGENT QUALIFIE
EN CAS DE PROBLEME.
ATTENTION
Le symbole de l’éclair à
l’intérieur d’un triangle
équilatéral est destiné à
alerter l’utilisateur sur la
présence d’une “tension
dangereuse” non isolée dans
le boîtier du produit. Cette
tension est suffisante pour
provoquer l’électrocution de
personnes.
Le point d’exclamation à
l’intérieur d’un triangle
équilatéral est destiné à
alerter l’utilisateur sur la
présence d’opérations
d’entretien importantes au
sujet desquelles des
renseignements se trouvent
dans le manuel
d’instructions.
Ces symboles ne sont
utilisés qu’aux Etats-Unis.
.
Safety Precautions 5
Introduction
.
When the equipment is installed in a
cabinet or on a shelf, make sure that it
has sufficient space on all sides to allow
for ventilation (10 cm (3-15/16") or more
on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a
newspaper, or cloth etc. the heat may not
be able to get out.)
No naked flame sources, such as lighted
candles, should be placed on the
apparatus.
When discarding batteries,
environmental problems must be
considered and the local rules or laws
governing the disposal of these batteries
must be followed strictly.
The apparatus shall not be exposed to
dripping or splashing and that no objects
filled with liquids, such as vases, shall be
placed on the apparatus.
Do not point the lens directly into the
sun. This can cause eye injuries, as well
as lead to the malfunctioning of internal
circuitry. There is also a risk of fire or
electric shock.
CAUTION!
The following notes concern possible
physical damage to this unit and to the
user.
Carrying or holding this unit by the LCD
monitor can result in dropping the unit,
or in a malfunction.
Do not use a tripod on unsteady or
unlevel surfaces. It could tip over,
causing serious damage to the unit.
CAUTION!
Connecting cables (Audio/Video, etc.) to
this unit and leaving it on top of the TV is
not recommended, as tripping on the
cables will cause the unit to fall, resulting
in damage.
.
When using the AC adapter in
areas other than the USA
The provided AC adapter features
automatic voltage selection in the AC
range from 110 V to 240 V.
USING HOUSEHOLD AC PLUG
ADAPTER
In case of connecting the unit’s power
cord to an AC wall outlet other than
American National Standard C73 series
type, use an AC plug adapter called a
“Siemens Plug” as shown.
For this AC plug adapter, please contact
the local dealers in your area.
Remove the AC adapter from the AC
wall outlet when not in use.
Do not leave dust or metal objects
adhered to the AC wall outlet or AC
adapter (power/DC plug).
Plug Adapter
6Safety Precautions
Introduction
.
IMPORTANT (for owners in the U.K.)
Connection to the mains supply in
the United Kingdom.
DO NOT cut off the mains plug from
this equipment.
If the plug fitted is not suitable for the
power points in your home or the cable is
too short to reach a power point, then
obtain an appropriate safety approved
extension lead or contact the local
dealers in your area.
BE SURE to replace the fuse only with
an identical approved type, as originally
fitted, and to replace the fuse cover.
If nonetheless the mains plug is cut off
be sure to remove the fuse and dispose
of the plug immediately, to avoid possible
shock hazard by inadvertent connection
to the mains supply.
If this product is not supplied fitted with a
mains plug then follow the instructions
given below:
DO NOT make any connection to the
Larger Terminal coded E or Green.
The wires in the mains lead are coloured
in accordance with the following code:
If these colours do not correspond with
the terminal identifications of your plug,
connect as follows:
Blue wire to terminal coded N (Neutral)
or coloured black.
Brown wire to terminal coded L (Live) or
coloured Red.
If in doubt — consult a competent
electrician.
CAUTIONS:
To prevent shock, do not open the
cabinet. No user serviceable parts
inside.
Refer servicing to qualified personnel.
When you are not using the AC
adapter for a long period of time, it is
recommended that you disconnect the
power cord from AC outlet.
Blue to N
(Neutral) or Black
Brown to L (Live)
or Red
.
FOR EUROPE
This equipment is in conformity with the
provisions and protection requirements of
the corresponding European Directives.
This equipment is designed for professional
video appliances and can be used in the
following environments:
Controlled EMC environment (for
example, purpose-built broadcasting or
recording studio), and rural outdoors
environments.
In order to keep the best performance and
furthermore for electromagnetic
compatibility we recommend to use cables
not exceeding the following lengths:
The inrush current of this apparatus is
11.0 A.
Exclusive
Cable
Exclusive
Cable
Exclusive
Cable
Exclusive
Cable
Coaxial
Cable
Shielded
Cable
Shielded
Cable
Shielded
Cable
Shielded
Cable
DC 1.8 m
1.4 m
1.2 m
1.8 m
2 m
2 m
3 m
1 m
1 m
USB Mini
AV OUT
HDMI
REMOTE
SDI OUT
AUX
HEADPHONE
AUDIO INPUT 1/2
O
Port Cable Length
CAUTION:
Where there are strong electromagnetic
waves or magnetism, for example near a
radio or TV transmitter, transformer,
motor, etc., the picture and the sound
may be disturbed. In such case, please
keep the apparatus away from the
sources of the disturbance.
Safety Precautions 7
Introduction
.
WARNING
This equipment is compliant with Class A
of CISPR 32.
In residential environment this equipment
may cause radio interference.
CAUTION:
To avoid electric
shock or damage to
the unit, first firmly
insert the small end
of the power cord into the AC Adapter
until it is no longer wobbly, and then plug
the larger end of the power cord in to an
AC outlet.
FOR EUROPEAN
Dear Customer
This apparatus is in conformance with
the valid European directives and
standards regarding electromagnetic
compatibility and electrical safety.
European representative of
JVC KENWOOD Corporation is:
JVCKENWOOD Deutschland Gmbh
Konrad-Adenauer-Allee 1-11
61118 Bad Vilbel
GERMANY
Sehr geehrter Kunde, sehr geehrte
Kundin, dieses Gerät stimmt mit den
gültigen europäischen Richtlinien und
Normen bezüglich elektromagnetischer
Verträglichkeit und elektrischer
Sicherheit überein.
Die europäische Vertretung für die
JVC KENWOOD Corporation ist:
JVCKENWOOD Deutschland Gmbh
Konrad-Adenauer-Allee 1-11
61118 Bad Vilbel
DEUTSCHLAND
.
The plastics packaging bags may cause
suffocation when they are covered over the
head. Tear them open, and keep them away
from the reach of infants and children by
ensuring that they are disposed of properly.
.
Battery Pack
The supplied battery pack is a lithium-ion
battery. Before using the supplied battery
pack or an optional battery pack, be sure
to read the following cautions:
To avoid hazards
... do not burn.
To prevent damage and prolong
service life
... do not subject to unnecessary shock.
... charge within the temperature range
of 10°C to 30°C (50°F to 86°F). Cooler
temperatures require longer charging
time, or in some cases stop charging
at all. Warmer temperatures prevent
complete charging, or in some cases
stop charging at all.
... store in a cool, dry place. Extended
exposure to high temperatures will
increase natural discharge and
shorten service life.
... keep a 30% battery level if the
battery pack is not to be used for a
long period of time.
... remove from charger or powered unit
when not in use, as some machines
use current even when switched off.
... do not drop or subject to strong
impact.
... do not short-circuit the
terminals. Keep it away
from metallic objects
when not in use.
When transporting,
carry the battery in a
plastic bag.
... do not modify or
disassemble.
... do not expose the
battery to
temperatures
exceeding 60°C (140°F), as this may
cause the battery to overheat, explode
or catch fire.
... use only specified chargers.
Terminals
Terminals
8Safety Precautions
Introduction
.
Para Brasil
Informação sobre eliminação de
baterias
Este produto não deverá ser eliminado
como lixo doméstico em geral.
Devolva a bateria velha ao comerciante
ou para a rede autorizada, para que seja
devolvida ao fabricante ou importador.
A reciclagem e eliminação de lixo em
uma maneira adequada, ajudarão para
preservar recursos, prevenindo, ao
mesmo tempo, contra efeitos prejudiciais
sobre a nossa saúde e o meio ambiente.
o

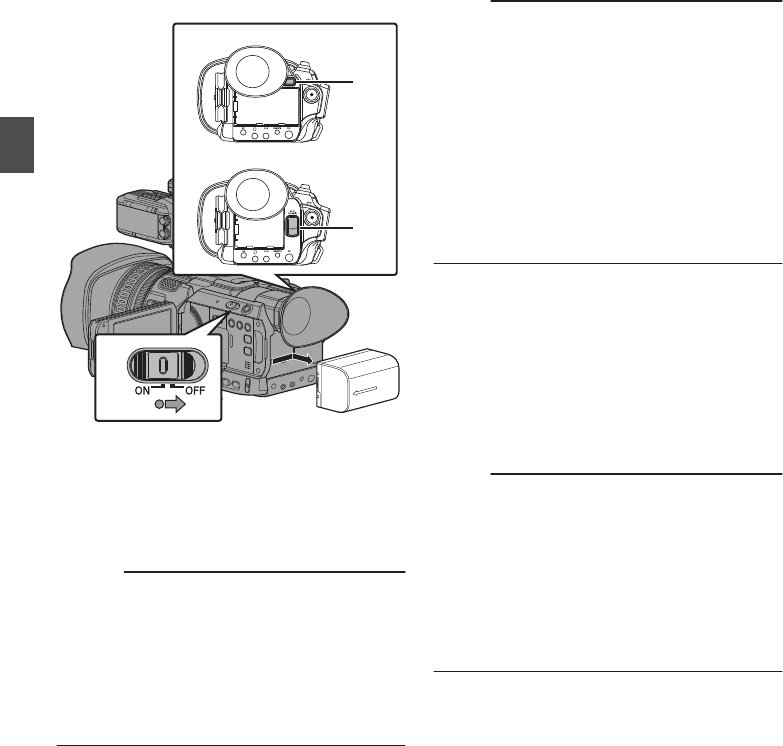

Para Retirar a Bateria Recarregável
Pressione botão e puxe a bateria para fora.
.
GY-HM250U/GY-HM250E
GY-HM180U/GY-HM180E
Empurre
Empurre
Safety Precautions 9
Introduction
Contents
Introduction
Safety Precautions ............................................ 4
Contents .......................................................... 10
Main Features ................................................. 12
Precautions for Proper Use ............................. 14
Operation Modes ............................................. 18
Names of Parts ................................................ 20
Side Control Panel ....................................... 21
Side Terminal Section .................................. 22
Rear Terminal .............................................. 22
LCD Monitor ................................................ 23
Handle Unit Section ..................................... 24
Lens Section ................................................ 25
Basic System Diagram .................................... 26
Preparations
Settings and Adjustments Before Use ............. 27
Attaching the Handle Unit ............................ 27
Adjusting the Grip Belt ................................. 27
Attaching the External Microphone O ...... 27
Attaching/Detaching the Lens Cap .............. 28
Attaching/Detaching the Hood ..................... 28
Attaching the Tripod ..................................... 28
Power Supply .................................................. 29
Using a Battery Pack .................................... 29
Using AC Power (DC IN Power) ................... 31
Power Status Display ...................................... 31
Turning On/Off the Power ................................ 32
Initial Settings .................................................. 33
Displays on the LCD Monitor and Viewfinder .. 35
Display Screen ............................................. 35
Status Screen .............................................. 36
USB Mode Screen ....................................... 36
Remote Edit Mode Screen n ................... 36
Warning Display ........................................... 36
Adjusting the LCD Monitor and Viewfinder ...... 37
Adjusting the LCD Monitor ........................... 37
Adjusting the Viewfinder .............................. 38
Assignment of Functions to User Buttons ........ 39
Tally Lamp ....................................................... 39
SD Card ........................................................... 40
Usable Cards ............................................... 40
Formatting (Initializing) SD Cards ................ 42
Restoring the SD Card ................................. 43
Clips Recorded to SD Cards ........................ 44
Operation Lock Feature ................................... 45
Shooting
Basic Shooting Procedures ............................. 46
Selecting System Definition, File Format and Video
Format ............................................................. 47
Zoom Operation .............................................. 50
Focus Operation .............................................. 51
Adjusting the Focusing by Face Detection ...... 53
Adjusting the Brightness .................................. 55
Adjusting the Iris .............................................. 56
Setting the Gain ............................................... 57
Setting the Electronic Shutter .......................... 58
Setting the ND Filter ........................................ 60
Adjusting the White Balance ............................ 61
Adjusting the Camera Image ........................... 64
Using the Image Stabilizer ............................... 65
Audio Recording .............................................. 65
Monitoring Audio Sound During Recording Using a
Headphone ...................................................... 68
Time Code and User’s Bit ................................ 68
Setting Time Code Generator .......................... 69
Setting the User’s Bit ....................................... 72
Setting Zebra Pattern ...................................... 73
Viewing Recorded Videos Immediately (Clip
Review) ........................................................... 73
Using the Histogram ........................................ 74
Recording Simultaneously at Two Different
Definitions ....................................................... 75
Series Rec ....................................................... 75
Dual Rec .......................................................... 75
Backup Rec ..................................................... 77
Special Recording ........................................... 79
Pre Rec ........................................................ 79
Clip Continuous Rec .................................... 80
Frame Rec ................................................... 81
Interval Rec .................................................. 82
Splitting the Clips Freely (Clip Cutter Trig) ....... 83
Playback
Playing Recorded Clips ................................... 84
Thumbnail Screen ........................................ 84
Actions ......................................................... 86
Playing back ................................................ 87
Deleting Clips .................................................. 88
Appending/Deleting OK Mark .......................... 89
Selecting and Performing Operations on Multiple
Clips ................................................................ 90
Selecting Multiple Clips Randomly ............... 90
Selecting Multiple Clips Consecutively ........ 91
Trimming Recorded Clips ................................ 92
Menu Display and Detailed Settings
Basic Operations in Menu Screen ................... 93
Display and Description of the Menu Screen
..................................................................... 94
Text Input with Software Keyboard .............. 95
Menu Screen Hierarchical Chart ..................... 96
Overlay Settings Menu n ............................ 97
Camera Function Menu ................................... 98
User Switch Set Item .................................. 100
10 Contents
Introduction
Camera Process Menu .................................. 102
Detail/Adjust Item ....................................... 105
White Balance Item .................................... 105
TC/UB Menu ................................................. 106
LCD/VF Menu ................................................ 107
Shooting Assist Item .................................. 108
Marker Settings Item .................................. 108
Display Settings Item ................................. 109
A/V Set Menu ................................................ 111
Video Set Item ........................................... 111
Audio Set Item ........................................... 112
System Menu ................................................ 115
Record Set Item ......................................... 117
Network/Settings Item n ........................ 121
Adding/Editing Frequently Used Menu Items
(Favorites Menu) ........................................... 128
Adding Menu Items to Favorites Menu ...... 128
Editing Favorites Menu .............................. 129
Display/Status Screen
Display Screen in Camera Mode ................... 132
Display Screen in Media Mode ...................... 138
Status Screen ................................................ 140
Camera Features
Marker and Safety Zone Displays (Camera Mode
Only) .............................................................. 141
Color Bar Output ........................................... 141
Adjusting Color Matrix ................................... 142
Configuring Setup Files ................................. 143
Saving Setup Files ..................................... 143
Loading a Setup File .................................. 144
Connecting External Devices
Connecting External Monitor ......................... 145
Connecting the Headphone ........................... 146
Connecting Wired Remote Control ................ 147
Loading Clips to the PC ................................. 147
Connecting to the Network n
Functions of Network Connection n .......... 149
Preparing Network Connection n .............. 150
Operating Environment .............................. 150
Camera Setup for Network Connection ..... 150
Connecting via Wireless LAN .................... 151
Connecting via Wired LAN ......................... 152
Connecting via Cellular Adapter ................ 153
Importing Metadata n ............................... 153
Preparing Metadata ................................... 153
Configuring the Server for Downloading .... 154
Importing Metadata .................................... 154
Uploading a Recorded Video Clip n ......... 155
Configuring the FTP Server for Uploading . 155
Uploading Video Clip ................................. 155
FTP Resume Feature n ............................ 158
Connecting from a Web Browser n ........... 158
Editing Metadata n ................................... 159
Planning Metadata ..................................... 159
Clip Metadata ............................................ 160
Uploading a Recording Clip via a Web Browser
n ............................................................... 163
View Remote Feature n ............................ 166
Operating Procedure ................................. 166
Registering/Deleting Preset Zoom ............. 167
Camera Control Function n ...................... 169
Configuring Settings via a Browser n ........ 170
Changing View Remote Function Settings . 171
Changing Connection Setup ...................... 172
Changing Metadata Server Settings .......... 173
Changing Clip Server Settings ................... 173
Changing Streaming Settings .................... 173
Managing the Network Connection Settings File
n ............................................................... 173
Saving the Connection Settings File .......... 174
Reading the Connection Settings File ........ 175
Deleting Connection Settings .................... 175
Performing Live Streaming n .................... 176
Setting Distribution ..................................... 177
Starting Distribution ................................... 178
Setting the FEC Matrix ............................... 179
Broadcast Overlay n ................................. 179
Importing and Configuring Settings for SDP Files
for Broadcast ............................................. 179
Displaying Watermark Images ................... 181
Displaying Images on the Whole Screen (Full
Screen Graphic Function) .......................... 182
Protecting Overlay Settings with a Password
................................................................... 184
Specifying Text and Images ....................... 184
Others
Error Messages and Actions ......................... 185
List of FTP Transfer Errors n ................. 186
List of Live Streaming Error Displays n . 188
Blinking of the Tally Lamp .......................... 189
Warning Tone ............................................ 189
Troubleshooting ............................................ 189
Specifications ................................................ 191
Index ............................................................. 194
Software License Agreement ........................ 196
Important Notice concerning the Software ..... 197
.
Contents 11
Introduction
Main Features
Supports 4K high-definition recording,
realizing more advanced Full HD
recording quality
Recording and playback at 30p/25p/24p are
possible in 4K resolution (3840x2160 pixels),
which contains information that is about four times
larger than Full HD. And in addition to recording at
150 Mbps for 4K shooting with H.264 codec, this
camera recorder also supports a recording mode
of 70 Mbps. Videos can also be recorded in Class
10 SDHC/SDXC memory cards.
In addition to the 50 Mbps 4:2:2 color sampling
recording in conventional HD shooting, the camera
recorder also supports 4:2:2 recording mode in 4K
30p/25p/24p n, thus achieving even finer color
representation.
F1.2, 29.6 mm wide-angle, 12x optical
zoom lens
The 12x optical zoom supports zooming from 29.6
mm at the wide-angle end, and dynamic zoom up
to 24x with the use of a high-resolution sensor
(during HD/SD recording), allowing the faces of
distant portrait subjects to be captured.
High-performance CMOS sensor with a
sensitivity of F5.6
This camera recorder is built in with a high-
performance 1/2.3-inch (effective pixels of 9.03
megapixels, 1/2.5-inch) CMOS sensor with a
resolution of 12.4 megapixels, achieving a
significantly enhanced sensitivity of F5.6 with the
high-definition and advanced noise-reduction
technology. You can produce recordings with
excellent gradation even when shooting in a low-
light scene or at a location where lighting cannot be
used.
JVC image processor “FALCONBRID II”
The image processor employed supports both 4K
codec developed by JVC and simultaneous dual
stream encoding, achieving a high image quality
that maximizes the potential of next-generation
high-resolution sensors.
Enhanced network functions n
This camera recorder can be operated from
network devices such as PC and tablet during 4K
shooting.
The RTMP protocol supports video and audio
streaming via the network during HD/SD shooting,
YouTube Live and Facebook Live. In addition, the
camera recorder also supports “SMPTE 2022-1”,
which allows high-definition data transmission
easily at low cost, and “Zixi”, a cloud service that
enables highly-reliable and stable data
transmission.
Broadcast Overlay n
Station name, program name, or news title
according to the recorded content can be entered
easily by using a smartphone or tablet, and this
information can be superimposed on the recording
clip or streaming images. The color of the text bar
can be selected from several pre-installed colors
and you can even customize to your preferred
image using a free PC application.
Full Screen Graphic Function n
Announcement and advertising images can be
superimposed on the shooting screen for live
distribution and for recording onto an SD card. Up
to 50 image files can be saved in the camera
recorder and they can also be used as a slide show.
Zero Config Function n
The camera recorder can be automatically
detected using the Streamstar X series from
Streamstar connected to the same LAN, making it
easier to connect multiple units.
Control from RM-LP100 n
This camera recorder can be controlled by using a
remote camera controller RM-LP100. Control from
external devices is indicated as a tally display on
the LCD and VF.
Color Matrix Adjustment Function
With the detailed settings of the Color Matrix
Adjustment, when shooting is performed using
multiple cameras, colors in different cameras can
be adjusted, and a color of the user’s preference
can be set on this camera recorder.
The “Setup Files” saved on the SD card can also
be used to enable the same setup status for other
GY-HM250/GY-HM180.
High Luminance Priority Mode n
Equipped with a high luminance priority recording
mode that reduces overexposure of brightly lit
images. By making the brightly lit areas high
contrast, the images will appear more natural.
Equipped with Histogram Function to
Check the Brightness of the Subject and
Assist in Determining Exposure Level
Allows users to check the overall trend of the
exposure level on a histogram and assists in
preventing overexposure and blocked-up
shadows.
High-Speed Recording Function
A moving subject can be effectively portrayed by
shooting smooth slow motion images.
12 Main Features
Introduction
Content of this Manual
Symbols used
Caution : Describes precautions concerning the
operation of this product.
Memo : Describes reference information, such as
functions and usage restrictions of this
product.
A
: Indicates the reference page numbers and
reference items.
n
: Feature available on GY-HM250U/GY-
HM250E only.
m
: Feature available on GY-HM180U/GY-
HM180E only.
O
: Function that operates only when the handle
unit is attached.
Content of this manual
0All rights reserved by JVC KENWOOD Corporation.
Unauthorized duplication or reprinting of this manual,
in whole or in part, is strictly prohibited.
0Illustrated designs, specifications and other contents
of this manual are subject to change for improvement
without prior notice.
0AVCHD Progressive and the AVCHD Progressive logo
are trademarks of Panasonic Corporation and Sony
Corporation.
0SDXC and SDHC logos are trademarks of SD-3C, LLC.
0The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or
registered trademarks of HDMI Licensing
Administrator, Inc. in the United States and other
countries.
0QuickTime, Final Cut Pro, iPhone, iPad, iPod touch,
iOS, Mac OS and Safari are trademarks of Apple Inc.,
registered in the U.S. and other countries.
0Android, Google Chrome, YouTube and Nexus are
trademarks and/or registered trademarks of Google
LLC.
0QR Code is a registered trademark of Denso Wave
Incorporated.
0Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
0Microsoft, Windows, Windows Vista, and Internet
Explorer are either registered trademarks or
trademarks of Microsoft Corporation in the United
States and/or other countries.
0Surface is the trademarks of Microsoft Corporation in
the United States and/or other countries.
0Mozilla and Firefox are either trademarks or registered
trademarks of Mozilla Foundation in the United States
and/or other countries.
0Intel Core 2 Duo is a trademark or registered trademark
of Intel Corporation or its subsidiaries in the United
States and other countries.
0The company name of Fontworks, Fontworks, and the
name of the fonts are registered trademarks of
Fontworks Inc.
0Zixi and the Zixi logo are trademarks of Zixi LLC.
0Facebook is a registered trademark of Facebook, Inc.
0Other product and company names included in this
instruction manual are trademarks and/or registered
trademarks of their respective companies. Marks such
as ™ and ® have been omitted in this manual.
Precautions for Proper
Use
Storage and Usage Locations
oAllowable ambient temperature and humidity
Be sure to use this unit within the allowable
temperature range of 0 °C to 40 °C (32 °F to
104°F) and a relative humidity of 30 % to 80 %.
Using this unit at a temperature or humidity
outside the allowable ranges could result not
only in malfunction but also serious impact on
the CMOS elements as small white spots may
be generated. Please exercise care during use.
oStrong electromagnetic waves or magnetism
Noise may appear in the picture or audio and/or
the colors may be incorrect if this unit is used
near a radio or television transmitting antenna,
in places where strong magnetic fields are
generated by transformers, motors, etc., or near
devices emitting radio waves, such as
transceivers or cellular phones.
oUse of wireless microphone near this unit
When a wireless microphone or wireless
microphone tuner is used near this unit during
recording, the tuner could pick up noise.
oAvoid using or placing this unit in the following
places.
0Places subject to extreme heat or cold
0Places with excessive dirt or dust
0Places with high humidity or moisture
0Places subject to smoke or vapor such as near
a cooking stove
0Places subject to strong vibrations or unstable
surfaces
0In a parked car under direct sunlight or near a
heater for long hours
oDo not place this unit at places that are subject
to radiation or X-rays, or where corrosive gases
occur.
oProtect this unit from being splashed with water.
(Especially when shooting in the rain)
oProtect this unit from getting wet when shooting
on a beach. In addition, salt and sand may
adhere to the body. Be sure to clean the unit after
use.
oProtect this unit against penetration of dust
when using it in a place subject to sandy dust.
Carrying the Camera
oDo not drop or hit this unit against a hard object
when transporting.
14 Content of this manual
Introduction
Power Saving
oWhen this unit is not in use, be sure to set the
[POWER ON/OFF] switch to “OFF” in order to
reduce power consumption.
Maintenance
oTurn off the power before performing any
maintenance.
oWipe the external cabinet of the unit with a soft
cloth. Do not wipe the body with benzene or
thinner. Doing so may cause the surface to melt
or turn cloudy. When it is extremely dirty, soak
the cloth in a solution of neutral detergent, wipe
the body with it, and then use a clean cloth to
remove the detergent.
Rechargeable Battery
oBe sure to use only the specified batteries.
We do not guarantee the safety and
performance of this device if an unspecified
battery is used.
om
0Charge the battery first before using.
0If you are not using the battery for a prolonged
period of time, remove and keep the battery at
a 30 % to 40 % charge level to prevent
deterioration.
0Recharge the battery to a level of 10 % to 20
% once every six months when storing the
battery.
Storing the battery at a fully discharged state
will result in over discharging and inability to
charge the battery.
0Store the removed battery with the battery cap
attached in a dry place between 15 °C and
25 °C (59 °F and 77 °F).
on
0For details, refer to the “INSTRUCTIONS” of
the battery.
oATTENTION:
The product you have purchased
is powered by a rechargeable
battery that is recyclable.
Please call 1-800-8-BATTERY for
information on how to recycle this
battery.
Regular Inspection (Maintenance)
oUnder normal environment, dust will
accumulate on the camera recorder when it is
used over a long period. Dust may enter the
camera recorder especially if it is used outdoors.
This may affect the image and sound quality of
the camera recorder. Check and replace the fan
after every 9000 hours (suggested guideline).
You can check the usage time of the fan in
[System] B [System Information] B [Fan Hour].
(A P117 [ Fan Hour ] )
If the fan is used for more than 9000 hours
without replacement, “Fan Maintenance
Required” will be displayed every time you turn
on the power.
SDHC/SDXC Cards
oSDHC/SDXC card is referred to as SD card in
this manual.
oThis camera recorder saves the recorded
images and audio sound on the SD card (sold
separately) in the card slot.
oIf the SD card contains files recorded by devices
other than this camera recorder or files that are
saved from a PC, the recordable time may be
shorter or data may not be properly recorded. In
addition, the remaining space on the card may
not increase even when files are deleted using
a PC.
oFor details on the combinations of usable SD
card and format setting, refer to the following.
(A P40 [Format Setting and Usable SD Card
Combinations] )
* Using cards other than those from Panasonic,
TOSHIBA or SanDisk may result in recording
failure or data loss.
Handling of SD Cards
oThe status indicator lights up in red when data
on the SD card is being accessed.
Do not remove the SD card during data access
(such as recording, playback, or formatting). Do
not turn off the power or remove the battery and
AC adapter during access either.
oDo not use or store the SD card in a place that
is subject to static electricity or electrical noise.
oDo not place the SD card near locations that are
exposed to strong magnetic fields or radio
waves.
oInserting the SD card incorrectly may result in
damage of this unit or the SD card.
Precautions for Proper Use 15
Introduction
oWe are not liable for any accidental loss of data
stored on the SD card. Please back up any
important data.
oMake use of the SD card within the prescribed
conditions of use.
Do not use it at the following locations.
Places that are subject to direct sunlight, high
humidity or corrosion, places near thermal
equipment, sandy or dusty places, or in a car
under the sun with the doors and windows
closed.
oDo not bend or drop the SD card, or subject it to
strong impact or vibration.
oDo not splash the SD card with water.
oDo not dismantle or modify the SD card.
oDo not touch the terminals with your hands or
with a metal object.
oDo not allow dust, dirt, water, or foreign objects
to adhere to the terminals.
oDo not remove the labels or stick other labels or
stickers on the SD cards.
oDo not use pencils or ballpoint pens to write on
the SD cards. Always use oil-based pens.
oIf you format (initialize) the SD card, all data
recorded on the card, including video data and
setup files, will be deleted.
oYou are recommended to use cards that are
formatted (initialized) on this camera recorder.
0The SD card may be damaged if the camera
recorder is not operated correctly. Formatting
(Initializing) the SD card may allow it to
operate correctly.
0SD cards that have been formatted
(initialized) on other cameras, computers or
peripheral equipment may not operate
correctly. In this case, format (initialize) the SD
card on this camera recorder.
oIf you want to wipe out all information by
completely erasing the data, we recommend
either using commercially available software
that is specially designed for that purpose, or by
physically destroying the SD card with a
hammer, etc. When formatting or erasing data
using the camera recorder, only the file
administration information is changed. The data
is not completely erased from the SD card.
oSome commercially available SD cards may be
harder to be removed from this unit. Remove
them by hooking onto the groove on the cards.
0It will be easier to remove the cards after
several times.
0Do not stick any stickers on the cards.
.
Groove
oThe SD card may pop out when it is being
removed. Be careful not to lose the card.
LCD Monitor and Viewfinder
oThe LCD monitor and viewfinder screen are
manufactured using high-precision technology.
Black spots may appear on the LCD monitor and
viewfinder screen, or red, blue, and/or white
spots may not disappear. However, this is not a
malfunction and these spots are not recorded on
the SD card.
oIf you use this unit continuously for a long period
of time, the characters displayed in the
viewfinder may temporarily remain on the
screen. This is not recorded on the SD card.
They will not appear after you turn the power off
and then on again.
oIf you use this unit in a cold place, the images
may appear to lag on the screen, but this is not
a malfunction. Retained images are not
recorded on the SD card.
oDo not press against the surface with force or
subject it to strong impact. Doing so may
damage or break the screens.
oNoise may appear in the viewfinder when
switching between the live video and playback
images.
oDue to the characteristic of the viewfinder
display device, colors may appear on the
images when you blink your eyes. It does not
affect the recorded images, SDI output, or HDMI
output.
16 Precautions for Proper Use
Introduction
Copyright
oAny recordings made on this camera recorder
that are played back for profit or public preview
may infringe on the rights of the owner of the
recordings.
Do not use the recordings for purpose other than
personal enjoyment without prior consent from
the owner.
License Notices
oMPEG LA AVC
THIS PRODUCT IS LICENSED UNDER THE
AVC PATENT PORTFOLIO LICENSE FOR
THE PERSONAL USE OF A CONSUMER OR
OTHER USES IN WHICH IT DOES NOT
RECEIVE REMUNERATION TO
(i) ENCODE VIDEO IN COMPLIANCE WITH
THE AVC STANDARD (“AVC VIDEO”) AND/OR
(ii) DECODE AVC VIDEO THAT WAS
ENCODED BY A CONSUMER ENGAGED IN A
PERSONAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER
LICENSED TO PROVIDE AVC VIDEO.
NO LICENSE IS GRANTED OR SHALL BE
IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM
MPEG LA, L.L.C. SEE
HTTP://WWW.MPEGLA.COM
Encryption in Network Connection n
oWireless LAN connections make use of an
encryption function.
This encryption is designed for commercially-
sold equipment, and it cannot be altered.
Others
oDo not insert objects other than the memory card
into the card slot.
oDo not block the vent on the unit.
Blocking of the vent causes internal heating and
may lead to burns and fires.
0Do not turn off the [POWER ON/OFF] switch
or remove the power cable during recording
or playback.
0The camera recorder may not show stable
pictures for a few seconds immediately after
the power is turned on, but this is not a
malfunction.
0When the video signal output terminals are not
in use, put on the covers to prevent damage
to the terminals.
oDo not drop this unit or subject it to strong impact
or vibration as it is a precision equipment.
oOptical performance of lens
Due to the optical performance of the lens, color
divergence phenomena (magnification
chromatic aberration) may occur at the
periphery of the image. This is not a camera
malfunction.
oNoise may appear in the image when switching
modes.
oIf placed on its side, heat release efficiency will
deteriorate.
oUse the supplied AC adapter as the power
supply. Do not use the supplied AC adapter on
other devices.
oUse the supplied power cord. And do not use the
supplied power cord for any other devices.
oWhen the connectors that come with connector
covers are not in use, put on the covers to
prevent damage to the connectors.
oThis camera recorder makes use of fonts by
Fontworks Inc.
oThis camera recorder makes use of M+FONTS.
Precautions for Proper Use 17
Introduction
Operation Mode Description
Camera Mode 0This is the camera shooting mode. The camera recorder starts up in Camera mode
when the power is turned on.
0Camera images are output on the viewfinder and LCD monitor. When a recordable
SD card is inserted, the camera recorder enters the recording standby mode.
“STBY” appears on the operation mode display area of the LCD monitor and
viewfinder.
0Press the [REC] trigger button to start recording.
Memo :
0Playback of SD card is not possible in Camera mode. However, you can check the
most recently recorded video clip.
(A P73 [Viewing Recorded Videos Immediately (Clip Review)] )
Media Mode 0This mode allows you to play back or delete clips recorded on the SD card.
0When a playable SD card is inserted, the thumbnail or playback screen is displayed
on the viewfinder and LCD monitor.
0Press and hold the [MODE] selection button to enter the Media mode when you
are not shooting in the Camera mode. Once the camera recorder is in Media mode,
thumbnails of the selected media slot are displayed.
USB Mode 0This mode allows you to connect to a PC and transfer the files on an SD card to
the PC.
0When the camera recorder is connected to a USB cable, the message “Change to
USB Mode?” appears.
Select [Change] and press the Set button to switch to USB mode.
(A P147 [Loading Clips to the PC] )
0In USB mode, the camera recorder is recognized by the connected PC as a
peripheral drive. (USB mass storage class only)
Disable the connection on the PC and remove the USB cable from the camera
recorder to switch to Camera mode.
(A P147 [Loading Clips to the PC] )
Memo :
0When a USB cable is connected during recording, the message appears after
recording stops.
0If playback is in progress, the message appears once the files are closed
automatically, such as when playback stops.
0Files on the PC cannot be written to the SD card.
Remote Edit
Mode n
0This mode enables the list display and editing of the recorded clip data through
access to the clip list display page via a web browser on a smartphone, tablet
terminal, or PC.
0When you access via a web browser on a smartphone, tablet terminal, or PC, “It
is necessary to change the camera mode to "Remote Edit Mode". Change the
mode.” appears on the web browser. Also, “Change to Remote Edit Mode?” is
displayed on the display screen of the camera unit.
Selecting [Change] on the camera recorder and pressing the Set button switches
to the Remote Edit mode, and enables display of the clip list and editing of the clip
metadata.
(A P160 [ Clip Metadata ] )
(A P163 [Uploading a Recording Clip via a Web Browser n] )
Memo :
0If you access via a web browser on devices such as a smartphone, tablet terminal,
or PC while recording is in progress, the message appears after recording stops.
0If playback is in progress, the message appears once the files are closed
automatically, such as when playback stops.
Operation Modes 19
Introduction
Names of Parts
.
A
B
D
E
C
F
ABuilt-in Microphone
(A P65 [Audio Recording] )
BHandle Unit
(A P24 [Handle Unit Section] )
Memo :
0The handle unit is detached from the camera
recorder unit in the factory shipment.
For details on attaching the handle unit, please
refer to [Attaching the Handle Unit] .
(A P27 [Attaching the Handle Unit] )
C[MODE] Camera/Media Mode Selection Button
(A P18 [Operation Modes] )
D[POWER ON/OFF] Lock Power ON/OFF Switch
Turns ON/OFF the power.
0Hold down the lock button (blue) in the center
to toggle ON/OFF.
0When the power is turning OFF, “P.OFF”
appears on the LCD monitor and viewfinder.
0Wait for 5 seconds or more to turn on the
power again.
(A P32 [Turning On/Off the Power] )
E[POWER/CHARGE] Power/Charging Display
Lamp
(A P29 [Using a Battery Pack] )
F[AWB/9] Auto White Balance/User 9 Button
0For executing Auto White Balance and
switching the registered color temperature.
(A P61 [Adjusting the White Balance] )
0You can also use it as a user button by
assigning a specific feature in the menu
setting to this button.
.
H
L
K
M
I
J
N
G
o Bottom
O
GVisibility Adjustment Lever
(A P38 [Adjusting the Viewfinder] )
HBattery
(A P29 [Using a Battery Pack] )
IViewfinder
(A P38 [Adjusting the Viewfinder] )
JEyepiece
Prevents external light from entering the
viewfinder screen and cameraman’s vision.
K[REC/7] Record Trigger/User 7 Button
0Starts/stops recording.
(A P46 [Basic Shooting Procedures] )
0You can also use it as a user button by
assigning a specific feature in the menu
setting to this button.
LZoom Lever at the Grip
(A P50 [Using the Zoom Lever at the Grip] )
M[EXPANDED FOCUS/8] Expanded Focus
Assist/User 8 Button
0For switching the expanded focus ON or
OFF.
(A P52 [Expanded Focus Function] )
0You can also use it as a user button by
assigning a specific feature in the menu
setting to this button.
NTally Lamp
(A P39 [Tally Lamp] )
(A P189 [Blinking of the Tally Lamp] )
OTripod Mounting Hole
(A P28 [Attaching the Tripod] )
20 Names of Parts
Introduction
Side Control Panel
.
B
F
G
D
C
M J I HL K
E
A
A[FULL AUTO] Full Auto Selection Button
Press and hold the button to switch the Full Auto
mode ON and OFF.
Full Auto mode adjusts the Iris, Gain, Shutter
and White Balance automatically.
(A P55 [Adjusting the Brightness
Automatically: Automatic Brightness
Adjustment (AE) Mode] )
(A P56 [Auto Iris (Automatic Adjustment)
Mode] )
(A P57 [Automatic Gain Mode (Automatic
Gain Adjustment)] )
(A P58 [Automatic Shutter Mode (Automatic
Shutter Adjustment)] )
(A P61 [Automatic White Balance Mode
(FAW: Fulltime Auto White balance)] )
Memo :
0This camera recorder is set to Full Auto mode in
the factory default.
B[AF/MF] Focus Selection Button
(A P51 [Focus Operation] )
C[ND FILTER] ND Filter Switch
(A P60 [Setting the ND Filter] )
D[F.ASSIST/1] Focus Assist/User 1 Button
0For switching the focus assist function ON or
OFF.
(A P52 [Focus Assist Function] )
0You can also use it as a user button by
assigning a specific feature in the menu
setting to this button.
(A P39 [Assignment of Functions to User
Buttons] )
E[TC/2] Time Code/User 2 Button
0Displays the time code setting screen.
(A P69 [Setting Time Code Generator] )
0You can also use it as a user button by
assigning a specific feature in the menu
setting to this button.
(A P39 [Assignment of Functions to User
Buttons] )
FLCD monitor
(A P23 [LCD Monitor] )
GJ / K Volume Buttons/[+/-] Selection Buttons
0Switches the audio monitor and adjusts the
monitor speaker/headphone.
(A P68 [Monitoring Audio Sound During
Recording Using a Headphone] )
0For switching the shutter speed and setting
the automatic brightness adjustment (AE)
level.
(A P59 [Switching Shutter Speed] )
(A P55 [Adjusting the Brightness
Automatically: Automatic Brightness
Adjustment (AE) Mode] )
H[SHUTTER] Shutter Speed Button
For switching the shutter speed in the Manual
Shutter mode. Press and hold the button to
switch between Automatic Shutter mode and
Manual Shutter mode.
(A P58 [Setting the Electronic Shutter] )
I[AE LEVEL] Automatic Brightness Adjustment
(AE) Level Setting Button
Sets the automatic brightness adjustment (AE)
level. Press and hold the button to switch
between “AE Level Setting Mode” and
“Recommended Fixed Level (AE: ±0)”.
(A P55 [Adjusting the Brightness] )
J[OIS/6] Optical Image Stabilizer/User 6 Button
0For switching the optical image stabilizer
feature ON or OFF.
(A P65 [Using the Image Stabilizer] )
0You can also use it as a user button by
assigning a specific feature in the menu
setting to this button.
(A P39 [Assignment of Functions to User
Buttons] )
K[WHT BAL B/A/PRST] White Balance Switch
(A P61 [Adjusting the White Balance] )
L[GAIN L/M/H] Gain Switch
(A P57 [Setting the Gain] )
M[IRIS A/M] Auto Iris/Manual Iris Button
(A P56 [Adjusting the Iris] )
Names of Parts 21
Introduction
Side Terminal Section
.
A
D
C
B
A[HOST] USB Host Terminal n
For connecting an USB adapter according to
the intended purpose when you are connecting
the unit to a network.
(A P150 [Camera Setup for Network
Connection] )
B[DEVICE] USB Mini Terminal
(A P147 [Loading Clips to the PC] )
C[HDMI] HDMI Output Terminal
(A P145 [Connecting External Monitor] )
D[SDI OUT] SDI Output Terminal
(A P112 [ Rec Trigger ] )
(A P145 [Connecting External Monitor] )
Rear Terminal
GY-HM250U/GY-HM250E
.
C
B
D
A
GFEH
GY-HM180U/GY-HM180E
.
C
B
D
A
GFEH
A[BATTERY] Terminal
B[BATT. RELEASE] Battery Lock Release Button
(A P30 [Removing the Battery] )
C[REC] Record Trigger Button
0Starts/stops recording.
(A P46 [Basic Shooting Procedures] )
0You can change its function in the menu.
Memo :
0This button is interlocked with the [REC/HOLD]
record trigger button I on the the handle unit.
D[DC] DC Input Terminal
Input terminal for DC 12 V power supply. For
connecting with the supplied AC adapter.
(A P31 [Using AC Power (DC IN Power)] )
E[REMOTE] Remote Terminal
(A P147 [Connecting Wired Remote Control] )
F[AUX] AUX Input Terminal (Φ3.5 mm)
For connecting to receiver such as wireless
microphone.
(A P65 [Audio Recording] )
G[x] Headphone Jack (Φ3.5 mm)
(A P68 [Monitoring Audio Sound During
Recording Using a Headphone] )
H[AV] AV Output Terminal
(A P145 [Connecting External Monitor] )
22 Names of Parts
Introduction
LCD Monitor
.
G
F
E
H
I
J
D
B
A
C
L KM
ALCD Monitor
(A P37 [Adjusting the LCD Monitor and
Viewfinder] )
B[CANCEL/STOP] Cancel/Stop Button
Cancels various settings and stops playback.
CLCD Cross-Shaped Button (JKHI)/Set Button
(R)
0The function changes according to the
operation status of the camera recorder.
0During menu operation (all modes)
(A P93 [Basic Operations in Menu
Screen] )
0During Camera mode
0You can use it as a user button by assigning
a specific feature in the menu setting to this
button.
(A P39 [Assignment of Functions to User
Buttons] )
D[MENU/THUMB] Menu/Thumbnail Button
0Displays the menu screen during Camera
mode.
0Switches between [Main Menu] and
[Favorites Menu] when the [MENU/THUMB]
button is pressed and held down while the
menu screen is displayed.
(A P93 [Basic Operations in Menu
Screen] )
0Displays the menu screen when the button is
pressed during thumbnail display in the
Media mode.
0Stops playback and displays the thumbnail
screen when the button is pressed during
playback screen display in the Media mode.
E[LOLUX/3] Low-light Shooting/User 3 Button
0For switching the low-light shooting mode
ON or OFF.
0You can also use it as a user button by
assigning a specific feature in the menu
setting to this button.
(A P39 [Assignment of Functions to User
Buttons] )
F[C.REVIEW/4] Clip Review/User 4 Button
0For checking the most recently captured
images.
(A P73 [Viewing Recorded Videos
Immediately (Clip Review)] )
0You can also use it as a user button by
assigning a specific feature in the menu
setting to this button.
(A P39 [Assignment of Functions to User
Buttons] )
G[ZEBRA/5] Zebra/User 5 Button
0For switching the zebra pattern display ON or
OFF.
(A P73 [Setting Zebra Pattern] )
0You can use it as a user button by assigning
a specific feature in the menu setting to this
button.
(A P39 [Assignment of Functions to User
Buttons] )
H[DISPLAY] Display Button
0Press the [DISPLAY] button to switch to the
display screen during normal screen display
(when the menu screen is not displayed).
(A P35 [Display Screen] )
0Switches between [Main Menu] and
[Favorites Menu] when the [DISPLAY] button
is pressed while the menu screen is
displayed.
(A P93 [Basic Operations in Menu
Screen] )
I[STATUS] Status Screen Display Button
Press the [STATUS] button to display the status
screen on the viewfinder and LCD monitor
during normal screen display (when the menu
screen is not displayed).
(A P36 [Status Screen] )
JMonitor Speaker
(A P87 [Audio Output during Playback] )
KSD Card Slot
(A P41 [Inserting an SD Card] )
LCard Slot A/B Status Indicator
M[SLOT SEL] Card Slot Selection Button
For switching the active card slot during
shooting and playback.
Names of Parts 23
Introduction
Handle Unit Section
.
D
C
F
A
B
E
L
H
I
G
S
T
Q
R
J
OPNM
K
AMicrophone Holder
(A P27 [Attaching the External Microphone
O] )
BMicrophone Holder Lock Knob
(A P27 [Attaching the External Microphone
O] )
CHandle Tally Lamp
(A P39 [Tally Lamp] )
(A P189 [Blinking of the Tally Lamp] )
DAccessory Mounting Screw Hole
EShoe
For mounting separately sold lights and
accessories.
FHandle Unit Fastening Screw
(A P27 [Attaching the Handle Unit] )
GZoom Lever on Handle
(A P50 [Using the Zoom Lever at the Handle
O] )
H[ZOOM L/M/H] Zoom Speed Switch
(A P50 [Zoom Operation] )
For switching the zoom speed of the zoom lever
G at the handle.
I[REC/HOLD] Record Trigger Button/Lock
Switch
Starts/stops recording.
Set the switch to [HOLD] to lock the [REC]
Trigger button.
Memo :
0This switch is interlocked with the [REC] button
C on the rear terminal.
0[REC] button C on the rear terminal is not
locked.
J[INPUT1/INPUT2] Audio Input Terminal 1, 2
(XLR 3-pin x 2)
(A P27 [Attaching the External Microphone
O] )
KCable Clamp for Microphone
(A P27 [Attaching the External Microphone
O] )
LHandle Terminal
M[CH-1] CH1 Audio Input Signal Selection Switch
Select the audio input terminal to record to CH1.
(A P65 [Audio Recording] )
N[CH-2] CH2 Audio Input Signal Selection Switch
Select the audio input terminal to record to CH2.
(A P65 [Audio Recording] )
O[AUDIO INPUT INPUT1] Audio Input Signal
Selection Switch
(A P65 [Audio Recording] )
P[AUDIO INPUT INPUT2] Audio Input Signal
Selection Switch
(A P65 [Audio Recording] )
Q[AUDIO SELECT CH-2 AUTO/MANU] CH2
Audio Recording Mode Switch
(A P66 [Adjusting the Audio Recording Level
O] )
R[CH-2] CH2 Recording Level Adjustment Knob
(A P65 [Audio Recording] )
S[CH-1] CH1 Recording Level Adjustment Knob
(A P65 [Audio Recording] )
T[AUDIO SELECT CH-1 AUTO/MANU] CH1
Audio Recording Mode Switch
(A P66 [Adjusting the Audio Recording Level
O] )
24 Names of Parts
Introduction
Lens Section
.
A
C DB
AFilter Built-In Screw
0Transparent or UV filter for lens protection, or
filters for various effects can be installed.
0Installable filter types: Φ62 mm P0.75
Memo :
0Remove the lens hood when installing the filter.
(A P28 [Attaching/Detaching the Hood] )
BFocus Ring
(A P51 [Focus Operation] )
CZoom Ring
(A P50 [Zoom Operation] )
You can set different functions for the zoom ring
and iris dial in [Main Menu] B [Camera
Function] B [Zoom Ring].
(A P99 [ Zoom Ring ] )
DIris Dial
(A P56 [Adjusting the Iris] )
You can assign the dial for “Shutter” or “AE
Level” adjustment in [Main Menu] B [Camera
Function] B [Iris Dial].
(A P99 [ Iris Dial ] )
Names of Parts 25
Introduction
Basic System Diagram
.
Wireless Microphone
Receiver
RCA pin
AV Cabl e
HDMI Cable
[AUX]
[INPUT1/INPUT2]
[SDI OUT]
[HDMI]
[AV]
[REMOTE]
[DEVICE]
[DC]
[x]
n :
n
Carrying Case
Tripod
SDHC/SDXC
Memory Card
SDHC/SDXC
Card Reader
USB Cable
Battery
Standard Package
AC Adapter
Handle Unit
Remote Control Unit
Non-linear Editing
System
GY-HM250U/GY-HM250E/
GY-HM180U/GY-HM180E Microphone
Monitor
SDI Cable
BNC
Headphone
[HOST]
Network Adapter
When handle unit is attached
Battery Charger
IDX Battery Charger
m :
m :
BN-VF823
n :
SSL-JVC50 AA-VF8
26 Basic System Diagram
Introduction
Settings and Adjustments
Before Use
.
Attaching the Handle Unit
The handle unit is detached from the camera
recorder unit in the factory shipment.
To use the handle unit, attach it by following the
steps below.
* Attach or detach the handle unit when the power
is turned off.
.
1Fit the handle terminal at the bottom of the
handle unit to the handle unit mount at the
top of the camera recorder.
0Fit the handle unit carefully, paying attention
not to damage the terminals at the bottom of
the unit.
2Slide the handle unit in the direction
indicated by the arrow to attach it to the hot
shoe of the camera recorder.
3Press the screw on the handle unit and turn
it in the clockwise direction. Tighten it
securely to fasten the unit to the camera
recorder.
0The handle unit may be unsteady if the screw
is not securely fastened, and may fall off
during use.
Caution :
0Attach or detach the handle unit when the power
is turned off.
Doing so when the power is turned on can result
in malfunction.
Adjusting the Grip Belt
Open the pad and adjust the position of the grip belt
accordingly.
.
Caution :
0If the grip is loose, the camera recorder may fall
off resulting in injuries or malfunction.
Attaching the External Microphone O
You can attach a separately sold microphone to the
microphone holder.
.
4
5
1, 3
2
1Turn the knob on the microphone holder
counterclockwise to loosen and open the
microphone holder.
2Place the microphone in the microphone
holder.
3Turn the knob on the microphone holder
clockwise to secure the microphone.
4Connect the microphone cable to the
[INPUT1] or [INPUT2] terminal.
5Pin the microphone cable to the clamp.
6Perform the settings for the microphone
correctly.
(A P65 [Audio Recording] )
Settings and Adjustments Before Use 27
Preparations
Power Supply
To use this camera recorder, you can attach a
battery pack or connect an AC adapter to it.
(A P29 [Using a Battery Pack] )
(A P31 [Using AC Power (DC IN Power)] )
Caution :
0Set the [POWER ON/OFF] switch to “OFF”
before changing the power supply that operates
this camera recorder.
0To charge the battery using a battery charger,
purchase a genuine charger that can charge the
recommended battery.
Using a Battery Pack
Charging the Battery
Charge the battery immediately after purchase or
when the battery power is running low.
* The battery is not charged when purchased.
.
3
2
1
4
1
Hold down the lock button (blue) at the
center of the [POWER ON/OFF] switch to set
to “OFF”.
2Attach the supplied battery.
Slide it in until you hear a click.
3Connect the supplied AC adapter to the
[DC] terminal.
Open the cover of the [DC] terminal and connect
as shown in the diagram.
4Connect the AC adapter to a power outlet.
0The [POWER/CHARGE] lamp blinks during
charging and will go out after charging is
complete.
0Remove the AC adapter after charging is
complete.
Memo :
0Blinking of the [POWER/CHARGE] lamp during
charging indicates the charge level.
[POWER/CHARGE] Lamp Charge Level
Alternates between a blinking
orange light (4 times) and
light off (1 second)
Less than 25 %
Alternates between a blinking
orange light (3 times) and
light off (1 second)
Less than 50 %
Alternates between a blinking
orange light (2 times) and
light off (1 second)
Less than 75 %
Alternates between a blinking
orange light (blinks once) and
light off (1 second)
Less than 100 %
Light goes out Fully charged
0You can charge the battery even when operating
the camera recorder using the AC adapter.
Power Supply 29
Preparations
Removing the Battery
.
2
GY-HM250U/GY-HM250E
GY-HM180U/GY-HM180E
1
2
1
Hold down the lock button (blue) at the
center of the [POWER ON/OFF] switch to set
to “OFF”.
2While pressing and holding the [BATT.
RELEASE] button, push up and remove the
battery in the direction of the arrow.
Caution :
0Do not remove the battery when the [POWER
ON/OFF] switch is “ON”.
0Do not insert or remove the DC cable when the
battery is in use.
0Leaving the camera recorder unused with the
battery inside will deplete the battery power
even if you set the [POWER ON/OFF] switch to
“OFF”. Remove the battery if you are not using
the camera recorder.
Estimated Charging and Continuous
Operating Times
oCharging time
SSL-JVC50 (accessory) n:Approx. 4 hrs
BN-VF823 (accessory) m:Approx. 3 hrs
*
When the [POWER ON/OFF] switch is set to “OFF”
Memo :
0If you charge the battery immediately after using
while the battery is still warm, it may not be fully
charged.
om
0It is recommended that you charge the battery
in an environment between 10 °C and 30 °C (50
°F and 86 °F). The battery may not be fully
charged or the charging time may be prolonged
if charged under low temperatures (below 10 °C/
50 °F). In addition, charging the battery under
high temperature (above 30 °C/86 °F) condition
may shorten the battery life.
on
0For details, refer to the “INSTRUCTIONS” of the
battery.
oContinuous operating time
SSL-JVC50 (accessory)
n:Approx. 4 hrs 40 mins
(*1)
Approx. 5 hrs (*2)
BN-VF823 (accessory)
m:Approx. 2 hrs (*1)
Approx. 2 hrs 20 mins
(*2)
*1 When [System] is set to “4K” and all other
settings are in factory default
*2 When [System] is set to “HD” and all other
settings are in factory default
Memo :
0Actual operating times may differ depending on
the age of the battery, charging condition, and
operating environment.
0Operating time is shortened in cold
environment.
0The operating time may shorten when power
zoom is used, accessories are connected, or
when the LCD monitor is frequently used.
0For purchase of spare batteries and battery
charger, please contact the local dealers in your
area.
Precautions for Batteries
0Store the battery in a cool and dry place when
not in use. Do not expose the battery to high
temperatures (such as in a car under direct
sunlight). Failure to do so not only shortens the
battery life but also damages the battery.
0If the operating time shortens drastically even
after charging, the battery may be reaching the
end of its life. Replace the battery with a new
one.
30 Power Supply
Preparations
Using AC Power (DC IN Power)
Use the supplied AC adapter to operate the camera
recorder with AC power.
.
1
2
1Connect the DC cable of the AC adapter to
the [DC] terminal of the camera recorder.
0Check that the power switch of the camera
recorder is set to “OFF”.
0Open the cover of the [DC] terminal and
connect as shown in the diagram.
2
Hold down the lock button (blue) at the
center of the [POWER ON/OFF] switch to set
to “ON”.
Power will be supplied to the camera recorder.
Caution :
0Do not insert or remove the DC cable during
recording.
0Do not use power supply of high voltage
fluctuation, containing noise such as ripple, or
with insufficient capacity.
Charging the Built-In Battery
0The date/time and time code data are stored
using the built-in rechargeable battery.
0When power is connected to the camera
recorder, the built-in battery always gets
charged. When the power is disconnected, the
battery gradually discharges.
0The battery will be totally discharged if left
unused for 3 months and the date/time and time
code data will be reset. When this happens, set
the [POWER ON/OFF] switch to “ON” to display
the [Initial Setting] screen, then set the date/
time.
(A P33 [Initial Settings] )
Power Status Display
Viewfinder Screen and LCD Monitor
The power status is displayed on the display and
menu screens.
Display Description
B 7.4V
B 100min
C 30%
4 RES
Currently powered by a battery.
When the battery power runs out,
the battery mark appears hollow,
and “RES” (yellow) is displayed.
Memo :
0You can set the display using
[LCD/VF] B [Display Settings]
B [Battery].
(A P110 [ Battery ] )
FAcquisition of battery information
may fail if a genuine battery is not
used.
TAppears when an error occurs
during battery charging.
GCurrently powered by an AC
adapter.
P
Q
R
S
Camera recorder battery charging
in progress.
(A P110 [Details on charging
condition] )
Memo :
0If the supplied battery (or equivalent battery sold
separately) is not used, the battery mark which
indicates the battery level may not appear.
Display Screen
(A P132 [Display Screen in Camera Mode] )
(A P138 [Display Screen in Media Mode] )
.
1/100
F1 . 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24 , 2015
00: 00:00.00
4030 20 10 0
5 . 6 f t
P  15000K
100min
50min
282min
3840x2160
30p 150M
Power Supply 31
Preparations
Menu Screen
(A P94 [Display and Description of the Menu
Screen] )
.
Display Settings
Warnings by Lamp and Warning Tone
Warning status is indicated by tally lamp and
warning tone.
0The tally lamp blinks.
0Setting [Main Menu] B [A/V Set] B [Audio Set]
B [Alarm Level] to “High” or “Low” sounds the
warning tone.
The warning tone is output from the monitor
speaker or [x] terminal.
(A P115 [ Alarm Level ] )
Memo :
0In the event that the battery level runs low while
it is being used, the camera recorder will stop
operating automatically.
Caution :
0The remaining battery power and time are
displayed as they are from the battery
information. Accurate data may not be displayed
depending on the battery condition. Replace the
battery as soon as possible when the remaining
battery power and time are low.
Turning On/Off the Power
Turning On the Power
1
Hold down the lock button (blue) at the
center of the [POWER ON/OFF] switch to set
to “ON”.
The camera recorder starts up in Camera mode
and is ready for shooting.
Memo :
0
The camera recorder always start up in Camera
mode when the [POWER ON/OFF] switch is set to
“ON”. Use the [MODE] button at the side of the
camera recorder to switch mode.
(A P18 [Operation Modes] )
0
If the battery is not fully charged, the battery will be
charged at the same time.
0
Even when a fully charged battery is used, charge
the battery briefly to confirm the remaining battery
power.
(A P29 [Power Supply] )
(A P31 [Power Status Display] )
.
Turning Off the Power
Sets the camera recorder to the recording standby or
stop mode.
1
Hold down the lock button (blue) at the
center of the [POWER ON/OFF] switch to set
to “OFF”.
2Remove the battery and the power to the [DC]
terminal (when not in use for a long time).
Caution :
0
Do not set the [POWER ON/OFF] switch to “OFF”
during recording. Check that the operation mode
display is “STBY” or “STOP” before you turn off the
power.
0
If you have mistakenly set the [POWER ON/OFF]
switch to “OFF” during recording, wait for 5
seconds or more before you turn on the power
again.
0
When turning off the power, first set the [POWER
ON/OFF] switch of the camera recorder to “OFF”.
Do not remove the battery or turn off the AC power
while the [POWER ON/OFF] switch is set to “ON”.
32 Power Status Display
Preparations
Displays on the LCD
Monitor and Viewfinder
You can display the camera status, media
information, zebra pattern, and various markers in
the video image on the LCD monitor and viewfinder
screen during shooting.
Memo :
0When [Main Menu] B [A/V Set] B [Video Set] B
[Display On TV] is set to “On”, the display screen
and menu screen are also displayed in the video
image from the video signal output terminal.
(A P111 [ Display On TV ] )
Display Screen
Display Screen (VF/LCD) in Camera Mode
(A P132 [Display Screen in Camera Mode] )
0The display switches between three screen
types with every press of the [DISPLAY] button.
(Display 0 B 1 B 2 B 0)
0Press the [STATUS] button to switch to the
status screen.
.
100min
50min
282min
1/100
F1.6
18dB
AE+6
ND 1/16
12 : 34 : 56
Jan 24 ,2015
00: 00:00.00
3840x2160
30p 150M
4030 20 10 0
5.6ft
P 15000K 1/100
F1.6
18dB
AE+6
ND 1/16
12 : 34 : 56
Jan 24 ,2015
00: 00:00.00
4030 20 10 0
5.6ft
P 15000K
Display 2 screen
Display 1 screen
Display 0 screen
Display Screen (VF/LCD) in Media Mode
(A P138 [Display Screen in Media Mode] )
0This is the screen display during clip playback in
Media Mode.
0The display switches between three screen
types with every press of the [DISPLAY] button.
(Display 0 B 1 B 2 B 0)
.
1000/ 2000
12 : 34 : 56
Jan 24,2015
00: 00:00.00
3840x2160
30 p 150M
4030 20 10 0
1000/ 2000
282min
12 : 34 : 56
Jan 24,2015
00: 00:00.00
3840x2160
30p 150M
4030 20 10 0
1000/ 2000
x5
SELECT
x5
INFO
Display 2 screen
Display 1 screen
Display 0 screen
Displays on the LCD Monitor and Viewfinder 35
Preparations
Status Screen
0This screen allows you to check the current
settings.
0To display the status screen, press the
[STATUS] button in the normal screen.
0The status display differs according to the
operation mode (two types).
(A P18 [Operation Modes] )
0Press the [STATUS] button to switch to the
display screen.
0Press the [MENU/THUMB] button at each status
screen (other than the [Camera 1] screen) to
enter the setting screen.
0Use the cross-shaped button (HI) to switch
screens as follows:
.
-62dB
Audio
Planning Metadata
Creator
Description
Title2
Title1
Marker Aspect
Zebra
Camera 1
Safety Zone
None
Handle Zoom Speed H
Handle Zoom Speed M
Handle Zoom Speed L
GAIN H
GAIN M
GAIN L
FAW
Camera 2
USER7
USER6
USER5
USER4
USER3
USER2
USER1
Rec
OIS
Zebra
Clip Review
Lolux
TC Preset
Focus Assist
USER Switch Set
HDMI Enhance
HDMI Color
Resolution
HDMI/SDI Out
Video
WPA2
P2P
MAC Address
IP Address
Passphrase
Security Type
SSID
Ty p e
Network
Format
Format
7.5%
Rec Trigger
SD Aspect
SD Set Up
Squeeze
HDMI+SDI
1080i
Auto
Off
Off
Off
Live Streaming
HM250
* These are screen examples. The contents
displayed are different depending on the model
and settings.
USB Mode Screen
This screen displays the USB mode.
.
USB Mode
Remote Edit Mode Screen n
This is a mode for accessing the page for editing
the metadata that is recorded in a clip via a web
browser on devices such as a smartphone, tablet
terminal, or PC.
(A P160 [ Clip Metadata ] )
.
Exit
Remote Edit Mode
Warning Display
Warning display is displayed in the display screen
(Camera mode, Media mode).
(A P185 [Error Messages and Actions] )
.
1/100
F1.6
18dB
AE+6
ND 1/16
12 : 34 : 56
Jan 24 , 2015
00:00:00.00
4030 20 10 0
5 . 6 f t
P 15000K
Warning Display Area
36 Displays on the LCD Monitor and Viewfinder
Preparations
Adjusting the LCD Monitor
and Viewfinder
You can monitor video images on this camera
recorder using the viewfinder, LCD monitor, or
both.
.
Normal LCD
Inverted
LCD
Displays on the LCD Monitor and
Viewfinder Screen (VF)
[VF
SW]
Item
State of
Viewfinder
LCD
Screen
Viewfinder
Screen
LCD
Monitor
Open
LCD
Monitor
Open
LCD
Monitor
Closed
Enable Pulled out ON ON ON
Enable Retracted ON OFF ON
Disable - ON ON ON
ON: Display on, OFF: Display off
0“LCD Monitor Open” includes the state when the
LCD display is inverted.
0“LCD Monitor Closed” indicates the state when
there is no display on the LCD monitor.
Memo :
0
Press and hold the [DISPLAY] button for 2 seconds
to turn ON/OFF the LCD monitor.
0
The function to switch between LCD monitor and
viewfinder displays by pressing the [DISPLAY]
button can be canceled by opening/closing or
rotating the LCD monitor.
0
When [LCD/VF]
B
[VF SW] is set to “Enable”, it is
necessary to pull out the viewfinder in order to
display the images on the viewfinder.
(A P107 [ VF SW ] )
* When [LCD/VF]
B
[VF SW] is set to “Enable”,
images will be displayed on the viewfinder if the
viewfinder is pulled out, regardless of the state of
the LCD monitor.
(A P107 [ VF SW ] )
Adjusting the LCD Monitor
.
1
2
Tilt 90 degrees downward
Tilt 180 degrees
upward
1Open the LCD cover.
2Incline the LCD monitor to a position that
enables easy viewing.
Rotate the LCD monitor to adjust the angle.
0While the LCD monitor is open, you can
rotate it 180 degrees upward or 90 degrees
downward.
0Rotating the LCD monitor 180 degrees
upward enables you to see the screen from
the lens side. To display the image when it is
viewed from the opposite direction (mirror
image), perform setting as follows.
Set [Main Menu] B [LCD/VF] B [LCD
Mirror] to “Mirror” B Set button (R)
(A P107 [ LCD Mirror ] )
3Adjust the brightness, contour, and
contrast of the LCD monitor.
You can change the angle and brightness of the
LCD monitor according to your usage condition.
Changing the brightness of the screen will not
affect the recorded images.
0Use the [LCD Bright] menu to adjust the
brightness of the LCD monitor.
[Main Menu] B [LCD/VF] B [LCD Bright]
(A P107 [ LCD Bright ] )
0Use the [LCD/VF Peaking] menu to adjust the
contour of the LCD monitor.
(The contour of the viewfinder screen will
also be adjusted at the same time.)
[Main Menu] B [LCD/VF] B [LCD/VF
Peaking]
(A P107 [ LCD/VF Peaking ] )
0Use the [LCD Contrast] menu to adjust the
contrast of the LCD monitor.
[Main Menu] B [LCD/VF] B [LCD Contrast]
(A P107 [ LCD Contrast ] )
Adjusting the LCD Monitor and Viewfinder 37
Preparations
Adjusting the Viewfinder
You can change the brightness and peaking of the
viewfinder screen according to your usage
conditions.
Changing the brightness of the screen will not
affect the recorded images.
.
2
1
3
Caution :
0A high-definition viewfinder is used on this
camera recorder in order to provide an accurate
focusing environment. Due to the characteristic
of the display device, colors may appear on the
images when you blink your eyes. This is not a
malfunction. It does not affect the recorded
images, SDI output, AV output, or HDMI output.
1Pull out the viewfinder.
2Incline the viewfinder vertically to a
position that enables easy viewing.
3Adjust the visibility using the visibility
adjustment lever.
Adjust the visibility adjustment lever to sharpen
the image on the viewfinder screen.
4Adjust the brightness, contour, and
contrast of the viewfinder screen.
0Use the [VF Bright] menu to adjust the
brightness of the viewfinder screen.
[Main Menu] B [LCD/VF] B [VF Bright]
(A P107 [ VF Bright ] )
0Use the [LCD/VF Peaking] menu to adjust the
contour of the viewfinder.
(The contour of the LCD monitor will also be
adjusted at the same time.)
[Main Menu] B [LCD/VF] B [LCD/VF
Peaking]
(A P107 [ LCD/VF Peaking ] )
0Use the [VF Contrast] menu to adjust the
contrast of the viewfinder screen.
[Main Menu] B [LCD/VF] B [VF Contrast]
(A P107 [ VF Contrast ] )
Memo :
0If [Main Menu] B [LCD/VF] B [VF SW] is set to
“Enable”, pull out the viewfinder before making
any adjustment.
(A P107 [ VF SW ] )
Displaying in Black and White
You can display the viewfinder screen in black
and white.
0[Main Menu] B [LCD/VF] B [VF Color] item
B Press Set button (R) B Select “Off” B
Press Set button (R).
(A P107 [ VF Color ] )
38 Adjusting the LCD Monitor and Viewfinder
Preparations
Assignment of Functions
to User Buttons
You can assign functions to the following buttons
and use them as user buttons.
By assigning functions to the buttons, the usability
of the camera recorder can be enhanced.
Perform settings in the menu items corresponding
to each button.
Button Menu Item
[F.ASSIST/1] Button [USER1]
[TC/2] Button [USER2]
[LOLUX/3] Button [USER3]
[C.REVIEW/4] Button [USER4]
[ZEBRA/5] Button [USER5]
[OIS/6] Button [USER6]
[REC/7] Button [USER7]
[EXPANDED FOCUS/8] Button [USER8]
[AWB/9] Button [USER9]
LCD Cross-Shaped Button (J) [LCD KEY▲]
LCD Cross-Shaped Button (K) [LCD KEY▼]
LCD Cross-Shaped Button (H) [LCD KEY◀]
LCD Cross-Shaped Button (I) [LCD KEY▶]
.
1Assign functions to the buttons from the
menu.
Specify each item in [Main Menu] B [Camera
Function] B [User Switch Set] B [USER1]-
[USER9], [LCD KEY▲], [LCD KEY▶], [LCD
KEY▼], [LCD KEY◀].
(A P100 [User Switch Set Item] )
Memo :
0Operations of the user buttons are interlocked
with the menu settings.
0When the menu screen is displayed, these
buttons function as the menu operation buttons.
(A P93 [Basic Operations in Menu Screen] )
Tally Lamp
This is the indicator lamp for recording and
warning.
The operation changes according to the menu
settings.
The lamp blinks when the battery or remaining
space on the SD card is low. (Camera mode only)
* Specify the setting in [Main Menu] B [System]
B [Tally Lamp].
(A P116 [ Tally Lamp ] )
.
Tally Lamp
(Front)
Handle Tally
Lamp
Menu Setting Tally Lamp Off On
Functional
information
Warning - J
Caution - o
Recording status Recording - R
Special recording * - R
R:Lights up
J:Blinks four times in 1 second
o:Blinks once in 1 second
* Paused state during special recording ([Clip
Continuous]).
(A P80 [Clip Continuous Rec] )
Memo :
0Blinking takes priority over lighting up.
Assignment of Functions to User Buttons 39
Preparations
SD Card
This camera recorder saves the recorded images
and audio sound on the SD card (sold separately)
in the card slot.
Usable Cards
Format Setting and Usable SD Card
Combinations
System Format Bit Rate Usable SD
Card
High-
Speed
QuickTime 50M (XHQ)
35M (UHQ)
UHS-I U3
or higher
4K 150M
70M Class 10 or
higher
HD
50M (YUV422),
50M (XHQ)
35M (UHQ)
Class 6 or
higher
AVCHD - Class 4 or
higher
Exchange* -
SD - -
Web - -
* U model only
Caution :
0Using cards other than those from Panasonic,
TOSHIBA or SanDisk may result in recording
failure or data loss.
0If an UHS-I card with no classification indication
is used, it may not be possible to perform HD
recording.
Estimated Recordable Time of SD Cards
The estimated recordable time is only a guide.
Differences may occur depending on the SD card
in use and the battery condition.
(A P118 [ W Resolution ] )
(A P118 [ Y Resolution ] )
(A P118 [ W Frame Rate ] )
(A P119 [ Y Frame Rate ] )
(A P118 [ W Bit Rate ] )
(A P119 [ Y Bit Rate ] )
o
When [Main Menu]
B
[System]
B
[Record Set]
B
[Record Format]
B
[Format] is set to “AVCHD”
Resolution
1080p
1080i 480i/
576i
Bit Rate HQ HQ SP LP EP -
4GB 16 19 25 46 82 50
8GB 33 39 50 95 168 103
16GB 67 78 100 190 336 209
32GB 135 156 200 380 672 420
64GB
(SDXC)
270 312 400 760 1344 842
128GB
(SDXC)
540 624 800 1520 2688 1687
(Unit: minute)
oWhen [Main Menu] B [System] B [Record Set]
B [Record Format] B [Format] is set to
“QuickTime”
System 4K HD SD Web
Resolution
2160p 1080i/
1080p
480i/
576i
960p 480p
Bit Rate
150M
70M
XHQ
UHQ
- HQ LP
4GB 3 6 9 12 47 130 285
8GB 6 13 18 25 95 270 580
16GB 12 26 36 50 190 540 1160
32GB 25 52 72 100 380 1080 2320
64GB
(SDXC) 50 105 145 200 760 2160 4720
128GB
(SDXC) 100 210 290 400 1520 4320 9440
(Unit: minute)
oWhen [Main Menu] B [System] B [Record Set]
B [Record Format] B [Format] is set to
“Exchange” (U model only)
System HD
Resolution 1080p 720p
Bit Rate 12M 8M
4GB 32 47
8GB 64 94
16GB 128 188
32GB 256 376
64GB
(SDXC) 512 752
128GB
(SDXC) 1024 1504
(Unit: minute)
Memo :
0If the SD card contains files recorded by devices
other than this camera recorder or files that are
saved from a PC, the recordable time may be
shorter or data may not be properly recorded.
0The number of clips that can be recorded to one
SD card on this camera recorder for each file
format is restricted.
Up to 600 clips can be recorded for the
“QuickTime” or “Exchange” (U model only) file
format and 4000 clips for the “AVCHD” file
format. When the maximum number of clips is
reached, the remaining space is displayed as “0
min” regardless of the estimated recordable
time, and no further recording can be made.
0When the file format is “Exchange”, the
remaining space on the media (recordable time
to a SD card) runs out faster than usual. (U
model only)
40 SD Card
Preparations
Write-Protect Switch on the SD Card
ASlide the write-protect switch upward to enable
writing or deleting.
BSlide the write-protect switch downward to
prevent writing or deleting. (Images in the card
are protected.)
.
AB
Write/Delete Enabled Write/Delete Disabled
Write-Protect Switch
Inserting an SD Card
This camera recorder comes with two card slots
(Slot A and B) for video/audio recording and
playback.
.
1
3
SD Card Cover
2
SD Card
1Open the SD card cover by sliding the cover
in the direction indicated by the arrow.
2Insert an SD card with the notched corner
pointing up.
The status indicator of the card slot to which the
card was inserted lights up in red.
3Close the SD card cover in the direction
indicated by the arrow.
Card Slot Status Indicator
The following table shows the respective states of
slot A and B.
Lamp Slot Status
Lights up in
red
The inserted SD card is being
accessed. (writing/reading data)
Do not turn off the power of the
camera recorder or remove the SD
card.
Lights up in
green
On standby. The inserted SD card
can be used for recording or
playback.
Light goes out 0SD card is not inserted.
0An unusable card is inserted.
0An SD card is inserted but a
different slot is selected.
Removing the SD Card
1Check that the SD card to be removed is not
being accessed (status indicator of the
card slot lights up in red).
2Slide open the SD card cover.
3Push the SD card and remove it from the
slot.
4Close the SD card cover.
Memo :
0When both slots are inserted with usable SD
cards, the previously selected slot is used.
Caution :
0Data may be lost if you turn off the power of the
camera recorder or remove the SD card when it
is being accessed. All data recorded on the
card, including the file that is being accessed,
may be corrupted. Be sure to check whether the
status indicator is lit in green or turned off before
you turn off the power or remove the SD card.
0If you mistakenly remove the card when it is
being accessed, reinsert the card only after the
status indicator goes off.
0The SD card may not be recognized if you insert
and remove the card within a short time. When
this happens, remove the card and wait for a few
seconds before you reinsert.
SD Card 41
Preparations
Switching the SD cards
When both card slots are inserted with SD cards,
you can use the [SLOT SEL] button to switch the
card to use.
When the memory on an SD card is full during
recording, data recording automatically switches to
the other card.
.
Memo :
0The [SLOT SEL] button is disabled during
recording or playback. Cards will not be
switched even if you press the button.
Formatting (Initializing) SD Cards
When the following cards are inserted, [!FORMAT]
appears at the remaining media display area.
Format the card using the camera recorder menu.
0Unformatted SD cards
0SD cards formatted under different
specifications
* For details of the menu operation, refer to
“[Basic Operations in Menu Screen]
(A P 93)”.
Caution :
0Be sure to format the SD card on this camera
recorder. SD cards formatted on a PC and other
peripheral equipment cannot be used on this
camera recorder.
0[!RESTORE] appears at the remaining media
display area when an SD card that requires
restoring is inserted.
1Select [System] B [Media] B [Format
Media].
(A P115 [ Format Media ] )
2Select the slot of the SD card to be
formatted and press the Set button (R).
.
2
Set
Format Media
Format Slot A
Format Slot B
3The status of the selected SD card appears.
4Select [Format] and press the Set button
(R).
.
4
Set
Cancel
Format
Format Media
5Formatting starts.
.
Formatting...
42 SD Card
Preparations
6Formatting is complete.
When formatting is complete, “Complete” appears
and the camera recorder returns to the [Format
Media] screen.
Memo :
0During formatting, menu operation is
unavailable but you can start recording.
However, this is only available when a
recordable SD card is inserted in the other slot.
0Formatting cannot be performed in the following
cases.
0Recording is in progress on the SD card to be
formatted.
0SD card is not inserted.
0Write-protect switch of the SD card is set (z
is displayed).
Caution :
0If you format the SD card, all data recorded on
the card, including video data and setup files,
will be deleted.
Restoring the SD Card
It is necessary to restore the SD card if an
abnormality occurs to the data in the card due to
some reasons.
Memo :
0[!RESTORE] appears at the remaining media
display area when an SD card that requires
restoring is inserted.
1Select [System] B [Media] B [Restore
Media].
(A P115 [ Restore Media ] )
2Select the SD card to be restored and press
the Set button (R).
.
2
Set
Restore Media
Restore Slot A
Restore Slot B
3Restoring starts.
.
Restoring...
4Restoring is complete.
0When restoring is complete, “Complete”
appears and the camera recorder returns to the
[Restore Media] screen.
0When no media that requires restoring is
inserted, the camera recorder returns to the
[Media] menu screen.
Caution :
0[Restore Media] can only be selected in Camera
mode. However, it cannot be selected while the
camera recorder is recording. Select [Restore
Media] in Camera mode when the camera
recorder is not recording.
0[Restore Media] does not restore the SD card to
its original states completely. If restoring fails,
replace or format the SD card. Take note that
formatting erases all the information inside the
SD card.
0Restoring cannot be performed in the following
cases.
0Camera recorder is recording in progress.
0SD card is not inserted.
0Write-protect switch of the SD card is set (z
is displayed).
SD Card 43
Preparations
Clips Recorded to SD Cards
Folders in the SD Card
The captured image is recorded into different
folders according to the [System] and [WFormat]/
[YFormat] settings.
System WFormat/
YFormat Record Folder
High-Speed/
4K/HD/SD/Web
QuickTime DCIM
HD/SD/Web AVCHD PRIVATE/AVCHD
HD Exchange* DCIM
* U model only
Memo :
0By formatting (initializing) the SD card from the
[Format Media] menu on the camera recorder,
folders required for recording in the current
[System] settings will be generated.
0When the [System] settings and [QuickTime]
settings are changed, folders required for
recording in those settings will be automatically
generated.
Caution :
0When a clip inside the folder is moved or deleted
using the Explorer (Windows) or Finder (Mac),
recording to the SD card may fail if formatting
(initializing) of the card is not performed.
Clip (Recorded Data) and Clip Name
0When recording is stopped, the images, audio
and accompanying data which are recorded
from start to stop are recorded as one “clip” on
the SD card.
0An 8-character clip name is automatically
generated for the recorded clip.
(“Clip Name Prefix” + “Clip Number”)
0When [Main Menu] B [System] B [Record Set]
B [Record Format] B [WFormat] is set to
“AVCHD”, the clip name generated consists of
only the Clip Number (5-digit number).
(A P117 [ W Format ] )
Example: QuickTime
.
ABCG0001
This is set to “xxxG” (“xxx” denotes the last 3
digits of the serial number) by default.
Clip Name Prefix (any four alphanumeric characters)
The Clip Number can be reset in
the menu.*
A number in automatic
ascending order is assigned in
the recording order.
Clip Number
* [Clip Set] B [Reset Clip Number]
(A P121 [ Reset Clip Number ] )
Memo :
0Before recording starts, you can set any
characters for the clip name prefix by using
[Main Menu] B [System] B [Record Set] B [Clip
Set] B [Clip Name Prefix].
(A P121 [ Clip Name Prefix ] )
0Changes cannot be made after recording.
Recorded Clips
0The recorded materials may be split into several
files but they can be played back continuously
on the camera recorder.
0Clips may be recorded across the two SD cards
in card slots A and B depending on the recording
time of the clip.
Caution :
0A clip recorded across several cards cannot be
played back continuously. Continuous playback
is only possible when the recording is made on
one card.
44 SD Card
Preparations
Basic Shooting
Procedures
Preparations
.
1
3
4
4
2
1Supply battery or AC adapter power to the
camera recorder.
(A P29 [Power Supply] )
2Insert an SD card.
(A P40 [SD Card] )
3Turn on the power of the camera recorder.
Hold down the lock button (blue) at the center of
the [POWER ON/OFF] switch to set to “ON”. The
camera recorder starts up in Camera mode and
is ready for recording.
4Adjust the angle of the LCD monitor and
viewfinder.
(A P37 [Adjusting the LCD Monitor and
Viewfinder] )
Shooting
The [FULL AUTO] button of this camera recorder
is set to “ON” by default, the following video items
are automatically adjusted.
0Iris
0Gain
0Shutter
0White balance
The audio recording level is also set to Auto, and
audio from the built-in microphone is recorded.
When the [FULL AUTO] button is set to “ON”, the
v icon appears at the lower center area of the LCD.
.
AE+6
ND 1 / 1 6
12 : 34 : 56
Jan 24 , 2015
00: 00:00.00
4030 20 10 0P 150 00 K
* Press and hold the [FULL AUTO] button to
switch the Full Auto mode ON and OFF.
Memo :
0To set each individual video setting item
automatically or manually, and to carry out the
audio input settings and the audio recording
level adjustment, refer to the following.
0[Adjusting the Brightness] (A P 55)
0[Adjusting the Iris] (A P 56)
0[Setting the Gain] (A P 57)
0[Setting the Electronic Shutter] (A P 58)
0[Adjusting the White Balance] (A P 61)
0[Selecting Audio to Be Recorded in Each
Channel O] (A P 65)
0[Adjusting the Audio Recording Level O]
(A P 66)
.
46 Basic Shooting Procedures
Shooting
1Press the [REC] button to start recording to
the SD card.
This camera recorder has two [REC] buttons.
Any of the [REC] buttons can be used to start/
stop recording by default.
The tally lamp lights up in red during recording.
0Zoom Operation
(A P50 [Zoom Operation] )
0Adjusting the Focus
(A P51 [Focus Operation] )
Memo :
0If both the slots are loaded with recordable cards
in the factory default, pressing the [REC] button
starts recording only to the media in the selected
slot.
When [Main Menu] B [System] B [Record Set]
B [Slot Mode] is set to “Dual”, recording can be
performed simultaneously to the cards in both
the slots.
(A P75 [Dual Rec] )
0The tally lamp can be turned off in [System] B
[Tally Lamp].
(A P116 [ Tally Lamp ] )
2Check the most recently captured images.
0Press the [C.REVIEW/4] button to activate
the Clip Review function. The most recently
captured images are played back on the LCD
monitor and viewfinder screen.
0After playback, the camera recorder returns
to standby mode (STBY).
(A P73 [Viewing Recorded Videos
Immediately (Clip Review)] )
Memo :
0[Clip Review] is assigned to the [C.REVIEW/4]
button in factory default.
0[Clip Review] can also be assigned to other user
buttons.
(A P39 [Assignment of Functions to User
Buttons] )
Selecting System
Definition, File Format and
Video Format
You can select the definition of the recorded videos
(4K, HD, SD, Web or High-Speed), file format for
recording/playback, and the video recording
format on this camera recorder.
Setting the Record Format Menu
1Set [System], [Format], [Resolution],
[Frame Rate] and [Bit Rate] in [Main Menu]
B [System] B [Record Set] B [Record
Format].
2Set each of the items.
A[Selecting a System Definition] (A P 47)
B[Selecting a File Format] (A P 48)
C[Selecting a Video Format] (A P 48)
D[Selecting the Aspect Ratio of SD Videos]
(A P 49)
3After setting is complete for all items, press
the [LOLUX/3] button.
0The recording format is switched.
0A “Please Wait...” message appears on the
screen during switching.
Selecting a System Definition
The following definitions are available for selection.
04K:
Records in 4K resolution (3840x2160)
0HD:
Records in HD (High Definition) resolution
(1920x1080 or 1280x720)
0SD:
Records in SD (Standard Definition) resolution
(720x480 or 720x576)
0Web:
Records in resolution (1440x1080, 960x540,
720x480, 720x576, or 480x270) suitable for web
distribution
0High-Speed:
Records in HD resolution (1920×1080)
You can select a definition for the recorded images
from the following items under [System].
04K:
Records in 4K quality for both slots A and B.
0HD:
Records in HD quality for both slots A and B.
0SD:
Records in SD quality for both slots A and B.
0HD+Web:
Records in HD quality for slot A, and Web quality
for slot B.
(A P75 [Recording Simultaneously at Two
Different Definitions] )
0High-Speed:
Records in HD quality for both slots A and B.
Basic Shooting Procedures 47
Shooting
Selecting a File Format
Select a file format in [WFormat]/[YFormat].
There are three file formats for selection.
0AVCHD:
AVCHD file format
0QuickTime:
QuickTime file format (.MOV)
0Exchange: (U model only)
Sports Video Interop Group format (.MP4)
Memo :
0When [System] is set to “4K”, this item is fixed at
“QuickTime”.
0Exchange file format can be selected only when
[System] is set to “HD”.
0When Exchange file format is selected, backup
recording and clip cutter function cannot be
used.
Selecting a Video Format
0Select a [Record Format] from the list of formats.
The selectable [W Frame Rate]/[W Bit
Rate]/[Y Frame Rate] and [Y Bit Rate] change
according to the settings of [System]/
[WFormat]/[WResolution]/[YFormat], and
[YResolution].
List of Formats
The following is a list of file formats and video
formats that can be selected on this camera
recorder.
oWhen [System] is set to “4K”
Record Format
W
Format
W
Resolution
W
Frame
Rate
W Bit Rate
Quick
Time
3840x2160 30p
25p
24p
150M(YUV422)
150M
70M(YUV422)
70M
Memo :
0Each item for slot B is fixed at the same setting
as slot A.
oWhen [System] is set to “HD” or “HD+Web”, the
options for slot A are:
Record Format
W
Format
W
Resolution
W
Frame
Rate
W
Bit Rate
QuickTime 1920x1080 60p
60i
50p
50i
30p
25p
24p
50M
(YUV422)
50M (XHQ)
35M (UHQ)
1280x720 60p
50p 35M (UHQ)
AVCHD 1920x1080 60p 28M (HQ)
60i 24M (HQ)
18M (SP)
50p 28M (HQ)
50i 24M (HQ)
18M (SP)
Exchange (U
model only) 1920x1080 60p 12M (LP)
1280x720 8M (LP)
Memo :
0When [WFormat] is set to “QuickTime” and
[WResolution] is set to “1920x1080”, the
selectable options for [WBit Rate] vary
according to the setting for [WFrame Rate].
0When [System] is set to “HD”, each item for slot
B is fixed at the same setting as slot A.
0When [System] is set to “HD+Web”,
“50M(YUV422)” cannot be selected.
48 Selecting System Definition, File Format and Video Format
Shooting
oWhen [System] is set to “SD”
Record Format
W Format W Resolution W Frame
Rate
W Bit
Rate
QuickTime
720x480 60i (U model) 8M
720x576 50i (E model)
AVCHD
720x480 60i (U model)
720x576 50i (E model)
Memo :
0Each item for slot B is fixed at the same setting
as slot A.
oWhen [System] is set to “HD+Web”, the options
for slot B are:
Record Format
Y Format Y Resolution Y Frame
Rate
Y Bit Rate
QuickTime
960x540 30p
25p
24p
3M (HQ)
720x480 60i 8M
720x576 50i
480x270 30p
25p
24p
1.2M (LP)
AVCHD
1440x1080 60i
50i 9M (LP)
5M (EP)
720x480 60i 8M
720x576 50i
Memo :
0The available options for [YResolution] and
[YFrame Rate] vary according to the settings for
slot A.
0The selectable options for [YResolution] vary
according to the [WFrame Rate] setting.
0[YFrame Rate] is fixed according to the
[WFrame Rate] setting.
oWhen [System] is set to “High-Speed”
Record Format
System
W
Format
W
Resolution
W
Frame
Rate
W Bit
Rate
High-
Speed
Quick
Time
1920x1080
120/60p
100/50p
120/30p
60/30p
100/25p
50/25p
120/24p
60/24p
50M (XHQ)
35M (UHQ)
Memo :
0The [Rec Mode] is fixed at “Normal”.
0The following functions cannot be used when
“High-Speed” is selected.
Network, Time Stamp Recording, Flicker
Correction, Shading, Face Detection and WDR
0The settings for slot B are fixed at the same as
slot A.
0For the “TC Generator” setting, only “Rec Run”
and “Regen” can be selected.
0It is not possible to set a shutter speed that is
slower than the frame rate.
(Example: When 120/60p is selected, 1/120 to
1/10000 can be set.)
0The angle of view shifts to telephoto.
(35 mm conversion: [Normal] 29.6 mm to 355
mm → [High-Speed] 49.3 mm to 592 mm)
0The sensitivity of high speed shooting is lower
than normal shooting. In order to capture more
beautiful images, it is recommended to perform
shooting in a lighted environment.
0The remaining space on the media (recordable
time to a SD card) runs out faster than usual.
(Example: For 120/60p, as the recording speed
is twice as fast as usual, the remaining space on
the media is reduced by approximately double
the speed.)
Selecting the Aspect Ratio of SD Videos
For setting the aspect ratio of the SD recording
image when [System] is set to “SD”.
You can select “16:9” or “4:3”.
Memo :
0For conditions other than those above, this item
is fixed at “16:9”.
Selecting System Definition, File Format and Video Format 49
Shooting
Zoom Operation
Adjusts the angle of view.
Optical zoom ratio: 1x to 12x
Dynamic zoom ratio: 12x to 24x
Set the dynamic zoom “On”/“Off” in [Main Menu] B
[Camera Function] B [Dynamic Zoom].
(A P99 [ Dynamic Zoom ] )
Zooming can be operated using any of the three
levers/rings below.
0Zoom Lever at the Grip
0Zoom lever at the Handle O
0Zoom Ring at the Lens Section
During the zoom operation, the zoom bar or
number will appear on the upper right corner of the
screen.
(A P135 [Zoom Display] )
.
Using the Zoom Lever at the Grip
1Press the zoom lever to zoom.
0The zoom speed changes according to the
extent the zoom lever is being pushed.
0Zooms into wide angle and increases the
angle of view when “W” is pressed.
0Zooms into telephoto and decreases the
angle of view when “T” is pressed.
Using the Zoom Lever at the Handle O
1Set the zoom speed individually in [Main
Menu] B [Camera Function] B [Handle
Zoom Speed L]/[Handle Zoom Speed M]/
[Handle Zoom Speed H].
0Set the zoom speed for “L”, “M” and “H” of the
[ZOOM L/M/H] zoom speed switch
individually.
Increasing the value increases the zoom
speed.
(A P99 [Handle Zoom Speed L/Handle Zoom
Speed M/Handle Zoom Speed H O] )
Memo :
0The zoom lever at the handle is disabled when
“Off” is selected.
2Set the [ZOOM L/M/H] zoom speed switch
to any of the settings.
3Press the zoom lever at the handle to zoom.
0The zoom operation is performed in the
speed that has been set.
Using Zoom Ring at the Lens Section
You can adjust the preferred angle of view by
turning the zoom ring.
Saving/Recalling Current Zoom
Position (Preset Zoom)
This allows you to register up to three zoom
positions.
1Assign the “Preset Zoom1”, “Preset
Zoom2”, or “Preset Zoom3” function to any
of the user buttons.
(A P39 [Assignment of Functions to User
Buttons] )
(A P100 [USER1 to USER9, LCD KEY▲/LCD
KEY▶/LCD KEY▼/LCD KEY◀] )
2Save the current zoom position.
0Press any of the user buttons assigned with
the “Preset Zoom1”, “Preset Zoom2”, or
“Preset Zoom3” function for more than 1
second.
0The current zoom position will be stored.
3Recall the stored zoom position.
0Press any of the user buttons assigned with
the “Preset Zoom1”, “Preset Zoom2”, or
“Preset Zoom3” function and release within 1
second.
0The camera recorder zooms to the stored
zoom position.
Memo :
0The zoom speed to the zoom position can be set
in [Main Menu] B [Camera Function] B [User
Switch Set] B [Preset Zoom Speed].
(A P101 [ Preset Zoom Speed ] )
0Operating other zoom maneuvers during a
zoom position recall will cancel the recall.
50 Zoom Operation
Shooting
Focus Operation
.
Adjusting Focus Automatically
1Press the [AF/MF] selection button to set to
Auto Focus mode.
There is no icon display in Auto Focus mode.
Memo :
0If [Main Menu] B [Camera Function] B [AF
Assist] is set to “Area” or “Far/Near”, you can turn
the focus ring to shift the auto focus point while
in the automatic focus adjustment mode.
(A P100 [ AF Assist ] )
0When face detection is enabled, the Auto Focus
icon e appears with the face mark.
(A P53 [Adjusting the Focusing by Face
Detection] )
(A P101 [ Face Detect ] )
One Push Auto Focus
If [Push AF/AF Lock] is assigned to the user button,
pressing the assigned user button (within 1 minute)
while in the Manual Focus mode makes the camera
recorder focus on the center of the frame
automatically.
Memo :
0Face detection does not work during One Push
Auto Focus.
0AF Assist does not function.
0When the operation is complete, the camera
recorder returns to the Manual Focus mode
automatically.
0One Push Auto Focus functions with emphasis
on the focusing speed. This function is not
suitable during recording.
Setting to Auto Focus Temporarily
(Push Auto Focus)
0If [Push AF/AF Lock] is assigned to the user
button, the camera recorder will shift to Auto
Focus mode temporarily and automatically
adjusts focus when the assigned user button is
held down during shooting in Manual Focus
mode.
0Release the user button assigned with [Push AF/
AF Lock] to return to Manual Focus mode.
Memo :
0Face detection does not work during Push Auto
Focus.
Locking the Focus
When the [Push AF/AF Lock] function is assigned
to a user button in the Auto Focus mode, pressing
this button locks the focus on the corresponding
point.
An icon appears when the focus is locked.
Memo :
0Performing any focusing operation when the
focus is locked disengages the focus lock.
Adjusting Focus Manually
1Press the [AF/MF] selection button to set to
Manual Focus mode.
The manual focus icon d appears on the
screen.
.
1/100
F1. 6
18dB
AE+6
ND 1 / 16
12 : 34 : 56
Jan 24, 2014
00:00: 00.00
5 . 6 f t
4030 20 10 0P 15000K
Memo :
0The d icon appears even when [Main Menu] B
[LCD/VF] B [Display Settings] B [Focus] is set
to “Off”.
(A P109 [ Focus ] )
2Turn the focus ring to adjust the focus.
Focus Operation 51
Shooting
Memo :
0Using the Focus Assist or Expanded Focus
function makes it easier to focus.
(A P52 [Focus Assist Function] )
(A P52 [Expanded Focus Function] )
0If [Push AF/AF Lock] is assigned to the user
button, pressing the assigned user button while
in the Manual Focus mode activates the One-
push Auto Focus mode, and holding down the
button activates the Push Auto Focus mode.
(A P51 [One Push Auto Focus] )
(A P51 [Setting to Auto Focus Temporarily
(Push Auto Focus)] )
AF Assist Function
To shift the auto focus point during Auto Focus
(AF), you can turn the focus ring to set the point to
the left, center, right, or near and far directions.
0Set [Main Menu] B [Camera Function] B [AF
Assist].
0Far/Near:
This option allows you to shift the auto focus
point to near and far directions by turning the
focus ring during AF.
Focus is automatically adjusted to a focus
point near the position where the focus ring
stops turning.
0Area:
Selecting this option displays the icon in
the area.
Turning the focus ring during AF displays the
focus area on the left, center, and right side
for about 2 seconds. Turning the focus ring
within 2 seconds allows you to move the
orange frame to select the focus area.
After selecting the area, focus is
automatically adjusted to a focus point near
the selected area.
.
1/100
F1 . 6
18dB
00: 00:00.00
4030 20 10 0P  15000K
* The icons ( , , and ) change in
conjunction with the orange frame in the focus
area.
Memo :
0When [Face Detect] is set, the AF Assist function
is not selectable.
Focus Assist Function
0When the [F.ASSIST/1] button is pressed during
shooting, the focused area is displayed in color.
This enables easy and accurate focusing.
0Select the color (blue, red or green) in the menu.
Memo :
0When [Main Menu] B [LCD/VF] B [Shooting
Assist] B [Focus Assist] B [Type] is set to
“ACCU-Focus”, the depth of field becomes
shallower to enable easier focusing.
(A P108 [ Focus Assist ] )
0The “ACCU-Focus” function switches
automatically to “Off” after about 10 seconds.
0Select the display color in [Main Menu] B [LCD/
VF] B [Shooting Assist] B [Focus Assist] B
[Color].
(A P108 [ Color ] )
0If you use the zebra function and the Focus
Assist function at the same time, it may be
difficult to see the effect of the Focus Assist. In
this case, turn off the zebra function.
Setting Focus Assist Function to a User Button
You can assign the “Focus Assist” function to a user
button.
(A P39 [Assignment of Functions to User
Buttons] )
Expanded Focus Function
You can magnify the preferred area by pressing the
[EXPANDED FOCUS/8] button; doing so enables
precise focus to be established easily.
* You can also use the user button assigned with
the “Expanded Focus” function instead of the
[EXPANDED FOCUS/8] button.
(A P39 [Assignment of Functions to User
Buttons] )
(A P100 [USER1 to USER9, LCD KEY▲/LCD
KEY▶/LCD KEY▼/LCD KEY◀] )
52 Focus Operation
Shooting
1Press the [EXPANDED FOCUS/8] button.
0“EXPANDED” (yellow color) appears on the
screen, and the center part of the image is
enlarged if this button is pressed for the first
time.
0For subsequent operation of the button, the
area at which the operation was last
performed will be enlarged.
0When [Main Menu] B [System] B [Record
Set] B [Record Format] B [System] is set to
“4K”, you can toggle the display between
approx. 2.5 times and dot by dot equivalent
display (approx. 5 times) by using the Set
button (R).
.
1/100
F1 . 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24,2015
00: 00:00.00
5 . 6 f t
EXPANDED
EXPANDED
P 15 00 0K
EXPANDED
EXPANDED
2Use the cross-shaped button (JKH I) to
magnify the preferred area.
0The portion that is being magnified is
displayed at the lower left corner of the
screen.
3Press the [CANCEL/STOP] button to cancel
the setting.
Memo :
0The display of the enlarged screen is dot by dot
equivalent.
0To set the operation when the button is pressed,
go to [Main Menu] B [Camera Function] B [User
Switch Set] B [Expanded Focus].
(A P102 [ Expanded Focus ] )
0Pressing and holding the Set button (R) resets
the position of magnification.
0This function can be used together with the
Focus Assist function.
0When [Main Menu] B [Camera Function] B [AF
Assist] is set to “Area”, the center of each area
(left/center/right) is enlarged.
(A P100 [ AF Assist ] )
0The magnification ratio varies with the format of
the record signals.
0Magnifying an image does not alter the size of
the recorded image.
0If the “Expanded Focus” function is assigned to
the cross-shaped button, the cross-shaped
button cannot be used as user button while the
area is being magnified.
0This function is unavailable when [Main Menu]
B [System] B [Record Set] B [Record Format]
B [System] is set to “SD”.
Adjusting the Focusing by
Face Detection
This function detects human faces and
automatically adjusts focus during Auto Focus.
It can also track moving objects.
When several faces are detected, you can select
one to focus on.
Memo :
0This function can also adjust the brightness
automatically according to the brightness of the
face detected.
(A P101 [ Face Detect ] )
.
Focus Operation 53
Shooting
1Assign the “Face Detect” function to any of
the user buttons.
(A P39 [Assignment of Functions to User
Buttons] )
2Focus the camera recorder on a person and
press the user button that is assigned with
“Face Detect”.
0When Face detection is enabled, the face
detection icon (q) appears.
0When [Main Menu] B [Camera Function]
B [User Switch Set] B [Face Detect] is set
to “AF”, “q e” appears.
0When [Main Menu] B [Camera Function]
B [User Switch Set] B [Face Detect] is set
to “AF&AE”, “q AE±0” appears.
0If you select the person nearest to the center
of the screen, an orange frame will appear on
his face.
0Focus will be automatically adjusted for the
selected person.
.
Detection Frame (Orange)
AE 
Memo :
0If the detection frame does not appear, make
sure that Auto Focus mode is selected. Also, if
[Face Detect] is set to “AF&AE”, set at least one
of the iris, gain, and electronic shutter control
items to the automatic adjustment mode.
(A P55 [Adjusting the Brightness
Automatically: Automatic Brightness Adjustment
(AE) Mode] )
(A P56 [Auto Iris (Automatic Adjustment)
Mode] )
(A P57 [Automatic Gain Mode (Automatic
Gain Adjustment)] )
(A P58 [Automatic Shutter Mode (Automatic
Shutter Adjustment)] )
Selecting Specific Person from Several
Persons
1Hold down the user button that is assigned
with “Face Detect”.
0The camera recorder will enter face selection
mode and the face detection icon (q) will
blink.
0An orange frame will appear on the face of
the person nearest to the center of the
screen. Blue frames will appear on the faces
of others.
.
Detection Frame (Blue)
Detection Frame (Orange)
Blinking
2Select a specific person.
0Use the cross-shaped button (HIJK) to
select a person.
0An orange frame will appear on the face of
the selected person and focus will be
automatically adjusted.
.
Detection Frame (Blue)
Detection Frame (Orange)
3Press the Set button (R) to confirm the
person for face detection.
Memo :
0Press the [CANCEL/STOP] button to cancel the
selection.
0You can specify the detection sensitivity and the
operation speed after losing sight of the face
using [Main Menu] B [Camera Function] B
[User Switch Set] B [Face Detect] B [Sensitivity]
and [Hysteresis].
(A P101 [ Sensitivity ] )
(A P101 [ Hysteresis ] )
54 Adjusting the Focusing by Face Detection
Shooting
Adjusting the Brightness
Adjust the brightness using Iris, Gain, Shutter
speed and ND filter according to the brightness of
the object.
Adjusting the Brightness Automatically:
Automatic Brightness Adjustment (AE)
Mode
Iris, Gain, Shutter speed and ND filter are
automatically adjusted according to the brightness
of the object to maintain optimum brightness.
.
To set only the Gain, Iris and Shutter to Auto mode,
press and hold the [FULL AUTO] button and set the
Full Auto mode to off before setting each item to the
automatic adjustment mode.
1Set Gain, Iris and Shutter to Auto mode.
0[Adjusting the Iris] (A P 56)
0[Setting the Gain] (A P 57)
0[Setting the Electronic Shutter] (A P 58)
2Set the target level (brighter/darker) to
maintain optimum brightness during
automatic adjustment.
0When “AE±*” (* denotes number) appears on
the screen, press the [AE LEVEL] button on
the side of the camera recorder to display “AE
±*” against a white background and set using
the J / K volume buttons.
.
AE+6
ND 1/16
12 : 34 : 56
Jan 24 , 2015
00:00: 00.00
4030 20 10 0 P 150 00 K
Memo :
0Pressing and holding the [FULL AUTO] button
to enter the Full Auto mode also activates the
automatic brightness adjustment (AE) mode. In
this case, the White Balance also enters into
Auto mode forcibly.
0Pressing and holding the [AE LEVEL] button
clears the value specified and fixes at “AE±0”
(recommended value).
0The convergence speed of the automatic
adjustment for automatic brightness adjustment
(AE) can be set in the menu.
(A P99 [ AE Speed ] )
0If one or more of the items (Gain, Iris and
Shutter) have been set to Auto mode, the value
of the corresponding items when the user button
that is assigned “AE Lock” is pressed can be
fixed.
(A P101 [ AE/FAW Lock ] )
0If one or more of the items (Gain, Iris and
Shutter) have been set to Auto mode, the
automatic brightness adjustment (AE) mode is
enabled.
Adjusting the Brightness Manually
Press and hold the [FULL AUTO] button to set to
Full Auto mode, some or all of the items (Iris, Gain
and Shutter Speed) can be manually adjusted.
1Press and hold the [FULL AUTO] button to
set Full Auto mode to off.
2Adjust the Iris, Gain and Shutter speed.
0[Adjusting the Iris] (A P 56)
0[Setting the Gain] (A P 57)
0[Setting the Electronic Shutter] (A P 58)
Memo :
0The brightness cannot be manually adjusted in
the Full Auto mode.
0If Iris, Gain and Shutter Speed are manually
adjusted, the [AE Level] setting is temporarily
disabled.
Adjusting the Brightness 55
Shooting
Adjusting the Iris
Adjust the aperture of the lens iris according to the
brightness of the subject.
.
Iris Dial
Auto Iris (Automatic Adjustment) Mode
1Press and hold the [FULL AUTO] button to
set Full Auto mode to off.
2Press the [IRIS A/M] button to set to the
Auto Iris mode.
The iris is automatically adjusted according to
the brightness of the object.
The lens aperture value (F-number) is not
displayed in the Auto Iris mode.
Memo :
0Pressing and holding the [FULL AUTO] button
to enter the Full Auto mode also activates the
Auto Iris mode. In this case, the Gain, Shutter
and White Balance also enter into Auto mode
forcibly.
The switching operation of the [IRIS A/M] button
is disabled in the Full Auto mode.
0The iris open/close limit can be set in [Main
Menu] B [Camera Function] B [Auto Iris Limit
(OPEN)]/[Auto Iris Limit (CLOSE)] during Auto
Iris.
(A P99 [ Auto Iris Limit (OPEN) ] )
(A P99 [ Auto Iris Limit (CLOSE) ] )
0To set the target level (brighter/darker) of the
auto iris, you can press and hold the [AE
LEVEL] button on the side of the camera
recorder and then change the level using the J /
K volume button.
0The convergence speed of the auto iris can be
set in the menu.
(A P99 [ AE Speed ] )
Manual Iris (Manual Adjustment) Mode
The aperture value (F-number) of the lens can be
set manually.
1Press and hold the [FULL AUTO] button to
set Full Auto mode to off.
2Press the [IRIS A/M] button to set to the
Manual Iris mode.
The lens aperture value (F-number) is
displayed.
.
1/100
F1. 6
18dB
AE+6
ND 1 / 16
12 : 34 : 56
Jan 24 , 2015
00:00: 00.00
5 . 6 f t
4030 20 10 0P 15 000 K
3Turn the iris dial to adjust the iris manually.
0Iris adjustment can be assigned to the zoom
ring.
Set [Main Menu] B [Camera Function] B
[Zoom Ring] to “Iris”.
(A P99 [ Zoom Ring ] )
The open F-number of the aperture varies
according to the zoom position.
Wide [W] end : F1.2
Tele [T] end : F3.5
F-number Description
Decrease The subject appears brighter.
The focused range becomes
sharper, while the background is
blurred to produce a soft image.
Increase The subject appears darker.
Background of image becomes
focused as well.
Memo :
0If [One Push Iris] is assigned to the user button,
pressing the assigned user button while in the
Manual Iris mode activates the One-push Auto
Iris mode, and holding down the button activates
the Push Auto Iris mode.
0In addition to the [Iris] function, the iris dial can
also be assigned with the [Shutter] or [AE
Level] function.
(A P99 [ Iris Dial ] )
56 Adjusting the Iris
Shooting
One Push Auto Iris
When [One Push Iris] is assigned to the user
button, press this button in the Manual Iris mode to
adjust the iris according to the brightness of the
subject.
Push Auto Iris
When [One Push Iris] is assigned to the user
button, press and hold down this button in the
Manual Iris mode to change to the Auto Iris mode
temporarily. The iris will be automatically adjusted
according to the brightness of the subject.
About the Iris F-number
Blurry effects due to “small aperture diffraction”
may occur when the diameter of the iris becomes
too small. When this phenomenon occurs, the F-
number on the screen turns gray to warn you that
the diffraction F-number of the iris has been
exceeded.
You are recommended to make appropriate use of
ND filters to prevent the F-number from turning
gray.
Setting the Gain
This function electrically boosts the light sensitivity
when there is insufficient illumination on the object.
You can set the gain of the video amplifier
according to the brightness of the object. Select the
setting mode according to your shooting
conditions.
.
Automatic Gain Mode (Automatic Gain
Adjustment)
1Press and hold the [FULL AUTO] button to
set Full Auto mode to off.
2Set [Camera Function] B [GAIN L]/[GAIN
M]/[GAIN H] to “AGC”.
(A P99 [GAIN L, GAIN M, GAIN H] )
If an item specified with “AGC” is selected using
the [GAIN L/M/H] gain switch, the Auto Gain
Adjustment mode is enabled and the gain of the
video amplifier is automatically set according to
the brightness of the subject.
The sensitivity value (in dB) will not be displayed
in the Auto Gain mode.
Memo :
0Pressing and holding the [FULL AUTO] button
to enter the Full Auto mode also activates the
Auto Gain mode. In this case, the Iris, Shutter
and White Balance also enter into Auto mode
forcibly.
0The switching operation of the [GAIN L/M/H]
switch is disabled in the Full Auto mode.
0The upper limit of the gain setting value during
AGC operation can be set in [Main Menu] B
[Camera Function] B [AGC Limit].
(A P99 [ AGC Limit ] )
Adjusting the Iris 57
Shooting
Manual Gain Mode (Manual Gain
Switching)
1Press and hold the [FULL AUTO] button to
set Full Auto mode to off.
0Select the gain level of the video amplifier
using the [GAIN L/M/H] selection switch on
the camera recorder.
0The gain level appears on the screen.
.
1/100
F1. 6
18dB
AE+6
ND 1 / 16
12 : 34 : 56
Jan 24 , 2015
00:00: 00.00
5 . 6 f t
4030 20 10 0P 15 000 K
0The default positions of the switch are as
follows.
[L] : 0dB
[M] : 6dB
[H] : 12dB
2Select [GAIN L/M/H] that is not set to “AGC”
to switch to the Manual Gain mode.
Memo :
0You can change the gain value of each position
in the menu. Increasing the sensitivity causes
the screen to appear grainier.
0The camera recorder switches to the Auto Gain
mode when the gain value is set to “AGC”.
(A P99 [GAIN L, GAIN M, GAIN H] )
Setting the Electronic
Shutter
You can change the shutter speed (time for each
shooting frame) using the electronic shutter
function. Electronic shutter can be adjusted
manually or automatically.
Automatic Shutter Mode (Automatic
Shutter Adjustment)
.
1Press and hold the [FULL AUTO] button to
set Full Auto mode to off.
2Press and hold the [SHUTTER] button to
enter Automatic Shutter mode.
0The shutter speed will not be displayed.
0Automatic Shutter mode adjusts the shutter
speed automatically according to the
brightness of the object.
3Set the controllable range for the Automatic
Shutter in [Main Menu] B [Camera
Function] B [EEI Limit].
(A P99 [ EEI Limit ] )
Memo :
0Pressing and holding the [FULL AUTO] button
to enter the Full Auto mode also activates the
Automatic Shutter mode. In this case, the Iris,
Gain and White Balance also enter into Auto
mode forcibly.
0Switching of shutter speed with the J / K volume
buttons at the side of the camera recorder, and
switching of shutter mode with the [SHUTTER]
button are disabled in the Full Auto mode.
58 Setting the Gain
Shooting
Manual Shutter Mode (Manual Shutter
Switching)
1Press and hold the [FULL AUTO] button to
set Full Auto mode to off.
2Press and hold the [SHUTTER] button to
enter Manual Shutter mode.
0The shutter speed appears on the screen.
.
1/100
F1. 6
18dB
AE+6
ND 1 / 16
12 : 34 : 56
Jan 24 , 2015
00:00: 00.00
5 . 6 f t
4030 20 10 0P 15 000 K
Memo :
0While in Manual Shutter mode, select “Step” or
“Variable” in [Camera Function] B [Shutter].
“Step” is the factory default.
(A P98 [ Shutter ] )
Switching Shutter Speed
When the [SHUTTER] button is pressed (for less
than 1 second) in the Manual Shutter mode to
display the shutter speed against a white
background, you can set the shutter speed using
the J / K volume buttons on the side of the camera
recorder. The settable shutter speed range differs
according to the video format setting.
Memo :
0To display Shutter in angle (DEG), set [WFrame
Rate] to “24p” or “25p”, and set [Shutter] in [LCD/
VF] B [Display Settings] to “DEG”.
(A P118 [ W Frame Rate ] )
(A P111 [ Shutter ] )
.
60p
60i
30p
50p
50i
25p
24p
J
^
1/10000
1/4000
1/2000
1/1000
1/500
1/500
1/250
1/120
1/120
1/100
1/100
1/50
1/50
1/48
1/24
1/12
K1/6
1/25
1/12.5
1/6.25
1/60
1/30
1/15
1/7.5
J
~
1/48.001/50.001/60.00
~
K1/30.00 1/25.00 1/24.00
1/9934 1/98631/10014
1/60
1/10000
1/250
1/1000
1/2000
1/4000
^
1/500
1/100
1/10000
1/250
1/120
1/1000
1/2000
1/4000
(Lower limit)
(Upper limit)
(Standard)
(Standard)
Variable
Step
Shutter Mode
Frame Rate
Setting the Electronic Shutter 59
Shooting
Setting the ND Filter
Use the ND filter to keep the lens aperture in the
appropriate range.
.
Switch according to the brightness of the object.
When the position on the switch is changed, the
selected position of the ND filter is displayed on the
LCD monitor and viewfinder screen.
.
1/100
F1. 6
18dB
AE+6
ND 1 / 16
12 : 34 : 56
Jan 24 , 2015
00:00:00.00
5 . 6 f t
4030 20 10 0P 15 00 0K
ND 1 / 1 6
Memo :
0When [Main Menu] B [LCD/VF] B [Display
Settings] B [ND Filter] is set to “Off”, the position
of the ND filter will not be displayed.
(A P109 [ ND Filter ] )
0It is recommended to use the ND filter to set the
lens aperture to less than F8.
ND Filter Warning Display
In order to adjust the amount of light when you are
shooting at a relatively bright location, the diameter
of the iris may become extremely small, causing
blurry effects to occur as a result.
This phenomenon is known as “small aperture
diffraction”. You can make appropriate use of ND
filters to prevent it from occurring.
This unit displays an ND filter warning when
necessary to prompt you to select an appropriate
ND filter.
1Set [Main Menu] B [LCD/VF] B [Display
Settings] B [ND Filter] to “On+Assist”.
(A P109 [ ND Filter ] )
2When the iris diameter becomes too small
while adjusting the light intensity, or when
an ND filter is used in a dimly-lit location,
the ND filter display starts blinking.
60 Setting the ND Filter
Shooting
Adjusting the White
Balance
Adjust the white balance according to the color
temperature of the lighting. You can select the
adjustment mode according to the shooting
conditions.
As the color of the light (color temperature) varies
according to the light source, it is necessary to
readjust the white balance when the main light
source illuminating the subject changes.
.
Automatic White Balance Mode (FAW:
Fulltime Auto White balance)
1Press and hold the [FULL AUTO] button to
set Full Auto mode to off.
2Assign “FAW” (Full Auto White Balance) to
one of the three [WHT.BAL B/A/PRST]
switches.
0You can set the Full Auto White Balance
feature to either “A”, “B”, or “PRST” in
[Camera Function] B [FAW].
(A P99 [ FAW ] )
0If the position assigned with “FAW” is
selected using the [WHT BAL B/A/PRST]
switch, the Automatic White Balance mode is
enabled and an appropriate white balance is
automatically adjusted according to the color
temperature of the lighting on the subject.
Caution :
0The accuracy of [FAW] is inferior to that of [AWB]
(Auto White Balance).
0When the power of the camera recorder is
turned on with the [FAW] mode selected, it takes
about 15 seconds for the colors to stabilize.
Memo :
0Pressing and holding the [FULL AUTO] button
to enter the Full Auto mode also activates the
Automatic White Balance mode. In this case, the
Iris, Gain and Shutter also enter into Auto mode
forcibly.
0Switching of the white balance with the
[WHT.BAL B/A/PRST] switch is disabled in the
Full Auto mode.
0When [Main Menu] B [Camera Function] B
[User Switch Set] B [AE/FAW Lock] is set to “AE/
FAW” or “FAW”, the white balance when the
user button that is assigned with [AE/FAW
Lock] is pressed can be fixed while in the
Automatic White Balance mode.
(A P101 [ AE/FAW Lock ] )
0If [White Balance] is assigned to the user button,
pressing the assigned user button will display
the FAW Paint Adjustment screen.
(A P39 [Assignment of Functions to User
Buttons] )
FAW Paint Adjustment
You can fine-adjust the white balance that was
automatically adjusted.
1Select [Main Menu] B [Camera Process] B
[White Balance] B [FAW Paint] and press
the Set button (R).
The FAW Paint Adjustment screen appears.
.
1
FAW Paint
White Balance
2Adjust the R and B values.
Use the cross-shaped button (JK) to adjust R
value and (HI) to adjust B value.
.
B
R
Adjusting the White Balance 61
Shooting
3Press the Set button (R).
Returns to the [White Balance] screen.
.
B Value
R Value
FAW Paint
White Balance
Manual White Balance Mode (Manual
Switching)
1Press and hold the [FULL AUTO] button to
set Full Auto mode to off.
0Use the [WHT.BAL B/A/PRST] switch to
select “PRST” (preset mode), “A” (memory A
mode), or “B” (memory B mode).
Memo :
0You can set the Full Auto White Balance feature
to either [A], [B], or [PRST] in [Camera
Function] B [FAW].
(A P99 [ FAW ] )
0The FAW (Full Time Auto White Balance) mode
makes automatic adjustments by sampling the
color temperature of the video to obtain the most
appropriate white balance level.
Preset Mode (PRST)
0Two different color temperature settings are
registered on this camera recorder. You can
switch between them using the [AWB/9] button.
* You can also use the user button assigned with
[AWB] instead of the [AWB/9] button.
(A P100 [User Switch Set Item] )
Default setting:
[Preset Temp.] : 3200K
[Alternative Temp.] : 5600K
1Set the [WHT.BAL B/A/PRST] switch to
“PRST”.
2Press the [AWB/9] button.
0Press the [AWB/9] button to switch to a
different color temperature.
(“Preset Temp.”1“Alternative Temp.”)
Setting the [Preset Temp.] or [Alternative
Temp.] Values
You can change both the color temperature
settings in the Preset mode in the menu.
1Open the [Preset Temp.] or [Alternative
Temp.] menu.
0
Select [Main Menu]
B
[Camera Process]
B
[White Balance]
B
[Preset Temp.] and
[Alternative Temp.], and press the Set button
(
R
).
0The Color Temperature setting screen
appears.
.
Color Temperature
Detailed Selection
Screen
Color Temperature Selection Screen
2Select the color temperature.
0When selecting from a setting value (Color
Temperature Selection screen), use the
cross-shaped button (JK) to select the color
temperature.
[Setting Values: 7500K, 6500K, 5600K,
5200K, 4800K, 4200K, 3200K, 3000K,
2800K]
0To select detailed values (Color
Temperature Detailed Selection screen)
0Press the cross-shaped button (I) to
display the Color Temperature Detailed
Selection screen.
0Use the cross-shaped button (JK) to
select a color temperature.
[Setting Values: 2300K to 15000K (in
100K increments)]
Memo :
0Use the cross-shaped button (I) to switch
between the Color Temperature Selection
screen and the Color Temperature Detailed
Selection screen.
0If [White Balance] is assigned to the user button,
pressing the assigned user button will display
the Color Temperature Selection screen.
(A P39 [Assignment of Functions to User
Buttons] )
62 Adjusting the White Balance
Shooting
1Select [Main Menu] B [Camera Process] B
[White Balance] B [AWB Paint] and press
the Set button (R).
The White Paint Adjustment screen appears.
.
1
AWB Paint
White Balance
2Adjust the R and B values.
Use the cross-shaped button (JK) to adjust R
value and (HI) to adjust B value.
.
B
R
3Press the Set button (R).
Returns to the [White Balance] screen.
.
B Value
R Value
AWB Paint
White Balance
Memo :
0Executing Auto White Balance will usually clear
the White Paint Adjustment value. But when
[Main Menu] B [Camera Process] B [White
Balance] B [Clear Paint After AWB] is set to
“Off”, values will not be cleared even when Auto
White Balance is executed.
(A P105 [ Clear Paint After AWB ] )
0If [White Balance] is assigned to the user button,
pressing the assigned user button will display
the AWB Paint Adjustment screen.
(A P39 [Assignment of Functions to User
Buttons] )
Adjusting the Camera
The picture quality of the camera can be set using
the [Camera Process] menu.
As the adjustments are shown on the screen, you
can adjust the values while checking the picture
quality on the camera.
0[Detail]
0[Master Black]
0[Black Toe]
0[Knee]
0[White Clip]
0[Gamma]
0[Highlight Display Priority]
0[WDR]
0[White Balance]
0[Color Matrix]
0[Color Gain]
Memo :
0For details of the respective items, see the
[Camera Process] menu.
(A P102 [Camera Process Menu] )
64 Adjusting the White Balance
Shooting
Using the Image Stabilizer
Reduces blurring of images due to camera shake.
1Check whether the image stabilizer feature
is turned ON or OFF.
If the image stabilizer icon (i/j) does not
appear on the screen display, the image
stabilizer function is OFF.
.
1/100
F1 . 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24,2015
00:00:00.00
4030 20 10 0
5 . 6 f t
P 15 00 0K
2Press the [OIS/6] button to turn ON the
image stabilizer feature (when image
stabilizer feature is OFF).
The image stabilizer feature switches between
ON and OFF with every press of the [OIS/6]
button.
0OFF:
Use this setting when the camera recorder is
secured, such as when using a tripod.
0ON:
Reduces blurring of images due to camera
shake.
Memo :
0Select [Main Menu] B [Camera Function] B
[OIS] B [Level] to set the correction level.
(A P98 [ Level ] )
0Correction by this feature may not be sufficient
when camera shake is too strong.
0“OIS” is assigned to the [OIS/6] button in factory
default.
0“OIS” can also be assigned to other user
buttons.
(A P39 [Assignment of Functions to User
Buttons] )
Audio Recording
You can record audio from the two channels (CH1/
CH2) in synchronization with video images on this
camera recorder.
Select from the four options below to record the
audio.
0Built-in Microphone
0Microphone connected to [AUX] terminal
0Microphone connected to [INPUT1] terminal
O
0Microphone connected to [INPUT2] terminal
O
.
Selecting Audio to Be Recorded in Each
Channel O
Select the audio to be recorded in CH1/CH2.
- Switch Setting Connected Devices
CH1 INT 0Built-in Microphone
0Microphone connected to
[AUX] terminal
INPUT1 Microphone connected to
[INPUT1] terminal
CH2 INT 0Built-in Microphone
0Microphone connected to
[AUX] terminal
INPUT1 Microphone connected to
[INPUT1] terminal
INPUT2 Microphone connected to
[INPUT2] terminal
0When CH1 or CH2 is set to “INT” and a
microphone is connected to the [AUX] terminal,
audio is recorded according to the setting in
[Main Menu] B [A/V Set] B [Audio Set] B [CH1
INT]/[CH2 INT].
(A P112 [ CH1 INT ] )
(A P113 [ CH2 INT ] )
Using the Image Stabilizer 65
Shooting
Memo :
0When the [AUX] terminal is not connected,
[Main Menu] B [A/V Set] B [Audio Set] B [CH1
INT]/[CH2 INT] is fixed at “Int. Mic L”/“Int. Mic
R” respectively.
Setting Input Channel to [INPUT1]/[INPUT2]
Select the audio to input to [INPUT1] and [INPUT2]
terminals using the [AUDIO INPUT INPUT1]/
[AUDIO INPUT INPUT2] signal selection switch.
Setting Description
[LINE] Use this setting when connecting to
an audio device or other equipment.
The reference input level is +4 dBu.
[MIC] Use this setting when connecting to
a dynamic microphone.
[MIC+48V] Use this setting when connecting to
a microphone (phantom
microphone) that requires a +48 V
power supply.
Memo :
0When “MIC” or “MIC+48V” is selected, set the
reference input level in [Main Menu] B [A/V
Set] B [Audio Set] B [Input1 Mic Ref.]/[Input2
Mic Ref.].
(A P113 [Input1 Mic Ref./Input2 Mic Ref. O] )
Caution :
0When connecting a device that does not require
a +48 V power supply, make sure that it is not
set to the “MIC+48V” position.
0When the [AUDIO INPUT INPUT1]/[AUDIO
INPUT INPUT2] signal selection switch is set to
“MIC”, make sure that a microphone is
connected to the [INPUT1]/[INPUT2] terminal. If
you increase the recording level when a
microphone is not connected, noise from the
input terminal may be recorded.
0When a microphone is not connected to the
[INPUT1]/[INPUT2] terminal, set the [AUDIO
INPUT INPUT1]/[AUDIO INPUT INPUT2] signal
selection switch to “LINE” or adjust the volume
with the [CH-1]/[CH-2] recording level
adjustment knob.
Adjusting the Audio Recording Level
O
You can select to adjust the audio recording levels
for the two channels (CH1/CH2) manually or
automatically.
.
Manual Adjustment Mode (Manual
Adjustment)
0Set the [AUDIO SELECT CH-1/CH-2 AUTO/
MANU] switch on the camera recorder to
“MANU” to enter the manual adjustment mode,
and use the [CH-1]/[CH-2] recording level
adjustment knob to set the recording level.
0You can adjust the level manually during the
recording, recording standby, and stop modes.
Memo :
0When the [FULL AUTO] button is set to “ON” and
[Main Menu] B [A/V Set] B [Audio Set] B [Audio
On FULL AUTO] is set to “Auto”, the [AUDIO
SELECT CH-1 AUTO/MANU] and [AUDIO
SELECT CH-2 AUTO/MANU] switches are
disabled.
(The above setting is the factory default.)
oSetting Input Channel to “INPUT1”/
“INPUT2”
1Set the [AUDIO SELECT CH-1/CH-2 AUTO/
MANU] switch to “MANU” for the channel to
be adjusted manually.
2Turn the corresponding [CH-1]/[CH-2]
recording level adjustment knob to adjust
the level.
Adjust such that the audio level meter does not
light up at -2 dB even for loud sounds.
(A P113 [ Limiter Mode ] )
.
1/100
F1 . 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24 , 2015
00: 00 : 00.00
4030 20 10 0
5 . 6 f t
P 15 00 0K
4030 20 10 0
-2dB
66 Audio Recording
Shooting
oWhen the input channel is set to “INT” for
both [CH1] and [CH2]
1Set the [AUDIO SELECT CH-1 AUTO/
MANU] switch to “MANU”.
2Turn the [CH-1] recording level adjustment
knob to adjust the level.
When the built-in microphone and the [AUX]
input terminal are used, the recording levels of
[CH1] and [CH2] are interlocked.
This is also effective when the [AUDIO SELECT
CH-1 AUTO/MANU] switch is set to [CH2].
Memo :
0Select [Limiter Mode] or [Int. Mic Stereo
Enhancer] in the menu to set the recording
audio.
0For the reference level to be recorded to an SD
card, set [Main Menu] B [A/V Set] B [Audio
Set] B [Ref. Level] to “-20dB”, “-18dB”, or
“-12dB”. (common for CH1/CH2)
(A P113 [ Ref. Level ] )
0The operations of the [CH-2] recording level
adjustment knob and [AUDIO SELECT CH-2
AUTO/MANU] switch are disabled.
0When [Main Menu] B [A/V Set] B [Audio Set] B
[CH1 INT] and [CH2 INT] are set to “Int. Mic L”
and “AUX R” respectively, or set to “Int. Mic R”
and “AUX L” respectively, the settings of the
[AUDIO SELECT CH-1 AUTO/MANU] and
[AUDIO SELECT CH-2 AUTO/MANU] switches
become independent. In this case, the recording
level settings of CH1 and CH2 are also
independent.
Automatic Adjustment Mode
0
Set the [AUDIO SELECT CH-1/CH-2 AUTO/
MANU] switch to “AUTO” or press and hold the
[FULL AUTO] button to set to “ON” to enter
Automatic Adjustment mode. The audio
recording level is set automatically according to
the input level.
0When the [FULL AUTO] button is set to “ON”,
mode switching with the [AUDIO SELECT CH-1/
CH-2 AUTO/MANU] switch is disabled.
Memo :
0When [Main Menu] B [A/V Set] B [Audio Set] B
[Limiter] is set to “Off” while in the automatic
adjustment mode, the limiter operates at
-6 dBFS.
0When [A/V Set] B [Audio Set] B [Audio On FULL
AUTO] is set to “SW Set”, you can switch the
audio recording mode with the [AUDIO SELECT
CH-1/CH-2 AUTO/MANU] switch on the camera
recorder even if the [FULL AUTO] button is set
to “ON”.
(A P115 [ Audio On FULL AUTO ] )
Setting the Audio recording Level in the
Main Menu
* Enabled only when the handle unit is not
attached.
1Select [Main Menu] B [A/V Set] B [Audio
Set] B [Audio Level].
0The [Audio Level] screen appears.
.
Audio Level
Manual
Auto Set
* The contents displayed on the screen vary
depending on the various settings.
2Select “Auto” or “Manual” using the
[LOLUX/3] button.
0If “Auto” is selected, the audio recording level
will be automatically adjusted.
0If “Manual” is selected, the volume appears
on the screen. Use the cross-shaped button
(H I) to adjust the volume.
Memo :
0When the [FULL AUTO] button is set to “On” and
[Audio On FULL AUTO] in the menu is set to
“Auto”, the audio recording level cannot be
selected.
0If both CH1 and CH2 are set to the built-in
microphone or to AUX, settings for CH2 will not
be displayed, and the settings for CH1 will apply
to CH2.
Audio Recording 67
Shooting
2Select the framing mode for the time code
generator (only when the frame rate setting
is “60” or “30”).
Set using [Main Menu] B [TC/UB] B [Drop
Frame].
(A P106 [ Drop Frame ] )
0[Drop]:
Sets the run mode of the time code generator
to drop frame mode. Use this setting when
placing emphasis on the recording time.
0[Non Drop]:
Sets the run mode of the time code generator
to non-drop frame mode. Use this setting
when placing emphasis on the number of
frames.
Memo :
Drop frame/non-drop frame mode
0When [Main Menu] B [System] B [Record Set]
B [Record Format] B [Frame Rate] is set to
“60p”, “60i”, or “30p”, the actual number of
frames per second is approximately 59.94
(29.97). However, the time code processing
standard is “60p”, “60i”, or “30p” frames. To
make up for the frame number discrepancy, the
drop frame mode (Drop) drops the 00 frame and
01 frame every minute except for minutes that
are multiples of 10. However, in the case of
“60p”, the 00, 01, 02 and 03 frame are dropped.
0The non-drop frame mode (Non Drop) does not
drop frames and ignores the discrepancy with
the actual time.
Setting Time Code
.
1Select [Main Menu] B [TC/UB] B [TC
Preset] and press the Set button (R).
(A P106 [ TC Preset ] )
The [TC Preset] screen appears.
.
1
TC Preset 00:00:00:00
TC/UB
Memo :
0When [TC/UB] B [TC Generator] is set to
“Regen”, the parameter is displayed as “Regen”
and cannot be selected.
(A P106 [ TC Generator ] )
2Set the time code (hour, minute, second,
frame).
Use the cross-shaped button (HI) to place the
cursor at the item to set, then use the cross-
shaped button (JK) to change the values.
.
During drop frame
During non-drop
frame
Cursor
TC Preset 00:00:00:00
TC/UB
Memo :
0Press the [C.REVIEW/4] button to reset each
digit to “0”. The cursor moves to the time digit
(left).
3Check the values and press the Set button
(R).
0The time code is set and the screen returns
to [TC/UB].
0To cancel the setting, press the [CANCEL/
STOP] button.
4Press the [MENU/THUMB] button.
Returns to the normal screen.
70 Setting Time Code Generator
Shooting
Setting Time Code without Opening the
Menu
.
Memo :
0Settings cannot be made in the following cases.
0[TC/UB] B [TC Generator] has been set to
“Regen”.
0Menu screen is displayed.
0The camera recorder is not in the Camera
mode.
Setting Time Code
1Set [TC/UB] B [TC Generator] to “Rec
Run” or “Free Run”.
(A P106 [ TC Generator ] )
2Press the [TC/2] button.
The [TC Preset] setting screen appears.
.
TC Preset
During drop frame
During non-drop frame
Cursor
3Set the time code (hour, minute, second,
frame).
Use the cross-shaped button (HI) to place the
cursor at the item to set, then use the cross-
shaped button (JK) to change the values.
Memo :
0Press the [C.REVIEW/4] button to reset each
digit to “0”. The cursor moves to the time digit
(left).
4Check the values and press the Set button
(R).
0The time code is set and the screen returns
to the normal screen.
0To cancel the setting, press the [CANCEL/
STOP] button.
Caution :
0When the camera recorder is switched to Media
mode during editing, editing will be canceled
and the screen will close.
0When editing the time code, operation of the
buttons that are set in [Main Menu] B [Camera
Function] B [User Switch Set] is disabled.
[C.REVIEW/4] functions as the number reset
button.
(A P100 [User Switch Set Item] )
Recording Time Code in Continuation of
the Recorded Time Code on SD Card
This camera recorder is equipped with the time
code reader.
1Set [TC/UB] B [TC Generator] to “Regen”.
0When the camera recorder enters from
recording standby mode to recording mode,
it reads the time code already recorded on
the SD card and records the new time code
in continuation of that value.
0The same data as the user’s bit already
recorded on the SD card is recorded.
Memo :
0When [TC/UB] B [TC Generator] is set to
“Regen”, the framing mode of the time code
follows the settings in [TC/UB] B [Drop Frame]
instead of the clip settings.
(A P106 [ Drop Frame ] )
Setting Time Code Generator 71
Shooting
Setting the User’s Bit
You can add the date, time or an 8-digit
hexadecimal number as the user’s bit to the
recorded image.
.
Selecting a Recording Mode
Recording date/time information to the user’s
bit
1Set [Main Menu] B [TC/UB] B [UB Mode] to
“Date” or “Time”, and press the Set button
(R).
(A P106 [ UB Mode ] )
The date or time information is recorded to the
user’s bit.
Memo :
0When “Date” or “Time” is set, [Preset] appears
as “-” and cannot be set.
0“Time” is displayed in the 24-hour format.
Presetting the User’s Bit
Recording arbitrary information (8-digit
hexadecimal) to the user’s bit
1Set [Main Menu] B [TC/UB] B [UB Mode] to
“Preset”, and press the Set button (R).
(A P106 [ UB Mode ] )
.
1
TC/UB
UB Mode
Preset Time
Preset
Date
Memo :
0When [TC/UB] B [TC Generator] is set to
“Regen”, the parameter is displayed as “Regen”
and cannot be selected.
(A P106 [ TC Generator ] )
2Select [Main Menu] B [TC/UB] B “Preset”
and press the Set button (R).
The [Preset] setting screen appears.
3Use the cross-shaped button (HI) to place
the cursor at the item to set, then use the
cross-shaped button (JK) to change the
values.
Numbers between 0 and 9 or alphabets
between A and F can be specified for the user’s
bit.
.
TC/UB
Cursor
Memo :
0
Press the [C.REVIEW/4] button to reset each digit
to “0”. The cursor moves to the left.
4Check the values and press the Set button
(R).
0The user’s bit is set and the screen returns to
[TC/UB].
0To cancel the setting, press the [CANCEL/
STOP] button.
5Press the [MENU/THUMB] button.
Returns to the normal screen.
72 Setting the User’s Bit
Shooting
Setting Zebra Pattern
When the luminance level range for displaying
zebra patterns is specified, diagonal lines (zebra
pattern) are displayed at areas with the specified
luminance levels during shooting.
.
1Set the zebra display pattern.
Select the display pattern in [LCD/VF] B
[Shooting Assist] B [Zebra].
2Specify the brightness (luminance) level
range for displaying zebra pattern.
Specify the upper and lower limits of the
luminance level in [LCD/VF] B [Shooting
Assist] B [Zebra] B [Top] and [Bottom].
Item Settings Options
Top Upper luminance
limit for displaying
[Zebra]
5% - 100%, Over
(in 5 % increments)
Bottom Lower luminance
limit for displaying
[Zebra]
0% - 100% (in 5 %
increments)
3Display the zebra pattern.
Press the [ZEBRA/5] button to display the zebra
pattern in the specified range.
.
During zebra pattern display, (zebra icon)
is displayed on the display screen in Camera
mode.
Memo :
0“Zebra” is assigned to the [ZEBRA/5] button in
factory default.
0“Zebra” can also be assigned to other user
buttons.
(A P39 [Assignment of Functions to User
Buttons] )
Viewing Recorded Videos
Immediately (Clip Review)
You can check (review) the last recorded video clip
on the screen.
However, the video clip cannot be played back if
the settings of the camera recorder are different
from the video format (Resolution/Frame Rate/Bit
Rate/SD Aspect) of the clip.
(A P118 [ W Resolution ] )
(A P118 [ W Frame Rate ] )
(A P118 [ W Bit Rate ] )
(A P119 [ SD Aspect ] )
Memo :
0To use this function, assign “Clip Review” to any
of the user buttons. “Clip Review” is assigned to
the [C.REVIEW/4] button in factory default.
0“Clip Review” can also be assigned to other user
buttons.
(A P39 [Assignment of Functions to User
Buttons] )
.
1Press the user button assigned with the
“Clip Review” function during standby
(“STBY” is displayed).
Playback of the configured section starts.
Memo :
0The video clip is played back according to the
setting in [Main Menu] B [Camera Function] B
[User Switch Set] B [Clip Review]. By default
setting (Last 5sec), the last 5 seconds of the clip
is played back.
(A P100 [ Clip Review ] )
0When playback is complete, the camera
recorder exits Clip Review and returns to
“STBY” (recording standby) mode.
Setting Zebra Pattern 73
Shooting
Caution :
0During Clip Review, only the [CANCEL/STOP]
and [REC] buttons are enabled.
Press the [CANCEL/STOP] button to cancel clip
review and return to “STBY” (recording standby)
mode.
Press the [REC] button to cancel clip review and
enter recording mode. It will take some time to
start recording after the button is pressed.
0When the last clip is less than 5 seconds, the
whole clip is played back.
0Only video clips in the currently selected slot can
be reviewed.
0When there are no clips in the selected slot, Clip
Review function is disabled.
0Clip Review is unavailable when Clip
Continuous Rec is paused (“STBYC”, yellow
text). To operate Clip Review, use the
[CANCEL/STOP] button to set to “STBYC”
(white text) first.
(A P80 [Clip Continuous Rec] )
0Clip Review is unavailable when the camera
recorder is connected to an external equipment
and the equipment is in recording state.
0Clip Review is unavailable when operating View
Remote via network connection.
(A P166 [View Remote Feature n] )
0Clip Review does not function during live
streaming. n
0Clip Review does not function while the record
trigger is in the REC state.
Using the Histogram
The histogram shows the brightness distribution,
and is employed mainly for checking the exposure
of the image.
1Set the histogram feature to ON.
0Set [Main Menu] B [LCD/VF] B [Display
Settings] B [Histogram] to “On”.
0You can also press the user button that is
assigned with “Histogram”.
(A P100 [User Switch Set Item] )
2Set the upper and lower limits of the
histogram display.
After setting, the brightness level is displayed in
red color.
Item Settings Options
Top Sets the maximum
brightness limit for
changing the
histogram display
color
5% to 110% (in 5 %
increments)
Bottom Sets the minimum
brightness limit for
changing the
histogram display
color
0% to 105% (in 5 %
increments)
o When the upper limit is set to 110% and the lower
limit to 0%
.
P 13000K
P 13000K
1/100
1/100
F1.6
F1.6
0dB
0dB
AE+6
AE+6
ND 1/64
ND 1/64
12:34:56
12:34:56
Jan 24,2014
Jan 24,2014
00:00:00.00
00:00:00.00
5.
5.6 f t
100min
100min
50min
50min
282min
282min
* The area in red is not displayed.
o When the upper limit is set to 90% and the lower
limit to 10%
.
P 13000K 1/100
1/100
F1.6
F1.6
0dB
0dB
AE+6
AE+6
ND 1/64
ND 1/64
12:34:56
12:34:56
Jan 24,2014
Jan 24,2014
00:00:00.00
00:00:00.00
5.
5.6 f t
100min
100min
50min
50min
282min
282min
To p
Bottom
How to read the histogram
0The vertical axis denotes the number of pixels.
0The horizontal axis denotes the pixel
brightness.
74 Viewing Recorded Videos Immediately (Clip Review)
Shooting
Recording
Simultaneously at Two
Different Definitions
By setting [System] to “HD+Web”, you can record
simultaneously at two different definitions.
0When HD+Web is selected:
Records a high-definition (HD) file to slot A and
a web file to slot B at the same time.
Web files can be used as a proxy file for the HD
file.
Memo :
0If a recordable SD card is inserted into only one
of the slots, files will only be recorded to that slot.
0The [Rec Mode] is fixed at “Normal”.
0Clip Cutter Trig is disabled.
0[Slot Mode] cannot be selected.
0Clip Review can only be performed for slot A.
(“No Media” appears if there is no card in slot A
while a card is inserted into slot B.)
0Playback of web files is only possible from slot
B when “HD+Web” is selected.
Series Rec
0Series Rec mode is specified in the factory
default.
([Main Menu] B [System] B [Record Set] B [Slot
Mode] is set to “Series”.)
(A P120 [ Slot Mode ] )
0If both the slots are loaded with recordable
cards, pressing the [REC] button starts
recording only to the media in the selected slot.
When the remaining space in the selected
media runs out, recording continues by
automatically activating the media in the other
slot.
0There is no indication on the display screen
when the Series Rec mode is set.
Dual Rec
0If both the slots are loaded with recordable cards
in the Dual Rec mode ([Slot Mode] is set to
“Dual”), pressing the [REC] button starts
recording simultaneously to the media in both
the slots.
0The clips recorded to the media in both the slots
are identical, and two clips of the same content
can be created only on this camera recorder.
(A P120 [ Slot Mode ] )
.
Setting to Dual Rec Mode
1Set [Main Menu] B [System] B [Record
Set] B [Slot Mode] to “Dual”.
(A P120 [ Slot Mode ] )
“DUAL” appears on the display screen.
.
1/100
F1. 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24,2015
00:00:00.00
4030 20 10 0
5 . 6 f t
P  15000K
DUAL
Recording Simultaneously at Two Different Definitions 75
Shooting
2Start recording.
0Insert recordable media in both slots, and
press the [REC] button.
0In the Dual Rec mode, recording to the media
in both slots starts at the same time.
0Both the card slot marks turn red, and the
status indicators of both the card slots also
light up in red.
.
1/100
F1 . 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24,2015
00: 00:00.00
4030 20 10 0
5 . 6 f t
P  15000K
100min
50min
REC
Lit in red
3Stop recording.
0Press the [REC] button again.
0Recording to both slots stops, and both the
card slot marks turn white.
0The same clips are recorded to both cards.
.
1/100
F1. 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24,2015
00:00:00.00
4030 20 10 0
5 . 6 f t
P  15000K
100min
50min
White
Memo :
0Available when [System] is set to “4K”, “HD”,
“SD” or “High-Speed”.
(A P117 [ System ] )
0During recording in the Dual Rec mode, both the
card slot marks light up in red.
0During recording in the Dual Rec mode to two
cards with a different amount of remaining
space, if the space of one card runs out,
recording to both slots will stop automatically.
After recording stops, recording automatically
resumes for the card with remaining space.
Although the clips are separated in this case, the
clips can be seamlessly joined by arranging
them on the timeline of the editing software since
they are recorded seamlessly.
0
If the last clip on the cards that are inserted in the
two slots are different from each other, and the
time code operating mode is set to “Regen”, the
Regen mode for the selected card slot will be
enabled in the next recording.
Caution :
0To perform recording in the Dual Rec mode, it is
recommended that you start recording by
making use of two cards with the same capacity
and from the formatted state.
0You can combine the use of the Dual Rec mode
with a special recording mode. While in the Dual
Rec mode, you can also set [Rec Mode] to
“Normal”, “Pre Rec”, “Clip Continuous”, “Interval
Rec”, or “Frame Rec”.
(A P79 [Special Recording] )
(A P119 [ Rec Mode ] )
0When both slots are inserted with recordable
cards, the Dual Rec (simultaneous recording)
operation can be performed. If a recordable
media is only inserted in one of the slots, you can
also start recording with one card.
0In the Dual Rec mode, continuous recording by
switching from one slot to another cannot be
performed. Continuous recording will not be
performed if a recordable media is inserted in a
slot after recording to the other slot has started.
0When recording to one slot is in progress with
the recorder set to the Dual Rec mode, inserting
a recordable media to the other slot does not
enable the Dual Rec operation. To perform the
Dual Rec operation, stop recording temporarily
(excluding pausing recording in the Clip
Continuous Rec mode), and start again.
0When one of the cards is accidentally removed
while recording is in progress in the Dual Rec
mode, recording to the card in the other slot will
continue. However, repair of the accidentally
removed card by the recovery function may fail.
0If an error occurs on one of the cards while
recording is in progress in the Dual Rec mode,
recording of the erroneous card stops, while that
of the other card continues.
0Operations on clips recorded in the Dual Rec
mode, such as clip deletion in the Media mode
or appending of OK marks, can only be
performed on the card in the selected slot.
76 Dual Rec
Shooting
Backup Rec
0The Backup Rec mode allows you to make use
of the media in slot B for backup recording by
controlling the starting and stopping of recording
in slot B without using the [REC] button.
0Start or stop the recording using [Main Menu] B
[System] B [Record Set] B [Slot Mode] B
[Backup Rec] or press the user button that is
assigned with “Backup Trig”.
(A P120 [ Slot Mode ] )
(A P100 [User Switch Set Item] )
.
Slot B
Slot A
Clip 3
Clip 2
Clip 1
Clip 2
Slot B stops
recording
Slot A stops
recording
Slot A starts
recording
Slot B starts
recording
Memo :
0Available when [System] is set to “4K”, “HD”,
“SD” or “High-Speed”.
(A P117 [ System ] )
0During the Backup Rec mode (when [Slot
Mode] is set to “Backup”), you can control
recording to the 2 slots at different timings, and
backup recording can only be performed on this
camera recorder.
(A P120 [ Slot Mode ] )
0You can record without worrying about missing
the important scenes by setting slot B to be
always recording (backup recording) and using
the [REC] button to start/stop recording of only
the required scenes in slot A.
0It is recommended to use a media with high
capacity in slot B.
0Backup cannot be selected when [WFormat] is
set to “Exchange”. (U model only)
1Set [Main Menu] B [System] B [Record
Set] B [Slot Mode] to “Backup”.
(A P120 [ Slot Mode ] )
“BACKUP” appears on the display screen.
.
1/100
F1. 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24,2015
00:00:00.00
4030 20 10 0
5 . 6 f t
P  15000K
BACKUP
2Start backup recording. (Backup recording
into slot B)
0Select “REC” in [Main Menu] B [System] B
[Record Set] B [Slot Mode] B [Backup Rec]
and press the Set button (R).
(A P120 [ Slot Mode ] )
0You can also press the user button that is
assigned with “Backup Trig”.
(A P100 [User Switch Set Item] )
0Backup recording into slot B starts. (The
characters “BACKUP” appear in red.)
0The card slot mark of slot B turns red
(selected state), and the status indicator of
slot B also blinks in red.
.
1/100
F1. 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24,2015
00:00:00.00
4030 20 10 0
5 . 6 f t
P  15000K
100min
50min
100min
50min
Red (selected)
Red
Backup Rec 77
Shooting
3Start normal recording (normal recording
into slot A)
0Press any of the [REC] buttons.
0Recording into the media in slot A starts.
(The characters “RREC” appear in red.)
0The card icon of slot A turns red (unselected
state), and the status indicator of slot A blinks
in red.
.
1/100
F1. 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24,2015
00:00:00.00
4030 20 10 0
5 . 6 f t
P  15000K
100min
50min
100min
50min
Red (not selected)
4Stop normal recording.
0Press any of the [REC] buttons again.
0Recording to slot A stops, and the card slot
mark of slot A turns white (unselected state).
0The characters “RREC” (red) changes back
to “STBY” (white).
0The status indicator of slot A goes out.
.
1/100
F1. 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24,2015
00:00:00.00
4030 20 10 0
5 . 6 f t
P  15000K
100min
50min
100min
50min
White (not selected)
5Stop backup recording.
0Select [STBY] in [Main Menu] B [System] B
[Record Set] B [Slot Mode] B [Backup Rec]
and press the Set button (R).
(A P120 [ Slot Mode ] )
0You can also press the user button that is
assigned with “Backup Trig”.
(A P100 [User Switch Set Item] )
0Recording to slot B stops, and the card slot
mark of slot B turns white (unselected state).
0The characters “BACKUP” changes back to
white.
0The status indicator of slot B lights up in
green.
.
1/100
F1. 6
18dB
AE+6
ND 1 /1 6
12 : 34 : 56
Jan 24,2015
00:00:00.00
4030 20 10 0
5 . 6 f t
P  15000K
100min
50min
100min
50min
White
Memo :
0During backup recording, if the space of one
card runs out, recording stops only for the card
that is full.
0When recording to both slots is stopped,
recording in the Regen mode will be enabled for
the card slot in which recording started.
0When recording is started in the other slot while
recording to one slot, the clip being recorded is
split and simultaneous recording to the other
card starts.
0When recording is stopped for either slot A or B
while recording to both slots, the clip on the slot
which is still recording is split.
0Although the clips are separated during
recording the clips can be seamlessly joined by
arranging them on the timeline of the editing
software since they are recorded seamlessly.
0Clip Cutter Trig cannot be performed during
backup recording.
(A P83 [Splitting the Clips Freely (Clip Cutter
Trig)] )
0When [Slot Mode] is set to “Backup”, [Rec
Mode] can only be set to “Normal”.
(A P119 [ Rec Mode ] )
78 Backup Rec
Shooting
Special Recording
Besides the normal recording mode, four special
recording methods are available in this camera
recorder. They are Pre Rec, Clip Continuous,
Frame Rec and Interval Rec.
Select a mode from [Main Menu] B [System] B
[Record Set] B [Rec Mode].
(A P119 [ Rec Mode ] )
Memo :
0
Special recording cannot be selected when [Main
Menu]
B
[System]
B
[Record Set]
B
[Record
Format]
B
[System] is set to “HD+Web” or “High-
Speed”.
Pre Rec
0By setting the number of seconds in the [Pre Rec
Time], you can start recording video and audio
before actual recording starts based on the [Pre
Rec Time] setting.
0When starting actual recording while the camera
recorder is in Recording Standby (STBYP)
mode, you can start recording a few seconds
earlier based on the [Pre Rec Time] setting.
0Using Pre Rec allows you to record a complete
event without missing the initial scenes even if
you start the recording late.
Memo :
0Pre Rec Time can be set in [Main Menu] B
[System] B [Record Set] B [Rec Mode] B [Pre
Rec Time].
The following values can be selected depending
on the setting of [Main Menu] B [System] B
[Record Set] B [Record Format] B [System].
0When [System] is set to “4K”:
Fixed at “5sec”
0When [System] is set to “HD” or “SD”:
“5sec”, “10sec” or “15sec”
(A P119 [ Pre Rec Time ] )
.
(Recording stops)
Press [REC]
(Recording starts)
Press [REC]
Recording starts a
number of seconds
earlier based on the
[Pre Rec Time] setting
(Recorded video and audio)
Completed Clip
1Set [Rec Mode] to “Pre Rec”.
(A P119 [ Rec Mode ] )
0Set [Main Menu] B [System] B [Record
Set] B [Rec Mode] to “Pre Rec”.
0The display changes (“STBY” B “STBYP”).
2Press the [REC] button to start recording in
Pre Rec mode.
0The display changes (“STBYP” B
“RRECP”) and the card slot status indicator
lights up in red.
0Press the [REC] button again to pause
recording. The display changes (“RRECP”
B “STBYP”) and the card slot status
indicator lights up in green.
Caution :
0When the interval between start and stop
recording is short, “STBYP” may not be
displayed immediately after recording is
complete.
“RRECP” B “STBYP” (“STBY” blinks in red) B
“STBYP” is displayed.
0When the SD card becomes full during
recording, recording stops and “STOP” is
displayed.
0In the following cases, video and audio before
the specified Pre Rec time may not be recorded
even if recording starts.
0Immediately after power on
0Immediately after recording stops
0Immediately after switching from Media
mode to Camera mode
0Immediately after setting [Rec Mode]
0Immediately after the end of Clip Review
0Immediately after changing file format
0Immediately after changing video format
Special Recording 79
Shooting
Clip Continuous Rec
0In normal recording, when the recording stops,
the image, audio, and accompanying data from
the start till the end of the recording are recorded
as one “clip” on the SD card.
0This mode allows you to consolidate several
rounds of “startstop recording” into one clip.
Example:
In normal recording, three clips are generated as
Recording 1, Recording 2, and Recording 3.
However, recording in this mode generates only
one clip.
.
(Recorded video and audio)
Completed Clip
Recording 3
Recording 2
Recording 1
Recording 3
Recording 2
Recording 1
(Recording stops)
Press and hold [REC]
(Recording pauses)
Press [REC]
(Recording pauses)
Press [REC]
(Recording resumes)
Press [REC]
(Recording resumes)
Press [REC]
(Recording starts)
Press [REC]
1Set “Rec Mode” to “Clip Continuous”.
(A P119 [ Rec Mode ] )
0Set [Main Menu] B [System] B [Record
Set] B [Rec Mode] to “Clip Continuous”.
0The display changes (“STBY” B “STBYC”).
2Start recording. (Recording 1)
0Press the [REC] button to start recording in
Clip Continuous mode.
0The display changes (“STBYC” B
“RRECC”) and the card slot status indicator
lights up in red.
3Pause recording.
0Press the [REC] button again to pause
recording. The display changes (“RRECC”
B “STBYC” (yellow text)).
0The card slot status indicator remains lighted
in red.
Memo :
0When the [CANCEL/STOP] button is pressed
while the camera recorder is paused (STBYC),
the display changes (“STBYC” (yellow text) B
“STBYC” (blinking yellow text) B “STBYC”
(white text)), and a “clip” is generated. The card
slot status indicator lights up in green.
4Resume recording. (Recording 2)
0Press the [REC] button again to resume
recording. The display changes (“STBYC”
(yellow text) B “RRECC”).
0The card slot status indicator remains lighted
in red.
5Pause recording.
0Press the [REC] button again to pause
recording. The display changes (“RRECC”
B “STBYC” (yellow text)).
0The card slot status indicator remains lighted
in red.
6Resume recording. (Recording 3)
0Press the [REC] button again to resume
recording. The display changes (“STBYC”
(yellow text) B “RRECC”).
0The card slot status indicator remains lighted
in red.
7Press and hold the [REC] button.
0Recording stops and the display changes
(“RRECC” B “STBYC”). A “clip” is
generated.
0The card slot status indicator lights up in
green.
8Press the [REC] button again.
0The display changes (“STBYC” B
“RRECC”) and the card slot status indicator
lights up in red.
0A new “clip” is generated from here.
80 Special Recording
Shooting
Memo :
0The following operations cannot be performed
while recording is paused (STBYC, yellow text).
0Clip Review operation
(A P73 [Viewing Recorded Videos
Immediately (Clip Review)] )
0Switching SD card slots
0Switching operation mode
(A P18 [Operation Modes] )
0Files are split into sizes of 4 GB (or 30 minutes)
regardless of the menu settings.
Caution :
0Do not remove the SD card during recording
(RRECC, red text) or recording pause
(STBYC, yellow text).
0To remove the SD card in the “Clip
Continuous” mode, press the [CANCEL/STOP]
button, check that “STBYC” (white text) is
displayed and the card slot status indicator lights
up in green before you remove the card.
0When the SD card becomes full during
recording, recording stops and “STOP” is
displayed.
0When the [POWER ON/OFF] switch is turned off
during recording or recording pause, recording
stops and power is cut off after a clip is
generated.
0If the power is cut off due to low battery power,
a proper clip may not be generated.
Frame Rec
In normal recording, when the recording stops, the
image and accompanying data from the start till the
end of the recording are recorded as one “clip” on
the SD card.
In this mode, recording starts with every press of
the [REC] button, and only the specified number of
frames is recorded.
The recording can be written to the media as a
single clip until it is stopped.
Memo :
0Audio will not be recorded.
0Until a specified amount of recordings is
accumulated, the file cannot be written to the
media.
0If the specified amount is not reached when
recording is stopped, normal recording is
performed and frames are added to the ending
of the clip until the amount is reached. (Padding)
0After the specified number of frames is recorded
and written to the media, recording will be
performed until the same number is
accumulated again.
.
Specific amount of data
Actual clips recorded to the media
Records number of frames specified in [Rec Frames]
(Padding data)
Normal recording
PausePausePause
Recording resumes
Recording resumes
Press [REC]Press [REC]
(Frame Rec stops)(Frame Rec starts)
Press and hold [REC]Press [REC]
1Set [Rec Mode] to “Frame Rec”.
0Set [Main Menu] B [System] B [Record
Set] B [Rec Mode] to “Frame Rec”.
(A P119 [ Rec Mode ] )
0The display changes (“STBY” B “STBYM”).
Special Recording 81
Shooting
3Set the time interval to start recording in
[Interval Rec].
Set using [Main Menu] B [System] B [Record
Set] B [Rec Mode] B [Rec Interval].
(A P119 [ Rec Interval ] )
4Start recording.
0Press the [REC] button to record only the
number of frames specified in [Rec Frames]
and pause.
0After the specified time in [Rec Interval] has
passed, recording starts again to record only
the number of frames specified in [Rec
Frames] and pause.
0Interval Rec continues until the recording is
stopped.
The display changes (“STBYN” B “RRECN”
B “STBYN” (red text) B “RRECN” B
“STBYN” (red text)).
0The card slot status indicator blinks in green.
5Press and hold the [REC] button.
0The card slot status indicator lights up in
green.
0The display becomes “STBYN”.
Caution :
0Do not remove the SD card during recording
(RRECN, red text) or recording pause (STBYN,
yellow text).
0To remove the SD card during Interval Rec,
press the [CANCEL/STOP] button, check that
“STBYN” (white text) is displayed and the card
slot status indicator lights up in green before you
remove the card.
0When [Main Menu] B [TC/UB] B [TC
Generator] is set to “Free Run”, the time code
will be recorded in “Rec Run”.
0Audio cannot be recorded. The audio level
meter is grayed out.
(A P133 [Audio Level Meter] )
Splitting the Clips Freely
(Clip Cutter Trig)
You can split the clips freely without having to stop
recording during shooting.
1Assign the “Clip Cutter Trig” function to
any of the user buttons.
(A P39 [Assignment of Functions to User
Buttons] )
2Press the user button that is assigned with
“Clip Cutter Trig” during shooting.
A clip cut icon (Q) appears on the display
screen for 3 seconds, and the clip is split.
.
1/100
F1. 6
18dB
AE+6
ND 1/16
12 : 34 : 56
Jan 24 , 2015
00:00:00.00
4030 20 10 0
5 . 6 f t
P 15 00 0K
Memo :
0Clips cannot be split again for a few seconds
after the operation is performed.
0This item cannot be used when [Slot Mode] is
set to “Backup”.
0Available when [System] is set to “4K”, “HD”,
“SD” or “High-Speed”.
(A P117 [ System ] )
0This item cannot be used when [Rec Mode] is
set to a value other than “Normal” or “Pre Rec”.
(A P119 [ Rec Mode ] )
0The split clips are recorded seamlessly without
interruptions in the video.
0When [WFormat] is set to “Exchange”, clip cutter
function cannot be used. (U model only)
Special Recording 83
Shooting
KNetwork Connection Icon n
0The network connection status is displayed
when [Main Menu] B [System] B [Network]
is set to “On”.
This icon is not displayed when “Off” is
selected.
(A P135 [Network Connection Icon n] )
Detailed screen
* Items that are common with the Standard screen
will not be described. Refer to “[Standard
screen] (A P 84)”.
.
C
B
A
Jan 24, 2015 12:34:56AM
Normal
Rec Mode
Audio
Video
Format
AThumbnail
Thumbnail of the clip selected by the cursor.
Use the cross-shaped button (HI) to move the
cursor.
BScroll Mark (DE)
0If there are previous clips, D appears on the
left.
0If there are more clips, E appears on the right.
0The marks will not be displayed if there are
no clips before and after the current clip.
CMetadata
Metadata of the clip pointed by the cursor.
You can use the cross-shaped button (JK) to
scroll.
Actions
The action selection screen is displayed when the
User 5 ([ZEBRA/5]) button is pressed.
The following operations can be performed.
Item Description
Select All Clips Selects all clips.
Select OK
Marked
Selects all clips appended with
OK mark.
Select Range Specifies the range when
selecting multiple clips.
(A P90 [Selecting Multiple
Clips Randomly] )
Deselect All Clears all clip selections.
Add OK Mark Appends an OK mark.
0This Clip:
Appends an OK mark to the
clip pointed by the cursor.
0Selected Clips:
Appends an OK mark to the
clips selected (appended
with check mark).
0All Clips:
Appends an OK mark to all
clips.
Delete OK Mark Deletes the OK mark.
0This Clip:
Deletes the OK mark of the
clip pointed by the cursor.
0Selected Clips:
Deletes the OK mark of the
clips selected (appended
with check mark).
0All Clips:
Deletes the OK mark of all
clips.
86 Playing Recorded Clips
Playback
Time Code Playback
Time code or user’s bit recorded on an SD card can
be displayed on the LCD monitor and viewfinder.
Memo :
0The time code is also superimposed on the
video signal output from the [SDI OUT] terminal.
0If a section without time code is played back, the
time code will stop. However, playback will
continue.
Displaying Information during Shooting
Pressing the [DISPLAY] button during playback
displays the display screen.
Pressing the [OIS/6] button each time changes the
shooting information displayed (camera
information display and hide display).
0Camera information display displays only
information of Gain, Iris, Shutter and White
Balance that have been recorded.
.
P 13000K
1/100
F1. 6
0dB
Camera Information Display
Memo :
0When [System] B [Record Set] B [Record
Format] B System is set to “HD+Web”, only SD
or web files can be played back from slot B.
In this case, files up-converted into the HD size
are played back in the simple mode.
0Trimming information is displayed while
trimming is in progress. In this case, pressing the
[OIS/6] button does not switch the display.
Deleting Clips
Delete clip.
.
Memo :
0Clips appended with OK marks cannot be
deleted on the camera recorder.
0Read-only clips can be deleted on a PC.
Deleting One Clip
Delete the clip (one clip) pointed by the cursor in
[Delete Clips] B [This Clip] in the menu.
Memo :
0Clips with OK mark cannot be deleted.
During Thumbnail Screen
1Move the cursor to the clip to be deleted.
Move the cursor to the clip to be deleted using
the cross-shaped button (JKH I).
.
218G0005
1
2015-01-07 07:08:43
2Press the [ZEBRA/5] button.
The action selection screen is displayed.
88 Playing Recorded Clips
Playback
3Select [Delete Clips] B [This Clip] and press
the Set button (R).
A screen to confirm deletion appears.
.
3
All Clips
Selected Clips
This Clip
4Select [Delete] using the cross-shaped
button (JK), and press the Set button (R).
Deleting starts.
.
4
Stop
Deleting...
Cancel
Delete
Delete This Clip?
Selecting and Deleting Multiple Clips
To select and delete multiple clips, refer to
“[Selecting and Performing Operations on Multiple
Clips] (A P 90)”.
Deleting All Clips
Delete all clips that are displayed.
1Press the [ZEBRA/5] button.
The action selection screen is displayed.
2Select [Delete Clips] B [All Clips].
A screen to confirm deletion appears.
3Select [Delete] and press the Set button
(R).
Deleting starts.
Memo :
0The time taken to delete clips depends on the
number of clips to be deleted.
Appending/Deleting OK
Mark
0You can append OK marks to the clips for
important scenes.
0Clips appended with OK marks cannot be
deleted, thus protecting the important clips.
0When the camera recorder is in Media mode,
you can delete the OK marks appended during
recording, or append/delete OK marks after
shooting.
.
During Thumbnail Screen
1Press the [LOLUX/3] button.
0If the clip does not have an OK mark, an OK
mark will be appended.
0If the clip is appended with an OK mark, the
OK mark will be deleted.
.
OK Mark
Deleting Clips 89
Playback
Selecting Multiple Clips Consecutively
1Press the [ZEBRA/5] button.
2Select “Select Range” in the action
selection screen, and press the Set button
(R).
.
FTP Upload...
Delete OK Mark...
Add OK Mark...
Deselect All
Select Range
Select OK Marked
Select All Clips
2
3Move the cursor to the beginning (or end)
of the range for multiple selection, and
press the Set button (R).
4Move the cursor to the other end of the
range.
0Magenta check marks appear on the clips
within the range. (Including clips that were
already selected.)
0Gray check marks appear on selected clips
that are outside the range.
.
3
4
Selected Range:
Selected Range:
End Position
Start Position
5Press the Set button (R) to confirm the
range.
0The check marks change from magenta to
green.
0Pressing the [ZEBRA/5] button while the
multiple clips are selected displays the action
selection screen. The following operations
can be performed.
0Appends OK mark together:
[Add OK Mark] B [Selected Clips]
0Deletes OK mark together:
[Delete OK Mark] B [Selected Clips]
0Uploading selected clips to the FTP server
together: n
[FTP Upload] B [Selected Clips]
0Deletes selected clips together:
[Delete Clips] B [Selected Clips]
Memo :
0Selecting clips appended with check mark and
pressing the [C.REVIEW/4] button will cancel
the selection.
0If the operation is performed on multiple clips at
the same time, a progress bar appears. You can
stop the operation by pressing the Set button (R)
while the operation is in progress. However, it is
not possible to undo operations that are
completed.
Selecting and Performing Operations on Multiple Clips 91
Playback
Trimming Recorded Clips
You can extract (trim) the necessary parts of a clip
recorded in the SD card.
The trimmed clip is saved as a new file on the same
SD card as the original clip. No changes are made
to the original clip.
1Switch to Media mode.
Switch the mode using the [MODE] selection
button on the side control panel.
2Move the cursor to the clip to be trimmed.
Move the cursor to the clip to be trimmed using
the cross-shaped button (JKH I).
.
2
3Press the [ZEBRA/5] button.
The action selection screen is displayed.
4Select [Trim This Clip], and press the Set
button (R).
Playback of the selected clip starts.
.
0 30min
11:22: 33.00
11:23: 44.00
00:08:22
282min
12 : 34 : 56
Jan 24 , 2015
00:00:00.00
3840x2160
30p 150M
4030 20 10 0
1000/ 2000
TRIM
OUT
IN
Trim This Clip
Delete Clips...
FTP Upload...
Delete OK Mark...
Add OK Mark...
Deselect All
Select Range
A
B
C
4
AGuide
Operation guide
BPosition bar
6: Current position of the video
7:Position to start trimming (in point)
8: Position to end trimming (out point)
CTrimming information
W or Y: Indicates the available space in
the storage media (W or Y)
7: Indicates the time code of the in
point
8: Indicates the time code of the out
point
9: Indicates the duration from the in
point to the out point
Memo :
0The trimmed clip will be saved to the same card
slot as that of the original clip.
0[Duration] appears in yellow in the following
durations. Trimming cannot be performed in this
case.
0When [Main Menu] B [System] B [Record
Set] B [Record Format] B [System] is set
to “4K”: 3 minutes or longer; setting other
than “4K”: 10 minutes or longer.
0[Duration] appears in yellow if the duration is
longer than the recordable time on the storage
media. Trimming cannot be performed in this
case.
0When trimming starts, the display switches to
the Media Display 2 screen.
5Specify the in point.
0Operate buttons such as H/I or J/K to move
the video to the in point.
(A P87 [Playing back] )
0Specify the in point by pressing the [LOLUX/
3] button at the point you want to start
trimming.
6Specify the out point.
0Operate buttons such as H/I or J/K to move
the video to the out point.
(A P87 [Playing back] )
0Specify the out point by pressing the
[C.REVIEW/4] button at the point you want to
end trimming.
7Perform trimming.
Press the [ZEBRA/5] button to perform
trimming.
Memo :
0While trimming is in progress, you can press the
[CANCEL/STOP] button to return to the
thumbnail screen.
0While trimming is in progress, you can press the
[DISPLAY] button to switch the display, but the
trimming information is displayed at all times.
0When trimming the in and out point, the in point
trimmed may be up to one second before the
specified in point and the out point trimmed may
be up to one second behind the specified out
point.
92 Trimming Recorded Clips
Playback
Basic Operations in Menu
Screen
0Press the [MENU/THUMB] button on the LCD
monitor to display the menu screen on the LCD
monitor and viewfinder.
0Various settings for shooting and playback can
be configured on the menu screen.
0There are two types of menu screens - [Main
Menu] and [Favorites Menu].
0[Main Menu] contains all the setting items of the
camera recorder, classified according to
functions and uses, while [Favorites Menu]
allows users to customize the menu items freely.
(A P128 [Adding/Editing Frequently Used
Menu Items (Favorites Menu)] )
0The operating procedures and main screen
displays are the same for both menus.
0The menu screen can also be displayed on
external monitors connected to the video signal
output terminal.
(A P111 [ Display On TV ] )
Operation Buttons
Use the operation buttons on the side control panel
of the camera recorder or the buttons on the LCD
monitor to operate the menu.
.
A
B
C
D
E
F
G
H
A[MENU/THUMB] Button
0Displays the menu screen. The [Main
Menu] screen is displayed by default.
0During normal usage, [Main Menu] is
displayed if the previous menu operation
ended at [Main Menu], and [Favorites
Menu] if the previous menu operation ended
at [Favorites Menu].
0Press this button to close the menu screen
during menu display and return to the normal
screen.
0Pressing and holding down the button while
the menu is displayed switches the [Main
Menu] screen to the [Favorites Menu] or vice
versa.
BCross-shaped Button (JKH I)
J: Moves the cursor upward.
K:Moves the cursor downward.
H: Moves back to the previous item.
I: Moves forward to the next item.
CSet Button (R)
Sets the values and items.
D[CANCEL/STOP] Button
Cancels settings and returns to the previous
screen.
E[LOLUX/3] Button
Adds the selected menu or submenu item to the
[Favorites Menu].
(A P128 [Adding/Editing Frequently Used
Menu Items (Favorites Menu)] )
F[C.REVIEW/4] Button
Resets settings in the [TC Preset] or [UB
Preset] setting screen. This button is disabled
in other screens.
G[DISPLAY] Button
Switches between the [Main Menu] and
[Favorites Menu] screens.
H[STATUS] Button
Displays a simple Help menu. Simple Help
appears only when the selected menu item
supports this function.
Basic Operations in Menu Screen 93
Menu Display and Detailed Settings
Display and Description of the Menu
Screen
Selecting Menu Items
.
AddFavorites
SECShutter
24hourTime Style
YMDDate Style
OnDate/Time
TimeBattery
OffAudio Meter
Display Settings H
I
F
E
B
D
G
A
C
ACursor
Indicates the selected item. Use the cross-
shaped button (JK) to move the cursor
BMenu Item
0Displays the names of the menu item and
sub-menu.
0Menu items with [...] after them indicates that
there is a sub-menu to access.
CFixed Item
Items that cannot be changed are displayed in
gray and cannot be selected.
DOperation Guide
Guide for the current operation buttons.
ESetting Value
Setting values for the menu items.
For menus with sub-menus, values are not
displayed.
FScroll Bar
Indicates the scroll position.
GHeader
Indicates the current menu type with the line
color.
Blue : [Main Menu] Screen
Green : [Favorites Menu] (Operation
screen)
Magenta : [Favorites Menu] (Editing screen)
HRemaining Battery Power
(A P31 [Power Status Display] )
Memo :
0If the supplied battery (or equivalent battery sold
separately) is not used, the battery mark which
indicates the battery level may not appear.
IMenu Title
Title of the currently displayed menu.
Changing Setting Values
.
CancelSet
Off
SECShutter
24hourTime Style
YMDDate Style
Date/Time
Battery
Audio Meter
Display Settings
On
D
F
A
C
B
E
AMenu Item to Change
Menu item to be changed.
A list of setting values F appears in a pop-up.
BOperation Guide
Guide for the current operation buttons.
CSetting Values Before Change
Setting values before changing. The
background of the item is displayed in blue.
DScroll Bar
Indicates the scroll position.
ECursor
Indicates the selected item. Use the cross-
shaped button (JK) to move the cursor
FList of Setting Values
0A pop-up displaying a list of setting values for
selection.
0The height of the pop-up depends on the
number of settings available. Use the scroll
bar D to confirm the current display status.
94 Basic Operations in Menu Screen
Menu Display and Detailed Settings
Text Input with Software Keyboard
Use the software keyboard to enter the [Setup
File] subname, [Clip Name Prefix], and the settings
under [Network] B [Settings].
Entering a subname
(A P143 [Configuring Setup Files] )
.
G
A
E
H
C
B
D
F
Entering the [Clip Name Prefix]
(A P121 [ Clip Name Prefix ] )
.
Cancel
Set
A
E
H
C
B
D
Settings under [Network] B [Settings] n
The keyboard displayed varies according to the
settings.
(A P121 [Network/Settings Item n] )
.
A
H
CG
D
B
E
F
I
ACharacter Entry Field
0Field for entering the title.
0You can enter up to 8 characters for the
[Setup File] subname or up to 4 characters
for the [Clip Name Prefix].
BCharacter Cursor
Select a character using the key cursor D, and
press the Set button (R) to input the selected
character at the position of the character cursor.
The character cursor moves to the next position
on the right each time a character is input.
The cursor can be moved using the arrow keys
H.
CCharacter Keys
Use the cross-shaped button (JKHI) to move
the key cursor D to the character you want to
enter.
DKey Cursor
Indicates the currently selected character or
item. Use the cross-shaped button (JKHI) to
move the cursor.
EConfirmation Buttons
0Select [Set]/[Store] and press the Set button
(R) to confirm the title.
0Select [Cancel] and press the Set button (R)
on the side control panel of the camera
recorder to abort character input and return
to the previous screen.
F[SP] Space Key
Select [SP] and press the Set button (R) on the
side control panel of the camera recorder to
enter a space at the current position of the
character cursor B.
G[3 ] Backspace Key
Select [3 ] and press the Set button (R) on the
side control panel of the camera recorder to
delete the character on the left of the character
cursor B.
HArrow Keys
Moves the position of the character cursor B.
ICharacter Switch Button
Switches the character buttons C to the upper
case, lower case, and symbols.
Basic Operations in Menu Screen 95
Menu Display and Detailed Settings
Overlay Settings Menu
n
This screen is used to configure overlay settings.
Images can be overlaid onto recorded video and
live stream video.
(A P179 [Broadcast Overlay n] )
Layout
For selecting a SDP file.
Memo :
0Create a SDP file using SDP Generator in
Windows or Mac before recording.
Import User Layout
Load the SDP file that is created by using SDP
Generator onto this camera recorder.
Memo :
0Maximum 4 files can be saved in this camera
recorder.
0The SDP file may not be saved depending on
the available memory capacity of the camera
recorder.
Delete User Layout
For deleting the SDP file.
Memo :
0The SDP file is not deleted by selecting [Main
Menu] B [System] B [Reset All]. Delete the file
from the camera recorder.
Type
By selecting “Broadcast”, overlay images can be
displayed.
[Setting Values: Broadcast, RNone]
Output
For specifying overlay output settings.
9HD Recording
For setting whether to record overlay images
together with the recorded video into an SD card.
0On:
Saves the video with overlay images into an SD
card.
0Off:
Overlay images are not recorded into an SD
card.
[Setting Values: ROn, Off]
9HDMI/SDI
For setting whether to display overlay images on
HDMI or SDI output.
0On:
Displays overlay images on streaming videos
and HDMI/SDI output.
0Off:
Displays overlay images only on streaming
videos.
[Setting Values: ROn, Off]
Watermark
Inserting watermarks (digital watermark) on
recorded videos protects the content of your work.
0On:
Displays watermark.
0Off:
Does not display watermark.
[Setting Values: On, ROff]
9Position
The display position of the watermark can be
changed by using the cross-shaped button.
Full Screen Graphic
Images can be displayed across the whole screen.
9Status
For displaying the number of images saved in this
camera recorder and the memory capacity used.
(A P182 [Displaying Images on the Whole
Screen (Full Screen Graphic Function)] )
9Import Graphic W / Y
For reading the images to be used in Full Screen
Graphic from an SD card.
Memo :
0JPEG and PNG formats are supported.
0Enter not more than 31 characters for the file
name.
9Delete Graphic
For deleting all images saved in this camera
recorder.
Overlay Settings Menu n97
