JT- DMSO2D72
Portable 3 one oscilloscope, signal generator and multimeter-in-
1. GENERAL INFORMATION
Dear customer,
Thank you for choosing our product. Please read the following im-
portant information before putting the device into operation.
This oscilloscope is compact, portable and flexible. It has a TFT-LCD
color display with a resolution of 320 x 240 pixels and adjustable
backlight brightness.
The maximum real time sampling rate can be up to 250 MSa/s. USB
memory devices are also supported, the user can upgrade the firm-
ware via USB, the edge trigger function is automatically detected and
it has a user defined fast oset calibration with A/D converter that -
can sample each channel simultaneously.
3
2. SAFETY INSTRUCTIONS
Safety Terms and Symbols:
following terms may appear on product:
Danger It represents that harms may be caused to you at once if you per-
form the operation.
Warning It represents that latent harms may be caused to you if you per-
form the operation.
Notice It represents that damage may possibly caused to the product or
other properties if you perform the operation.

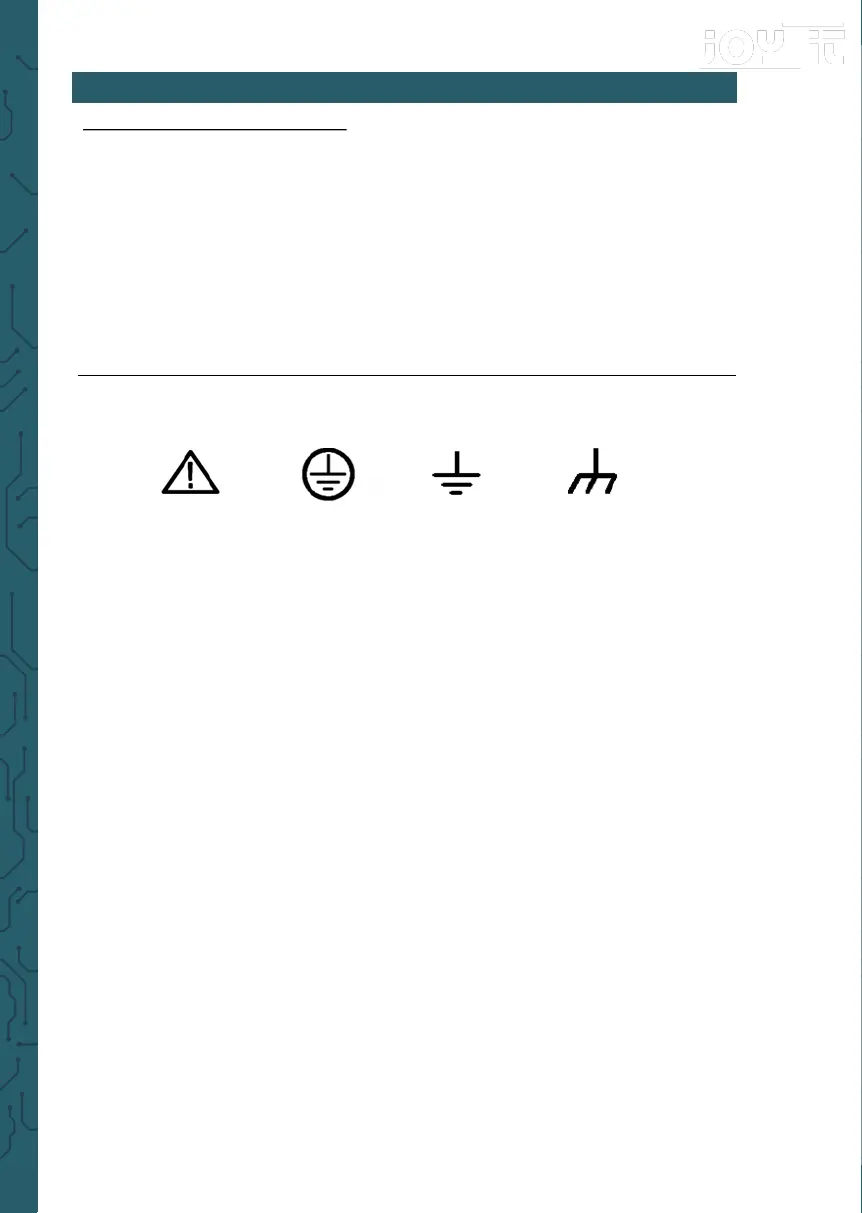

Symbols on the product: following symbols may appear on product:
General Safety Summary
Read the following safety precautions to avoid injury and prevent damage
to this product or any products connected to it. To evade potential haz-
ards, use this product only as specified.
Only qualified personnel should perform maintenance.
Use suitable power cord. Use only the power cord specified for this prod-
uct and certified for the country of use.
Connect and disconnect properly. Connect a probe with the oscilloscope
before it is connected to measured circuits; disconnect the probe from the
oscilloscope aer it is disconnected from measured circuits.
Ground the product. This product is grounded through the grounding
conductor of the power cord. To avoid electric shock, the grounding con-
ductor must be connected to earth ground. Before making connections to
the input or output terminals of the product, ensure that the product is
properly grounded.
Notice
Please read
the manual
Protective
ground
terminal
Measuring
ground
terminal
Chassis
ground
terminal
Connect the probe the right way. The probe ground lead is at ground po-
tential. Do not connect the ground lead to an elevated voltage.
Check all terminal ratings. To avoid fire or shock hazard, check all ratings
and markings on the product. Refer to the product manual for detailed in-
formation about ratings before making connections to the product.
Do not operate without covers. Do not operate this product with covers or
panels removed.
Avoid exposed circuitry. Do not touch exposed connections and compo-
nents when power is present.
Do not operate with suspected failures. If you suspect there is damage to
this product, have it inspected by qualified service personnel.
Assure good ventilation.
Do not operate in wet/damp environments.
Do not operate in an explosive atmosphere.
Keep product surfaces clean and dry.
3. TECHNICAL SPECIFICATIONS
Channels 2
Bandwidth 70 MHz
Sampling Rate 250 MSa/s Single channel
125 MSa/s Dual channel
Oscillospe Specifications: - Horizontal
Rising time ≤ 5 ns
Waveform Interpolation (sin x)/x
Record length 6000 samples Single channel
3000 samples Dual channel
SEC/DIV Range of 1, 2, 5 Sequence 5 ns/div 500s/div -
Oscilloscope Specifications: -Vertical
A/D converter 8 bit resolution -
VOLTS/DIV range 10mV/div – V/div at BNC input 10
Measurement Range ± 5 div
Rising time at BNC input, typical ≤ 5 ns
