Oldal 1/4

P36AW

PERFORMANCE™

SERIES

OWNER’S GUIDE

For more than 60 years, JBL has

been involved in every aspect of

music and film recording and

reproduction, from live perform-

ances to the recordings you play

in your home, car or office.

We’re confident that the JBL loud-

speakers you have chosen will

provide every note of enjoyment that

you expected – and that when you

think about purchasing additional

audio equipment for your home, car

or office, you will once again

choose JBL.

Please take a moment to register

your product at our Web site,

www.jbl.com. It enables us to keep

you posted on our latest advance-

ments, and helps us to better

understand our customers and

build products that meet their

needs and expectations.

JBL Consumer Products

THANK YOU FOR CHOOSING JBL

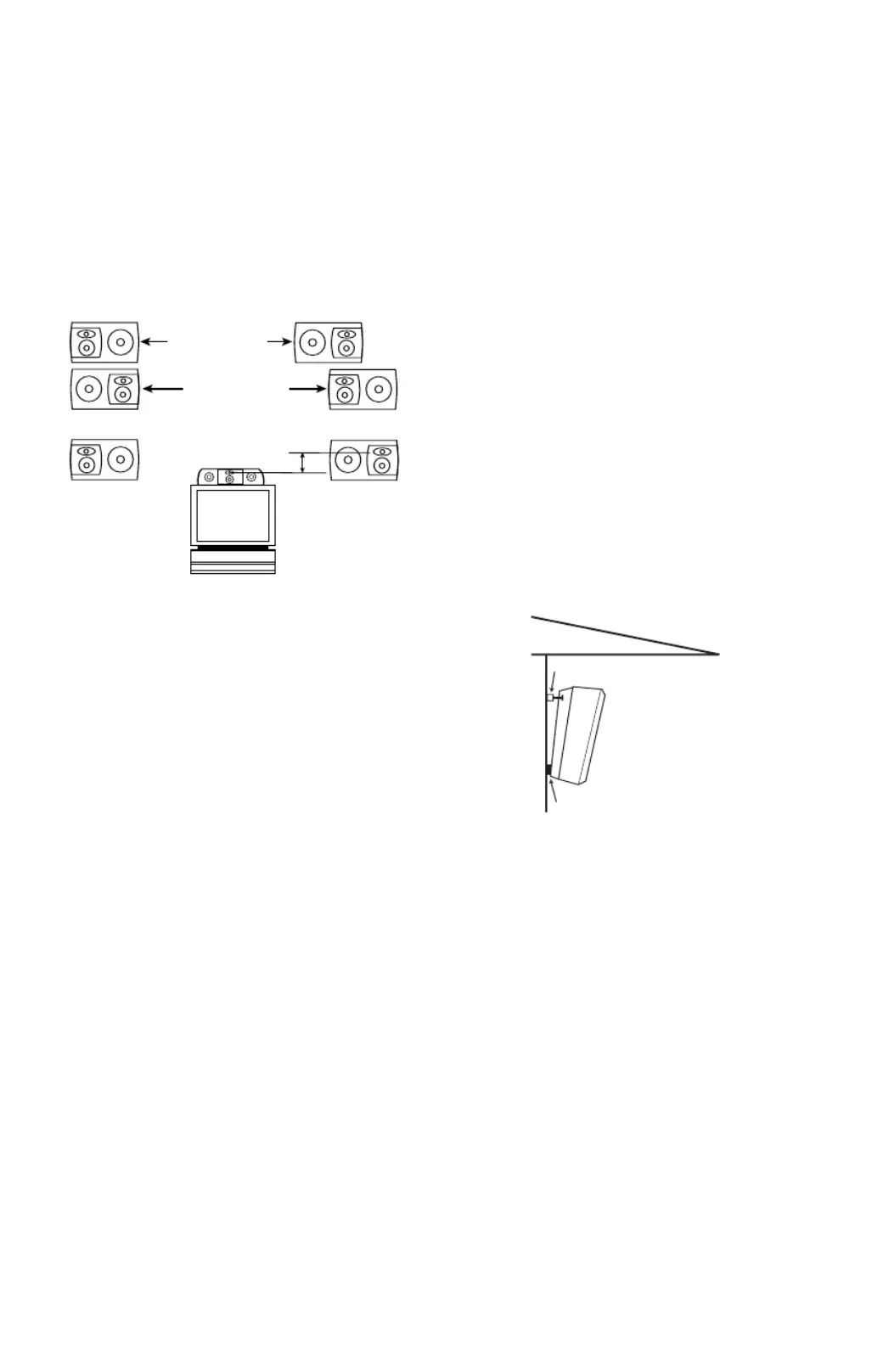

SPEAKER PLACEMENT

Proper placement of the speakers

is an important step in obtaining the

most realistic soundstage possible.

These recommendations are for

the optimal placement of the loud-

speakers. Use these placement

recommendations as a guide. Slight

v ariations will not diminish your

listening pleasure.

The P36AW loudspeakers are

v ideo-shielded and can safely be

placed near a television.

The loudspeakers are weather-

resistant and may be used either

indoors or outdoors, such as in a

patio area. As noted below, when

using the speakers outdoors, we

recommend mounting them under

an overhang, such as roof eaves,

for added protection. Because

they are resistant to moisture, the

speakers are also appropriate for

mounting in a bathroom, although

not inside a bathtub or shower

stall.

Although these loudspeakers are

designed as a mirrored pair, the

decision as to which one is left or

right will depend on the amount of

space left between them.

A wider stereo image is presented

with the tweeter/midrange array

outboard, and a tighter image is

presented with the array inboard.

Less than 6 – 8 feet

More than 6 – 8 feet

0-2 ft.

For stereo-only applications:

For home theater applications:

This placement provides a wide

spread in sound, supplemented

by the center channel speaker.

Do not attempt to mount these

speakers on a ceiling, on the

underside of roof eaves or in a

shower stall.

The P36AW loudspeakers may be

positioned on the wall either hori-

zontally or vertically. The grille logo

on each speaker may be rotated

depending on how the speaker is

positioned. Gently pull the logo

away from the grille slightly, rotate

it to the desired position, and let go.

The logo will snap back into place.

When mounted vertically, the

tweeter array may be positioned

either up or down, depending on

the height of the placement. If the

speakers will be above ear level,

the tweeter array should be posi-

tioned down, preferably no more

than two feet above ear level. If

the speakers will be mounted very

low, it may be best to position the

tweeter array upward so that it will

be no more than two feet below

ear level.

The enclosures are specially

designed to angle the speakers

toward the listener when mounted

flush against the wall.

When mounting the speakers out-

doors, we recommend that you

place them under an overhang,

such as roof eaves, for added pro-

tection, and that you use two of

the supplied special angle-mount

screws per speaker, which angle

the speakers downward at a

greater-than-usual angle, facilitat-

ing water drainage.

NOTE: When using the enclosed

angle-mount screws, always use

the top two screw locations appro-

priate for the specific mounting

orientation of your P36AW. Refer-

ring to the enclosed installation

template, screw locations (1) and

(2) are to be used when mounting

the speaker horizontally so that

these locations are on top. To

mount the loudspeakers vertically,

use locations (2) and (4) or loca-

tions (1) and (3), depending on the

mounting orientation. Do not mount

the speaker upside down – with

screw locations (3) and (4) on

top – because it won’t be able

to lock onto the screw heads.

Remember that the JBL logo on

the tweeter/mid faceplate can be

rotated with choice of speaker

position (vertical or horizontal).

At least one screw per speaker

should be installed in a wooden

wall stud. Select an appropriate

wall anchor for the other screw.

If the special angle-mount screws

are not being used, size 10 screws

of at least 1-1/2" in length are rec-

ommended. If the screws are used

in drywall or other surfaces inca-

pable of holding the screw by

itself, selection of proper anchors

is essential. The customer is solely

responsible for proper selection

and installation of screws, anchors

and other installation hardware.

Further installation details are

included on the installation

template.

WALL-MOUNTING

Supplied Angle-Mount Screw

(When using angle-mount screws,

always utilize the top

two screw holes on the

P36AW, depending on

mounting orientation.)

Horizontal mounting:

Use screwholes (1) and (2).

Vertical mounting: Use

screwholes (1) and (3), or (2)

and (4), whichever are uppermost.

Supplied Rubber Pad

P36AW

Wall

Roo eavef

If there is no sound from any of the

speakers:

• Check that receiver/amplifier is

on and that a source is playing.

• Review proper operation of your

receiver/amplifier.

• Make sure all wires are con-

nected. Make sure none of the

speaker wires are frayed, cut or

punctured, or touching each other.

If the system plays at low volumes

but shuts off as volume is

increased:

• Check all wires and connections

between receiver/amplifier and

speakers.

• Make sure all wires are con-

nected. Make sure none of the

speaker wires are frayed, cut or

punctured, or touching each other.

• If more than one pair of main

speakers is being used, check the

minimum impedance requirements

of your receiver/amplifier.

If there is no sound coming from

one speaker:

• Check the “Balance” control on

your receiver/amplifier.

• Check all wires and connections

between receiver/amplifier and

speakers. Make sure no wires are

touching other wires or terminals

and creating a short circuit.

• Make sure all wires are con-

nected. Make sure none of the

speaker wires are frayed, cut or

punctured.

• In Dolby®Digital or DTS®modes,

make sure that the receiver/

processor is configured so that the

speaker in question is enabled.

• Turn off all electronics and switch

the speaker in question with one of

the other speakers that is working

correctly. Turn everything back on,

and determine whether the prob-

lem has followed the speaker, or

has remained in the same channel.

If the problem is in the same chan-

nel, the source of the problem is

most likely with your receiver or

amplifier, and

you should consult the

owner’s manual for that product for

further information.

If the problem

has followed the speaker, consult

your dealer for further assistance

or, if that is not possible, visit

www.jbl.com for further infor-

mation.

CONNECTION TIPS

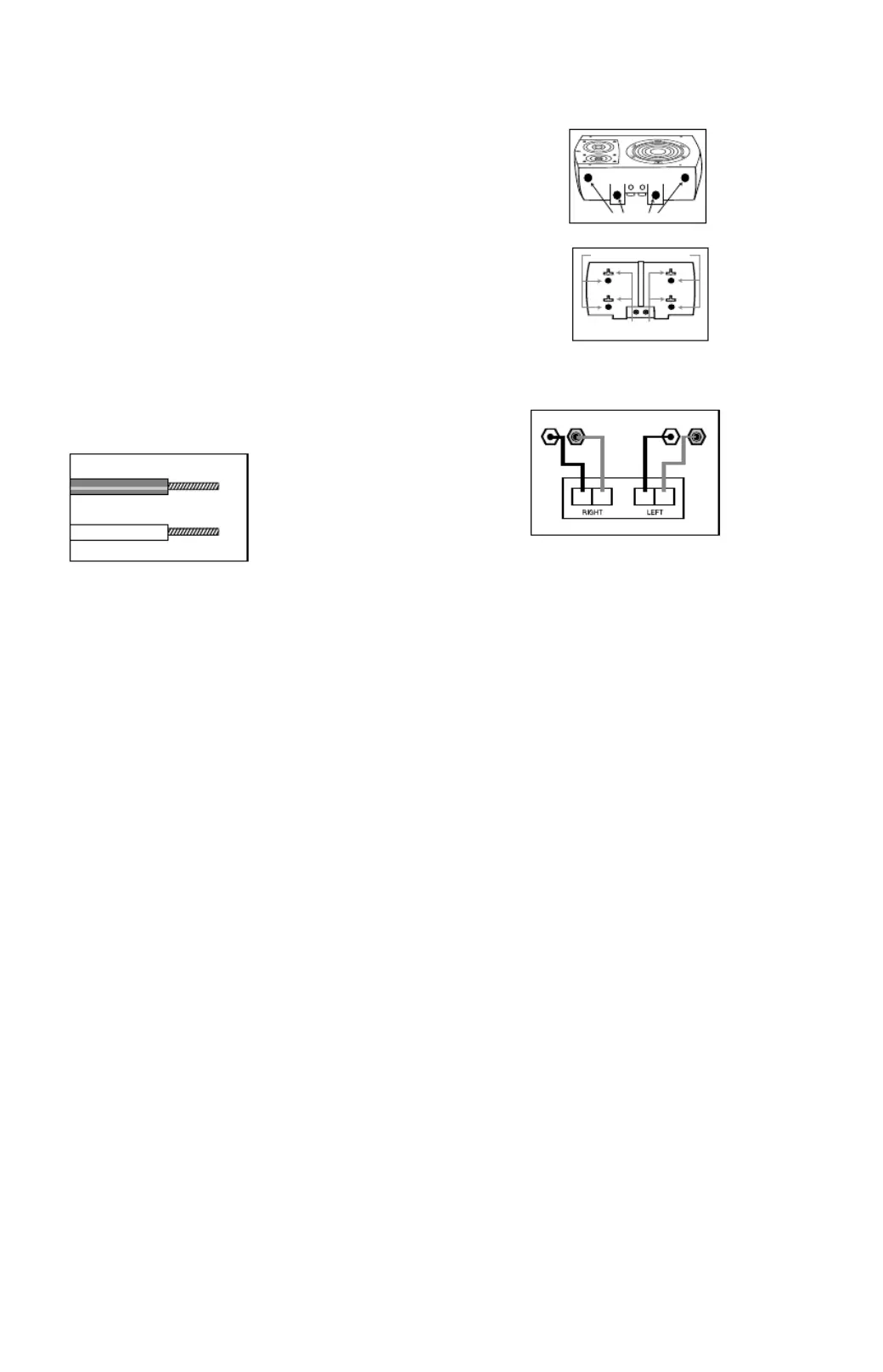

SPEAKER CONNECTIONS

Speakers and electronics terminals

have corresponding (+) and (–) ter-

minals. It is important to connect

both speakers identically: (+) on the

speaker to (+) on the amplifier and

(–) on the speaker to (–) on the

amplifier. Wiring “out of phase”

results in thin sound, weak bass

and a poor stereo image. With the

advent of multichannel surround

TROUBLESHOOTING

– +– +

– +

Speaker Outputs

LEFTRIGHT

– +

Installation of Self-Adhesive

Rubber Pads: If the speaker is to

be placed on a surface (such as

a table top or shelf) rather than

wall-mounted, the enclosed self-

adhesive rubber pads are to be

attached to the bottom of the

speaker cabinet in their desig-

nated recessed locations. If the

speaker is to be wall-mounted,

then the four self-adhesive rubber

pads should be attached to the

back of the speaker, as shown

in the bottom right diagram.

When angle-mounting the P36AW,

only two of the rubber pads are

required, and they need to be

installed on the back of the loud-

s peaker, near the lower edge, so

that they are located between the

back of the speaker and the

mounting surface. Please see the

enclosed installation template for

more details.

NOTE: The threaded inserts on the

bottom of the speakers are to be

used only with JBL accessories

that have been developed specifi-

cally for the P36AW and that may

become available at a future date.

Do not attempt to install bolts or

any non-JBL brackets or acces-

sories to these threads, as this

might damage the speaker and

dislodge the insert.

PADS GO HERE

sound systems, connecting all of

the speakers in your system with

the correct polarity remains

equally important in order to pre-

serve the proper ambience and

directionality of the program

material.

To use the binding-post speaker

terminals, unscrew the collar until

the pass-through hole in the cen-

ter post is visible under the collar.

Insert the bare end of the wire

through this hole; then screw the

collar down until the connection

is tight.

The hole in the center of each col-

lar is intended for use with banana-

type connectors.

To comply with



KEYHOLES FOR 

MOUNTING HARDWARE

PLACE RUBBER PADS HERE

For wall-mounting

For tabletop or shelf placement

European CE certification, these

holes are blocked with plastic

inserts at the point of manufacture.

Use of banana-type connectors

requires the removal of the inserts.

Do not remove these inserts if

you are using the product in an

area covered by European CE

certification.
