Oldal 1/6
Iconic 2-полосный громкоговоритель для книжной полки
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
L82 Classic
Iconic 2-Way Bookshelf Loudspeaker
Before deciding where to place your speakers, survey your room and think about placement, using the
illustration below as a guide.
• Avoid placing the speakers near power amplifiers, heat
registers or other objects that generate large amounts
of heat.
• Do not place the speakers in very humid or dusty places.
• Do not place the speakers in direct sunlight or where they
will be exposed to other intense light.
• For best results, place the speakers 6–8 feet (1.8-2.4m)
apart. If you set the speakers farther apart than this,
angle them toward the listening position.
• The speakers will produce the most accurate stereo
soundstage when the angle between the listener and the
speakers is between 40 and 60 degrees.
• Generally, bass output will increase as the speaker is
moved closer to a wall or corner. For best performance,
we recommend that you place the speakers at least 20 inches (50cm) away from the sidewalls.
• The speaker will yield the best stereo imaging when oriented vertically.
• The L82 Classic may be stand mounted with optional JBL metal stands (model JBL JS-80,
sold separately) that angle the speaker upward.
• If not using the optional stands with built-in angle, then we recommend you to position each speaker
so that its tweeter is approximately at ear level.
Thank you for purchasing the L82 Classic 2-Way Loudspeaker
For more than 70 years, JBL has been providing audio equipment for concert halls, recording studios and
movie theaters around the world and has become the trusted choice of leading recording artists and sound
engineers. The legendary JBL 4310 professional studio monitor helped produce many of the most popular
albums of the 1960s and ‘70s. The 4310 was the inspiration for the L100 home audio loudspeaker introduced
in 1970, which became JBL’s all-time best selling speaker. The L82 Classic is a new model, re-interpreting the
classic JBL 8" 2-way in a modern, L100 Classic-styled system.
The new L82 Classic honors the storied legacy of the many historic JBL 8" 2-way speakers with its iconic 8-inch
(200mm) 2-way configuration, but with all new drivers, crossover network, enclosure, and features to bring the
design up to the highest 21st-century performance standards. Utilizing a compact footprint, the L82 Classic
features advanced JBL transducers including the JW200PW-6 Pure Pulp cone woofer, the JT025TI1-4 Titanium
tweeter.
The L82 Classic improves upon the performance of past JBL 8" 2-way models, back to the '70's, with its
exceptional dynamic range and contrast, clean and effortless high output, and precise high impact bass. With its
modern design, the L82 Classic has great detail resolution across the full bandwidth, very low distortion, and very
lifelike on- and off-axis stereo imaging, justifying its place as the smaller brother to the L100 Classic. The L82
Classic is sure to become a new legend among music lovers everywhere.
INTRODUCTION
PACKAGE CONTENTS
2x L82 Classic loudspeaker
2x Quadrex foam grille
1x L82 Classic Owner’s Manual
PLACEMENT AND POSITIONING
CAUTION: The L82 Classic weights 29 lb (13.2 kg) each. Before placing the speaker on a shelf or
platform, be sure that it is sturdy enough to support the speaker’s weight.
CONNECTIONS
BASIC SINGLE-WIRE CONNECTION
USING BARE WIRE OR PIN CONNECTORS:
USING SPADE CONNECTORS:
USING BANANA CONNECTORS:
IMPORTANT: Make sure that the (+) and (–) wires or
pins do not touch each other or the other terminal.
Touching cables can cause a short circuit that can
damage your receiver or amplifier.
IMPORTANT: Make sure the (+) and (–) spade connector
blades do not touch each other or the other terminal.
Touching blades can cause a short circuit that
can damage your receiver or amplifier.
CAUTION: Make sure that all of the system’s electrical components are turned OFF (and preferably
unplugged from their ac outlets) before making any connections.

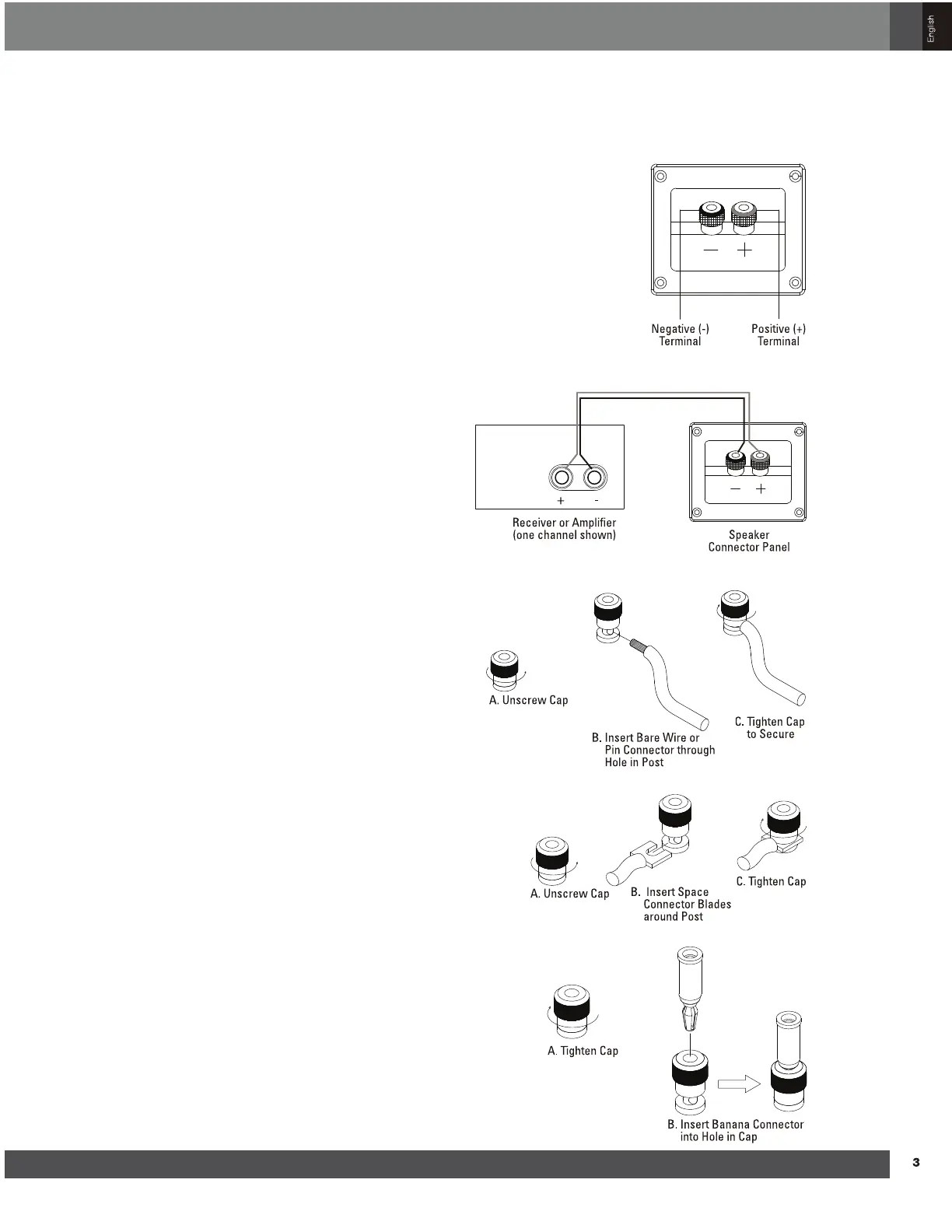

Speakers and amplifiers have corresponding positive and negative (“+” and “–”)
connection terminals. The L82 Classic has color-coded connection terminals. The
“+” terminal is red, while the “–” terminal is black. See the illustration on the right.
The L82 Classic is designed so that a positive voltage at the “+” (red) terminal
will cause the speaker drivers to move outward (toward the room).
We recommend using a high-quality speaker cable with polarity coding. The side
of the wire with a ridge or other coding is usually considered positive polarity (“+”).
To ensure proper polarity, connect each “+” terminal on the back of the amplifier
or receiver to the respective “+” (red) terminal on each speaker. Connect the “–”
(black) terminals in a similar way. See your receiver or amplifier’s owner’s manual
to confirm its connection procedures.
Connect the amplifier to each speaker as shown in
the illustration on the right.
IMPORTANT: Do not reverse polarities (i.e., “+”
to “–” or “–” to “+”) when making connections.
Doing so will cause poor stereo imaging and
diminished bass performance.
The L82 Classic’s gold-plated speaker terminals
can accept a variety of wire connector types:
bare wire, spade connectors, pin connectors
and banana connectors.
L82 Classic Owner’s Manual
