How to use Release Key to adjust height of speaker:
2.
Insert key into
small hole at
top of Gripple.
Push in 1/4” to
release the
cable.
4.
Remove key
and re-secure
the load.
1.
Make sure the
load is supported.
CAUTION: Installation must be done by qualied persons using safe rigging standards.
Use equipment only in accordance with manufacturer’s instructions. Do not alter or modify.
Do not use equipment if the equipment is not functioning correctly or if the equipment is defective
4. Snap secondary support safety cable hook hanger
onto one of the side holes in the top bracket of the
speaker, and attach the top to a dierent ceiling support
point of the building structur e, per Steps 1 & 2. After
height adjustment is nal, trim any unneeded extra cable
tail wires with trimmer suitable for 2 mm (0.077 in)
diameter stranded aircraft-type cable.
SPEAKER
INSTALLATION
INSTRUCTIONS
using Suspension Systems:
3. With speaker supported, snap main
support hook hanger onto the center hole
in the top bracket of the speaker. Adjust
to proper height by pulling cable through
either end of Gripple.
Detail
3
3.
Adjust
height.
Detail
Fittings are suitable for use in Air Handling Spaces
in accordance with Section 300.22 (C) and (D)
of the National Electrical Code, and rules
12-010 (3), (4), and (5), and 12-020 of the
Canadian Electrical Code, Part 1.
File No. E228153
Luminaire Fittings
File No. E251132
Conduit & Cable Hardware
2. Pass tail end of cable through the
other channel of the Gripple (see
inset detail).
1. Thread Gripple onto cable (see inset
detail). Pass over ceiling anchor point
(as shown) or through other secure
anchor point of the building structure.
Installer is responsible for ensuring that
anchor point is secure to building
structure.
4
MANUFACTURER’S RECOMMENDATIONS
Load – Do not exceed the Safe Working Load (SWL) of the
Gripple. The SWL of the Gripple product included with this
loudspeaker is 45 kg (100 lbs).
No lifting – Do not use for lifting, such as in a crane or pulley
situation.
No movement – Gripple hangers are to be used to suspend
static loads only. Do not use to suspend moving services, or
services likely to be subject to movement.
No joining – Gripple hangers must not be spliced together
using a Gripple fastener, or any other joining device. A Gripple
hanger assembly must comprise one length of cable and one
Gripple fastener only. If a longer length is needed, do not
attempt to join two assemblies together.
Limitations of use – All Gripple hangers, accessories, and
other Gripple products must only be used for suspending items
recommended by the manufacturer.
Painting – If painting, ensure that a Gripple Décor Cover is
applied to the Gripple fastener before painting to protect from
the ingress of paint. Do not move the Gripple fastener on the
cable after painting.
Building codes – Compliance with local codes, and where
applicable national codes, is the buyer and/or installers
responsibility.
Not for re-use – Gripple hangers are designed for permanent
installations, not for re-use.
Lubricants – Do not apply oil or any other lubricant to any part
of the assembly.
Not for seismic bracing – For Gripple products that have been
tested and approved for seismic restraint applications, please
refer to the Gripple Seismic product line.
Round duct/pipes – When wrapping around duct or other round
pipes, do not exceed an angle of 60 degrees between the top of
the pipe and the Gripple.
Environment – Standard Gripple hangers may be used only in
dry locations. Stainless steel Gripple hangers may be used in
certain indoor corrosive environments such as properly
ventilated swimming pool arenas.
Failure to observe these usage instructions may result in
product malfunction, resulting in property damage and bodily
injury. At time of shipment Gripple products are warranted to
conform to the manufacturer's published specications and to
be free from defects in material and workmanship. No other
warranty, whether expressed or implied, including any
warranty of merchantability or tness for purpose, whether
expressed or implied, shall exist in connection with the sale or
use of any Gripple product.
C60 INST INSTR 08/10
For further technical assistance in the use of this Gripple suspension product, please contact:
Gripple Inc. 1611 Emily Lane Aurora, IL 60502 1-630-406-0600 www.gripple.com
JBL Professional
8500 Balboa Blvd
Northridge, CA 91329
USA
See Other Side for Speaker Installation Instructions
www.jblpro.com

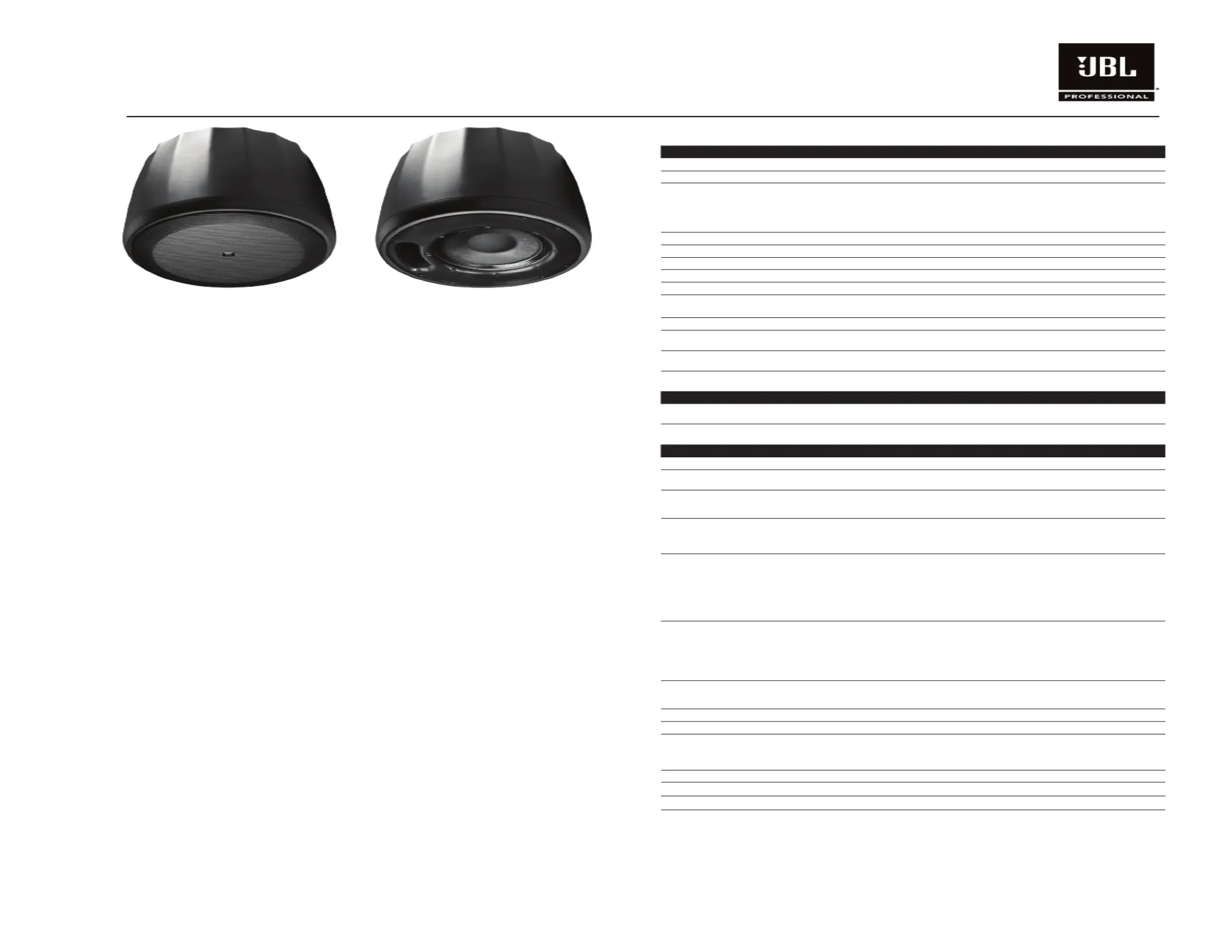

The Control 68HP is a very high output, full-range, two-way pendant-type loudspeaker
that provides superb sound reproduction and very consistent, wide coverage for
rooms with open architecture ceilings, rooms with lively acoustics (ie, lowering the
height of the speakers to increase the direct-to-reverberant sound ratio), and other
locations where a pendant form factor is desired. The wide 110° coverage pattern
allows for the use of fewer speakers, reducing the cost of the installed system without
sacrificing performance.
High output, excellent sound quality coupled with stylish design and easy installation
makes the Control 68HP ideal for a wide variety of applications including retail,
restaurants, hotels, casinos, fitness centers, convention centers, exhibit spaces,
conference rooms, atriums, museums, transit centers and other applications with
open-ceilings, lively acoustics, or where the pendant form factor is desired for
aesthetic reasons.
Control 68HP provides extremely consistent 110°constant directivity conical coverage.
The coaxial driver's pole piece is internally milled to form a low-distortion throat while
the cone forms the bell of a conically-contoured constant directivity horn, resulting in
extremely consistent sound character throughout the entire listening area.
The Control 68HP includes a single-point mounting system for easy and secure
suspension in open-ceiling applications. Two complete hanging cable systems are
included, providing both main and safety suspension cables. Included are extra-long
4.5 m (15 foot) high tensile galvanized steel wire rope having spring clips for the
loudspeaker end of the cable and UL listed cable fasteners for infinitely adjustable
suspension height.
The system’s 209 mm (8 in) low-frequency driver features a Kevlar™ reinforced
cone and a large 50 mm (2 in) CCAW voice coil on a fiberglass voice coil former for
high power and improved long-term reliability. The coaxially-mounted 25 mm (1 in)
compression driver features a titanium dome with damped resonance and a Kapton™
voice coil former for enhanced long-term sound level capability combined with high-
fidelity sound quality.
The Control 68HP contains a high-quality 68 Watt multi-tap transformer for use on
70V/100V distributed loudspeaker lines, and is switchable for 8-ohm voice-coil direct
operation.
Euro-style clip-in connectors allow for each wiring. For protected/covered outdoor
applications, rubber boots are included to cover the input connectors, and an optional
terminal cover (MTC-60PC) is available for direct-exposure locations.
APPLICATIONS 6
Coaxial design featuring: 209 mm (8 in) Kevlar™ reinforced woofer with
50 mm (2 in) voice coil, 25 mm (1.0 in) titanium-dome compression driver
High power capability of 250 Watts (1000W peak)
and high SPL of 114 dB (120 dB peak)
Hanging hardware with 4.5 m (15 foot) galvanized
steel cable and easy to adjust clamp
Stylish design available in black or white (-WH)
UL listed speaker and hanging cable system
8 ohm and 70V/100V operation
Extremely consistent 110° conical coverage
HIGHLIGHTS 6
(1000 Watts peak, 2 hrs)
500 Watts Continuous Program Power (2 hr)
Nominal Sensitivity: 90 dB
Nominal Coverage Angle3: 110° conical
Directivity (Q)
3:7.8
Directivity Index (DI)
3:8.9 dB
Maximum Input Voltage: 41.4 V RMS (2 hrs), 82.8 V peak
Rated Maximum SPL @ 1m: 114 dB continuous pink noise,
120 dB peak
Rated Impedance: 8 ohms
Transformer Taps: 70V: 68W, 34W, 17W, & 8.5W
100V: 68W, 34W, 17W
Transformer Insertion Loss: 0.5 dB @ 8.5W, 0.5 dB @ 17W, 0.6 dB @ 34W,
0.7 dB @ 68W
Recommended Protective
High-Pass4
60 Hz high-pass (24 dB/oct) for 8 ohm operation and for
all 70V/100V tap settings
TRANSDUCER
LF Driver: 209 mm (8 in) Kevlar(tm) reinforced cone, 50 mm (2 in)
CCAW voice coil on fiberglass voice coil former
HF Driver: 25 mm (1.0 in) compression driver, titanium dome, ferrite
magnet assembly, Kapton(tm) voice coil former
ENCLOSURE
Enclosure Material: High impact polystyrene
Grille: Zinc-plated steel grille with powder-coat finish, foam
backing (removable for painting)
Environmental: Exceeds Mil Spec 810 for humidity, salt spray,
temperature & UV. IP44 capability per IEC 529 –
splashproof rating.
Termination: Two removable locking euro-block 2-pin connectors
with screwdown terminals for bare wire. Connectors
paralleled for input and loop-thru. Max. wire 12 AWG
(2.5 mm2). Rubber terminal covers included.
Suspension: Two identical suspension systems (one as main
suspension cable and the other as safety cable), each
consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-
tensile galvanized-steel wire rope suspension cable with
spring-clips for clipping onto the loudspeaker bracket
and Gripple™ brand adjustable-height cable fasteners
for infinitely adjustable height. Cables have SWL rating
of 45 kg (99 lb).
Product Compliance: Speaker listed per UL1480A Commercial and
Professional Use, (UEAY/7), CSA C22.2 No. 205.
Transformer registered per UL 1876. Compliant with
IEC62368-1, CE, LVD, RoHS. In accordance with
IEC60849/EN60849. Suspension system and Gripple®-
brand cable fastener listed per UL1598 and UL2239,
TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions: 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to
top of cabinet. 369 mm (14.5 in) to top of suspension
bracket
Net Weight: (ea): 7.5 kg (16.5 lbs)
Set Weight (Pair): 17.2 kg (38.0 lbs)
Included Accessories: Two suspension cable systems (see “Suspension”,
above), two 2-pin removable locking euro-block
connectors, two rubber covers for
euro-block connectors.
Optional Accessories: MTC-PC60 top panel / terminal cover
Colors: Available in black or white (-WH). Paintable.
SKU Numbers: JBL-C68HP/T (black), JBL-C68HP/T-WH (white)
1 Full-space (suspended)
2 Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB peak-to-average crest
factor for 100 hours continuously. Continuous Program power is a conservative expression
of the system’s ability to handle normal speech and music program material and is defined
as 3 dB above the Continuous Pink Noise rating.
3 Full-space (suspend in free air), average 1 kHz to 10 kHz.
4 For protection against driving below resonant frequency and to keep transformer out of
saturation
JBL continually engages in research related to product improvement. Changes introduced
into existing products without notice are an expression of that philosophy.

Termékspecifikációk

Márka: JBL
Kategória: hangszóró
Modell: Control 68HP

Szüksége van segítségre?

Ha segítségre van szüksége JBL Control 68HP, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek


Útmutatók hangszóró JBL

JBL

JBL sCl-4 Útmutató

29 Március 2025
JBL

JBL B-6ICDT Útmutató

12 Január 2025
JBL

JBL B-8IC Útmutató

12 Január 2025
JBL

JBL 4349 Útmutató

12 Január 2025
JBL

JBL Tower X Marine MT10HLW Útmutató

6 Január 2025
JBL

JBL Control CM42AW Útmutató

1 Január 2025
JBL

JBL Performance P36AW Útmutató

1 Január 2025
JBL

JBL Balboa 30 Útmutató

1 Január 2025
JBL

JBL 250Ti Útmutató

1 Január 2025
JBL

JBL 800 Útmutató

1 Január 2025

Útmutatók hangszóró

Legújabb útmutatók hangszóró

Match

Match UP C42BMW-FRT.3 Útmutató

3 Április 2025
Turbosound

Turbosound PQ12-SB Útmutató

3 Április 2025
Trust

Trust Tytan GXT 658 Útmutató

3 Április 2025
Turbosound

Turbosound PQ15-YB Útmutató

3 Április 2025
Klipsch

Klipsch Synergy KSB-S1 Útmutató

3 Április 2025
Klipsch

Klipsch Synergy KSF-10.5 Útmutató

3 Április 2025
Klipsch

Klipsch kO-R1 Útmutató

3 Április 2025
Klipsch

Klipsch Synergy SB-1 Útmutató

3 Április 2025
Klipsch

Klipsch Reference RB-5 II Útmutató

3 Április 2025
Klipsch

Klipsch Contractor CS-800-R Útmutató

3 Április 2025
