car audio
power amplifier
owner’s manual
THANK YOU
for purchasing a JBL A6000GTi or A3000GTi amplifier.
For warranty support, please register your purchase at
www.jbl.com. Select Car Audio, then click on Product
Support, and then click on Register...Online. Also, please
retain your original purchase receipt and packing crate
in case you must ship your unit back for service.
INSTALLATION
WARNING: Playing loud music
in an automobile can hinder your
ability to hear traffic and permanently
damage your hearing. We recommend
listening at low or moderate levels
while driving your car. JBL accepts
no liability for hearing loss, bodily
injury or property damage resulting
from the use or misuse of this product.
IMPORTANT: To get the best
performance from your JBL A6000GTi
or A3000GTi amplifier, we strongly
recommend that installation be
entrusted to a qualified professional.
Although these instructions explain
how to install JBL amplifiers in a
general sense, they do not show
specific installation methods that may
be required for your particular vehicle.
If you do not have the necessary tools
or experience, do not attempt the
installation yourself. Instead, please
ask your authorized JBL car audio
dealer about professional installation.
INSTALLATION
WARNINGS AND TIPS
• Always wear protective eyewear
when using tools.
• Turn off all audio components and
other electrical devices before you
start. Disconnect the (–) negative
lead from your vehicle’s battery.
• Check clearances on both sides of
a planned mounting surface before
drilling holes or installing screws.
Remember – the screws can extend
behind the surface.
• At the installation sites, locate
and make a note of all fuel lines,
hydraulic brake lines, vacuum lines,
and electrical wiring. Use extreme
caution when cutting or drilling in
and around these areas.
• Before drilling or cutting holes, use
a utility knife to remove unwanted
fabric or vinyl to keep material from
snagging in a drill bit.
• When routing cables, keep input-
signal cables away from power
cables and speaker wires. Use
grommets when passing cables
through the vehicle’s inner walls.
• When making connections, observe
the amplifier’s polarity markings.
Make sure that each connection
is clean and properly secured. Use
the shortest ground wire possible
to minimize resistance and avoid
noise problems.
• If the amplifier’s fuse must be
replaced, use only the same type
and rating as that of the original.
Do not substitute another kind.
CHOOSING A
MOUNTING LOCATION
The JBL A6000GTi and A3000GTi
amplifiers are big! Conventional
mounting locations under driver or
passenger seats will not accommodate
either amplifier. Mount the amplifier in
the vehicle’s trunk or cargo area, but
never mount the amplifier in the engine
compartment, outside the vehicle or
in any location where it may get wet.
When choosing a location, make sure
the site’s underlying structure is strong
enough to support the amplifier’s
weight and drilled holes for mounting
bolts. Also, verify that there will be
adequate ventilation around the
amplifier, so that airflow to its internal
fans will not be blocked and the unit
can properly cool itself.
WARNING: To avoid personal injury
and possible product damage, we
strongly urge you to enlist additional
help in unpacking and moving the
JBL A6000GTi or A3000GTi amplifier
to a desired mounting location.
PARTS LIST
Each amplifier is packed with the fol-
lowing parts:
• Four (4) 1/2" x 3" socket-head cap
screws and T-nuts.
• One (1) Remote Level Control with
mounting hardware
• One (1) 15' RJ11 Cable for Remote
Level Control
• One (1) Logo Badge
• One (1) Set of Performance Graphs
• One (1) Owner’s Manual
• One (1) Warranty Registration
Instruction Card
MOUNTING THE
AMPLIFIER
We strongly recommend first mounting
a piece of wood or Medium Density
Fiberboard (MDF) to the vehicle, and
then mounting the amplifier to the
board. The amplifier is large and heavy
and must be mounted using all four
screws and T-nuts provided. Using
the amplifier as a template, mark the
location of the mounting holes on the
mounting surface, drill pilot holes, and
securely attach the amplifier to the
mounting surface with the provided
screws and T-nuts. Make sure the
amplifier does not pinch or smash
power cables, speaker wires, input
cables or any of the vehicle’s wiring.
Install the Remote Level Control in a
convenient location in or under the
dashboard. The control may be
removed from its housing for custom
installation. Using the enclosed RJ11
cable, connect the control to the
amplifier, as shown in Figure 1.
2
A6000GTi/A3000GTi
(on input panel)
RJ11 Cable
RJ45 connector
RJ45 connector on back

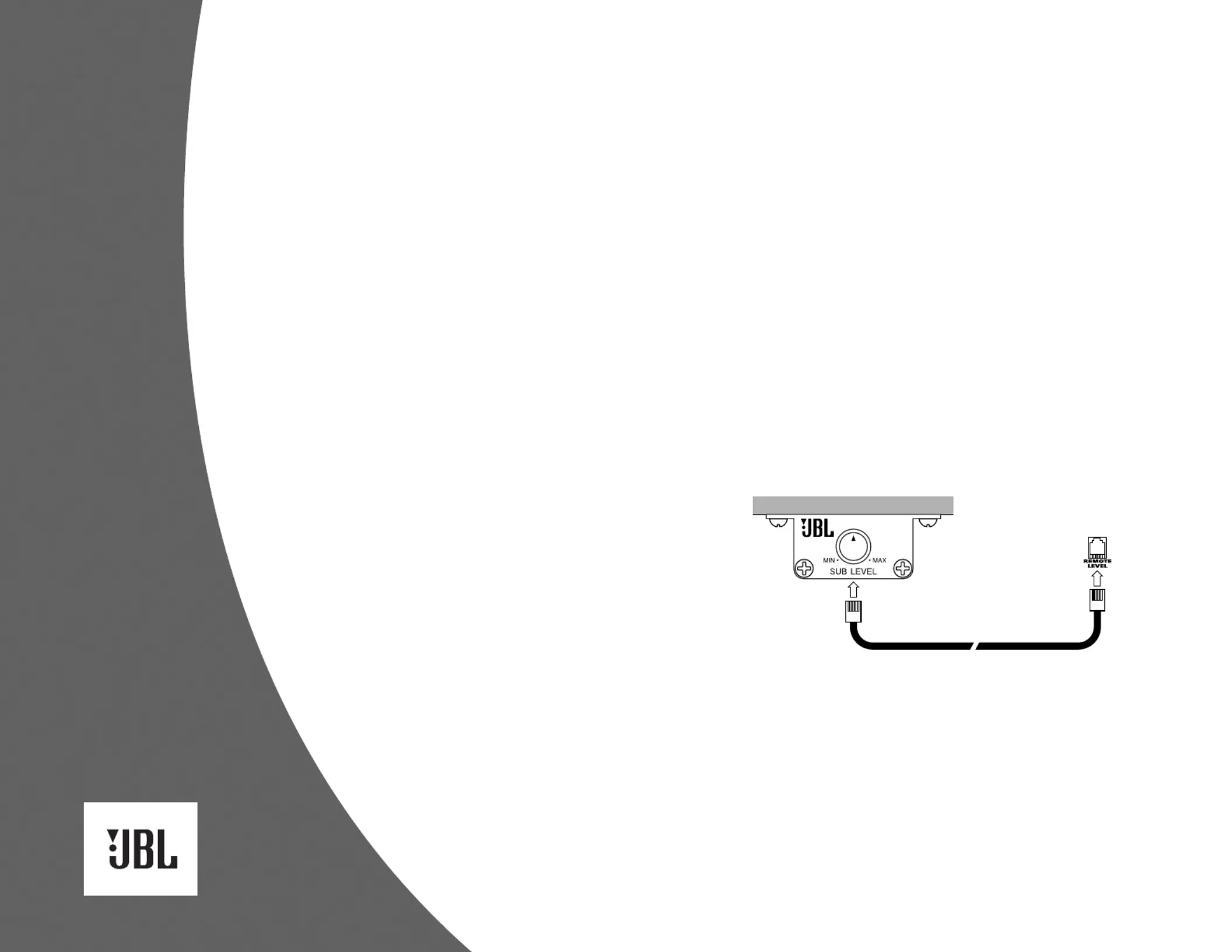

Figure 1. Connecting the Remote Level
Control.
Once the amplifier is mounted, peel the
backing from the adhesive (on the back
of the logo badge) and attach the
badge in the appropriate orientation.
DESIGNING A SPEAKER SYSTEM FOR THE GTi AMPLIFIER
NOTE: Although the JBL A6000GTi or
A3000GTi amplifier will drive a system
made up of any subwoofers, we
recommend using JBL GTi subwoofers
with GTi amplifiers.
Both the JBL A6000GTi and A3000GTi
amplifiers provide RMS power that
exceeds the RMS power-handling
rating of nearly every subwoofer
available. To use this amplifier
optimally, you should design a speaker
system made up of several identical
speakers, so that the power delivered
by the amplifier will be shared equally
among the speakers.
The JBL A6000GTi and A3000GTi
amplifiers support a wide range of
impedances, and any speaker system
with a total or equivalent impedance of
1 to 4 ohms will extract full power from
either amplifier. In order to connect
multiple woofers to the A6000GTi or
A3000GTi, you’ll need to connect your
speakers in series, parallel or series-
parallel. We’ve included diagrams for
each connection scheme and a pair of
formulas, which will help you.
SERIES CONNECTIONS
The formula for determining the total
impedance of the two woofers con-
nected in series is:
Ztotal = Z1+ Z2+ Z3...
Where Z total is the total impedance of
all woofers connected in series. Z1, Z2
and Z3(and so on) are the nominal
impedance ratings of the individual
speakers. The total impedance of the
voice coils shown in Figure 2 is 8 ohms.

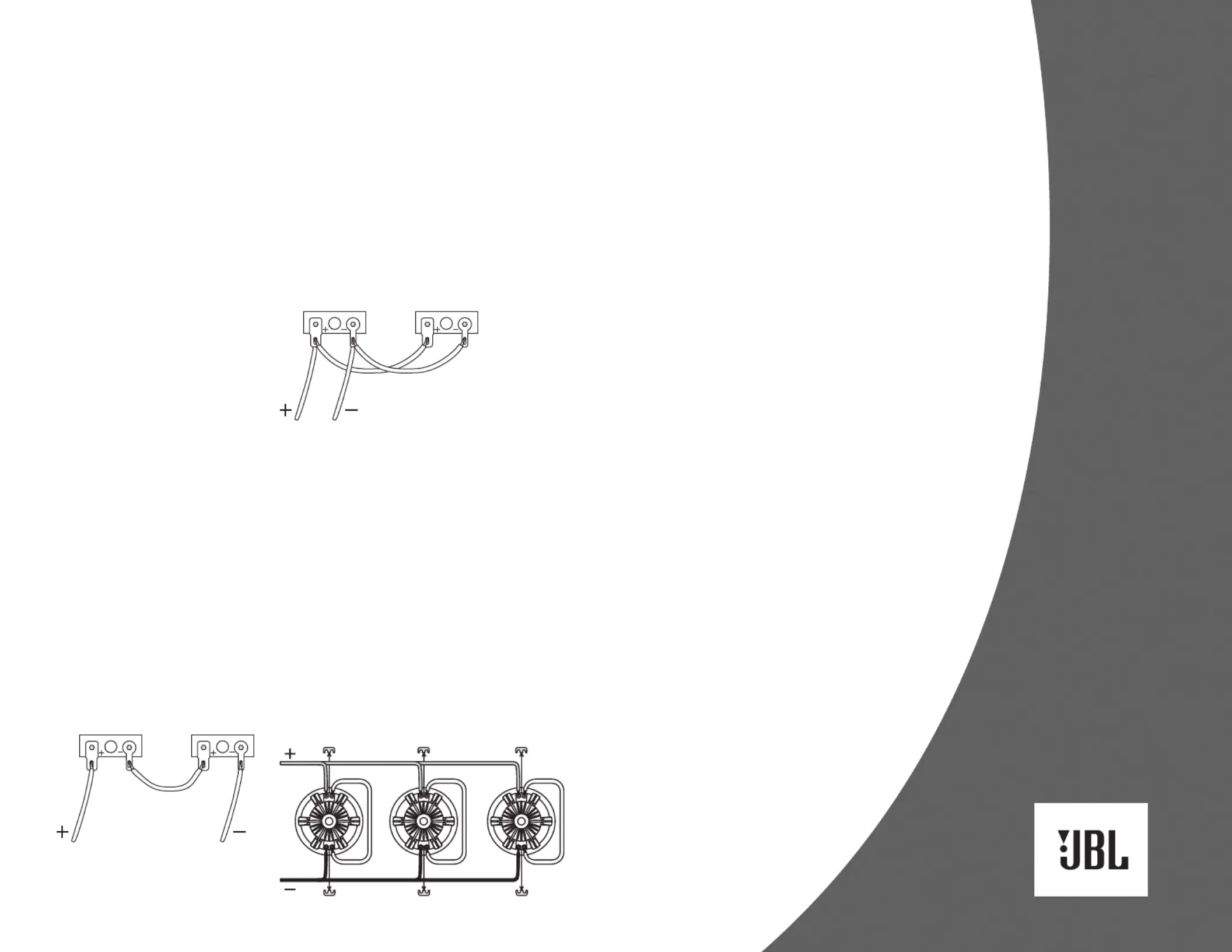

Figure 2. Series connection of two
4-ohm voice coils yields a total
impedance of 8 ohms.
PARALLEL
CONNECTIONS
The formula for determining the
equivalent impedance of the voice
coils connected in parallel is:
Zequivalent = 1/(1/Z1+ 1/Z2+ 1/Z3…)
Where Zequivalent is the equivalent
impedance of the coils connected in
parallel. Z1, Z2and Z3(and so on) are
the nominal impedance ratings of the
individual speakers. The equivalent
impedance of the voice coils shown in
Figure 3 is 2 ohms.
Figure 3. Parallel connection of two
4-ohm voice coils yields a total
impedance of 2 ohms.
DUAL VOICE-COIL
CONNECTIONS
Dual voice-coil subwoofers, such as
JBL’s GTi series, may be connected
in series, as shown in Figure 2; in
parallel, as shown in Figure 3; or in
series-parallel, as shown in Figure 4.
Figure 4. Series-parallel connections
of three W15GTi subwoofers (with a
voice coil impedance of 6 ohms) yields
a total series impedance of 12 ohms
for each subwoofer, and an equivalent
parallel impedance of 4 ohms for all
three subwoofers.
To determine the impedance of a
system of three W15GTi (dual voice-
coil) subwoofers connected in series-
parallel, use the series connection
formula to determine the impedance
of each subwoofer with its voice coils
connected in series. Then insert the
calculated value into the parallel
connection formula to determine the
equivalent impedance for the three
subwoofers connected in parallel.
NOTE: Each W15GTi voice coil has an
impedance of 6 ohms.
For example, in Figure 4, each woofer
will have an impedance of 12 ohms, by
Ztotal = Z1+ Z2= 6 + 6 = 12
and the three woofers connected
in parallel will have an equivalent
impedance of 4 ohms, by
Zequivalent = 1/(1/Z1+ 1/Z2+ 1/Z3)
= 1/(1/12 + 1/12 + 1/12)
= 1/(3/12)
= 12/3 = 4
NOTE: All subwoofers connected to an
amplifier in a system must be identical
and, if they are dual voice-coil sub-
woofers, their coils must be wired
identically. Do not connect the coils of
one subwoofer together in series and
another in parallel, since doing so will
cause uneven power distribution,
potential damage to the speakers, and
poor overall performance.
ABOUT SPEAKER
POWER HANDLING
The RMS power handling rating of
a speaker indicates the amount of
power it will handle continuously.
Although designing a subwoofer
system by considering the RMS rating
will ultimately provide you with the
most reliable system, your speakers
may be able to handle more power,
depending on what kind of music is
being reproduced.
For music with extended bass notes
(e.g., bass music, hip-hop or techno),
you should design a speaker system
based on the RMS power handling of
your speakers. For music with sharp
transient bass notes (e.g., rock,
country or jazz), the RMS power
handling rating is conservative, and
you can count on your speakers being
able to handle more power than the
RMS rating.
The total power output of your
amplifier will be divided among the
speakers connected to it. For example,
if you are using an A6000GTi and three
W15GTi subwoofers, each subwoofer
will receive 2,000 watts.
It’s important to choose a system of
subwoofers that will handle all of the
power. To determine how much total
power your speaker system will
handle, simply multiply the RMS power
handling rating of one of your speakers
by the total number of speakers that
will be connected.
3
4 ohms 4 ohms
Remove
Terminal Jumper
Remove
Terminal Jumper
Black
Red
4 ohms 4 ohms

Termékspecifikációk

Márka: JBL
Kategória: Vevő
Modell: A6000GTi

Szüksége van segítségre?

Ha segítségre van szüksége JBL A6000GTi, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek


Útmutatók Vevő JBL

JBL

JBL Power P-7540 Útmutató

1 Január 2025
JBL

JBL Grand Touring GTQ360 Útmutató

1 Január 2025
JBL

JBL CS50.4 Útmutató

1 Január 2025
JBL

JBL Decade DA6502 Útmutató

1 Január 2025
JBL

JBL Decade DA1002 Útmutató

1 Január 2025
JBL

JBL A6000GTi Útmutató

1 Január 2025
JBL

JBL CS60.2 Útmutató

1 Január 2025
JBL

JBL A3000GTi Útmutató

1 Január 2025
JBL

JBL Grand Touring GTS100X Útmutató

1 Január 2025
JBL

JBL Grand Touring GTS600 Útmutató

1 Január 2025

Útmutatók Vevő

Legújabb útmutatók Vevő

DJI

DJI D-RTK 3 Útmutató

5 Április 2025
Phonocar

Phonocar PH544 Útmutató

5 Április 2025
QSC

QSC SPA-Qf 60x2 Útmutató

2 Április 2025
Harper

Harper HDT2-5010 Útmutató

2 Április 2025
Harper

Harper HDT2-2010 Útmutató

2 Április 2025
Alpine

Alpine MRX-F65 Útmutató

31 Március 2025
Streacom

Streacom TL1 Útmutató

31 Március 2025
Pro-Ject

Pro-Ject Stereo Box DS Útmutató

30 Március 2025
Graupner

Graupner GR-8 Útmutató

30 Március 2025
MB Quart

MB Quart FA2-2000.1 Útmutató

29 Március 2025
