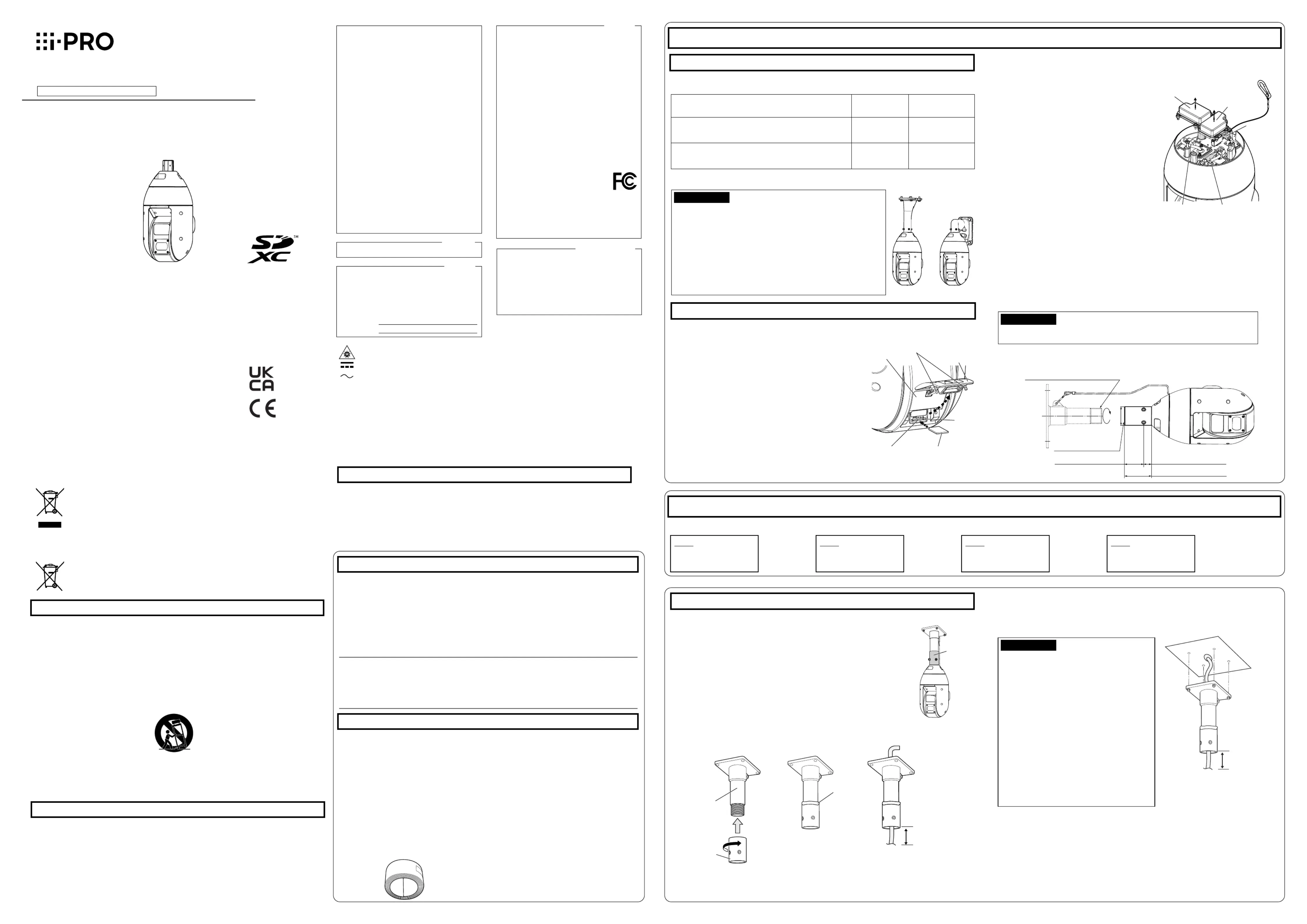

Oldal 1/2

WV-Q122A,

WV-Q185

WV-Q121B

󱷏 󱷐

Step3

Fixing the camera

Step2

Making connections

WV-X6533LN

Preparations

Other items that are needed (not included)

Prepare the required parts for each installation method before starting the installation. The following

are the requirements for the various installation methods.

Installation method

Mounting

screw

Minimum pull-out

strength/ 1pcs.

󱷏When hanging the camera from ceiling

Use the ceiling mount bracket (WV-Q121B

*1).

M10 screws/

4pcs.

1411 N {317 lbf}

󱷐When installing the camera on a wall

Use the wall mount bracket (WV-Q122A*1, WV-Q185*1).

M10 screws/

4pcs.

823 N {185 lbf}

IMPORTANT:

• The mount bracket (locally procured) should have the configuration that enables

fixation of safety wire from camera.

⇒Go to Step 1 【1】

Preparations before installation

【1】Insert an SD memory card as occasion demands.

For the detailed procedures of inserting and removing an SD

memory card, refer to Important Information on the provided

CD-ROM.

① Loosen2SDslotcoverfixingscrews(M4)

usingaPhillipsscrewdriver,andopentheSD

slotcover.

② InsertanSDmemorycardintheSDslot.Push

instraightuntiltheendandconfirmthata

clickingsoundisheard. Take your ﬁ ngers off the

SD memory card and check that its back end does not

protrude over the SD guide rib.

③ Attach the SD slot cover again.

Recommended tightening torque of the SD slot cover

ﬁ xing screws: 1.38 N·m {1.02 lbf·ft}

*1 For details on procedure for attaching mount bracket and

camera, read the operating instructions of each mount bracket.

◆When using WV-Q121B (option), WV-Q122A (option) or WV-Q185 (option)

⇒Go to Step 1

【3】

◆When using the mount bracket (locally procured)

Prepare a mount bracket.

The following ﬁ gure shows an example of the camera mounted on a ceiling with a bracket.

R 1-1/2, 11crest, deep 30 MAX

(taper pipe thread)

RP 1-1/2, 11 crest,

deep 30 MAX

(parallel pipe thread)

60 mm {2-3/8 inches} 25 mm {31/32 inches}

85 mm {3-11/32 inches}

(ﬂ58)

Installation

The installation tasks are explained using 4 steps.

⇨⇨

⇨

Step1

Fix the mount bracket

and hang the camera

Step4

Con gure the network

settings

• Remove the camera using the reverse order of the installation procedures.

IMPORTANT:

• After waterproofing the hole for fixing mount

bracket and the port for pulling out the cable

on the installation surface, fix the mount

bracket on the installation surface.

• Adjust the length of cable from camera

attachment port of attachment pipe to cable

end to 180~190 mm {7-3/32 inches~7-15/32

inches}. (If the cable that is pulled out is too

long, storage after wiring becomes difficult.

Adjust the cable length carefully.)

• For the number of fixing screws and the

minimum pull-out strength (per 1 pc.), refer to

the operating instructions of mount bracket

(locally procured).

• Ensure the minimum pull-out strength (per

1 pc.) that has sufficient allowance for total

mass of mount bracket (locally procured),

attachment pipe, and camera etc.

⇒Go to Step 1 【】5 .

Step1 Fix the mount bracket and hang the camera

The following explains an example of installation using mount

bracket (locally procured).

The right figure shows an example of the camera mounted on a ceiling with a

mount bracket (locally procured).

When waterproofing, use waterproof material to fill in gaps and holes

between the attachment pipe and the mount bracket.

【1】Fix the attachment pipe (accessory) to the mount bracket

(locally procured).

① Fix the attachment pipe to the mount bracket.

② Fill the gap between the mount bracket and attachment pipe with

waterproof material (locally procured) such as silicon clay.

③ Pass the cables from the ceiling through the mount bracket.

【2】

Fix the mount bracket (locally procured) on the installation surface.

Fix a mount bracket to the installation surface on the ceiling by using appropriate bolts,

nuts or the like (locally procured).

180~190 mm

{7-3/32 inches~

7-15/32 inches}

Cable cover ........................................................ 1 pc.

Attachment pipe ................................................. 1 pc.

Waterproof tape .................................................. 1 pc.

RJ45 waterproof connector cover ...................... 1 pc.

RJ45 waterproof connector cap ......................... 1 pc.

Rain wash coating label ...................................... 1 pc.

8P alarm cable ................................................... 1 pc.

24 V AC power supply connector kit ....................1 set

(Power supply connector housing: 1 pc., Contact: 3 pcs.)

Special hexagon screw *3 ..................................5 pcs.

(of them, 1 for spare)

Locking washers ...............................................5 pcs.

(of them, 1 for spare)

About the user manuals

Standard accessories

Installation Guide

(this document) ................................................... 1 pc.

IMPORTANT SAFETY INSTRUCTIONS ............... 1 pc.

CD-ROM*1 .......................................................... 1 pc.

Code label*2........................................................ 1 pc.

The CD-ROM contains the several kind of operating instructions and different kinds of tool software programs.

*2 This label may be required for network management. Use caution not to lose this label.

Waterproof tape

*3 The screws are necessary when installing the camera on a separately sold mount bracket.

The following parts are used during installation procedures.

⇨ ⇨

②

180~190 mm

{7-3/32 inches~

7-15/32 inches}

③①

Attachment pipe

(accessory)

Mount bracket

(locally procured)

Waterproof

material

Attachment

pipe

(accessory)

Network Camera

Model No. WV-X6533LN, WV-S6532LN

Installation Guide

CAN ICES-3(A)/NMB-3(A)

'PS$BOBEB

WARNING:

• To prevent injury, this apparatus must be securely

attached to the wall/ceiling in accordance with the

installation instructions.

• All work related to the installation of this product

should be made by qualified service personnel or

system installers.

• The installation shall be carried out in accordance

with all applicable installation rules.

• The connections should comply with local electri-

cal code.

• Batteries (battery pack or batteries installed) shall

not be exposed to excessive heat such as sun-

light, fire or the like.

• This equipment is compliant with Class A of

CISPR 32. In a residential environment this equip-

ment may cause radio interference.

• Operation of this equipment in a residential envi-

ronment could cause radio interference.

CAUTION:

• The network camera is only intended for a con-

nection to an ethernet or PoE+ network without

routing to the outside plant.

• RISK GROUP 2 IR emitted from this product.

Avoid eye exposure. Use appropriate shielding or

eye protection.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used

electrical and electronic products and batteries must not be mixed with general household

waste.

For proper treatment, recovery and recycling of old products and used batteries, please take

them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any

potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national

legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with

the requirement set by the Directive for the chemical involved.

: Caution, infrared radiation

: Direct current symbol

: Alternating current symbol

• Before attempting to connect or operate this product, please read these instructions carefully and

save this manual for future use.

• For information about the basic description of this product, refer to the Important Information on

the provided CD-ROM. For information about how to perform the settings and how to operate the

camera, refer to the Operating Instructions on the following our support website.

https://i-pro.com/global/en/surveillance/documentation_database

• Before reading this manual, be sure to read the Important Information.

The model number and serial number of this prod-

uct may be found on the surface of the unit.

You should note the model number and serial

number of this unit in the space provided and

retain this book as a permanent record of your

purchase to aid identification in the event of theft.

Model No.

Serial No.

For U.S.A.

NOTE: This equipment has been tested and found

to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equip-

ment generates, uses, and can radiate radio fre-

quency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is

likely to cause harmful interference in which case

the user will be required to correct the interference

at his own expense.

FCC CAUTION: Changes or modifications not

expressly approved by the party responsible for

compliance could void the user's authority to oper-

ate the equipment.

For U.S.A.

Supplier’s Declaration of conformity

Trade name : i-PRO

Model No. : WV-X6533LN, WV-S6532LN

Responsible Party :

i-PRO Americas Inc.

8550 Fallbrook Drive, Suite 200 Houston,

Texas 77064

Support Contact : 1-800-513-5417

This device complies with part 15 of FCC Rules

and Innovation, Science and Economic

Development Canada’s licence-exempt RSS(s).

Operation is subject to the following two condi-

tions :

(1)This device may not cause harmful inter-

ference, and (2) this device must accept any inter-

ference received, including interference that may

cause undesired operation.

For U.S.A. and Canada

Important safety instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

6) Only use attachments/accessories specified by the manufacturer.

7) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury

from tip-over.

S3125A

8) Unplug this apparatus during lightning storms or when unused for long periods of time.

9) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been dam-

aged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have

fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally,

or has been dropped.

Troubleshooting

Before requesting service, refer to “Troubleshooting” of Important Information in the CD-ROM

and Operating Instructions on our support website. Then, confirm the trouble.

Included Installation Instructions

Open Source Software

󱾀This product contains open source software licensed under GPL (GNU General Public License),

LGPL (GNU Lesser General Public License), etc.

󱾀Customers can duplicate, distribute and modify the source code of the software under license of

GPL and/or LGPL.

󱾀Refer to the “readme.txt” file on the provided CD-ROM for further information about open source

software licenses and the source code.

󱾀Please note that we shall not respond to any inquiries regarding the contents of the source code.

Product documentation is composed of the following documents.

󱾀Installation Guide (this document): Explains installation, mounting, cable connections, and

network connections. This manual uses the WV-X6533LN as an example in the explanations.

󱾀Important Information (included in the CD-ROM):

Provides basic information about the prod-

uct such as Precautions for installation, Parts and functions, etc..

󱾀Operating Instructions (on our support website): Explains how to perform the settings and

how to operate this camera.

"<Control No.: C****>" used in this document should be used to search for information on our

support website and will guide you to the right information.

Note:

• The external appearance and other parts shown in this manual may differ from the actual

product within the scope that will not interfere with normal use due to improvement of the

product.

• SDXC/SDHC/SD memory card is described as SD memory card.

IMPORTANT:

• Refer to our website

(https://i-pro.com/global/en/surveillance/training_support/

support/technical_information <Control No.: C0120>) for

information on the minimum pull-out strength.

• Prepare four mounting screws (M10) to be mounted on ceiling or

wall separately.

• Select screws according to the material of the location that the

camera will be mounted to. In this case, wood screws and nails

should not be used.

• If the mounting location such as plaster board is too weak to

support the total weight, the area shall be sufficiently reinforced.

SD slot SD memory card

(with label facing down)

SD slot cover

【2】

Prepare the cables from camera side.

◆ When the only necessary connection to

camera is an Ethernet cable

Do not remove the cable case (2 positions),

use it as it is.

◆When using 24 V AC, EXT I/O device, or

audio I/O device

Using a Phillips screwdriver detach each cable

case fixed to the top of the camera by 4

screws (M4), and pull out the cable stored

inside. Discard the cable case.

RJ45

Network

cable

Alarm input/output·

Audio input/output

cable

Power supply

terminal

(24 V AC)

Power cable case

Multi cable case

Indication

label

SD slot cover fixing screws

SD guide rib

For U.S. and Canada:

i-PRO Americas Inc.

https://www.i-pro.com/

Ns0319-3042 PGQX2307WA Printed in China

For Europe and other countries:

i-PRO Co., Ltd. Fukuoka, Japan

https://www.i-pro.com/

i-PRO EMEA B.V. UK Branch

1010 Cambourne Business Park,

Cambridgeshire CB23 6DP

Authorised Representative in EU:

i-PRO EMEA B.V.

Laarderhoogtweg 25, 1101 EB

Amsterdam, Netherlands

Fixing screws (4 pcs.) (M10: locally procured)

180~190 mm

{7-3/32 inches~

7-15/32 inches}

Step2 Making connections

【1】

Connect an Ethernet cable (category 5e or better, straight) to RJ45 network

cable.

IMPORTANT:

• If the procedure for the RJ45 waterproof connector (accessory) part is not correctly fol-

lowed, the waterproofing may be compromised. Do not install the camera where the RJ45

waterproof connector is exposed to constant rain or moisture.

• When removing the RJ45 waterproof connector, be sure to loosen the RJ45 waterproof connector

cap first, rotate the RJ45 waterproof connector cover in the direction opposite to the attaching

direction, and remove it. (If the RJ45 waterproof connector cover is removed when the “

⇦ : LOCK”

mark of the RJ45 waterproof connector cover is aligned with the “

▶” mark of the RJ45 waterproof

jack, the RJ45 waterproof jack may be damaged).

IMPORTANT:

• The 24 V AC power supply shall be insulated from the commercial AC power.

• Be sure to use the 24 V AC power supply connector kit (accessory) provided with this product.

• After processing 24 V AC connector, actually connect it to the camera and ensure it operates

normally before using it.

• Be sure to fully insert the 24 V AC power supply connector into the power supply terminal (24 V

AC). Otherwise, it may damage the camera or cause malfunction.

• When installing the camera, make sure that excessive force is not applied to the power cable.

【2】Assemble 24 V AC connector kit (accessory) and connect it to the power

supply terminal (24 V AC) of camera body as occasion demands.

① Insert the RJ45 plug (locally procured) into

the RJ45 waterproof jack from the

camera.

② Insert the RJ45 waterproof connector

cover so that the “ : OPEN” mark aligns ⊲

with the

“▶” mark

of the RJ45 waterproof

jack, and rotate in the direction of the

arrow in the illustration at right until

matching with the

“⇦ : LOCK” mark

③

Connect the RJ45 waterproof connector cap

(accessory) to the RJ45 waterproof connector

cover and rotate the RJ45 waterproof

connector cap until there is no gap between it

and the RJ45 waterproof connector cover.

① Array of pins of connector housing (accessory)

Pin No.

Signal

24 V AC LIVE (Brown)

24 V AC NEUTRAL (Blue)

Ground (Black)

Not use

This illustration represents WV-X6533LN.

Cable

Contact (accessory)

Power supply connector housing (accessory)

Upper

Approx. 3 mm {1/8 inches} Cable

Insert Contact

(accessory)

Upper

• Remove approx. 3 mm {1/8 inches} of the

outer jacket of the cable and twist the cable

core to prevent the short circuit first.

• Insert the tip of the cable into the point A of

the contact (accessory), and hold the cable

using the cable clamp.

• Procure either of the following tools for

clamping.

Molex manual clamp tool:

57027-5000 (For UL1015),

57026-5000 (For UL1007)

• After clamping the contact and the cable,

insert the contact properly into the power

supply connector housing.

② How to assemble the 24 V AC power supply connector kit

Step1 Fix the mount bracket and hang the camera (continued)

Here explains an example of installation on a wall

using wall mount bracket (WV-Q122A). For detailed

installation information and procedure, refer to

operating instructions of each mount bracket.

【3】Process the installation surface.

Decide the attachment position and bore holes for

screws or anchors on the wall and a hole for wiring

as occasion demands.

【4】

Pass a cable into mount bracket and fix it

on the installation surface.

①

Insert the cables coming from installation surface from rear

surface of mount bracket to internal and pull them out from

camera attachment port (cable cover attachment side).

When passing the cables into mount bracket, take

care not to apply unreasonable force to the cables.

②

Apply waterproof treatment to the drilled installation

surface and the cap of the mount bracket back-

side.

③ Attach the mount bracket to wall surface using

fixing screws (4 pcs.) (M10: locally procured).

【6】

Attach the cable cover (accessory) to the

mount bracket.

① Fix the cable cover to the mounting bracket using

special hexagonal screws and locking washers by

tightening the screws using a hexagonal wrench

for M5 screw (locally procured).

Adjust the direction of the cable cover so that the

“REAR” mark of the cable cover points towards

the mount bracket.

Recommended tightening torque:

9.8 N·m{7.23lbf·ft}

IMPORTANT:

• Camera mounting screw (hexagon screw (M6))

included with

WV-Q121B / WV-Q122A / WV-Q185

cannot be used. Use the special hexagon screw

that has a large washer included with the camera.

② Remove the tape as the installed auxiliary wire is

temporarily fixed to the inside of the cable cover

with tape.

IMPORTANT:

• After waterproofing the hole for fixing mount bracket, the port for pulling out the cable on

installation surface, and the cap part on rear surface of mount bracket, fix the mount

bracket on the installation surface.

• Fixing screw: Minimum pull-out strength (per 1 pc.)

WV-Q121B 1411 N {317 lbf}

WV-Q122A 823 N {185 lbf}

• Adjust the length of cable from camera attachment port of mount bracket to cable end to

180~190 mm {7-3/32 inches~7-15/32 inches}. (If the cable that is pulled out is too long,

storage after wiring becomes difficult. On the contrary, if it is too short, the cable cannot

reach to the camera when installing the camera. Adjust the cable length carefully.)

The following works are common to WV-Q121B / WV-Q122A (option) and mount bracket (locally procured).

IMPORTANT:

• The maximum length of the Ethernet cable (locally procured) is 100 m {Approx. 328 ft}, and

the external dimensions of it are from ø5 mm {ø3/16 inches} to ø6.5 mm {ø1/4 inches}.

【5】

Process the Ethernet cable (locally procured) and attach

the waterproof connector cover and cap (accessory).

First pass the Ethernet cable through the RJ45

waterproof connector cap (accessory) and then

through the RJ45 waterproof connector cover

(accessory). Next, use a specialized tool (locally

procured) to crimp the RJ45 plug (locally procured) to

the end of the Ethernet cable.

RJ45

waterproof

connector

cover

(accessory)

RJ45

waterproof

connector cap

(accessory)

RJ45 plug

(locally

procured)

Ethernet cable (locally procured)

Note:

• The horizontal and vertical rotating parts of the

camera are fixed by tape. Do not remove the

tape until fixing of the camera is completed.

• The camera is not fixed. Take care not to hit

the camera against periphery.

• Retain a work space of 800 mm

{31-1/2 inches}

or more from the cable cover to the ground

surface when you hang the camera from it.

• The installed auxiliary wire and the safety wire

are designed assuming the only camera is

suspended. Do not hang any object other than

the camera.

Mount bracket (example: WV-Q122A)

180~190 mm

{7-3/32 inches~

7-15/32 inches}

Camera

attachment port

RJ45

waterproof

jack

RJ45

waterproof

connector

cover

(accessory)

RJ45

waterproof

connector

cap

(accessory)

RJ45 plug

(locally

procured)

Cap

Cable cover

(accessory)

Installed

auxiliary wire

Mount bracket

(example: WV-Q122A)

Front of the bracket

Special hexagon screws

(With locking washers)

Wire stopper

Wire hook

section

Mount bracket

(example: WV-Q122A)

Cable

cover

Wire hook on the upper part of camera

Camera

body

②Safety wire

①Installed

auxiliary wire

REAR mark

【7】

Hang the camera from the installed auxiliary

wire of the cable cover, and attach the safety

wire to the mounting bracket.

① Move the camera to the installation location and

hitch the installed auxiliary wire of the cable cover

to the wire hook on the upper part of camera.

Next, lower the wire stopper to prevent the

installed auxiliary wire from coming off.

② Attach the safety wire of the camera to the wire

hook section of mount bracket.

For the safety wire attachment position, refer to

operating instructions of each mount bracket.

Step2 Making connections (continued)

【4】Connect 8P alarm cable (accessory) as occasion demands.

Note:

• The default of EXT I/O terminals is “Off”. Refer to the Operating Instructions on our

support website for further information about the EXT I/O terminal settings.

【5】Connect a microphone or external audio line to the audio input cable as

occasion demands.

【7】

If you use a cable other than Ethernet

cable, waterproof it.

The camera body is waterproof, but the cable

ends are not waterproof. Waterproof the

connection part of each cable.

＜Waterproof treatment＞

Waterproof by using the waterproof tape

(accessory) as shown in the right-hand figure.

Note:

• The audio output can be switched to monitor output. The default is “Audio”. Refer to the

Operating Instructions on our support website for descriptions of how to switch the output.

• If the audio output is used for the monitor output, connect a ø3.5 mm

stereo mini plug (locally procured) to the wire as shown in the right figure

and use it.

IMPORTANT:

• Stretch the tape by approx. twice (see the illustra-

tion) and wind it around the cable. Insufficient tape

stretch causes insufficient waterproofing.

Waterproof tape (accessory)

Wind the tape in a

half-overlapping

manner

Stretch the tape to approx.

twice its length.

ALARM IN1 (Alarm input1 / Black & white input / Auto time adjustment input) (Black)

GND (Brown)

ALARM IN2 (Alarm input2 / Alarm output) (Red)

GND (Orange)

ALARM IN3 (Alarm input3 / AUX output) (Yellow)

GND (Light blue or green)

Unused (Blue)

Unused (Purple)

For details on adjustment of angular field of view of

camera, refer to Operating Instructions on our

support website.

Note:

• Attach the “Rain wash coating label” carried by the camera to the surface of the camera (Refer to

the illustration below).

GNDVideo output

N.C.

Step3 Fixing the camera

Note:

• Since the fixing screw is a special hexagon

screw, use a hexagon wrench for M5 (locally

procured).

• Bend it to the inside of the cable cover to pre-

vent the installed auxiliary wire and the wiring

section from being caught in the periphery of

the cable cover.

① Make the i-PRO logo mark on the camera body face

the front side, and adjust so that the right end of the

drain port at the rear part of the camera is aligned

with the right edge of the leading letter R of the

“REAR” mark on the cable cover rear part. (See the

top illustration at right.)

② Insert the positioning pins (3 pcs.) on the upper part

of camera into the cable cover attachment hole.

③ Rotate the camera part in a clockwise direction

when looking from the bottom and confirm that the

right end of the drain port at the rear part of the

camera comes up to and is provisionally fixed at the

right end of the last letter R of the “REAR” mark on

the rear part of the cable cover.

(See the middle illustration at right.)

④ Remove the buffer material attached to the three

special hexagonal screws (fixing screws) of the cable

cover, and securely tighten the screws.

(See the bottom illustration at right.)

Recommended tightening torque:

2.45 N·m {1.81 lbf·ft}

【1】Attach the camera to the cable cover (accessory).

【3】Recommended wire rod and wire length

AWG size

(stranded wire)

#24

(0.22 mm2)

#22

(0.33 mm2)

#20

(0.52 mm2)

#18

(0.83 mm2)

Wire length

5 m {16.4 ft}

15 m {49.2 ft}

20 m {65.6 ft}

The above illustration is when applying

waterproof treatment to the multi cable.

Caution:

• A READILY ACCESSIBLE DISCONNECT DEVICE SHALL BE INCORPORATED TO THE

EQUIPMENT POWERED BY 24 V AC POWER SUPPLY.

• ONLY CONNECT 24 V AC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED POWER

SOURCE (IEC/EN/UL/CSA 60950-1).

• ONLY CONNECT POWER OVER ETHERNET 54 V DC or PoE+ 54 V DC LIMITED POWER

SOURCE (IEC/EN/UL/CSA 60950-1).

【】【】2 3 Power supply terminal

(24 V AC)

【】4 Alarm input/output cable

【】5 Audio input cable (white)

To a plug-in power type microphone or external audio line

【】6 Audio output cable (black)

To an external powered speaker

【】4 8P alarm cable (accessory)

To a sensor

Ethernet cable

(category 5e or better, straight)

【】1 RJ45 Network cable

【】1 RJ45 waterproof connector (accessory)

GND

To a PoE+ hub

To the power supply (24 V AC 50 Hz/60 Hz)

Brown

Blue

Black

Multi cable

Ethernet cable

Camera front

direction

Drain port at the rear

part of camera

Drain port at the rear

part of camera

Special hexagon

screw(3 pcs.)

Cable cover

(accessory)

Positioning

pin (3 pcs.)

Cable cover

(accessory)

Positioning

pin (3 pcs.)

【2】

When the camera has been installed, remove the tape

fixing the horizontal and vertical rotation parts and

the protection sheet of the front panel top surface.

【3】

Turn on the power supply of camera and check the

screens of camera following Step 4 “Configure the

network settings” and adjust the angular field of view.

• After removal, be sure not to touch the clear part of

the front panel.

• Before turning on the power supply of the camera, be

sure to detach the tape fixing the panning and tilting

parts.

• Take care not to remove the rubber parts from inside the RJ45 waterproof connector cover (accessory).

IMPORTANT:

• Before connecting the cables to the camera, be sure to turn off the power supply of the sys-

tem, and confirm that no power is being supplied to the camera.

• If the power supply is turned on while the movable parts of the camera are fixed by tape, the

operations of trying to perform panning, tilting, and stopping are repeated. Turn off the power

supply to the camera and continue the connecting work. In addition, it will not operate pan-

ning and tilting when the camera is in the horizontally laid state during prior preparations, etc.

【6】

Connect a powered speaker to the audio output cable as occasion demands.

■Indicators and switch

①INITIAL SET switch

(OFF ON)⇔②LINK indicator

③ACT indicator

④SD ERROR indicator

SD slot

BLINK indicator

CACT indicator

• When data is being sent via the camera Blinks green (accessing)

• When the camera is able to communicate with Lights orange

the connected device

DSD ERROR indicator

• When the camera is being started Lights red

• When an SD memory card is recognized normally Lights red

→ Lights off

• When the SD slot is not used or an abnormality is Lights red

→ Stays red

detected in the SD memory card after the camera has started

AINITIAL SET switch

(OFF⇔ON)

Step4 Configure the network settings

Download and start [IP Setting Software] <Control No.: C0123> or [i-PRO Conﬁ guration Tool

(iCT)] <Control No.: C0133> on our technical information support site (https://i-pro.com/global/

en/surveillance/training_support/support/technical_information), and connect to the network.

Termékspecifikációk

Márka:	I-PRO
Kategória:	Térfigyelő kamera
Modell:	WV-X6533LN

Szüksége van segítségre?

Ha segítségre van szüksége I-PRO WV-X6533LN, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek

Az Ön neve*

Az Ön e-mail címe*

Írja ide kérdését

Útmutatók Térfigyelő kamera I-PRO

I-PRO WV-X35402-F2LM Útmutató

12 December 2024

I-PRO WV-X6533LN Útmutató

12 December 2024

I-PRO WV-U2542LA Útmutató

11 December 2024

I-PRO B-200-PTZ Útmutató

11 December 2024

I-PRO WV-U2130LA Útmutató

11 December 2024

I-PRO WV-S8531N Útmutató

7 December 2024

I-PRO WV-U65301-Z1 Útmutató

7 December 2024

I-PRO WV-S22600-V2LG Útmutató

7 December 2024

I-PRO WV-S65301-Z1 Útmutató

7 December 2024

I-PRO WV-SBV131M Útmutató

4 Szeptember 2024

Útmutatók Térfigyelő kamera

Legújabb útmutatók Térfigyelő kamera

Imou Cubo1 Útmutató

12 December 2024

IDIS DC-D4831HRX Útmutató

12 December 2024

Axis P1455-LE-3 Útmutató

12 December 2024

Milesight MS-C8165-PA Útmutató

12 December 2024

Milesight MS-C2964-PD Útmutató

12 December 2024

Enabot ROLA PetPAl Útmutató

12 December 2024

AViPAS AV-2000W Útmutató

11 December 2024

ClearOne Unite 260 Pro Útmutató

11 December 2024

Foscam PD5 Útmutató

10 December 2024

TP-Link InSight S245 Útmutató

10 December 2024
