Oldal 1/44

(English Version)

FROM SERIAL NO: 397S001001, 398S001001, 399S001001 HANDBOOK: 397011 (Rev.0)

ISSUE 6.07.99

CODE

397S . 398S . 399S

(Push) (Auto Drive) (Auto Drive)

4 Speed

RANGER

OWNER'S HANDBOOK

CERTIFICATE OF CONFORMITY

I, the undersigned M.A. Wright, of:

HAYTER LIMITED, Spellbrook, Bishop’s Stortford

Herts CM23 4BU

ENGLAND

certify that the lawnmowers:

CODE 397S CODE 398S CODE 399S

1. Machine Type No. 397S 398S 399S

2. Category. Combustion Engine Combustion Engine Combustion Engine

3. Make. Hayter Hayter Hayter

4. Type. Rotary Rotary Rotary

5. Engine - Manufacturer. Briggs & Stratton Briggs & Stratton Briggs & Stratton

- Type. 127802-1592-21 127802-1592-21 127802-1592-21

- Speed of rotation during test. 2830rpm 2830rpm 3000rpm

Conforms to the specifications of Directive 84/538/EEC as adapted to technical

progress by Directive 87/252/EEC and amended by Directive 88/180/EEC.

Guaranteed maximum sound power level. 96dB(A) 96dB(A) 100dB(A)

- Type of cutting device Cutterbar Cutterbar Cutterbar

- Width of cutting device 48cm 48cm 53cm

- Speed of rotation of the cutting device 2830 rpm 2830 rpm 3000 rpm

TESTED AT SUDBURY, 26/01/99 26/01/99 26/01/99

SUFFOLK, ENGLAND

M.A. Wright

(Technical Director)

Signed

EC DECLARATION OF CONFORMITY

Company Name HAYTER LIMITED

Company Address Spellbrook

Bishop’s Stortford

Herts. CM23 4BU

ENGLAND

Machine Type No.. Code 397S Code 398S Code 399S

Models

Directives complied with: 98/37/EC.

Essential Health & Safety Requirements Relating to the Design & Construction of Machinery

and Safety Components.

84/538/EEC amended by 87/252/EEC and 88/180EEC Permissible Sound Power Levels of Lawn Mowers

89/336/EEC amended by 92/31/EEC Electromagnetic Compatibility

Standards Used: EN292, EN836, and ENIS0 14982.

I declare on behalf of Hayter Limited that these machines conform to the EC Essential Health & Safety

Requirements.

Date: 6.07.99

M.A. Wright

(Technical Director)

Signed

VIBRATION INFORMATION

Lawnmower vibration information. RMS acceleration measured in 3 - axes at operators contact position on the

handlebars. CODE 397S, 398S = 6.8ms-2 CODE 399s = 7.3 -2

1.11.1 CONTENTS

Page No.

CONTENTS

INTRODUCTION.

WARRANTY.

SAFETY PRECAUTIONS.

Decals

SPECIFICATIONS.

ASSEMBLY INSTRUCTIONS.

General Assembly.

Assembling the Mower for the First Time.

STARTING THE ENGINE.

Before Starting the Engine.

To Start the Engine.

STOPPING THE ENGINE.

OPERATING THE MOWER.

Height of Cut.

Travel.

Turning the Mower.

Mowing with Grass Collection.

Mowing without Grass Collection.

Heavy Growth.

Moving the Mower Across Non-Grassed Areas.

Cutterbar Operation.

Mowing and Grass Care Tips.

MAINTENANCE.

Engine.

Oil Service

Air Cleaner Service

Grassbag

Deck Housing

Securing Nuts and Bolts

Lubrication

Speed Change Cable

Clutch Cable Adjustment

Cutterbar

Maintenance Schedule

- After First 5 Hours

- Every 5 Hours or Daily

- Every 25 Hours or Every Season

- Every 50 Hours or Every Season

- Every 100 Hours or Every Season

1.3

1.4

1.5 - 1.8

1.8

1.9

1.10 - 1.12

1.10

1.11 - 1.12

1.13 - 1.14

1.14

1.15

1.16 - 1.21

1.16

1.17

1.18

1.19

1.20

1.20 - 1.21

1.22 - 1.29

1.22

1.23

1.24

1.25

1.26

1.26 - 1.27

1.28 - 1.29

1.28

1.29

397011MA260599A

1.21.2 CONTENTS

Page No.

CONTENTS

PREPARING THE MOWER FOR STORAGE.

FAULT FINDING.

397S, 398S, 399S PARTS LIST.

397S PARTS LIST DIAGRAM.

398S PARTS LIST DIAGRAM.

399S PARTS LIST DIAGRAM.

ENGINE ANCILLARY PARTS

ENGINE WARRANTY

NOTES

CUSTOMER INFORMATION

1.30

1.31 - 1.33

2.1 - 2.3

2.4

2.5

2.6

2.7

2.8

2.9

2.10

1.31.3

INTRODUCTION

Thank you for purchasing a mower. The following pages are designed to help youHayter

gain safe and efficient service from your machine.

IMPORTANT: This ‘Owners Handbook’ should be regarded as part of the machine as it

gives essential information regarding machine safety, operation, maintenance and

specifications. Read and understand this handbook prior to operating your machine for the

first time. Make sure you are familiar with all the controls and points of regular maintenance.

If you have any doubts, consult your authorised dealer who will be pleased to giveHayter

you assistance.

IMPORTANT: This machine is designed solely for use in a domestic grass cutting

environment. Use in any other way is considered as contrary to the intended use. Compliance

with and strict adherence to the conditions of operation, service and repair as specified in this

handbook also constitute essential elements of the intended use.

This machine should be operated, serviced and repaired only by persons who are familiar with

its particular characteristics and who are acquainted with the relevant safety procedures.

The safety precautions listed here in and all other generally recognised regulations on safety

must be observed at all times.

Any arbitrary modifications carried out to this machine may relieve Hayter Limited of

liability for any resulting damage or injury.

All Hayter mowers are robustly constructed and designed for efficient economical

performance under normal mowing conditions. Correct operation and maintenance will

ensure a long and satisfactory service life. Prior to despatch from our factory every effort is

made to ensure your machine arrives in perfect condition. Your dealer will carry out a

pre-delivery inspection to ensure that there has been no transit damage prior to installation.

Please allow your dealer to familiarise you with the controls and safety features of the

machine during installation.

Throughout this handbook all references to left hand and right hand are as viewed from

behind the handlebar, facing in the direction of forward travel.

This owners handbook is based on information available at the time of publication.

HAYTER LIMITED reserve the right to make changes at any time without notice.

INTRODUCTION

397011MA260599A

1.41.4 WARRANTY

LIMITED WARRANTY

Hayter Limited warrants to the original user/purchaser that this unit shall be free from defects

in material and workmanship under normal use and service for a period of from thethree years

date of purchase. The manufacturers of the engine and battery pack system (where applicable)

furnish their own warranty and services are provided through their authorised network (Refer to

"Engine/Battery Pack Warranty Statement"). To qualify for the full benet of the warranty, the

warranty registration card must be returned within 60 days of purchase. Subject to the conditions

and exclusions noted in this limited warranty, we shall at our option, repair or replace any

warranted part during the applicable period. If you are in doubt or experience any difficulty,

please consult a Hayter Authorised Service Dealer for clarication.

To qualify for the extended warranty (second and third year) of the three year limited warranty

the machine must have annual services carried out by an Authorised Hayter Service Dealer.

These chargeable services should be carried out within 12 and 24 months of the date of purchase.

Excluded from the extended warranty period are those items which are subject to normal wear

and tear e.g. tyres, wheels, cutterbars, cables, batteries and other consumable wearing parts.

All genuine consumer machines which are fitted with a Hayter friction disc as original

equipment before use, are covered by a against the engine crankshaft Lifetime Warranty

bending. Note: friction washers, blade brake units and other such devices are not applicable.

Only machines tted with a Hayter friction disc, which are used in accordance with the genuine

recommended operating and maintenance procedures, are covered.

This warranty does not apply to any unit that has been tampered with, altered, misused, abused or

used for hire, and will become invalid if non genuine Hayter parts are tted. This warranty does

not cover minor mechanical adjustments unless they are due to defective material or

workmanship. Consult the Owner's Handbook or a Hayter Authorised Service Dealer for

assistance when making these adjustments.

A warranty period of 90 days applies to machines used for commercial purposes.

To make a warranty claim, return the unit to a Hayter authorised dealer along with proof of

purchase stating the machine serial number and date of purchase. The service receipt(s) or this

Owners Handbook with the 1st/2nd year service boxes fully completed, must be produced as

proof of entitlement to the extended warranty period. Subject to the conditions and exclusions in

this limited warranty, the authorised dealer will, at our option, repair or replace any warranted

part within the duration of the warranty period.

This limited warranty gives you specic legal rights and is in addition to any statutory rights to

which you may be entitled and your statutory rights are not aected by this warranty. If you need

additional information concerning this written warranty, or assistance in obtaining services,

please write to : HAYTER LIMITED, Service Department, Spellbrook, Bishop's Stortford,

Hertfordshire CM23 4BU

UK ONLY: Details of your local authorised dealer are contained in Yellow Pages or Hayter

contact:- Freephone 0800 616298.

Date.................................................................... Date.............................................................

Signed................................................................ Signed..........................................................

D E A L E R S T A M P

1st Year

Service

Record

2nd Year

Service

Record

397011MA260599A

1.51.5 SAFETY PRECAUTIONS

SAFETY PRECAUTIONS

Training:

Read the instructions carefully. Ensure that you are familiar with the controls and the proper use of

the equipment. Learn how to stop the mower quickly in an emergency.

Never allow children or people unfamiliar with these instructions to use the mower.

Never mow while people , especially children, or pets are nearby.

Keep in mind that the user is responsible for accidents or hazards occurring to other people or their

property.

Preparation:

While mowing, always wear substantial footwear and long trousers. Do not operate the equip-

ment when barefoot or wearing sandals.

Thoroughly inspect the area where the mower is to be used and remove all objects which may

be thrown by the machine.

WARNING: Petrol is highly flammable.

- Store fuel in containers specifically designed for this purpose.

- Refuel outdoors only and do not smoke while refuelling.

- Add fuel before starting the engine. Never remove the cap from the fuel tank or add petrol

while the engine is running or when the engine is hot. Allow the engine to cool for at least 2

minutes before refuelling.

- If petrol is spilled, do not attempt to start the engine but move the mower away from the area

of spillage. Avoid creating any source of ignition until petrol vapours have dissipated.

- Always use fresh fuel. Stale fuel can block the carburettor.

- Replace fuel tank caps and fuel container caps securely.

Replace faulty exhaust mufflers.

THIS SYMBOL MEANS BE ALERT! YOUR SAFETY IS INVOLVED.

WHEN YOU SEE THIS SYMBOL BE ALERT TO THE POSSIBILITY

OF INJURY. CAREFULLY READ THE MESSAGE THAT FOLLOWS

AND INFORM OTHERS.

EXERCISE GREAT CARE AND FOLLOW THE ADVICE GIVEN TO

AVOID POTENTIALLY HAZARDOUS SITUATIONS.

The Ranger is perfectly safe if used correctly. Failure to observe the

following simple precautions may result in serious injury.

397011MA260599A

1.61.6 SAFETY PRECAUTIONS

SAFETY PRECAUTIONS Continued.

Operation:

Do not operate the engine in a confined space where dangerous carbon monoxide fumes can

collect.

Always pull starter cord slowly until resistance is felt. Then pull the cord rapidly to avoid kick-

back and prevent hand or arm injury.

Mow only in daylight or good artificial light.

Avoid using the mower on wet grass, where feasible.

Always be sure of your footing on slopes.

Walk, never run.

Mow across the face of slopes, never up and down.

Exercise extreme caution when changing direction on slopes.

Do not mow excessively steep slopes.

Use extreme caution when reversing or pulling the mower towards you.

Stop the engine if the mower has to be tilted for transportation when crossing surfaces other

than grass and when transporting the mower to and from the area to be mowed.

Never operate the mower unless the guards are securely in position and in good condition.

Do not change the engine governor settings or overspeed the engine.

Disengage the drive clutch before starting the engine. (Auto drive models only).

Always ensure that the mower is in a safe operating condition. Frequently check all nuts, bolts

and screws for tightness. Use only genuine replacement parts.Hayter

A damaged cutterbar or loose fixing bolt are major hazards. Before use, visually inspect the

cutting mechanism to ensure that it is in good condition. A damaged cutterbar must be replaced

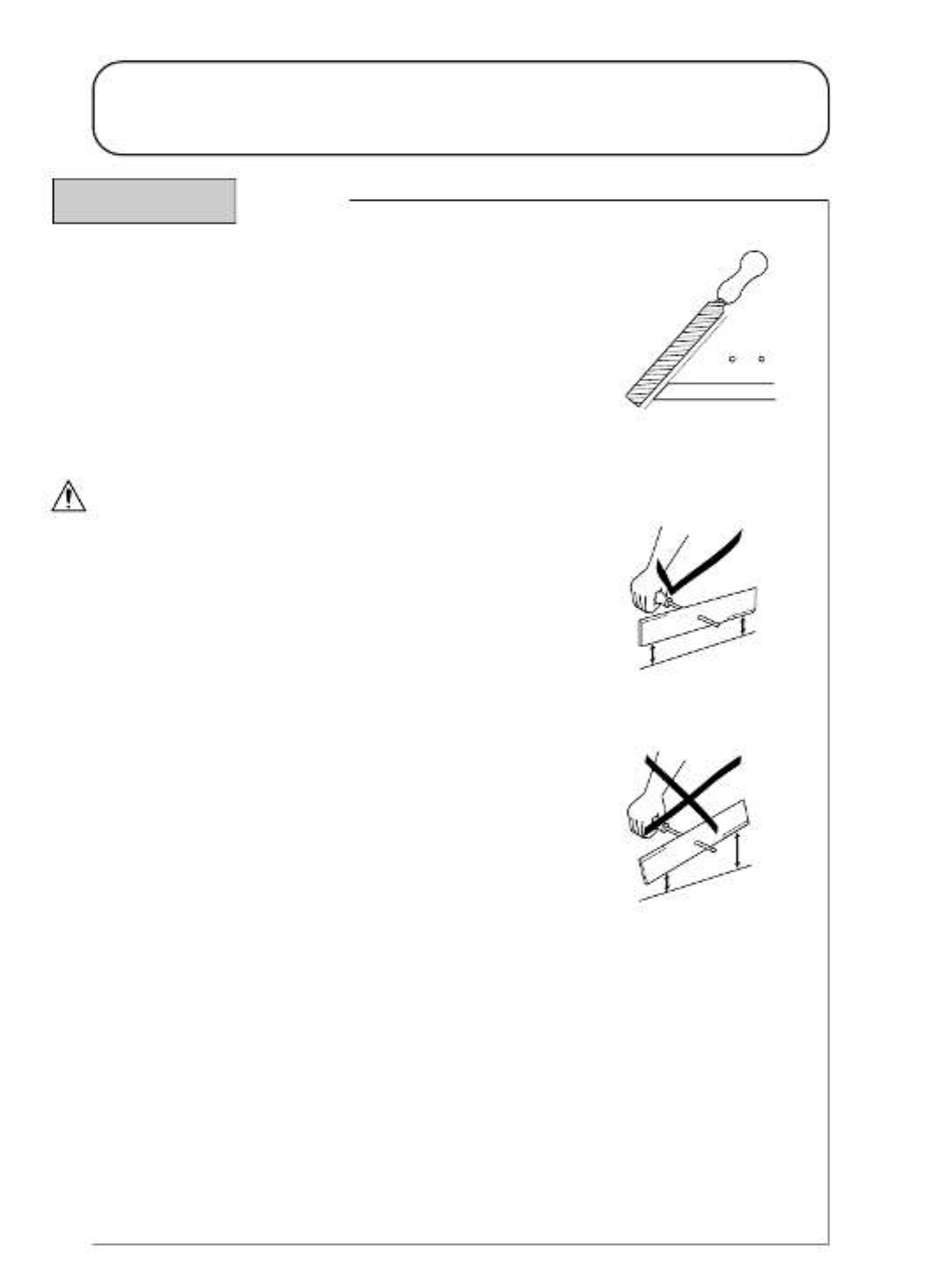

immediately with a genuine replacement part. Cutterbars which are slightly worn canHayter

be resharpened. Ensure that both cutting edges are resharpened equally to maintain balance.

An unbalanced cutterbar may cause serious damage to your machine.

Refer to "Maintenance."

397011MA260599A

Operation continued:

Start the engine carefully, with feet well away from the cutterbar.

Do not tilt the mower when starting the engine.

Do not put hands or feet near or under rotating parts.

Never pick up or carry a mower while the engine is running.

Stop the engine and disconnect the spark plug lead:

- Before clearing blockages or unclogging the discharge chute.

- Before cleaning/checking or working on the mower.

- After striking a foreign object. Inspect the mower for damage and make repairs

before restarting and operating the mower.

- If the mower starts to vibrate abnormally ( check immediately ).

Stop the engine:

- Whenever you leave the mower.

- Before refuelling.

Never lift the deflector plate whilst the mower is in operation.

Maintenance and Storage:

Keep all nuts, bolts and screws tight to ensure that the equipment is in safe operating

condition.

Frequently check fuel lines and fittings for cracks or leaks and replace if necessary.

Never check for a spark with the spark plug removed. (Use an approved tester).

1.71.7 SAFETY PRECAUTIONS

WARNING: THE CUTTERBAR CAN CONTINUE TO ROTATE

AFTER THE ENGINE IS SWITCHED OFF.

SAFETY PRECAUTIONS Continued.

397011MA260599A

1.81.8 SAFETY PRECAUTIONS

SAFETY PRECAUTIONS Continued.

Never crank the engine with the spark plug removed. If the engine is flooded, move the throttle

to the position and crank the engine until it starts.‘fast’

Never strike the flywheel with a hammer or hard object as this may cause the flywheel to shat-

ter in operation. Always use the correct tools to service the engine.

Never operate the engine without a muffler guard. Inspect the muffler periodically and replace

if worn or leaking.

Never start the engine with the air-cleaner or air-cleaner cover removed.

Never store the mower with petrol in the tank within an enclosed area where fumes may reach

an open flame or spark.

Allow the engine to cool before storing in any enclosure.

To reduce the fire hazard, keep the engine, muffler, cooling fins and petrol storage area free of

grass, leaves, or excessive grease.

Replace worn or damaged parts for safety.

If the fuel tank has to be drained, it is essential that this be done outdoors.

DECALS

WARNING DECAL: Part No. 219189

DANGER OF BEING HIT BY THROWN OBJECTS.

KEEP BYSTANDERS AT A SAFE DISTANCE

FROM THE MACHINE.

WARNING - CAUTION RISK OF DANGER - SAFETY ALERT.

DANGER OF SEVERING TOES OR FINGERS

IN CUTTING MECHANISM.

STOP ENGINE AND REMOVE SPARK PLUG LEAD BEFORE

PERFORMING MAINTENANCE OR REPAIR WORK.

CAREFULLY READ THE OPERATORS MANUAL BEFORE

USING THE MACHINE.

DECAL : HEIGHT OF CUT ADJUSTMENT

Part No. 320006

STOP

DECAL: ENGINE STOP

Part No. 331046

THROTTLE CONTROL

397011MA260599A

Briggs & Stratton Quantum XTL 45

127802-1592-21

2830rpm 3000rpm

Unleaded petrol.

1.5 litres

SAE 30 engine oil

0.6 litres

480mm 530mm

20 - 70mm 30 - 80mm

1070 x 530 x 1400mm 1080 x 570 x 1560mm

33kg 33.5kg 37.5kg

1.91.9 SPECIFICATIONS

SPECIFICATIONS

CODE 398S

(Auto-Drive)

Engine

Engine type

Engine / cutterbar

speed

Fuel type

Fuel capacity

Oil type

Oil sump capacity

Cutting width

Cutting height

Overall dimensions

Dry Weight

CODE 397S

(Push)

MODELS CODE 399S

(Auto Drive 4 - Speed)

397011MA260599A

1.101.10 ASSEMBLY INSTRUCTIONS

SAFETY NOTICE

ASSEMBLY INSTRUCTIONS

GENERAL ASSEMBLY

Before using the mower, read this owners handbook carefully.

Pay particular attention to the safety precautions.

Spark Plug lead

Air Cleaner

Engine Cowl

Serial No. Label

Fuel Cap.

Height of Cut Adjuster.

Handlebar Securing Knob.

Engine Start-Grip.

Variable Speed Control (399S only)

Engine Stop lever.

Handlebar.

Ground Drive Clutch Lever (398S & 399S only)

Throttle Control

Grassbag Assembly.

Rear Deflector.

Handlebar Height Adjusting Knob.

Handlebar Height Adjusting Fixing Screw.

Oil Filler Cap and Dipstick

Muffler Guard

1D399S

4 5

397011MA260599A

1.111.11

Check that parts are delivered correctly: Remove the

mower from the packaging and check that all loose items

have been supplied correctly. Refer to the delivery checklist

opposite and the general assembly. If any items are missing,

contact your local authorised Hayter Dealer.

Description

Grassbag

Owner's Handbook

Engine Handbook

Warranty Reg. Card

DELIVERY CHECKLIST

ASSEMBLING THE MOWER FOR THE FIRST TIME

ASSEMBLY INSTRUCTIONS

Quantity

Assemble the handlebar: Unscrew the knobs securing the

handlebar sufficiently to allow it to be pivoted. Move the

engine stop lever away from the engine to avoid damage and

unfold the handlebar to its operating position. Tighten the

two knobs to secure the handlebar, ensure that the knobs are

assembled to the outside of the handlebars.

Adjust height of handlebars: Using a suitable spanner or

socket. Loosen the 2 fixings at the base of the handlebars.

Unscrew the 2 lower knobs sufficiently to allow handlebars to

pivot. Set the required position and re-tighten the 2 lower

knobs, check position and re-tighten the fixing screws at the

base of the handlebar.

Assemble the grassbag: Identify the grassbag and remove

the long ribbon label by cutting it off close to the grassbag.

Discard the ribbon label.

WARNING - AVOID ENTANGLEMENT : Completely re-

move this ribbon before using the mower.

Raise the rear deflector and lower the grassbag through the

handlebar apperture to connect onto the upper mounting

points. Lower the grassbag to rest against the rear of the

mower. Finally lower the rear deflector to rest against the top

of the grassbag.

HA YTE R

CS100

CAUTION - PREVENT DAMAGE : When unfolding the handlebar, take care to

ensure that the controls and cables do not become damaged. Always replace damaged

controls and cables before using the mower.

CS089

H A Y T E R

CS108

CS275

397011MA260599A

1.121.12 ASSEMBLY INSTRUCTIONS

Check that all fasteners are secure.

Check engine stop lever operation: Operate the engine

stop lever several times. Ensure that the cable moves freely

and that the lever returns automatically to the engine stop

position when released.

Check throttle lever operation: Operate the throttle lever

several times and ensure that the cable moves freely whilst

operating the engine throttle mechanism. Slight resistance

should be felt when the lever moves to the ‘choke’ position.

Auto Drive Models Only

Check clutch lever operation: Operate the clutch lever

several times and ensure that the cable moves freely.

ASSEMBLING THE MOWER FOR THE FIRST TIME Continued.

CS012

CS011

CS015

CS013

397011MA260599A

1.131.13 STARTING THE ENGINE

IMPORTANT - PREVENT ENGINE DAMAGE: The

engine is shipped without oil or petrol. The engine must

be filled with the correct grade of oil and petrol before

starting the engine.

Oil recommendations: Always use high quality detergent

oil classified For service SE, SF, SG SAE 30 oil. Never“ ”

use additives with recommended oils.

SAE 10W-30 multigrade oil may be used, but this will result

in higher engine operating temperatures with consequential

high oil consumption. It is imperative that the oil level is

checked more frequently if this grade of oil is used in order

to guard against serious engine damage.

Check oil level: Clean around the oil filler cap before

removing. With the mower on a level surface, unscrew and

remove the oil filler - dipstick. Wipe oil from it with a clean

cloth. Screw the oil filler - dipstick back in place, then

unscrew and remove it to check the oil level.

The oil level is correct when it is at the mark on the dip-full

stick. DO NOT OVERFILL.

Slowly fill with engine oil as necessary and replace the oil

filler - dipstick.

IMPORTANT: The oil filler dipstick must be secured to

prevent oil leakage during operation.

Fuel Recommendations: Always use clean, fresh unleaded

petrol. Purchase fuel in quantities which can be used with-

in 30 days. Never mix oil with petrol. For added engine

protection Briggs & Stratton recommend the use of their

fuel additive which is available from an authorised Briggs &

Stratton service dealer.

Check fuel level: Clean around the fuel filler cap before

removing and fill the fuel tank with clean unleaded petrol.

Do not overfill the fuel tank. Allow 6mm minimum of tank

space for fuel expansion.

IMPORTANT: The fuel filler cap must be secured to

prevent fuel leakage during operation.

BEFORE STARTING THE ENGINE

FULL

ADD

CS028

0.15

Litres {

CS024

6mm

minimum

CS036

397011MA260599A

1.141.14 STARTING THE ENGINE

WARNING - PREVENT ACCIDENTS: The cutterbar

rotates when the engine is operating.

ALWAYS operate the engine stop lever several times and

ensure the engine stop cable moves freely before starting the

engine.

ALWAYS position the mower on a level stone free grass

surface before starting the engine. Ensure that the cutterbar

is set above grass height to prevent the engine being started

under load.

Operate the throttle control lever: Push the lever to

‘ ’choke position before starting a cold engine. It should

only be necessary to push the lever to the ‘fast position’

before starting a warm engine.

Operate the engine stop lever: Use one hand to hold the

engine stop lever in the operating position firmly against the

handlebar. To start and operate the engine the engine stop

lever must be held in the operating position. If the engine

stop lever is released the engine will stop.

Operate the engine start - grip: Stand behind the mower

and maintain a firm hold on the handlebar and the engine

stop lever to prevent the mower moving towards you. Use

your right hand to hold the engine start - grip and pull slow-

ly until resistance is felt, then pull rapidly to crank the

engine. When the engine starts carefully return the engine

start - grip to the storage position. If the engine does not

start after 5 attempts - refer to Fault Finding“ ”.

Allow the engine to warm up and return the throttle lever to

the fast‘ ’ position after starting a cold engine.

IMPORTANT - PREVENT ENGINE DAMAGE: Never

pull the engine start - grip when the engine is running.

CS037

Continued.

BEFORE STARTING THE ENGINE

TO START THE ENGINE

CS012

CS032

CS033

397011MA260599A

1.151.15 STOPPING THE ENGINE

STOPPING THE ENGINE

Stopping the engine: Reduce the throttle setting and disen-

gage the engine stop lever by releasing the lever.

Emergency stop: If the engine stop lever fails, move the

throttle lever to the position and disconnect the spark‘slow’

plug lead to stop the engine.

WARNING - PREVENT ACCIDENTAL STARTING :

Always stop the engine and disconnect the spark plug

lead before cleaning, inspecting or working on the

machine.

CS023

STOP

CS034

STOP

1. Engine

2. Spark Plug Lead

3. Spark plug

SAFETY NOTICE

CS034

STOP

1. Engine

2. Spark Plug Lead

3. Spark plug

397011MA260599A

1.161.16 OPERATING THE MOWER

WARNING - PREVENT ACCIDENTS: Before mow-

ing, thoroughly inspect the area where the mower is to

be used and remove all objects which when contacted

by the mower cutterbar could become dangerous pro-

jectiles.

Inspect the area for hidden obstructions which when

contacted by the cutterbar could risk health and safety.

Remember the location of these obstructions and ensure

that you mow around them.

IMPORTANT - PREVENT ENGINE DAMAGE : DO

NOT use the mower on a slope greater than 20 degrees.

To adjust the height of cut: Grip the lever and pull side-

ways to disengage it from the locking notch, then push for-

wards to lower or pull backwards to raise the height of cut.

Finally release the lever at the required position and ensure

it locks firmly into one of the nine notch settings.

Always select a height of cut to suit operating conditions.

Aim to prevent engine overloading and blockages by

avoiding low cuts in long grass conditions. Be prepared to

make two cuts when the grass is long.

SAFETY NOTICE

HEIGHT OF CUT

20omax.

CS030

CS031

397011MA260599A

1.171.17

Forward travel:

Push model - Hold and push against the handlebar with both

hands to move the mower forwards.

Auto drive models - Hold the handlebar and operate the clutch

lever to achieve forward travel.

Release the clutch lever to stop forward travel. When the clutch

lever is disengaged the mower can be operated as a push model.

This feature is useful when mowing in confined areas.

Reverse travel:

Push models - Hold and pull against the handlebar with both

hands to reverse the mower towards you.

Auto drive model - Disengage the clutch lever. Hold and pull

against the handlebar with both hands to reverse the mower

towards you.

OPERATING THE MOWER

WARNING: PREVENT ACCIDENTS - Always reverse the

mower carefully towards you. Always switch off the engine

before walking backwards with the mower.

SPEED CHANGE (Code 399S only)

Travel Speed can be altered by selecting one of the four positions.

IMPORTANT: ONLY operate the speed control when the

engine is running to avoid damage to the mechanism.

TRAVEL

TURNING THE MOWER

To make a wide turn : Steer the mower with the handlebar whilst

travelling forward.

To make a tight turn : Stop forward travel. Apply downward

pressure on the handlebar to raise the front wheels of the mower

just above ground level and steer the mower using the handlebar

in the required direction.

WARNING: PREVENT ACCIDENTS - DO NOT raise the front of the mower excessive-

ly when making a turn. NEVER raise the rear of the mower when the engine is running.

CS018

397011MA260599A

1.181.18 OPERATING THE MOWER

MOWING WITH GRASS COLLECTION

WARNING: PREVENT ACCIDENTS - ALWAYS check the condition of the grassbag

for signs of damage. Replace a damaged grassbag immediately. DO NOT operate the

mower with a damaged grassbag. ALWAYS stop the engine and disconnect the spark

plug lead before attempting to remove a grass blockage.

HA YTER

CS100

The grassbag is designed to collect grass clippings.

To achieve best grass collection performance, mow in dry operating

conditions.

Recognise that when the grassbag is full the airflow stops and the

grassbag deflates.

Grassbag attachment: Raise the rear deflector and lower the grass-

bag through the handlebar apperture to connect onto the upper

mounting points. Lower the grassbag to rest against the rear of the

mower. Finally lower the rear deflector to rest against the top of the

grassbag.

Grassbag removal: Raise the rear deflector and lift the grassbag

through the handlebar apperture and away from the mower. Finally

lower the rear deflector to rest against the rear of the mower.

Grassbag emptying: To empty the grassbag, pour out the grass

clippings and shake the grassbag vigorously to clean the airways.

Good grass collection depends on good air flow through the grass-

bag. When collecting grass clippings it is important that the grassbag

is emptied regularly to prevent blockages and engine overloading.

HA YTER

CS099

397011MA260599A

1.191.19 OPERATING THE MOWER

MOWING WITHOUT GRASS COLLECTION

HEAVY GROWTH

MOVING THE MOWER ACROSS NON-GRASSED AREAS

To mow without collecting the grass clippings, remove the

grassbag and operate the mower with the rear deflector in its

lowest position.

WARNING - PREVENT ACCIDENTS: ALWAYS check the condition of the rear

deflector for signs of damage and ensure it is positioned correctly on the rear of the

mainframe. Replace a damaged rear deflector immediately. never operate the mower

with a damaged rear deflector.

Areas of heavy growth should be mown without grass collec-

tion. If grass collection is required first mow the area without

grass collection at the maximum height of cut setting. Allow

the grass clippings to dry out and then mow the area at the max-

imum height of cut setting with the grassbag fitted. Reduce the

height of cut and mow the area again as necessary until the

required finish is obtained.

Set the mower to its maximum height of cut to protect the cut-

ting mechanism when moving the mower over surfaces other

than grass.

WARNING - PREVENT ACCIDENTS : ALWAYS stop the

engine and push the mower carefully at slow walking speed.

397011MA260599A

1.201.20 OPERATING THE MOWER

The cutterbar rotates at the same speed as the engine. The

cutterbar will stop within three seconds of the engine being

switched off.

WARNING - PREVENT ACCIDENTS : DO NOT oper-

ate the mower if the cutterbar fails to stop within three

seconds. Return the mower to your Hayter dealer for

examination and repair.

The cutterbar is driven by the engine via a friction device to

help prevent damage occurring to the cutting mechanism

when a hidden obstruction or overload is encountered.

When the obstruction or overload is removed the friction

device will automatically reset.

WARNING - PREVENT ACCIDENTS: ALWAYS stop

the engine when a hidden obstruction or excessive vibra-

tion is encountered. Disconnect the spark plug lead and

examine the cutting mechanism. ALWAYS replace a

damaged cutterbar - refer to “Maintenance”.

In dry weather conditions leave the grass long to help retain

ground moisture.

Aerate the lawn to stimulate soil organisms and root growth.

In spring and late summer remove dead grass and aerate the

lawn by raking or similar means.

Keep the cutterbar sharp. A blunt cutterbar will tear the

grass and cause the tips to turn brown.

CUTTERBAR OPERATION

CS038

MOWING AND GRASS CARE TIPS

397011MA260599A

DANGER Coarse grasses dominate fine grasses.

General lawn in spring, autumn or prolonged dry period.

General lawn in summer.

Luxury lawn in spring, autumn or prolonged dry period.

Luxury lawn in summer.

DANGER Grass strength is reduced.

1.211.21

Prevent scalping. Plan your direction of travel to mow across

hollows and humps.

Prevent grass damage. Stop forward travel when making a turn.

Prevent grass damage. mow in wet conditions.DO NOT

Brush the lawn surface to disperse worm casts before mowing.

Spike compacted lawn areas with a fork. Fill the holes with sand

to improve aeration and drainage.

Mow lawns in a different direction to the previous cut.

As a general rule the grass clippings should be removed each

time you mow. If weather conditions are dry and hot and the

grass is weed free, leave the clippings on the lawn to help main-

tain ground moisture.

Mow lawns twice a week when the grass is growing vigorously

in the summer.

Mow lawns once a week in spring, autumn and during prolonged

dry weather in the summer.

OPERATING THE MOWER

32mm

38mm

25mm

19mm

12mm

6mm

Prevent grass damage - DO NOT remove more than one

third of the grass height in one cut.

Recommended grass heights for lawns:-

MOWING AND GRASS CARE TIPS Continued.

397011MA260599A

1.221.22 MAINTENANCE

MAINTENANCE

IMPORTANT - Draining engine oil: To drain the engine oil,

first drain fuel by operating the engine until the fuel tank is

empty and the engine stops. Remove the spark plug lead and

allow the engine to cool. Position the mower on its left hand

side and ensure that the air cleaner side of the engine is kept

uppermost. Remove the oil filler-dipstick to drain the oil.

Engine handbook: For details of engine maintenance refer to

the engine operating and maintenance instructions handbook

supplied with your mower.

ENGINE

CS085

WARNING - PREVENT ACCIDENTS: Stop the engine

and disconnect the spark plug lead before attempting to

carry out maintenance procedures on the mower.

ENGINE

10.

Engine Cowl

Carburettor

Spark Plug / Lead

Muffler Guard

Muffler

Oil filler Cap/ Dipstick

Start Grip

Fuel Cap

Finger Guard

Air Cleaner

397011MA260599A

1.231.23

WARNING - PREVENT ACCIDENTS: Drain fuel by running the engine until the fuel

tank is empty and the engine stops before attempting to tip the mower for oil draining

purposes.

OIL SERVICE

CS034

STOP

-Check the oil level every 5 hours or daily and ensure that the correct oil level is main-

tained. Refer to - Before Starting the Engine Oil Recommendations for oil checking‘ ’

procedure and filling instructions.

-Drain the engine oil after the first 5 hours of operation and thereafter at the end of

every grass cutting season.

-Change the oil while the engine is warm. Refill with fresh clean oil of the recommended

SAE viscosity grade. Refer to - Before Starting the Engine: Oil Recommendations‘ ’.

- Remove the spark plug lead and allow the engine to cool.

Tip the mower over on to its left hand side thus ensuring

that the air cleaner is kept uppermost to prevent engine

damage. Remove the oil filler dipstick and drain the oil into

a suitable container.

1. Engine

2. Spark Plug Lead

3. Spark plug

MAINTENANCE

Refer to the Maintenance Schedule at the end of this section and ensure that the recommen-

dations are followed. More frequent service is required when operating in adverse conditions.

397011MA260599A

1.241.24 MAINTENANCE

Refer to the Maintenance Schedule at the end of this section

and ensure that the recommendations are followed. More

frequent service is required when operating in adverse con-

ditions.

AIR CLEANER SERVICE

- Gain access to the cartridge (3) by loosening screw

(1) and tilting cover (2).

- Replace the cartridge if very dirty or damaged.

- Clean the cartridge by tapping gently on a flat sur-

face. Do not use petroleum solvents during cleaning

as this will cause the cartridge to deteriorate. Do not

use pressurised air as this may damage the cartridge.

Do not oil the cartridge.

- After servicing the cartridge re-install it in the cover.

Insert the tabs on the bottom of the cover into the slots

in the bottom of the base (4). Tilt the cover upwards

and securely tighten the screw to the base.

1. Screw

2. Cover

3. Cartridge

4. Base.

Remove grass debris from the grassbag immediately after

use and check its condition for signs of damage.

WARNING - PREVENT ACCIDENTS: Replace a dam-

aged grassbag immediately.

Remove grass debris from the top and underside of the deck

housing immediately after use.

IMPORTANT - PREVENT DAMAGE: Fertilisers and

top dressings are particularly corrosive. Thoroughly

clean the mower deck immediately after use on treated

grass and store well away from corrosive materials.

GRASSBAG

DECK HOUSING

CS017

397011MA260599A

1.251.25 MAINTENANCE

SPEED CHANGE CABLE (Code 399S only)

LUBRICATION

Lubricate the wheels, pivot points and linkages with engine

oil every 25 operating hours.

Apply a good quality medium grease to the inner control

cables at the point of entry and exit from their outer casings.

SECURING NUTS AND BOLTS

Regularly check that all securing nuts and bolts are tight.

Replace missing or damaged items immediately.

CS015

CS022

If the speed difference between the settings on the speed

change control are judged to be too little or do not exist at all

it may be necessary to adjust the cable.

1. Run the mower in the position for a few minutes.

2. If there is any play in the cable by nipple Y the cable must

be adjusted. Loosen the locking nut X and adjust the cable by

screwing out the nipple Y until the play on the cable is taken

up.

3. Tighten the locking nut X.

Note! Do not tension the cable more than necessary, it should

just sit in the nipple Y without play. Too much cable tension

will cause the drive belt to break or result in damage to other

parts of the transmission. When adjusting after maintenance

(e.g. fitting a new belt) always start with the nipple Y screwed

in fully.

397011MA260599A

1.261.26 MAINTENANCE

CUTTERBAR

CS091

WARNING: PREVENT ACCIDENTS - Never work on the cutterbar unless the spark

plug lead has been removed. The cutterbar has sharp edges. ALWAYS wear strong gloves

to protect your hands when working on the cutterbar. DO NOT operate tools towards the

cutting edges to avoid the risk of injury should the tool slip. ALWAYS use genuine Hayter

replacement parts.

The condition of the cutterbar and its mounting arrangement should be checked regular-

ly for signs of wear or damage. Ensure that the cutterbar is not bent or cracked.

A damaged cutterbar that is out of balance will vibrate excessively and may break. DO

NOT use an unbalanced cutterbar.

Regularly check that the bolt securing the cutterbar is tightened to the specified torque of

54Nm.

Replace the cutterbar every 2 years or sooner if excessively worn or damaged.

How to remove the cutterbar:

Drain the fuel by operating the engine until the fuel tank is

empty and the engine stops. Remove the spark plug lead

and allow the engine to cool Turn the mower on its left hand

side and ensure that the air cleaner side of the engine is

uppermost.

Firmly grip the end of the cutterbar with the gloved hand and

remove the bolt and washer securing the cutterbar with a

9/16" A/F spanner.

397011MA260599A

Check the clutch cable operation every 25 operating hours

and adjust if necessary. The clutch cable is adjusted cor-

rectly when the belt drive just engages with the clutch lever

positioned 32-38mm from the handlebar.

Unscrew the lock nuts (1) and screw the adjuster (2) in or

out as necessary. Tighten the locknuts (1) when correctly

adjusted.

IMPORTANT - PREVENT DAMAGE: ALWAYS oper-

ate the mower with the clutch cable correctly adjusted.

ALWAYS replace damaged cables.

CS019

32-38mm

CLUTCH CABLE ADJUSTMENT

1.271.27 MAINTENANCE

CUTTERBAR Continued.

How to sharpen and balance the cutterbar: A slightly

worn cutterbar may be re-sharpened. Both cutting edges

must be sharpened equally to ensure balance. Sharpen the

cutterbar every 25 mowing hours or more frequently if con-

ditions require. Remove the cutterbar from the mower and

clean using a brush and water. Inspect the cutterbar for

signs of damage.

WARNING - PREVENT ACCIDENTS : DO NOT use a

damaged or excessively worn cutterbar.

Sharpen both cutting edges with a flat file to restore the

original cutting edge.

Ensure that the cutterbar is balanced. Use a screw driver

with a round shaft to support the cutterbar through its centre

hole. Hold the cutterbar horizontal and then release. A bal-

anced cutterbar will remain horizontal. If the cutterbar is

not balanced the heavy end will rotate downwards. Sharpen

the heavy end until the cutterbar is correctly balanced.

30 -45

CS040

CS026

CS025

397011MA260599A

1.281.28

Follow the hourly or calendar intervals, whichever occurs first. More frequent service

will be required if working for prolonged periods under dusty, dry conditions, or when

airborne debris is present or after extensive operation cutting tall, dry grass.

Change engine oil

Check oil level

Remove grass debris from around engine, muffler/muffler guard and air ways in the top

cowl.

Remove grass debris from top and underside of deck housing.

Remove grass debris from the grassbag and check for signs of damage.

Check condition of guards and safety devices.

Check condition of cutterbar.

Change engine oil if continuously operating under heavy load or high ambient tempera-

ture.

Service the air cleaning cartridge.

Lubricate wheels, pivot points and linkages.

Grease inner control cables at point of entry and exit from their outer casings.

Check clutch cable adjustment.

Sharpen cutterbar.

MAINTENANCE SCHEDULE

AFTER FIRST 5 HOURS

EVERY 5 HOURS OR DAILY

EVERY 25 HOURS OR EVERY SEASON

MAINTENANCE

397011MA260599A

1.291.29 MAINTENANCE

Change engine oil.

Clean engine cooling system. Clean more often under dusty conditions or when airborne

debris is present or after prolonged operation whilst cutting tall, dry grass.

Service the air cleaner cartridge.

Replace spark plug.

MAINTENANCE SCHEDULE Continued

EVERY 50 HOURS OR EVERY SEASON

EVERY 100 HOURS OR EVERY SEASON

397011MA260599A

1.301.30 PREPARING THE MOWER FOR STORAGE

PREPARING THE MOWER FOR STORAGE

Remove the engine spark plug and pour 15ml of engine oil into the engine cylinder and

replace the spark plug. Do not exceed the stated volume of oil as engine damage may occur

on re-starting. . Slowly pull the engine start - grip onceDo not replace the spark plug lead

to crank the engine. This will distribute the oil and help prevent engine corrosion.

Clean grass and debris from the engine cylinder, cylinder head cooling fins, under top cowl,

and around and behind muffler/muffler guard.

Clean all other areas of the mower and ensure that the grassbag is clean.

Lubricate the mower.

Treat metal parts with a water repellent anti-corrosion product.

Lower the handlebar, if desired.

Rest the mower deck on wooden blocks to remove the weight of the mower from its

wheels/roller.

Cover the mower with a protective sheet and store it in a dry, ventilated area.

Handlebar storage: To lower the handlebar unscrew the 2

small securing knobs sufficiently to allow it to be pivoted for-

wards to rest against the mower. Take care to ensure that the

control cables do not become snagged at the pivot point and

depress the engine stop lever to prevent it being damaged

through contact with the engine spark plug.

Storage for periods in excess of 30 days: Engines stored in

excess of 30 days need to be protected with Briggs & Stratton

fuel additive or drained of fuel to prevent gum from forming in

the fuel system or on essential carburettor parts. To ensure your

mower is maintained in good working order it is important that

the following procedure is adopted. Refer to the Maintenance

section as necessary.

Drain fuel from the engine by operating the engine until it stops.

Disconnect the spark plug lead.

Change the engine oil.

CS276

397011MA260599A

1.311.31 FAULT FINDING

PROBLEM POSSIBLE FAULT REMEDY

Engine will not turn over Engine stop lever released Operate engine stop lever

Incorrect oil level Check oil level

Obstruction under deck Remove obstruction

Engine smokes Excess oil level Check oil level

Air cleaner cartridge oil Service air cleaner

soaked or plugged

Engine runs then stops Fuel starvation Fill fuel tank

Fuel cap vent blocked Clean fuel cap vent

FAULT FINDING

397011MA260599A

1.321.32 FAULT FINDING

FAULT FINDING

Engine will not start.

Engine runs rough.

Engine vibrates excessively.

Uneven cut.

Engine under load.

Fuel starvation.

Incorrect / contaminated fuel.

Spark plug lead disconnected.

Engine brake not released.

Faulty spark plug.

Spark plug lead becoming dis-

connected in use.

Faulty spark plug.

Air cleaner element blocked.

Incorrect / contaminated fuel.

Mounting bolts loose.

Cutterbar bolt loose.

Cutterbar out of balance.

Undulating ground contours.

Cutterbar worn.

Cutterbar out of balance.

Wheels damaged.

REMEDYPROBLEM POSSIBLE FAULT

Raise height of cut.

Fill fuel tank.

Drain fuel tank and fill with

correct fuel.

Connect spark plug lead.

Operate engine stop lever.

Clean and adjust gap or replace.

Connect spark plug lead.

Clean and adjust gap or replace.

Replace air cleaner element.

Drain fuel tank and fill with

correct fuel.

Tighten bolts.

Tighten bolt.

Balance cutterbar.

Change direction of travel.

Sharpen the cutterbar.

Balance cutterbar.

Inspect and replace as necessary.

397011MA260599A

1.331.33

FAULT FINDING Continued.

REMEDYPROBLEM POSSIBLE FAULT

Grass is wet.

Cut height too low.

Grassbag full.

No airflow through the

grassbag.

Height of cut too low.

Wheels damaged.

Clutch out of adjustment.

Drive belt damaged.

No airflow through the

grassbag.

Discharge chute blocked.

Wet grass.

Grassbag full.

FAULT FINDING

Discharge chute blocks.

Mower is hard to push.

Mower will not self propel.

(Auto drive model only).

Poor grass collection.

Mow dry grass.

Increase cut height.

Empty grassbag.

Clean the grassbag.

Increase height of cut.

Inspect and lubricate or replace

as necessary.

Adjust clutch lever.

Replace drive belt.

Clean the grassbag.

Remove blockage.

Mow dry grass.

Empty grassbag.

397011MA260599A

397S, 398S & 399S PARTS LIST

PARTS LIST

2.12.1

397011MA260599A

1 Mainframe - 48 397039V 1 1 0

Mainframe - 53 399020V 0 0 1

2 Height Adjust Quadrant 397028 1 1 1

3 Cover - Black 397037 1 1 0

Cover - Black 399019 0 0 1

4 Engine-B+S Quantum XTL45 397007 1 1 1

5 Decal - Engine 397008 1 1 0

Decal - Engine 399008 0 0 1

6 Key Woodruff 1662 1 1 1

7 Nut-UNC 1/4 Plain 09197 2 2 2”

8 Knob 397046 2 2 2

9 Washer 09475 2 2 2

10 Screw - Plastite 09765 10 10 11

11 Screw - Taptite 09596 16 16 18

12 Wheel Assembly 397021 2 2 0

Wheel Assembly 399009 0 0 2

13 Handlebar - Lower RH 397004W 1 1 1

14 Handlebar - Lower LH 307003W 1 1 1

15 Knob - M8 Handlebar 480088 2 2 2

16 Guide Rope 305127 1 1 1

17 Bolt - Handlebar 226024 2 2 2

18 Plug - Tube 300160 2 2 2

19 Cable Tie 3966 3 3 3

20 Nut 09544 1 1 2

21 Washer - Plain 09472 1 1 1

22 Guide Rope 305093 1 1 1

23 Throttle Control & OPC Assemble 397010 1 1 0

Throttle Control & OPC Assemble 480093 0 0 1

24 Screw - Detite Posi Pan 09600 2 2 2

25 Pin Pivot 340182 2 2 2

26 Lever Engine 340179 1 1 1

27 Washer - Nylon 09688 6 2 2

28 Screw - PT Pan Flange 09687 2 2 2

29 Upper Handlebar 340183W 1 1 0

Upper Handlebar 399026W 0 0 1

30 Frame - Grassbag W/A 397007W 1 1 0

Frame - Grassbag W/A 399005W 0 0 1

31 Fabric Grassbag 397006 1 1 0

Fabric Grassbag 399006 0 0 1

32 Flap - Black 397024 1 1 1

33 Spring 397025 1 1 1

DESCRIPTION PART NO. QTY.

397S 398S 399S

ITEM NO.

2.2

PARTS LIST Continued.

2.2

397S, 398S & 399S PARTS LIST

397011MA260599A

34 Flap Attachment - Black 397026 1 1 1

35 Attachment - RH 397036 1 1 1

36 Attachment - LH 397035 1 1 1

37 Battery Holder 397034 1 1 1

38 Grip Fix 09773 2 0 0

39 Rear Attachment 397027 1 1 1

40 Bolt - Coach 09766 2 2 2

41 Attachment Plate 397018 2 2 2

42 Spring 397033 1 1 1

43 Handlebar Attachment 397017 2 2 2

44 Screw -Taptite 09546 2 2 2

45 Wheel Cover 397023 2 0 0

Cover Plate 398003 0 2 2

46 Screw - M8 x 20 09368 2 2 2

47 Height Adjustment Lever 397031 1 1 1

48 Bushing 397016 2 2 2

49 Seal Shaft 397041 2 2 2

50 Screw - Taptite 09349 3 3 3

51 Friction Disc W/A 397042W 1 1 1

52 Cutterbar 19”480149 1 1 0

Cutterbar 21”330032 0 0 1

53 Piece Cutterbar Distance 216008 1 1 0

Piece Cutterbar Distance 4014 0 0 1

54 Washer - Spring 09273 1 1 1

55 Screw 09116 1 1 1

56 Front Axle 397029 1 1 1

57 Height Adjustment Rod 397038 1 1 0

Height Adjustment Rod 399021 0 0 1

58 Rear Axle 397030 1 1 1

59 Grip Fix 09772 2 2 2

60 Retainer 397013 2 2 2

61 Lever Knob 397032 1 1 1

62 Spring 397012 2 2 2

63 Wheel Cover 397015 2 2 2

64 Bearing Kit 397045 4 4 2

65 Wheel Assembly - (Incl. item 64) 397014 2 2 2

66 Washer 09263 10 10 12

67 Spring 397019 2 2 2

68 Hub Cap - Black 397020 2 2 2

69 Hub Cap - Black 397022 2 2 0

Hub Cap - Black 399010 0 0 2

ITEM NO. DESCRIPTION PART NO. QTY.

397S 398S 399S

2.3

PARTS LIST Continued.

2.3

DESCRIPTION PART NO. QTY.

397S 398S 399S

ITEM NO.

397S, 398S & 399S PARTS LIST

397011MA260599A

70 Shaft 397040 1 0 0

71 Transmission 398001 0 1 1

72 Washer 02575 0 4 4

73 Drive Key 398004 0 2 2

74 Pin 398002 0 2 2

75 Lock Washer 398005 0 2 2

76 Gear Wheel 398007 0 2 2

77 Support Washer 398006 0 2 2

78 Lever Clutch 306094 0 1 1

79 Clip E 09767 0 2 2

80 Tension Spring 398008 0 1 0

Bracket 399022 0 0 1

81 V Belt 398011 0 1 0

V Belt 399024 0 0 1

82 Belt Pulley 398010 0 1 0

Variator Assy 399018 0 0 1

83 Pin Roll 09770 0 1 0

Pin Roll 09771 0 0 1

84 Grubscrew 09769 0 1 1

85 Bush 398012 0 1 0

Engine Spacer 399025W 0 0 1

86 Engine Belt Pulley 398009 0 1 0

Engine Belt Pulley 399012 0 0 1

87 Bracket Cable Clutch 306108 0 1 1

88 Cable Clutch 397009 0 1 1

89 Ball Bearing 399027 0 0 2

90 Knob 399016 0 0 1

91 Screw Plastite 09768 0 0 2

92 Variator Control 399017 0 0 1

93 Attachment 399013 0 0 1

94 Screw Taptite 09764 0 0 1

95 Spacer 399011 0 0 1

96 Tension Roller 399015 0 0 1

97 Tension Arm 399023 0 0 1

98 Belt Pulley 399014 0 0 1

99 Bolt 09547 0 0 1

100 Decal - Hayter 533005 1 1 1

101 Decal - Engine Stop 331046 1 1 1

102 Decal - Height of Cut 320006 1 1 1

103 Decal - Caution 219189 1 1 1

Termékspecifikációk

Márka:	Hayter
Kategória:	nincs kategorizálva
Modell:	RANGER 53 AD 4 SPEED

Szüksége van segítségre?

Ha segítségre van szüksége Hayter RANGER 53 AD 4 SPEED, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek

Az Ön neve*

Az Ön e-mail címe*

Írja ide kérdését

Útmutatók nincs kategorizálva Hayter

Hayter SPIRIT 41AD Útmutató

18 December 2024

Hayter RANGER 53 AD 4 SPEED Útmutató

18 December 2024

Hayter SCARIFIER Útmutató

18 December 2024

Hayter RANGER 48 AD Útmutató

18 December 2024

Hayter RANGER 48 PUSH Útmutató

18 December 2024

Hayter MOTIF 41 Útmutató

1 Október 2024

Hayter Ranger 3 in 1 Útmutató

1 Október 2024

Hayter Ranger 41 Push Útmutató

1 Október 2024

Hayter MOTIF 48 Útmutató

1 Október 2024

Hayter Harrier 41 PRO AD FS Útmutató

1 Október 2024

Útmutatók nincs kategorizálva

Legújabb útmutatók nincs kategorizálva

MOZA SR-P Útmutató

10 Április 2025

Soundstream VRN-64HBL Útmutató

10 Április 2025

Panasonic Lumix DMW-AC11 Útmutató

10 Április 2025

Planet PWR-240-48 Útmutató

9 Április 2025

CaterChef 445001 Útmutató

9 Április 2025

IFM E40581 Útmutató

9 Április 2025

Livn Bolt Útmutató

9 Április 2025

Livn Beats Útmutató

9 Április 2025

Alpine DP2-40C-BC Útmutató

9 Április 2025

IFM O3R252 Útmutató

9 Április 2025
