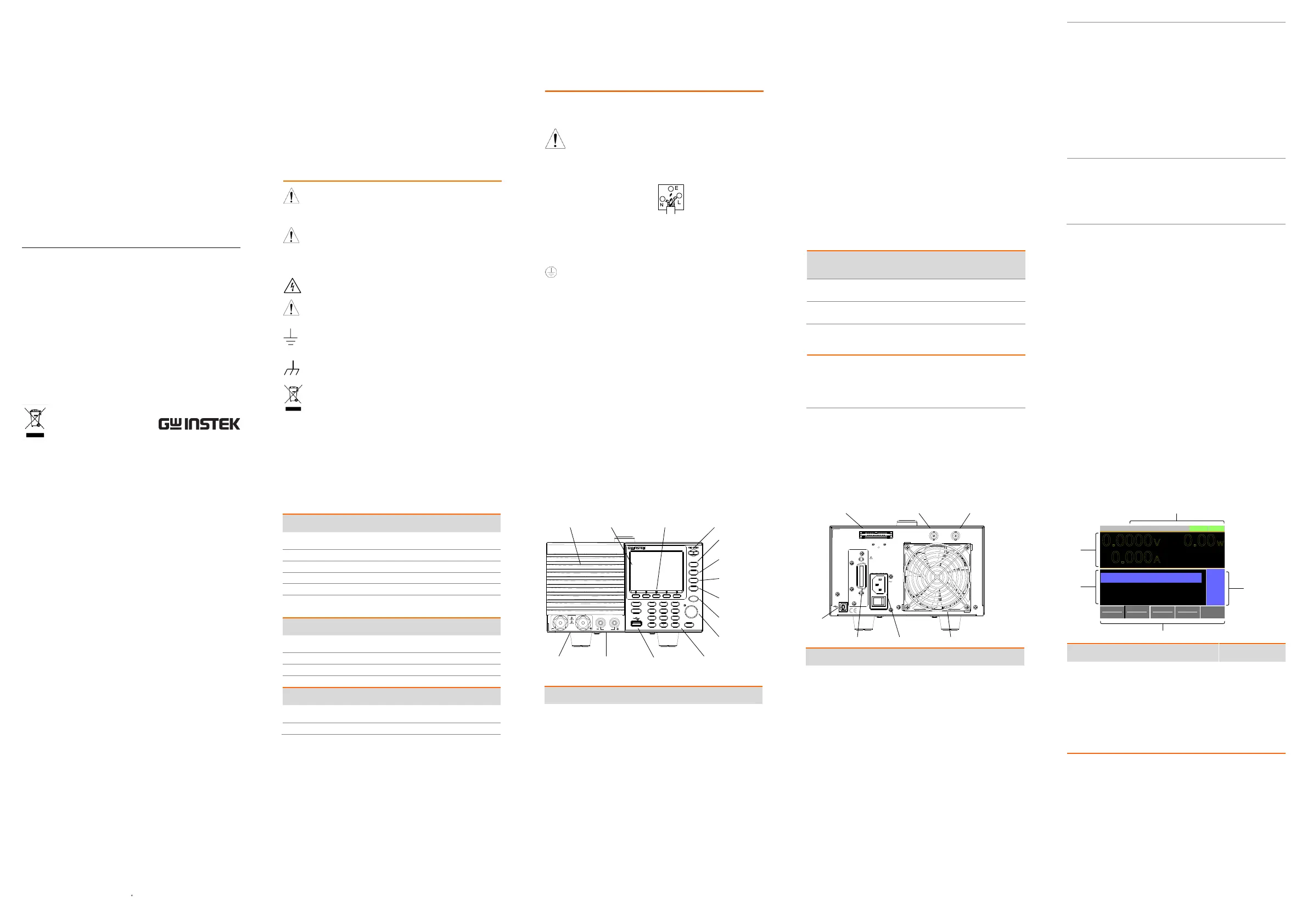

QUICK START GUIDE
GW INSTEK PAR NO. 82EL T -3KE00M 1
A
A
A
AA
This section contains the basic safety symbols that may
appear on the accompanying User Manual CD or on the
instrument. For detailed safety instructions and
precautions, please see the Safety Instructions chapter
in the user manual CD.
These safety symbols may appear in the user manual or
on the instrument.
Warning: Identifies conditions or
practices that could result in injury or
loss of life.
Caution: Identifies conditions or
practices that could result in damage
to the instrument or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Earth (ground) Terminal
Frame or Chassis Terminal
Do not dispose electronic equipment
as unsorted municipal waste. Please
use a separate collection facility or
contact the supplier from which this
instrument was purchased.
When using the instrument in the United Kingdom,
make sure the power cord meets the following safety
instructions.
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed as
follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
loured Green/Green & Yellow. or co
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal
marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or
contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable of
0.75mm2
should be protected by a 3A or 5A fuse. Larger conductors
would normally require 13A types, depending on the connection
method used.
Any exposed wiring from a cable, plug or connection that is engaged
in a live socket is extremely hazardous. If a cable or plug is deemed
hazardous, turn off the mains power and remove the cable, any
fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.
The Getting Started chapter introduces the instrument’s
main features, appearance, and set up procedure.
The PEL-3000E is an economic, standalone, high
performance DC electronic load positioned to test a
wide range of different power sources. The DC
electronic load is fully programmable to simulate
anything from basic static loads to complex dynamic
loads. The PEL-3000E is extremely robust and capable
of molding to any test environment.
PEL 3031E-
1V-150V
6A (Low range)
60A (High range)
300W
PEL 303- 2E
2.5V-500V
1.5A (Low range)
15A (High range)
300W
•High slew rates of up to 2.5A/μs
for a fast response speed -(PEL
3031E)
•High resolution – 16 bit
Mode
CC
I Range
H 60A
V Range
L 15V
Function
Static Configure
0.0000V
0.000A
0.00w
SlewRate 2500
CC B Value 0.000
CC A Value 0.000
LOADUSB
A Value
Fine
mA/us
A
A
1. Main frame status
panel
2. Operation status
panel
3. Soft keys
4. Setting area
5. Measurement area
Use the following when first using the procedures
PEL- E to power up the instrument, restore the 3000
factory default settings and check the firmware
version. Lastly, the Conventions section will introduce
you to the basic operating conventions used
throughout the user manual.







 

 







  
1. J1 Frame control
ports
2. TRIG OUT BNC
3. TRIG IN BNC
4. Exh aust fan
5. Power socket and
switch
6. GPIB (optional)
7. USB device port















 








 



P E L - 3 0 3 1 E


  
1. Air inlet
2. LCD Display
3. Function keys
4. Power key
5. Main/Local key
6. FUNC/File key
7. Help/Utility key
8. Short key
9. Load On/Off
10. Scroll wheel
11. Number pad,
Clear/Lock and Enter
keys
12. USB port, Preset and
Shift keys
13. Sense-, Sense+
terminals
14. Input terminals
User /Programming Manual CD
Quick Start Guide (this document)
Power C ord x1
Region Dependent
Front terminal washers ( M6) x2
61SF-062104N1
Remote sense cables, red x1, black
x1
GTL- 105A
GPIB cable, 2.0m
GTL- 248
USB ca , Type A - ble Type B
GTL- 246
Dust filter
PEL 010-
GPIB option
PEL 004-
This manual contains proprietary information, which is
protected by copyright. All rights are reserved. No part
of this manual may be photocopied, reproduced or
translated to another language without prior written
consent of Good Will Corporation.
The information in this manual was correct at the time
of printing. However, Good Will continues to improve
its products and therefore reserves the right to change
the specifications, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng
Dist. New i ., Taipei C ty 236, Taiwan

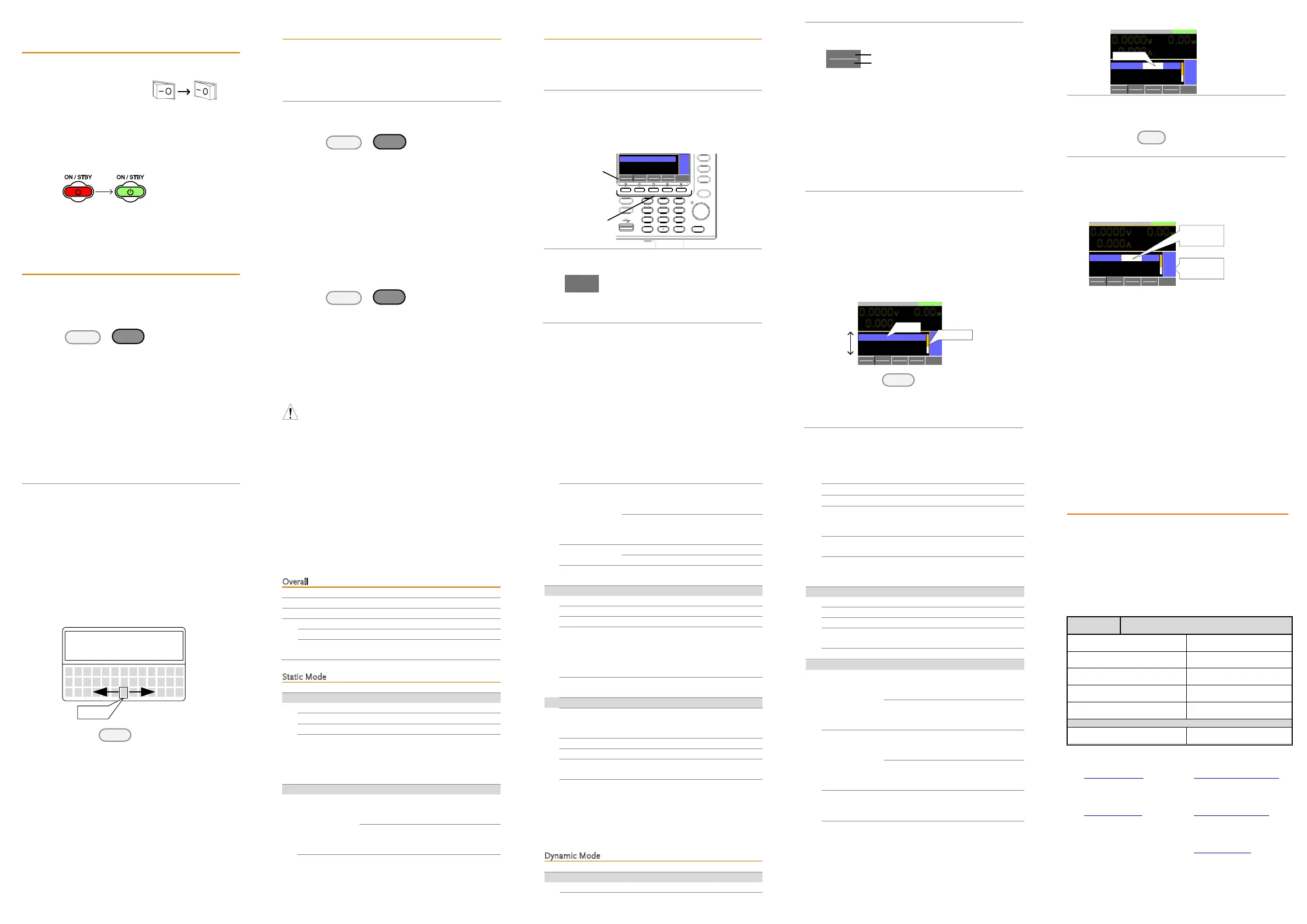

1. Insert the AC power cord into the power socket.
2. Turn the power switch on
from the rear panel.
(O → ) —
3. If the unit doesn’t turn on, press the ON/STBY
key on the front panel.
The ON/STBY key will go from standby
(red) to green) ON ( .
4. The unit will show the splash screen and then
load the settings from when the unit was last
powered down.
When first using the - E, recall the factory PEL 3000
default settings to ensure the unit is in a known state.
See the user manual for a list of the default settings.
1. Press
Shift
+
File
FUNC
.
2. Select Media/Default [F1].
3. Select Factory Default [F2].
4. Press Factory Default [F2] again to confirm.
The PEL- E allows the firmware to be updated by 3000
end-users. Before using the - E, please check PEL 3000
the GW Instek website or ask your local distributor for
the latest firmware. Before updating the firmware,
please check the firmware version.
View Firmware Version
1. Press
Shift
+
Utility
Help
.
2. Select System/Info[F1].
3. The system information is listed in the display.
Model: - XE PEL 303
Serial Number: XXXXXXXX
Firmware Ve r.: 1.XX
GW Instek website address.
Firmware update
1. Press
Shift
+
File
FUNC
.
2. Select with the - USB Media [F1] soft key.
3. Press the File Utility [F5] - soft key.
4. Select the *.UPG upgrade file and press Select[F1]
twice. Once to select the file and once to confirm.
5. Wait for the update to complete and reset the
power.
Do not turn the load generator off or
remove the USB memory when the
firmware is being read or upgraded.
The following conventions are used throughout the
user manual. Read the conventions below for a basic
grasp of how to operate the - E menu system PEL 3000
using the front panel keys.
Soft-menu keys
The F1 to F5 function keys at the bottom of the
display correspond directly to the -menu keys soft
on top.
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
Utility
0
1
4
7
2
5
8
3
6
9
EnterClear
Shift
Preset
Load
On/
Off
Help
FUNC
Short
A / B
Mode
CC
I Range
H 60A
V Range
L 15V
Function
Static Configure
SlewRate 2500
CC B Value 0.000
CC A Value 0.000
A Value
Fine
mA/us
A
A
Select Sub Menu
Configure
Pressing this type of soft-menu key will enter a
submenu.
Toggle Parameter or State
Mode
CC
This type of soft-menu icon has the function/item
on the top of the label and the selected setting or
mode on the bottom of the label.
Repeatedly press the associated function key (F1-
F5) to cycle through each setting.
For some parameters, a popup window will also
appear. Selection of the setting is the same.
Repeatedly pressing the relevant function key (F1-
F5) will cycle through each setting.
Parameter Input
The scroll wheel, Enter key and number pad can
be used to edit parameter values.
1. Use the scroll wheel to move the cursor to the
desired parameter.
A scroll bar is shown when there are
additional parameters off-screen.
Mode
CP
I Range
H 60A
V Range
L 15V
Response
Fast Configure
0.0000
V
0.000
A
0.00
w
+CV OFF
CP B Value 0.00
CP A Value 0.00
LOADUSB
Fine
V
W
W
A Value
2. Press the
Enter
key to select the
parameter.
3. Then use the number pad* or scroll wheel**
to edit the parameter v alue.
Mode
CP
I Range
H 60A
V Range
L 15V
Response
Fast Configure
0.0000
V
0.000
A
0.00
w
+CV OFF
CP B Value 0.00
CP A Value
LOADUSB
Fine
V
W
W
A Value
0.00
Clearing a Value*
*When editing a parameter with the number pad,
pressing the
Clear
key will restore the
parameter to the previous value.
Coarse/Fine Adjustment **
**When a parameter is highlighted (step 3 above)
pressing the scroll wheel will toggle the scroll
wheel resolution between fine and coarse.
Mode
CP
I Range
H 60A
V Range
L 15V
Response
Fast Configure
0.0000
V
0.000
A
0.00
w
+CV OFF
CP B Value 0.00
CP A Value
LOADUSB
Fine
V
W
W
A Value
0.00
Note: There is a second method of fine adjustment
that allows you to edit parameters one digit value
at a time using the scroll wheel. This is called
Cursor mode. Please see the user manual for more
information.
±
±
±
±
Ω Ω
Ω Ω
Ω Ω
Ω Ω
Ω Ω
Ω Ω
Ω Ω
Ω Ω
±
±
Ω Ω
Ω Ω
Ω Ω
Ω Ω
±
±
Ω
The following are the basic specifications for the -PEL
3000E. For detailed specifications, please see the user
manual.
Ω
Ω
Ω Ω
Ω Ω
Ω Ω
Ω Ω
Entering Alphanumeric Characters
When renaming files, creating memos or notes,
you will be required to enter alphanumeric
characters when the character entry screen
appears.
Only alphanumeric characters as well as
space [ ], underscore [_] and minus [-]
characters allowed. are
1. Use the scroll wheel to move the cursor to the
desired character.
A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z
1 2 3 4 5 6 7 8 9 0 _ 1
Rename:
Filename
2. Press the
Enter
key or Enter Character[F1]
to select a character.
3. To delete a character, press Back Space[F2].
4. To save the file name or memo, press
Save[F3].
We
GOOD WILL INSTRUMENT CO., LTD.
declare that the below mentioned product
Type of Product: Programmable Electronic Load
Model Number: PEL-3000E
is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member States
relating to Electromagnetic Compatibility (2014/30/EU) and Low Voltage
Directive (2014/35/EU ).
For the evaluation regarding the Electromagnetic Compatibility and Low
Voltage Directive, the following standards were applied:
◎ EMC
EN 61326-1
EN 61326-2-1
Electrical equipment for measurement, control and
laboratory use EMC requirements (2013) ––
Conducted & Radiated Emission
EN 55011: 2009+A1:2010 Class A
Electrical Fast Transients
EN 61000-4-4: 20 12
Current Harmonics
EN 61000-3-2: 20 14
Surge Immunity
EN 61000-4-5: 2006
Voltage Fluctuations
EN 61000-3-3: 2013
Conducted Susceptibility
EN 61000-4-6: 2014
Electrostatic Discharge
EN 61000-4-2: 2009
Power Frequency Magnetic Field
EN 61000-4-8: 2010
Radiated Immunity
EN 61000-4-3: 2006+A1:2008+A2:2010
Voltage Dip/ Interruption
EN 61000-4-11: 2004
Low Voltage Equipment Directive 2014/35/EU
Safety Requirements
EN 61010-1: 2010
EN 61010-2-030: 2010
GOOD WILL INSTRUMENT CO., LTD.
No. 7-1, Jhongsing Road, Tucheng Dist., New Taipei City 236, Taiwan
Tel: +886-2-2268-0389 Fax: +866-2-2268-0639
Web: Email:
www.gwinstek.com marketing@goodwill.com.tw
GOOD WILL INSTRUMENT (SUZHOU) CO., LTD.
No. 521, Zhujiang Road, Snd, Suzhou Jiangsu 215011, China
Tel: +86-512-6661-7177 Fax: +86-512-6661-7277
Web: Email:
www.instek.com.cn marketing@instek.com.cn
GOOD WILL INSTRUMENT EURO B.V.
De Run 5427A, 5504DG Veldhoven, The Netherlands
Tel: +31(0)40-2557790 Fax: +31(0)40-2541194
Email:
sales@gw-instek.eu

Termékspecifikációk

Márka: GW Instek
Kategória: Mérőberendezések
Modell: PEL-3032E

Szüksége van segítségre?

Ha segítségre van szüksége GW Instek PEL-3032E, tegyen fel kérdést alább, és más felhasználók válaszolnak Önnek


Útmutatók Mérőberendezések GW Instek

GW Instek

GW Instek PEL-3032E Útmutató

1 Január 2025
GW Instek

GW Instek GDS-2202A Útmutató

31 Augusztus 2024
GW Instek

GW Instek GPT-9602 Útmutató

27 Augusztus 2024

Útmutatók Mérőberendezések

Legújabb útmutatók Mérőberendezések

Sauter

Sauter FA 50 Útmutató

6 Január 2025
Sauter

Sauter FC 100 Útmutató

6 Január 2025
Sauter

Sauter TVP-L Útmutató

6 Január 2025
Sauter

Sauter TVM 5000N230NL Útmutató

6 Január 2025
Sauter

Sauter FS 4 Útmutató

6 Január 2025
Sauter

Sauter 283-602 Útmutató

6 Január 2025
Sauter

Sauter FL 20K Útmutató

6 Január 2025
Sauter

Sauter DA 1-4 Útmutató

6 Január 2025
Sauter

Sauter 281-601 Útmutató

6 Január 2025
Sauter

Sauter TPE-N Útmutató

6 Január 2025
