Canopy
1ea
Mounting
Screws 2ea Top loop 1ea
Chain 6ft Wire connectors 3ea Bottom cap 1ea
Chain connector 2ea
Canopy loop
and Canopy
loop collar
1ea Nipple 2ea
Mounting Strap 1ea Hex Nut 2ea Finial 1ea
Part Needed Quantity
Part Needed Quantity
Reason why ( missing, scratched, broken glass, bent, bad nish)
Comments
F A IIXTURE SSEMBLY NSTRUCTIONS
For Customer Service, contact the place of purchase to arrange for replacement parts.
NOTE: INSTALL THE GLASS ASSEMBLY
AFTER THE FIXTURE IS HUNG.
1. Thread the Body (L) onto the Coupling (M) and
until tight.
2. Then screw the Top Loop (J) to the threaded
Nipple (K) at top of Frame until tight.
8106-3P CDB
Read and review installation instruction sheet before
assembling the xture.
Fig 1
PARTS & ASSEMBLY SHEET
This xture assembled PO:__________ Date: ________
Fixture Name: Torbellino 8106-3P CDB
Notice: Please review the parts listing and check for all parts before assembling the xture. If any parts are
missing or damaged, please note onthis sheet and contact the place of purchase to arrange for
replacement parts.
PARTS LIST Company Name:_______________________Co. Account #:_____________
to be lled out by retailer
K
L
M
N
J
For Customer Service, contact the place of purchase to arrange for replacement parts.
3. By measuring determine correct number of links
needed for proper hanging height. Use a pair of
pliers to open one link of the Chain (C2) then
remove the excess Chain (C2) and discard it.
4. Use one chain connector(E2) to attach one end of
the chain to the Top loop (D2) and close the chain
connector.
5. Feed the xture wires through the Chain (every
three links) and pull the wires until taut.
6. Slip Canopy loop collar (B2) over the chain, then
do the same with the canopy (F2).
7. When ready to complete the installation Use the
other chain connector and attach the other end of
the chain to the canopy loop (A2) and close the
chain connector.
8. Make sure the weight of the chandelier is
supported by the chain-not the electrical wire.
* You may now install the xture.
Fig 2
PARTS & ASSEMBLY SHEET
Fixture Name: Torbellino 8106-3P CDB
NOTE: Complete these remaining steps after the
xture is hung.
9. Thread the Nipple (P) into the Coupling (N), and
then thread the Hex Nut (Q) onto Nipple (P) until
tight.
10. Install the light bulbs in accordance with the
xture’s specications.
11. Place Glass Shade (R) over the Metal Ring .
The Nipple (P) shall protrude through the bottom
hole of the Glass Shade (R).
12. While holding the Glass Shade slide the
13. Slide Bottom Cap (U) over Nipple (P) and thread
the Finial (V) until tight.
(DO NOT EXCEED THE MAXIMUM WATTAGE
RATING)
Fig 3
B2
A2
C2
E2
D2
E2
M
N
K
L
P
Q
R
SV
U
T
V
G
CHAIN
J
H
For Customer Service, contact the place of purchase to arrange for replacement parts.
7. Unscrew the Canopy loop collar (H) from the Canopy loop. Take the
canopy and pass over the Canopy loop. approximatly one half of the
canopy loop exterior threads should be exposed. Adjust until desired
height is reached. *the Canopy loop collar should t snugly on the
Canopy loop after the canopy is installed. Remove Canopy and Canopy
lock collar.
8. Assemble the xture and have an assistant or secure support hold the
weight of the xture while you complete the wiring connections.
9.Thread the xture wires and ground wire of the assembled xture
through the canopy loop and nipple and into the outlet box.
WARNING ! SHUT OFF POWER AT FUSE OR CIRCUIT BREAKER.

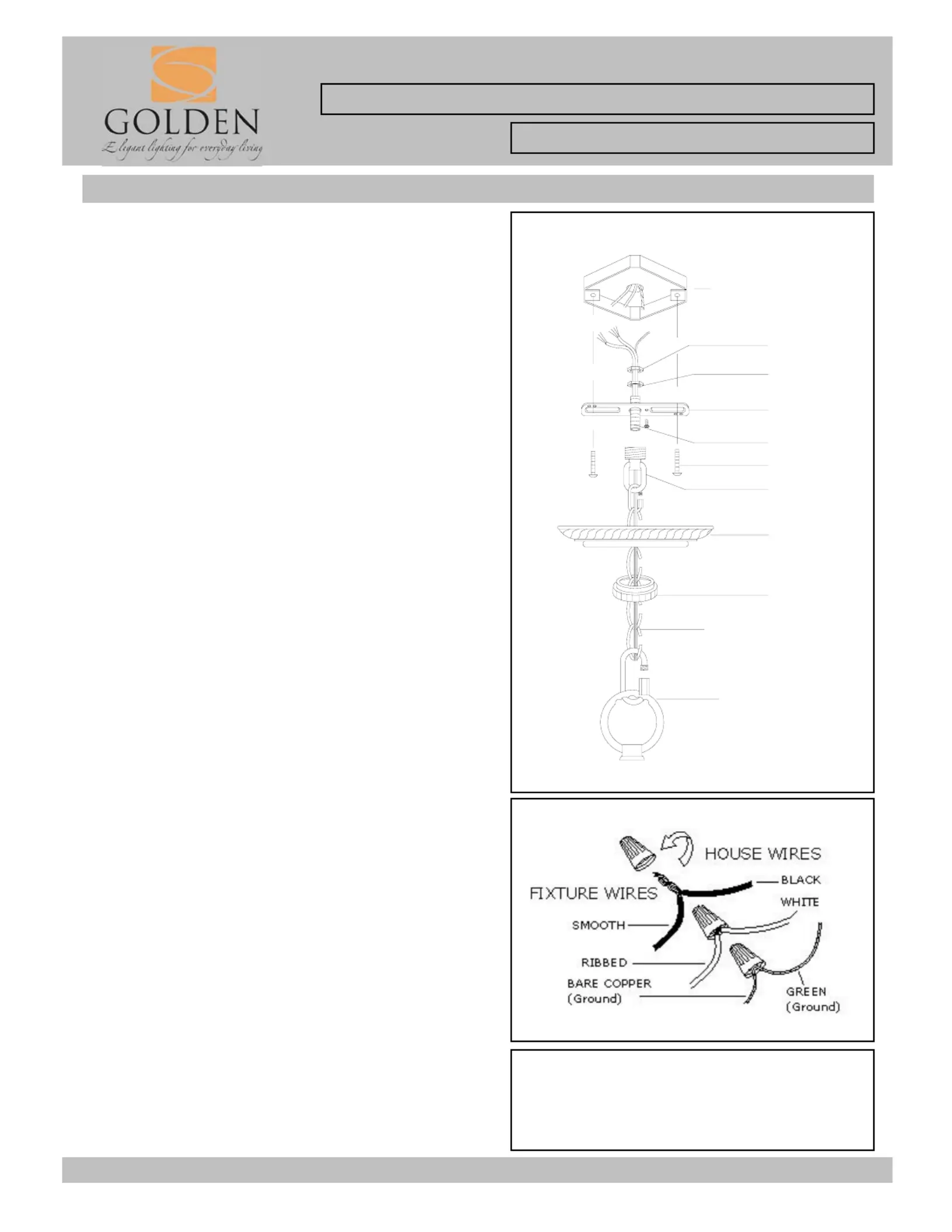

HANGING THE FIXTURE (Fig.1)
1. Carefully remove the new xture from the carton and the yellow bag
that holds all parts. Check that all parts are included as shown in the
illustration and parts list.
2. Shut o the power at the circuit breaker and remove old xture from
ceiling, including the old mounting strap.
3. Thread Nipple(C) into Canopy Loop (F) until snug.
4. Thread other end of the Nipple (C) with Canopy Loop attached into
Mounting Strap (D).
5. Place Lock Washer (B) over end of Nipple (C) protruding through
Mounting Strap (D) and thread Hex Nuts (A) onto Nipple until tight.
6. Take this mounting strap assembly and mount to ceiling junction box
with junction box Screws (E). Tighten screw securely with screw driver.
.
Fig. 1
CONNECTING THE WIRES (Fig 2)
10. Attach the power supply wires to the xture lead wires by connecting
BLACK to BLACK (or SMOOTH) and WHITE to WHITE (or RIBBED).
11. Attach the GROUND wire(GREEN or COPPER) from the Junction
Box and the xture Ground wire to the green Ground Screw on the
Mounting Bracket (D) or connect both wires together using the correct
size of wire connectors.
NOTE: Twist the wires together in the same direction you twist the wire
connector onto the wires.
12. Tuck these wire connections neatly into the Junction Box.
Fig. 2
13. Raise Canopy (G) to the ceiling and secure in place by tightening the
Canopy loop collar(H) into the Canopy Loop(F)
14. Install the light bulbs and glass shade as per the xture assembly
sheet.
YOUR INSTALLATION IS NOW COMPLETE.
RETURN POWER TO THE JUNCTION BOX
AND TEST THE FIXTURE.
INSTALLATION INSTRUCTIONS
Fixture Name: Torbellino 8106-3P, BP3 CDB
For Chandelier Light Fixture
G
CHAIN
J
H
F
E
D
JUNCTION BOX
(CEILING)
A
C
B
