and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
Product Mounting Disclaimer
Rev. A
INST-1020
This instruction sheet is for the Gamber-Johnson 2-in-1 Attachable Keyboard only. For
instructions on features, set-up, and operation of the Zebra tablets, please refer to the user
guide on zebra.com.
This attachable keyboard is designed to be used with the Zebra ET5X 10" tablets without the
rugged case and is compatible with the Windows and Android models. It is designed to assist
users in the rugged market and be used outside as well as in the office. It is not designed to be
mounted in a vehicle as it does not meet the specific safety standards Gamber-Johnson
requires for rugged products in the vehicle. Gamber-Johnson offers a full line of products to
mount the tablet in the vehicle. Please visit gamberjohnson.com for more information.
1 / 7
INSTALLATION INSTRUCTIONS
Product
Revision
Form
Printing Spec:
PS-001
7160-1585
KEYBOARD, 2-in-1 ATTACH, ET5X 10"
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868.
For more language options, please contact
a Gamber-Johnson or Zebra representative.
This instruction sheet is for the following products:
Item No. 7160-1585-00
English (US)*
Item No. 7160-1585-01
English (UK)
Item No. 7160-1585-02
German
Item No. 7160-1585-03
French
Item No. 7160-1585-04
Spanish
Item No. 7160-1585-05
French (CA)
Item No. 7160-1585-06 Thai
*All images in this
document are of the
U.S. keyboard layout only.
FEATURE IDENTIFICATION - KEYBOARD
2 / 7
Camera Opening
Side Walls
Provides the latching function to hold the
tablet down. Easy to slide on and off.
Top Latch Ridge
This space allows access to the tablet to
help remove it from the Cover.
Pogo Pin Connector
Provide docking guidance, prevents
mis-docking, and adds strength.
USB 2.0 Input Port
Provides a port to quickly connect digital
devices such as flash drives or a mouse.
Rubber Pads
Provide protection and a non-slip
surface.
Part Number Label
Provides information on the product.
Reference this label regarding any
service needs.
Corner Tablet Opening
Cover
Built-in Kickstand
Provides support when the tablet is open.
Hinge
Connects the keyboard to the tablet.
Rubber Keys
Allow excess water to drain.
Bumpers
Touchpad
Mouse Buttons
Capacitive touch allows for multi-finger
gestures.
Standard U.S. keyboard layout with 12
function keys.
Shoulder Strap Holes
Allows for easy hand carrying and the
potential to add a shoulder strap to each
corner. See page 4.
Drain Holes
Speaker Opening
Carry Handle
These can accomodate a clip-on shoulder
strap. See page 4.
(500 mA)

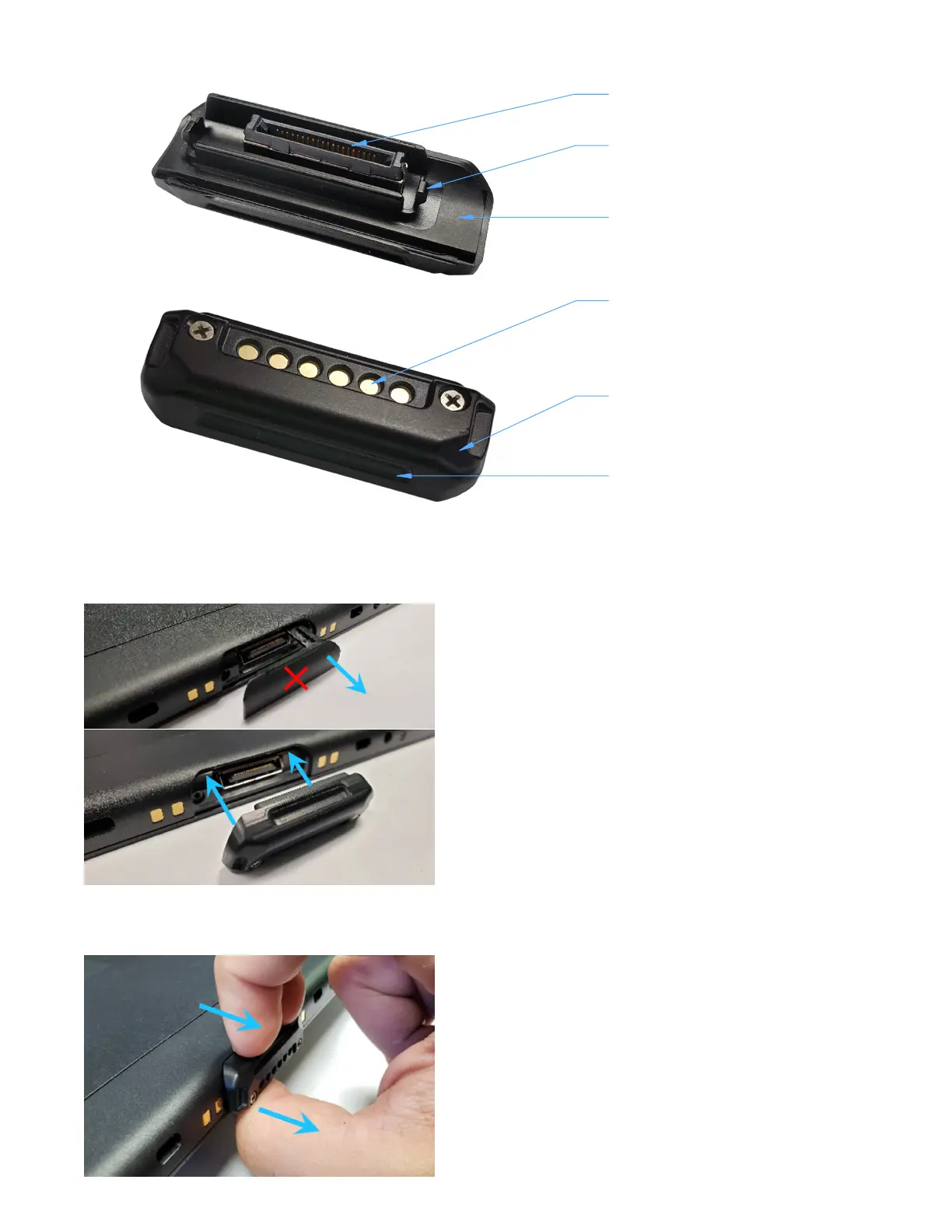

FEATURE IDENTIFICATION - CONNECTOR ADAPTER
3 / 7
Remove the rubber seal from the bottom of the tablet and
discard it. At this point, the tablet is no longer IP65 rated.
Plugs into the tablet for communication.
Align the Connector Adapter so it matches the shape of the
tablet. The Connector on the adapter will mate with the
connector on the tablet. The adapter can only be inserted in
one direction.
Snaps
Connector
Provide secure latching with the tablet.
Also designed to allow easy removal.
Rubber Seal
Provides seal with the tablet to maintain
the tablet's IP65 rating.
Contact-Friendly Edges
Smooth and small exterior will minimize
interference while using the tablet.
Pogo Pads
Provide landing space for the keyboard's
pogo pins and communication between
the keyboard and the tablet.
Removal Ridges
Located on the front and back, provides
a spot to grab and remove the adapter.
INSERTING THE CONNECTOR ADAPTER
REMOVING THE CONNECTOR ADAPTER
Insert the adapter into the connector opening on the tablet.
Keep the connector straight and press until an audible
confirmation is recognized. At this point, the Snaps on the
adapter have securely latched the adapter to the tablet. The
tablet is IP65 rated again and is ready to use with the keyboard.
-- Optional --
Use fingers or finger nails to find the edge or grooves in the
adapter plastic. Pull straight out until the Snaps release the
adapter from the tablet. The tablet is now ready to use with
other devices. The adapter will need to be inserted again to use
the keyboard.
The Connector Adapter may cause interference with other
devices such as the Zebra Charge Dock or ShareCradle
System. The adapter can be removed so the tablet can be used
with those devices.
