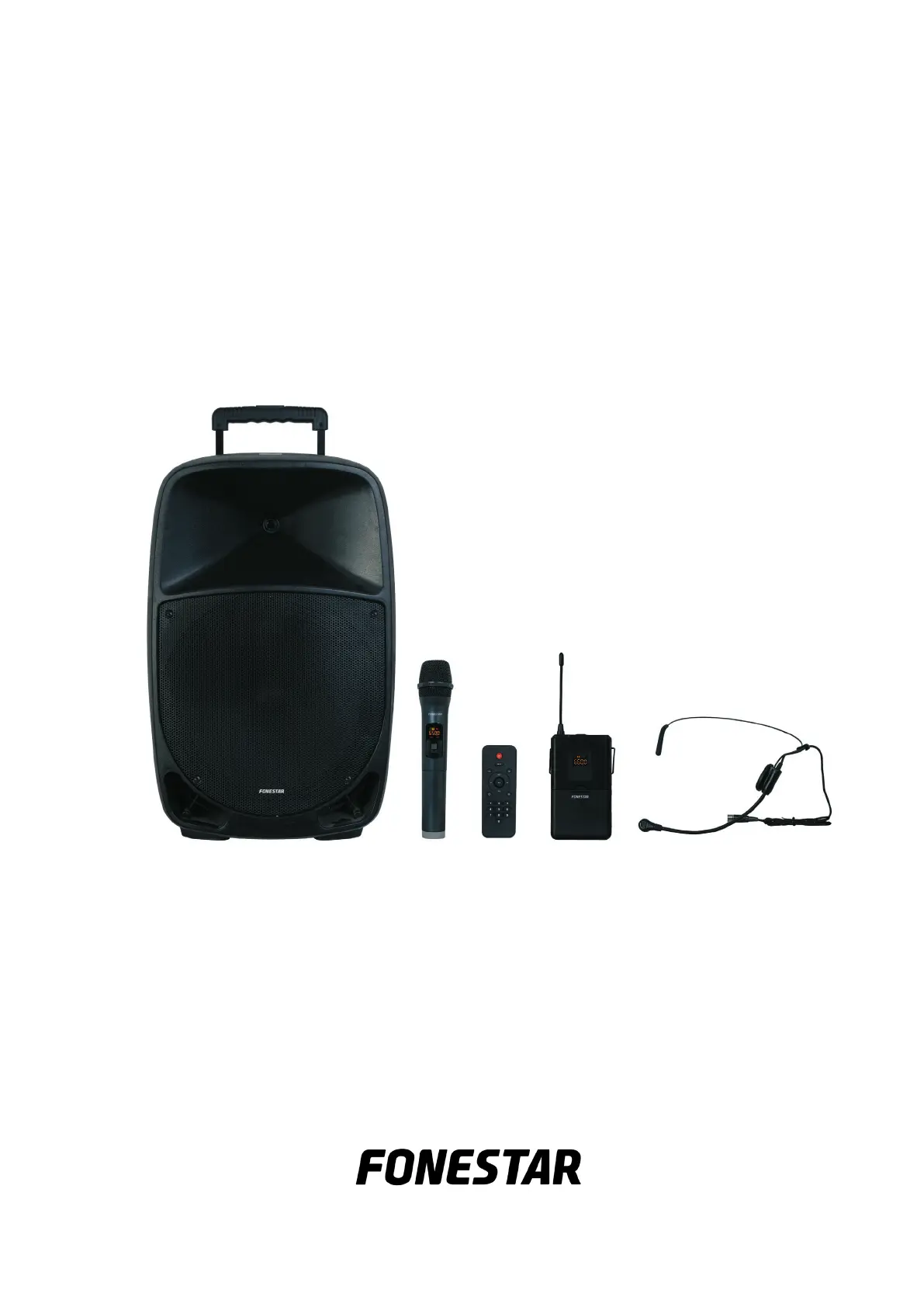

INSTRUCTION MANUAL/MANUAL DE USUARIO/
MODE D’EMPLOI/MANUAL DE INSTRUÇÕES
MALIBU-315
15 PORTABLE SPEAKER”
ALTAVOZ PORTÁTIL 15”
HAUT-PARLEUR PORTABLE 15”
COLUNA PORTÁTIL 15”
EN
- 2 -
DESCRIPTION
- Portable speaker with 2 wireless microphones.
- This portable speaker will accompany you at all your events or parties, a live performance or a live talk.
It provides the perfect musical atmosphere, you can play music, do karaoke, record microphone input,
sound your performances or amplify your voice.
- Its high sound power will allow you to cover events of up to 50 people with excellent audio quality thanks
to its definition in the high frequencies and its BASS REFLEX bass reinforcement.
- The MALIBU-315 incorporates everything you need to amplify the sound. It includes two wireless
microphones, one hand-held and one belt-pack with headset microphone, and two inputs for connecting
two additional wired microphones. You can karaoke by activating the Voice Canceller function that cancels
the voice over the music, assign voice priority to fade the music while speaking, and independently
control the volume of the music and microphone, as well as the echo for the microphone.
- It has a multifunctional Bluetooth®, USB/microSD, radio or line-in with remote control. It also offers the
possibility to connect 2 speakers via Bluetooth and play the same content via the TWS function.
- Its simple and intuitive use minimises set-up time.
- Highly versatile, adaptable to a multitude of uses and very easy to transport thanks to its trolley design
and highly efficient lightweight components, such as the class D amplifier and the rechargeable lithium
battery, which requires little maintenance and provides great autonomy.
- It is the perfect loudspeaker for users without extensive audio knowledge, who need to create a musical
atmosphere for family parties and small events, as well as for more professional users for classes, courses
or presentations, or for artists who want to give small live performances or street music recitals with guitar.
CONTROLS AND FUNCTIONS
1
2
3
4
5
6
7
8
9
18
10
12
11
13
14
15
16
17
EN
- 3 -
1.- Player module information display.
2.- Player buttons.
f g h i j
a b c d e
a.- MODE: short presses of this button allow you to change the mode
on the player to choose the desired audio source: USB, microSD
(CArD), Bluetooth (BLUE), FM radio (display shows frequency),
line-in (LINE).
b.- REC: a short press of this button starts/stops the recording of
the microphone audio. A long press allows the recorded tracks to
be played back. Once you have started playback, you can control
it with the buttons , and .
c.- : in Bluetooth, USB and micro SD mode,a short press will skip to the previous song and a press
in FM mode will skip to the previous stored frequency.
d.- : in Bluetooth and USB and micro SD mode, starts/pauses audio playback; in FM mode, it
automatically memorises all frequencies detected with sufficient signal quality.
e.- /TWS: in Bluetooth, USB and micro SD mode, a short press allows you to skip to the next song.
In FM mode, switches to the next stored frequency. A long press on this button activates the TWS
function, for more information see OPERATION.
f.- : in USB and micro Sdmode,mode, activates/deactivates shuffle playback.
- ONE: plays the same song over and over again.
- ALL: plays the songs in order and restarts at the end.
g.- EQ: allows you to select between the different existing equalisations: FLAT (no EQ), POP, ROCK,
JAZZ, CLASSIC.
h.- VOICE CANCELLER: removes the voice from songs by equalizing to enhance the karaoke
experience. The display shows rON when the function is activated and rOFF when it is deactivated.
i.- MIC PRIORITY: activate microphone priority over music. The music will fade out when there is
a signal from either microphone: MIC 1, MIC 2 or wireless microphones. The display shows PON
when the function is activated and POFF when it is deactivated.
j.- : in USB and microSD mode, allows you to select the folder to be played.FOLDER
3.- : player volume control.PLAYER VOL
4.- : control that boosts or attenuates the player’s treble frequencies.TREBLE
5.- : control that boosts or attenuates the player’s bass frequencies.BASS
6.- ECHO: control of the echo function on the microphones. Allows adjustment of the number of echo
repeats of MIC 1, MIC 2 and wireless microphones.
7.- TREBLE: control that boosts or attenuates the high frequencies of the microphones MIC 1, MIC 2 and
wireless microphones.
8.- BASS: control that boosts or attenuates the low frequencies of the microphones MIC 1, MIC 2 and
wireless microphones.
9.- : microphone volume control MIC 1, MIC 2 and wireless microphones.MIC VOL
10.- : guitar input, 6.3 mm mono jack plug.GUITAR
11.- : stereo line-level auxiliary input, 3.5 mm jack plug.LINE IN
12.- MicroSD memory card connection port.
13.- USB storage device connection port.
14.- : mono auxiliary output of the player’s signal, RCA connector.LINE OUT (PLAYER)
15.- : balanced mic level input, 6.3 mm jack plug.MIC 1, MIC 2
16.- CHARGING BATTERY: témoin lumineux de l’état de charge de la batterie. Ce témoin s’allume en bleu
lorsque la batterie est en cours de chargement et passe au vert lorsque la batterie est complètement
chargée.
17.- Input to connect AC power supply cable.
18.- On/off loudspeaker switch.
