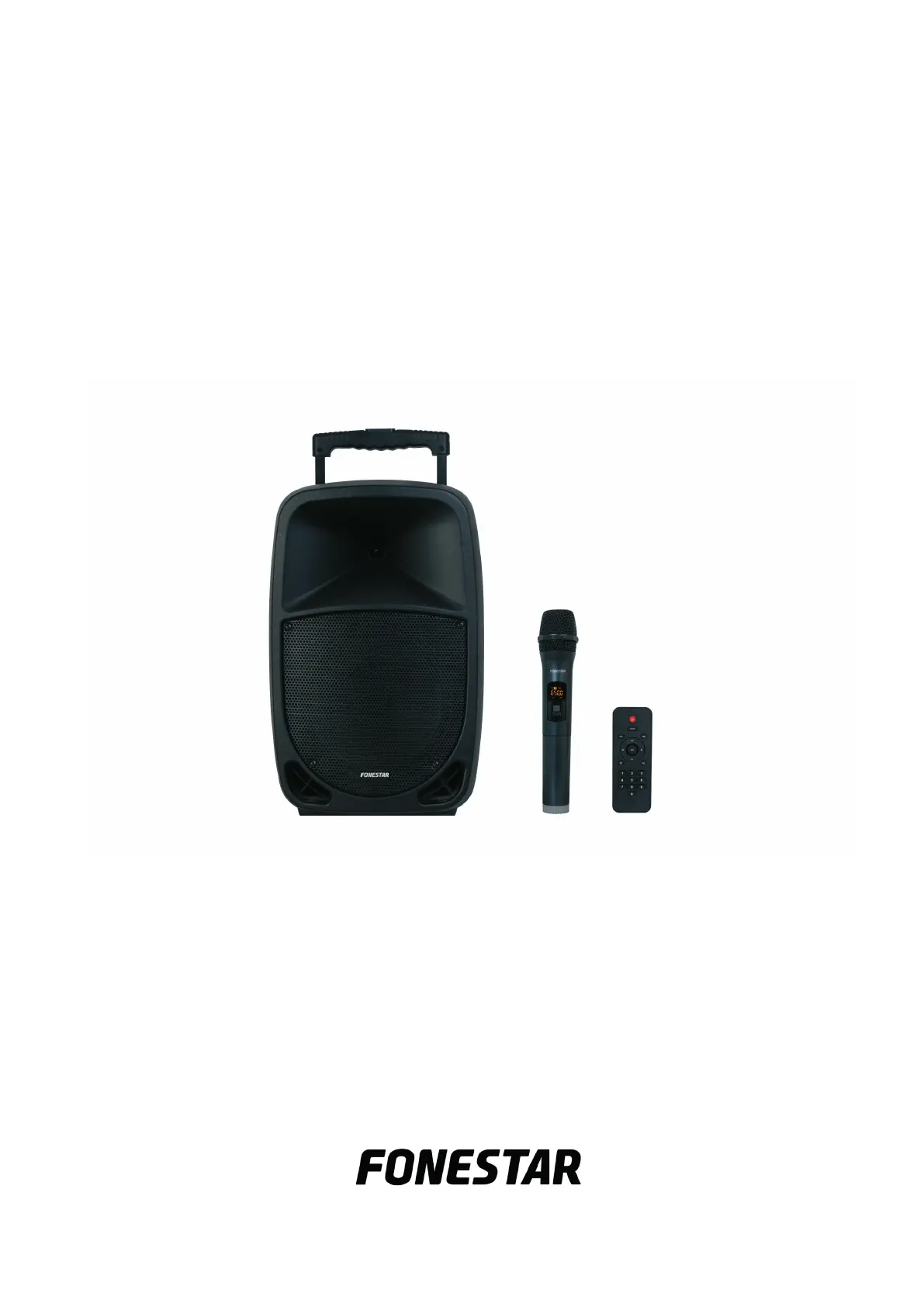

INSTRUCTION MANUAL/MANUAL DE USUARIO/
MODE D’EMPLOI/MANUAL DE INSTRUÇÕES
MALIBU-310
10 PORTABLE SPEAKER”
ALTAVOZ PORTÁTIL 10”
HAUT-PARLEUR PORTABLE 10”
COLUNA PORTÁTIL 10”
EN
- 2 -
DESCRIPTION
- Portable speaker with 1 wireless microphones.
- This portable speaker will accompany you at all your events or parties, a live performance or a live talk.
It provides the perfect musical atmosphere, you can play music, do karaoke, record microphone input,
sound your performances or amplify your voice.
- Its high sound power will allow you to cover events of up to 20 people with excellent audio quality thanks
to its definition in the high frequencies and its BASS REFLEX bass reinforcement.
- The MALIBU-310 incorporates everything you need to amplify the sound. Includes a hand-held wireless
microphone and an input for connecting another wired microphone. You can karaoke by activating the
Voice Canceller function that cancels the voice over the music, assign voice priority to fade the music
while speaking, and independently control the volume of the music and microphone, as well as the echo
for the microphone.
- It has a multifunctional Bluetooth®, USB/microSD, radio or line-in with remote control. It also offers the
possibility to connect 2 speakers via Bluetooth and play the same content via the TWS function.
- Its simple and intuitive use minimises set-up time.
- Highly versatile, adaptable to a multitude of uses and very easy to transport thanks to its trolley design
and highly efficient lightweight components, such as the class D amplifier and the rechargeable lithium
battery, which requires little maintenance and provides great autonomy.
- It is the perfect loudspeaker for users without extensive audio knowledge, who need to create a musical
atmosphere for family parties and small events, as well as for more professional users for classes, courses
or presentations, or for artists who want to give small live performances or recitals.
CONTROLS AND FUNCTIONS
1
2
4
3
5
6
7
8
9
10
11
12
13
15
14
EN
- 3 -
1.- Player module information display.
2.- Player buttons.
f g h i j
a b c d e
f g h i j
a b c d e
a.- MODE: short presses of this button allow you to change the mode
on the player to choose the desired audio source: USB, microSD
(CArD), Bluetooth (BLUE), FM radio (display shows frequency),
line-in (LINE).
b.- REC: a short press of this button starts/stops the recording of
the microphone audio. A long press allows the recorded tracks to
be played back. Once you have started playback, you can control
it with the buttons , and .
c.- : in Bluetooth, USB and micro SD mode,a short press will skip to the previous song and a press
in FM mode will skip to the previous stored frequency.
d.- : in Bluetooth and USB and micro SD mode, starts/pauses audio playback; in FM mode, it
automatically memorises all frequencies detected with sufficient signal quality.
e.- /TWS: in Bluetooth, USB and micro SD mode, a short press allows you to skip to the next song.
In FM mode, switches to the next stored frequency. A long press on this button activates the TWS
function, for more information see OPERATION.
f.- : in USB and micro Sdmode,mode, activates/deactivates shuffle playback.
- ONE: plays the same song over and over again.
- ALL: plays the songs in order and restarts at the end.
g.- EQ: allows you to select between the different existing equalisations: FLAT (no EQ), POP, ROCK,
JAZZ, CLASSIC.
h.- VOICE CANCELLER: removes the voice from songs by equalizing to enhance the karaoke
experience. The display shows rON when the function is activated and rOFF when it is deactivated.
i.- MIC PRIORITY: activate microphone priority over music. The music will fade out when there is
a signal from either microphone: MIC or wireless microphone. The display shows PON when the
function is activated and POFF when it is deactivated.
j.- : in USB and microSD mode, allows you to select the folder to be played.FOLDER
3.- : stereo line-level auxiliary input, 3.5 mm jack plug.LINE IN
4.- : balanced mic level input, 6.3 mm jack plug.MIC
5.- CHARGING BATTERY: battery charging process indicator light. This indicator will illuminate blue while
the battery is charging and will turn green when the battery is fully charged.
6.- USB storage device connection port.
7.- : microphone volume control MIC and wireless microphone.MIC VOL
8.- ECHO: control of the echo function on the microphones. Allows adjustment of the number of echo
repeats of MIC and wireless microphone.
9.- : control that boosts or attenuates the player’s bass frequencies.BASS
10.- LOW BATTERY: low battery indicator light. When this indicator lights up blue, connect the power cable.
11.- MicroSD memory card connection port.
12.- : player volume control.PLAYER VOL
13.- : control that boosts or attenuates the player’s treble frequencies.TREBLE
14.- On/off loudspeaker switch.
15.- Input to connect AC power supply cable.
