Oldal 1/12
CDPX-X-B-W-10
Brief description
Kurzbeschreibung
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
2022-03 8172464
Technical specications/ Technische Merkmale
Power supply / Spannungsversorgung
Power supply voltage /
Eingangsspannung
Current consumption
Stromaufnahme
10 - 32 V DC
0.38 A at 24 V DC
0.38 A bei 24 V DC
Back-up battery /
Back-up Batterie
Supercapacitor
Superkondensator
Fuse /
Sicherung
Automatic
Selbsttätig
Environmental conditions / Umgebungsbedingungen
Operating temperature /
Betriebstemperatur
0 - +50° C EN 60068-2-14
Storage temperature /
Lagertemperatur
-20 - +70° C EN 60068-2-14
Operating and storage
humidity / Betriebs- und
Lagerfeuchtigkeit
5 - 85%RH non-condensing
nicht kondensierend
EN 60068-2-30
Vibration / Schwingungen 5 - 9 Hz, 7 mm peak / Spitze
9 - 150 Hz, 1 G
EN 60068-2-6
Shock / Erschütterung 50 g, 11 ms, 3 pulses per axis EN 60068-2-27
Protection class / Schutzklas-
se
Front IP66
Rear IP20
EN 60529
Touchscreen reliability /
Touchscreen-Zuverlässigkeit
>1 million operations
>1 Millionen Operationen

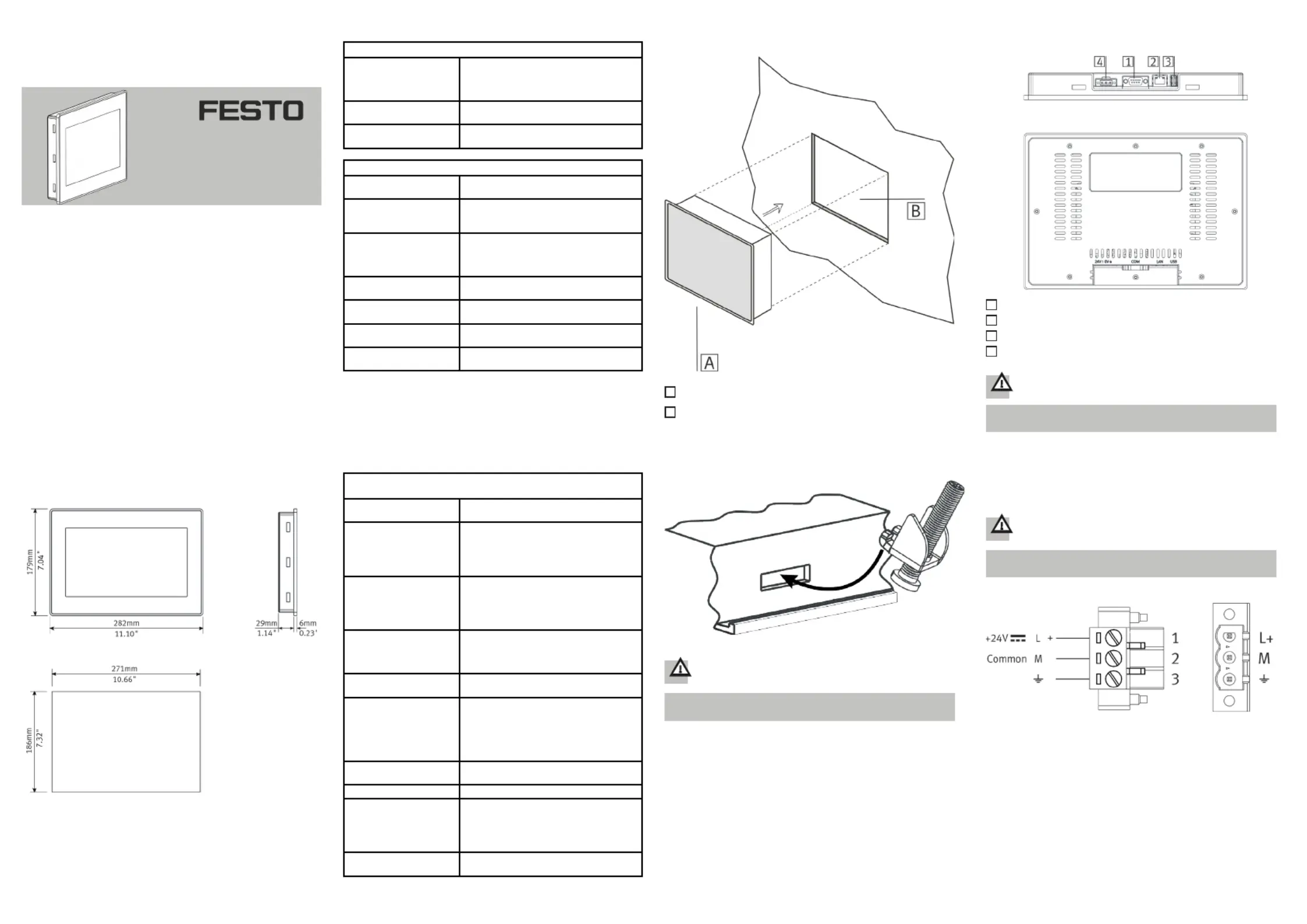

Fixing bracket/ Befestigung
A CDPX
B Installation cut-out/ Einbauausschnitt
Dimensions cut-out / Abmessungen-Einbauausschnitt Electromagnetic Compatibility (EMC) /
Elektromagnetische Kompatibilität (EMK)
Emitted interference /
Ausgesandte Interferenz
Classe A /
Klasse A
EN 55011
Immunity to radiated radio
frequency for electromagnetic
elds /
Funkverträglichkeit für
elektromagnetische Felder
80 MHz - 1 GHz, 10 V/m
1.4 GHz - 2 GHz, 3 V/m
2 GHz - 2.7 GHz, 1V/m
EN 61000-4-3
Immunity to disturbances
inducted by radio frequency
elds / Verträglichkeit gegen
Störungen induziert durch
Radiofrequenzfelder
0.15 - 80 MHz, 10V EN 61000-4-6
Immunity to interference, burst /
Störfestigkeit, Burst
2 KV power supply /
2 KV Stromzufuhr
1 KV signal lines /
1 KV Signallinien
EN 61000-4-4
Electrostatic discharge /
Elektrostatische Entladung
8 KV in air /4 KV contact
8 KV in der Luft / 4 KV Kontakt
EN 61000-4-2
Interfaces / Schnittstellen:
-Serial port /
-Serielle-Schnittstelle
RS-232, RS-422, RS-485, 9-pin sub-D connec-
tor 300 - 115200 baud, software congurable /
RS-232, RS-422, RS-485, 9-poliger Sub-D
Stecker 300 - 115200 baud, Software
kongurierbar
-Ethernet port / Ethernet
Schnittstelle
RJ45 10/100 Mbit/s
-USB port / USB Schnittstelle Host version 2.0, max. 500 mA
Others: / Sonstiges
-Real time clock
-Echtzeituhr
-Accuracy RTC
-Genauigkeit RTC
Clock and calendar with Supercapacitor back-up /
Uhr und Kalender mit Superkondensator
<100ppm at 25°C
<100ppm bei 25°C
-Programming software
-Programmiersoftware
Designer Studio CDPX
Connections/ Anschlüsse
1 Serial Port / Serielle-Schnittstelle
2 Ethernet port / Ethernet Schnittstelle
3 USB port (version 2.0 and 1.1) / USB Schnittstelle (version 2.0 und 1.1)
4 Power
Extra low voltage power supply / Limited power source.
Kleinspannung Stromversorgung / Limitierte Stromquelle.
Tightening torque: 75 Ncm
Anzugsdrehmoment: 75 Ncm

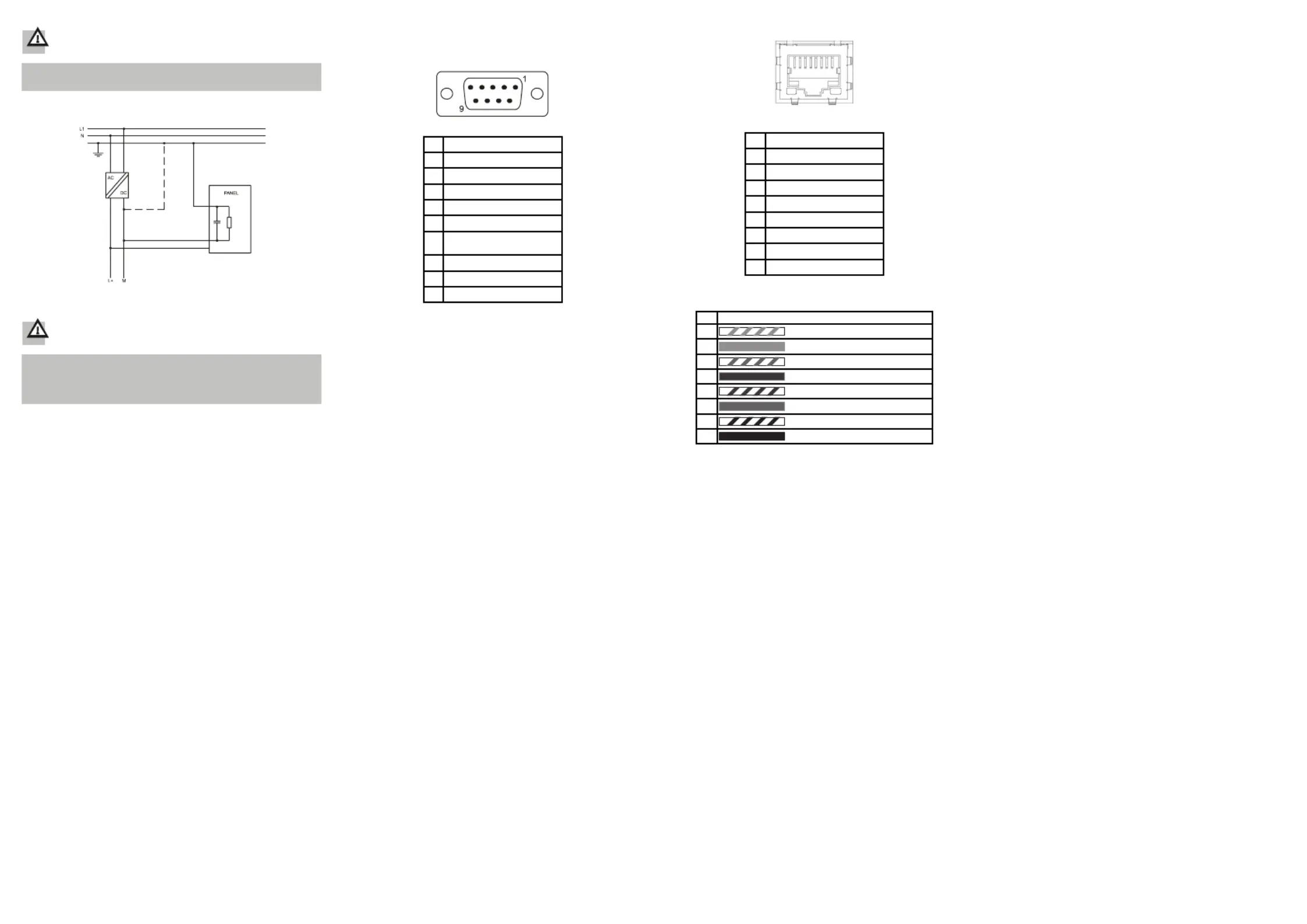

Power supply/ Spannungsversorgung
Extra low voltage power supply / Limited power source.
Kleinspannung Stromversorgung / Limitierte Stromquelle.
DC Power Connector - AWG24 wire size - R/C Terminal Blocks (XCFR2), Female
pitch 5.08mm, torque 4.5 lb-in (50Ncm)
DC Spannungsklemme - AWG24 Drahtstärke - R/C Terminal Block (XCFR2),
weibloch Teilung 5.08mm, Drehmoment 4.5 lb-in (50Ncm)
Serial Port connector and pin assignment /
Serielle Schnittstelle mit Pin Zuordnung
Pin Description / Beschreibung
1 GND
2
3 TX/CHA-
4 RX/CHB-
5
6 +5 V output (Max 100mA)
+5 V Ausgang (max100mA)
7 CTS/CHB+
8 RTS/CHA+
9
Don’t open the panel rear cover when the power supply is applied.
Das Bediengerät nicht unter Spannung öffnen.
Ensure that the power supply has enough power capacity for the operation of
the equipment.
Stellen Sie sicher, dass die Spannungsversorgung genügend Leistungskapazi-
tät für den Betrieb des Gerätes aufweist.
© 2022 all rights reserved to Festo SE & Co. KG
© 2022 alle Rechte sind der Festo SE & Co. KG vorbehalten
Ethernet Port / Ethernet Schnittstelle
Standard RJ 45 MDIX
IEEE 802.3
Pin Description / Beschreibung
1 TX+
2 TX-
3 RX+
4 n/c
5 n/c
6 RX-
7 n/c
8 n/c
E.g. / z.B.
Cable Pin out 568B
Pin
1 White-Orange / Weiß-Orange
2 Orange / Orange
3 White-Green / Weiß-Grün
4 Blue / Blau
5 White-Blue / Weiß-Blau
6 Green/Grün
7 White-Brown / Weiß-Braun
8 Brown / Braun
