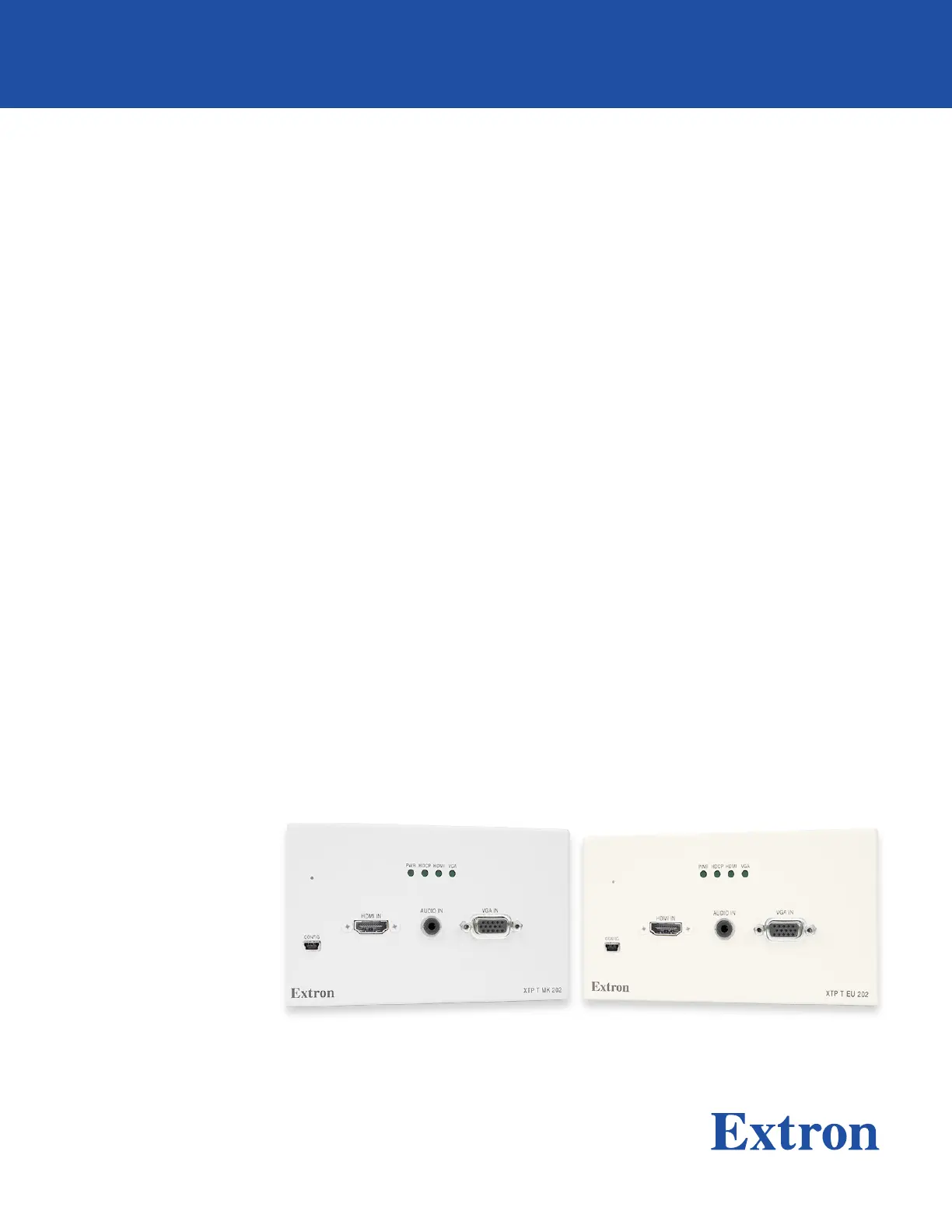

XTP SYSTEMS
XTP T EU 202
The XTP T EU 202 is a two-input XTP
®
transmitter in a two-gang form factor
designed to mount in standard EU-type electrical junction boxes. It sends
HDCP-compliant HDMI or RGBHV video, audio, and bidirectional control
up to 330feet (100meters) over a shielded CATx cable. Designed for use
in XTP Systems
®
, the XTP T EU 202 provides signal distribution and long-
distance transmission for configurable room environments and simplifies
input connectivity from walls, portable lecterns, and boardroom tables.
TWO INPUT XTP TRANSMITTER
FOR EU-TYPE JUNCTION BOXES
Designed to mount in a two-gang
EU-type electrical junction box
Transmits HDMI or digitized analog
video, audio, and bidirectional RS-232
and IR up to 330feet (100meters) over
a shielded CATx cable
HDMI and VGA inputs
Supports computer video up to
1920x1200, including HDTV 1080p/60
DeepColor and 2K
Compatible with CATx shielded
twisted pair cable
Extron XTP DTP 24 shielded twisted
pair cable is strongly recommended
for optimal performance
Auto-switching between inputs
Bidirectional RS-232 and IR insertion
for AV device control
HDCP compliant
EDID Minder® automatically manages
EDID communication between
connected devices
Key Minder® continuously verifies
HDCP compliance for quick, reliable
switching
Remote power capability
Available in RAL9010 white
SPECIFICATIONSDESCRIPTION
For complete specifications, please go to www.extron.com
Specifications are subject to change without notice.
VIDEO
Resolution range
Digital Up to 1920x1200*, 2K, or 1080p (HDTV)
* reduced blanking
Analog Up to 1920x1200* or 1080p (HDTV)
* reduced blanking
VIDEO INPUT
Number/signal type 1 analog RGBHV
1single link HDMI (DVI-D or DisplayPort*) input
INTERCONNECTION BETWEEN TRANSMITTER AND RECEIVER
Signal transmission distance 330' (100 m) using shielded twisted pair cable or
XTP DTP 24 cable
Cable requirements Solid conductor, 24 AWG or better
Cable recommendations 400 MHz bandwidth, STP (Shielded Twisted Pair)
NOTE:
Extron XTP DTP 24 shielded twisted pair cable is stongly recommended for optimal performance.
AUDIO INPUT
Number/signal type 1 analog stereo, unbalanced or
1digital audio, embedded from HDMI
CONTROL/REMOTE
External device (pass-through, unidirectional or bidirectional)
Baud rates Up to 115200 baud
Ethernet data rate 10/100Base-T, half/full duplex with autodetect
GENERAL
Power supply External
Input: 100 to 240 VAC, 50-60 Hz
Output:12 VDC,1 A, 12 watts
Regulatory compliance
Safety CE, c-UL, UL
EMI/EMC CE**, C-tick, FCC Class A**, ICES, VCCI
Environmental Complies with the appropriate requirements of RoHS,
WEEE.
Model Version Description Part number
XTP T EU 202 2 Input EU Transmitter 60-1358-35
Anah eim • R al ei gh • S il ic on Val ley • • New York • Wa s hing ton, DC • Toronto • Mexico City • Par is • Lon don • Da llas
Fr ank fu r t
Amer s fo or t • Moscow • Du ba i • J o ha n n es b u rg • New De lh i • Ba n g al or e • • Se o u l • • Beij i n g • Si n ga po re S ha n g ha i To k y o
UNITED STATES EUROPE ASIA MIDDLE EAST
Worldwide Sales Ofces
+800.633.9876
Inside USA /Canada
+1.714.491.1500
+800.3987.6673
Inside Europe
+31.33.453.4040
+800.7339.8766
Inside Asia
+65.6383.4400
+971.4.299.1800
APPLICATION DIAGRAM
07-2014
68-2620-01
REV. A1
Letter - English - NP
© 2014 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners. Prices and specications subject to change without notice.
PWRHDCP HDMI VG A
VGA IN
XTP T EU 202
AUDIO IN
HDM I IN
CONFIG
Ext ron
4.29"
(109.00 mm)
3.17"
(80.50 mm)
5.97"
(151.50 mm)
0.53"
(13.50 mm)
1.40"
(35.42 mm)
1.93"
(49.00 mm)
Extron
XTP T EU 202
Two Input XTP Transmitter
for EU Junction Boxes
Wall Box
Mounting Plate
The Extron is a compact, two-input transmitter that XTP T EU 202
sends HDMI or RGBHV video, audio, and control up to 330feet
(100meters) over a shielded CATx cable. The XTP
®
transmitter
is compatible with standard two-gang EU-type electrical junction
boxes for convenient installation in wall-mount environments.
It supports computer video up to 1920x1200, including HDTV
1080p/60 Deep Color and 2K. Incoming analog video signals
are digitized for reliable transmission, and separate analog stereo
audio transmissions can be embedded onto the output signal.
Features include automatic switching between inputs with selectable
prioritization and insertion of bidirectional RS-232 and IR to
enable remote AV device control. Designed for XTP Systems
®
, the
XTP T EU 202 can be remotely powered by the XTP CrossPoint
®
matrix switcher.
KEY FEATURES
Designed to mount in a two-gang EU-type electrical
junctionbox
Transmits HDMI or digitized analog video, audio, and
bidirectional RS-232 and IR up to 330feet (100meters)
overashielded CATx cable
HDMI and VGA inputs
Supports computer video up to 1920x1200, including HDTV
1080p/60 Deep Color and 2K
Compatible with CATx shielded twisted pair cable
Extron XTP DTP 24 shielded twisted pair cable is strongly
recommended for optimal performance
Auto-switching between inputs
Remote power capability
Available in RAL9010 white
