ENTTEC RESERVES THE RIGHT TO MAKE CHANGES TO THIS
PRODUCT AND RELATED DOCUMENTS AT ANY TIME WITHOUT
NOTICE, THE MOST RECENT DOCUMENTATION IS AILABLE AT AV ENTTEC.COM

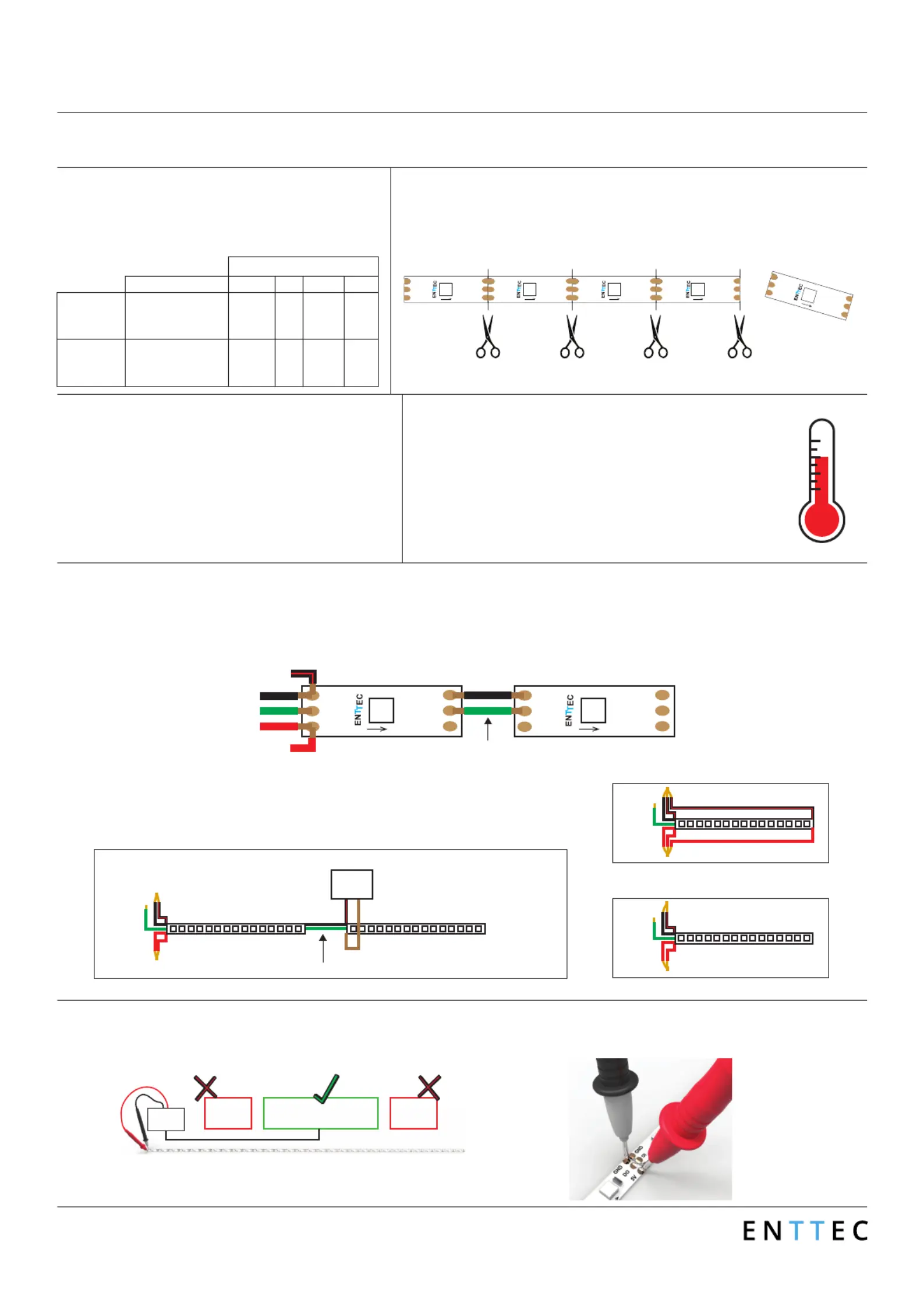

8P PIXEL TAPE
INSTALLATION GUIDE
ID: 3474813
FOLLOW THE INSTRUCTIONS BELOW OR
YOU WILL EXPERIENCE POOR PRODUCT PERFORMANCE AND FAILURE.
! !
MAXIMUM RUN LENGTH
COLOUR AND LUMEN OUTPUT WILL BE AFFECTED IF
MAXIMUM LENGTH IS EXCEEDED. TEST CONDUCTED AT
MAXIMUM BRIGHTNESS USING 5 VOLT DRIVER.
30
60
144
30
60
144
5m
1.5m
1m
5m
5m
1m
SINGLE
POWER
INJECTION
DUAL
POWER
INJECTION
CUTTING
ONLY CUT ALONG THE LINES MARKED ON THE TAPE
GND
DI
5V
GND
DO
5V
GND
DI
5V
GND
DO
5V
GND
DI
5V
GND
DO
5V
GND
DI
5V
GND
DO
5V
GND
DI
5V
GND
DO
5V
ADHESIVE APPLICATION
• THE TAPE WILL NOT ADHERE TO TEXTURED OR
LOW SURFACE ENERGY MATERIALS
• THE BEST SURFACE FOR LONG LASTING ADHESION IS
CLEAN RAW METAL
• CLEAN SUBSTRATE WITH ALCOHOL AND A CLEAN CLOTH
• PEEL OFF PROTECTIVE BACKING TO REVEAL ADHESIVE
• APPLY PRESSURE WHEN ADHESIVE FIXING TO SUBSTRATE
THERMAL MANAGEMENT
• THESE TAPES PRODUCE HEAT, THERMAL MANAGEMENT MUST BE
CONSIDERED.
• THE MORE LEDS PER METRE THE MORE HEAT.
• ENTTEC RECOMMENDS USING AN ALUMINIUM PROFILE TO MANAGE
HEAT.
• EACH APPLICATION IS DIFFERENT, ENTTEC RECOMMENDS TESTING
A SECTION OF TAPE IN ITS FINISHED ENVIRONMENT TO ENSURE
THE THERMAL MANAGEMENT IS SATISFACTORY.
WIRING SCHEMATIC
• SELECT THE MOST SUITABLE OPTION FROM BELOW. SOLDER OR CRIMP IS RECOMMENDED TO COMBINE MULTIPLE WIRES.
• IF WIRE COLOURS VARY AND YOU ARE UNSURE PLEASE CONTACT ENTTEC OR YOUR SUPPLIER FOR FURTHER ADVICE.
• THE MIDDLE WIRE WILL ALWAYS BE DATA.
SINGLE POWER INJECTION
GND
5V
DATA
DUAL POWER INJECTION
GND
5V
DATA
PSU
VOLTAGE: 5
WATTS: (STRIP LENGTH IN
METRES) x (WATTS PER METRE)
GND
5V (1)
DATA 5V (2)GND
DO NOT CONNECT 5V(1) TO 5V(2)
DATA JOIN WITH MULTIPLE SINGLE POWER INJECTIONS
GND
DI
5V
GND
DO
5V
GND
DI
5V
GND
DO
5V
5V
GND DATA JOIN
DO:
DI:
(DATA OUT)
(DATA IN)
BLACK
GREEN
RED
VOLTAGE DROP TESTING
USE MULTIMETER TO TEST FOR VOLTAGE DROP TEST WHERE POWER IS INJECTED. IF PROBLEMS OCCUR ALSO METER THE END OF THE STRIP.
POWER INJECTION
5.0
SET LED COLOUR TO FULL WHITE END
PUSH PROBES
THROUGH
PROTECTIVE
SILICONE TO
MAKE CONTACT
4.8 5.2- 5.34.7
LEDS PER METRE WHITE
THIS DOCUMENT AND DESIGN IS PROPERTY OF ENTTEC.
REPRODUCTION OR USE OF ANY MATERIAL CONTAINED
WITHIN MUST BE APPROVED IN WRITING BY ENTTEC.
RED GREEN BLUE
5m
5m
2m
7m
7m
2m
MAXIMUM LENGTH
5m
5m
2m
7m
7m
2m
5m
5m
2m
7m
7m
2m
