Használati útmutató Elektrobock WS301

Elektrobock Vevő WS301

Olvassa el alább 📖 a magyar nyelvű használati útmutatót Elektrobock WS301 (4 oldal) a Vevő kategóriában. Ezt az útmutatót 6 ember találta hasznosnak és 2 felhasználó értékelte átlagosan 4.5 csillagra

Letöltés PDF
Oldal 1/4
U N D E R T HE S W I T C H
WS301
WS
WS
WS
WS3
3
3
30
0
0
01
1
1
1
MADE IN CZECH REPUBLIC
W I R E L E S S
R E C E I V E R
for wireless control of various electric devices
R A N G E
UP T O
15 0 M
- to control all transmitters series WS3xx can
be used
- small dimensions allow mounting directly into
the installation box
- for heaters, circulation pumps, lighting, air
conditioning and other equipment up to 16 A
INSTALLATION

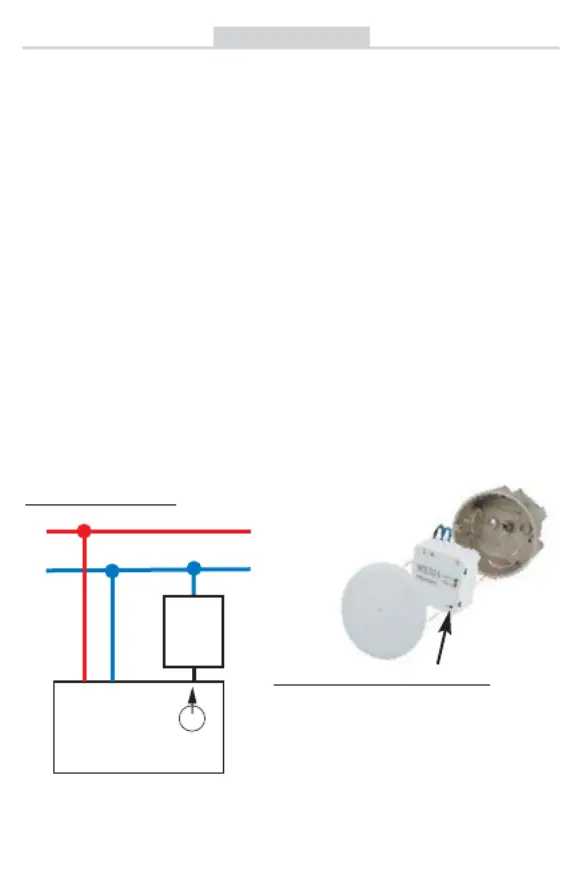

Wiring diagram:
230 V/ 50 Hz
L
N
max.
16 A
L N
FUNCTION BUTTON ( R ) :
SHORT PRESSING (for about 1.5s)
- coding.
LONG PRESSING (for about 5s)
- RESET deleting the code from the
memor y (the LED1 and LED2
flash simultaneously).
WS301 is suitable for switching on electric equipment. Transmitters, se-
ries WS3xx, can be used as a remote control (WS310-stick, WS320-
door contact transmitter, the current channel list on www.elbock.cz).
To be installed in internal rooms. Do not locate near power lines! The device
can only be installed by a person with adequate qualification!
The installation must be executed in a voltage-free state!
1. Switch off the main circuit breaker and connect it to the receiver according
to the diagram;
2. Switch on the main circuit breaker; the LED1 lits up on the receiver; BASIC MODE;
3. Pressing the FUNCTION BUTTON for about 5 sec, will erase the memory
(LED1 and LED2 simultaneous long flash), RESET MODE;
4. Pressing the FUNCTION BUTTON for about 1.5 sec, will get the receiver
into a setting mode for SWITCH ON (LED2 flashing);
5. Press the appropriate button, based on a transmmitter, for transmitting of
a code for SWITCH ON, LED1 flashing and receiver waits for SWITCH OFF.
6. In next step press the same button (or another), on the transmitter, for
transmitting of code for SWITCH OFF;
WS301
7. For setting COUNTING MODE proceed in a similar way;
(!When setting other functions do not use RESET - otherwise, the previ-
ous settings will be erased, it is possible to set up to 16 control buttons!)
8. Pressing the FUNCTION BUTTON for about 1.5 sec, will get the receiver
into a setting mode for SWITCH ON (LED2 flashing);;
9. Press the appropriate button, based on a transmmitter, for transmitting of
a code for SWITCH ON, LED1 flashing and receiver waits for SWITCH OFF.
10. Wait for 20sec, then the receiver is on SETTING TIME MODE (LED1 flashing
and LED2 lit); (!Setting range of time is 1s to 8 hours!)
11. Start to count down of the time,for which the device should be switched on. After the
expiry of the time you have requested press the transmitter button to SWITCH OFF.
EXPLANATION: LIT UNLIT FLASHING
LED2 FUNCTIONS OF WS301 - indication on receiver
1, power on 230V/ 50Hz
2, device is off
receiver waits for SWITCH ON code, if the code is not re-
ceived during 20 sec., receiver goes back to BASIC MODE
receiver waits for SWITCH OFF code, if the code is not received
during 20 sec. receiver goes back to SETTING TIME MODE
device is on
From the beginning of the time count down, receiver waits for SWITCH
OFF code, receiver goes back to BASIC MODE after receiving the code.
device is on and counts down the time (after a set time
automatically turns off and goes into BASIC MODE.
BASIC MODE
SWITCH ON MODE
SWITCH OFF MODE
RELAY SWITCHED
TIME SETTING MODE
COUNT DOWN MODE
flashing simultaneously (5x) - code was erased, is
necessary to set receiver again RESET MODE
LED1
flashing alternaltely - indicates that the transmitter, which
controls the reciever, has exhausted batteries! LOW BATTERY
(in the transmitter)
