Oldal 1/4
X-Line Very Compact
Crossover Retrofit
Installation Instructions
YOU WILL NEED:
- ONE SHORT-HANDLED PHILLIPS SCREWDRIVER
- ONE SHORT-HANDLED ¼” NUT DRIVER
- SMALL SCRAPER OR PUTTY KNIFE
- SMALL WIRE (SIDE) CUTTER TO SNIP CABLE TIES
- CARPENTERS’ WOOD GLUE
- 3M SUPER 77 SPRAY ADHESIVE OR LIQUID
CONTACT CEMENT
1) REMOVE THE 6 SCREWS HOLDING THE INPUT PANEL. CAREFULLY UNPLUG THE MOLEX CONNECTOR
FOR THE TRANSDUCER WIRING AND PEEL OFF THE CONTACT INFORMATION LABEL COVERING THE
“BIAMP” INDICATOR WINDOW ON XLD OR “PASSIVE” INDICATOR WINDOW ON XLE.
2) REMOVE THE GRILLE.
3) REMOVE THE WOOFER THAT SHARES THE SAME CHAMBER AS THE INPUT PANEL.
4) STAND THE ENCLOSURE ON ONE END WITH THE NOW OPEN CHAMBER ON TOP. REMOVE THE BATTING
FROM THIS CHAMBER AND DISCARD.
5) USING THE ¼” NUT DRIVER, UNSCREW THE TWO CABLE TIES SECURING THE WIRES TO THE DIVIDER
PANEL. SAVE THE SCREWS.
6) CAREFULLY SNIP THROUGH THE CABLE TIES TO FREE THE WIRES FROM THEIR BUNDLE, TAKING CARE
NOT TO DAMAGE THE INSULATION ON THE WIRES.
7) SCRAPE OFF ANY EXCESS GLUE DRIBBLES, ADHESIVE AND LEFTOVER BATTING FROM THE SIDEWALLS
OF THIS CHAMBER, ESPECIALLY THE DIVIDER PANEL. TAKE CARE NOT TO ALLOW WIRING TO BE
DAMAGED BY YOUR SCRAPER BLADE. DO NOT DISTURB CAULKING MATERIAL IN WIRING THRU-HOLE
TO HF CHAMBER. IF YOU DO, IT MUST BE RE-SEALED WITH SILICONE RTV CAULK.
8) NOTE THE CHANNELS MILLED INTO ONE SIDE OF THE NEW MOUNTING BOARD. (THE SIDE WITH THE T-
NUTS SHOWING) APPLY AN EVEN LAYER OF WOOD GLUE TO THE FLAT AREAS ADJACENT TO THESE
CHANNELS. (SEE FIGURE 1)
Glue
Rounded Corner
Glue
Rounded Corner
Glue
000-649103 TSILSTRAPTIFORTERREVOSSORCE/DLX
N/P NOITPIRCSED .YTQ
000-080207 DRAOBGTMTIFORTERREVOXE/DLX 1
000-804065 E/DLX,REVOX 1
90883 NOLYN,TALF,REHSAW 7
PCL412706 8/7X42-01,WERCS 7
31437 EITELBAC 1
000-126195 GNITTAB FL1
000-141185 WERCSLLAWYRD”¼1x8# 6
47401183 TIFORTERREVOXE/DLX,SNOITCURTSNI 1
This End of Mounting Board
to Rear of Enclosure
T-Nuts

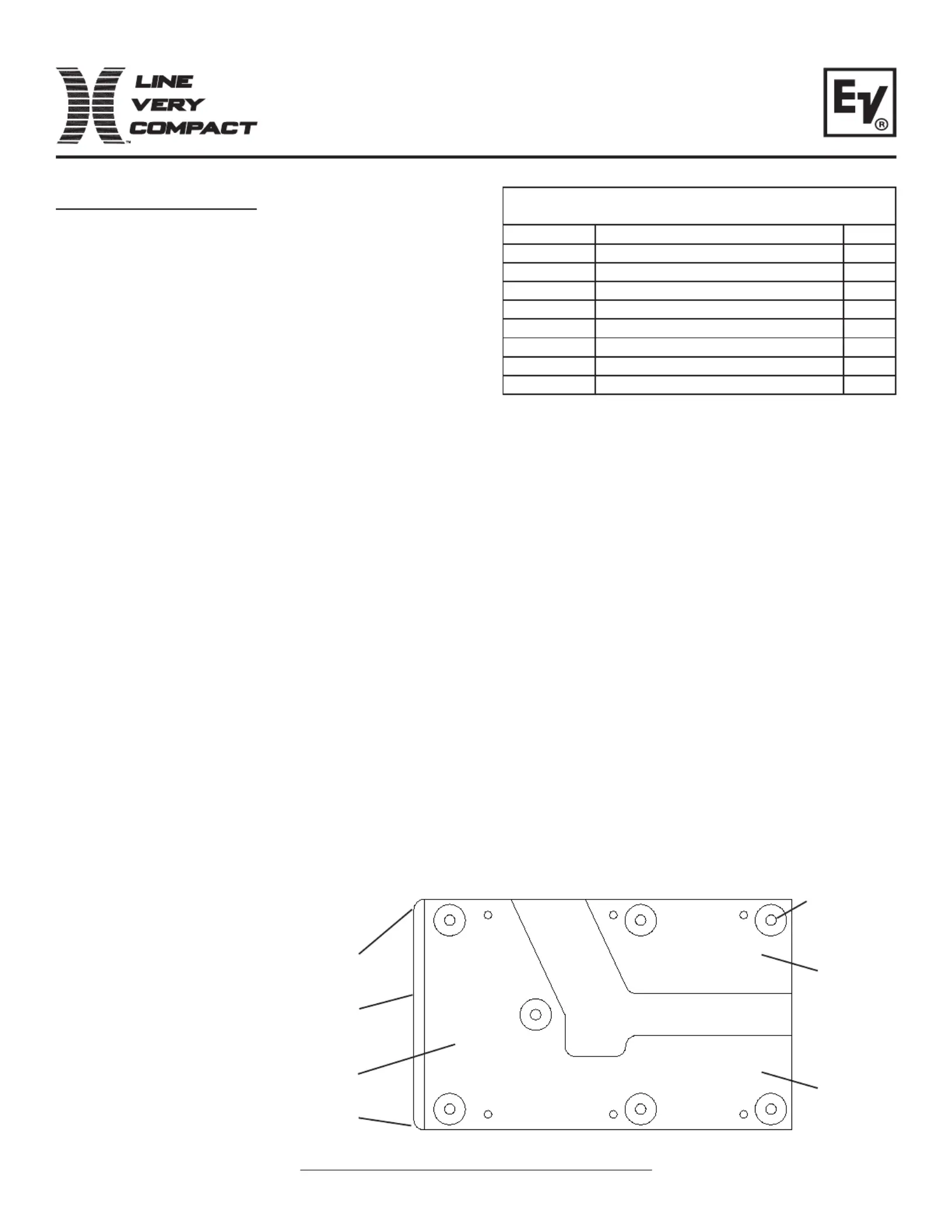

Figure 1: Apply Glue to Mounting Board
Channel
Channel
9) CENTER THE NEW CROSSOVER MOUNTING BOARD TOP-TO-BOTTOM ON THE DIVIDER PANEL WITH THE
WIRING TO THE HF CHAMBER ROUTED THROUGH THE ANGLED CHANNEL ON THE UNDER-SIDE OF THE
BOARD. THE END OF THE BOARD WITH THE ROUNDED CORNERS MUST BE FLUSH AGAINST THE REAR
OF THE ENCLOSURE AND THE SCREW POINT STICKING THROUGH FROM THE HF CHAMBER SHOULD BE
IN THE NARROWER CHANNEL NEAR THE FRONT. MOUNTING BOARD MUST LAY FLAT AGAINST THE
DIVIDER PANEL. (SEE FIGURE 2)

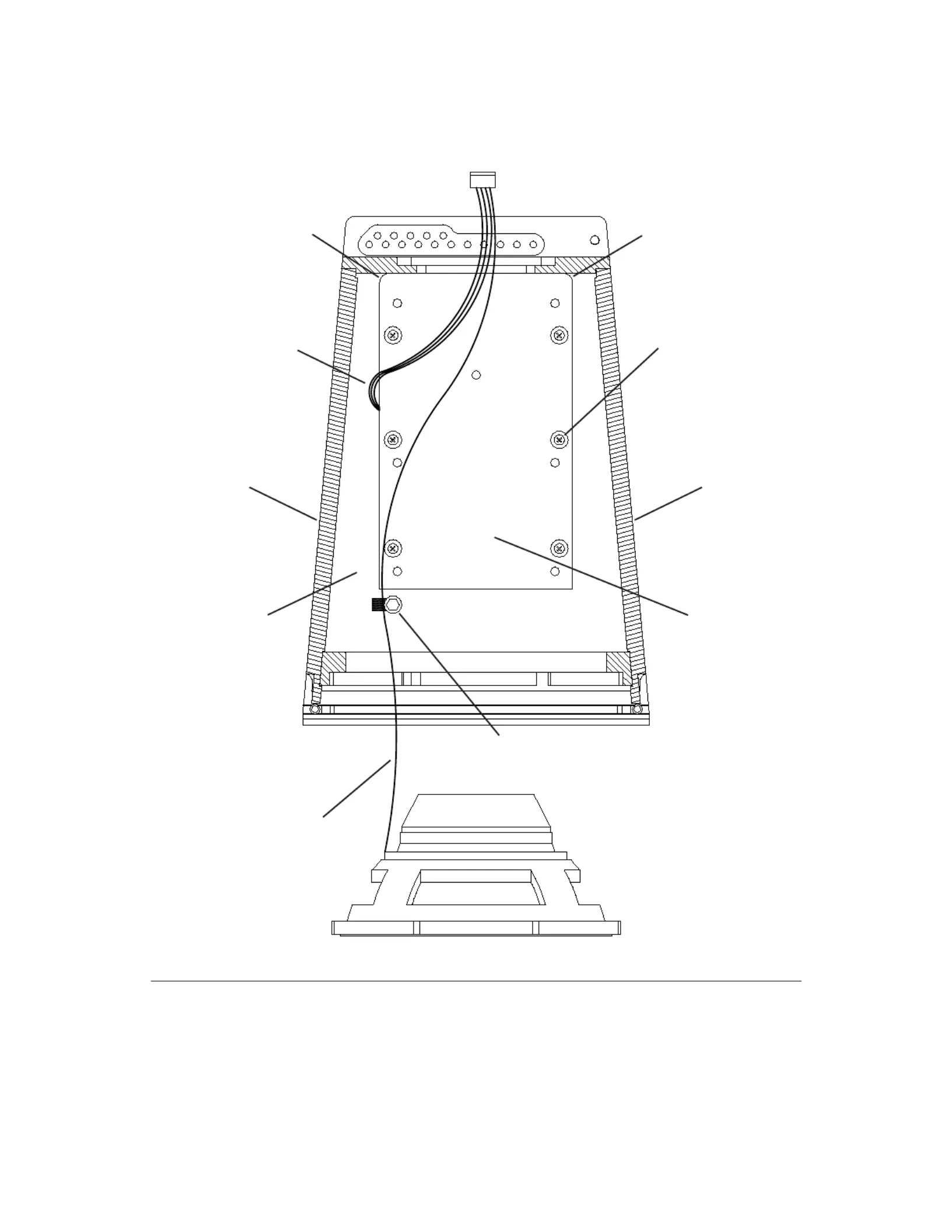

Figure 2: Attach Mounting Board to Divider Panel on Interior of Enclosure
10) INSERT ONE DRYWALL SCREW (PROVIDED) INTO EACH OF THE SIX RECESSED HOLE LOCATIONS AND
TIGHTEN SECURELY.
11) USING ONE OF THE ORIGINAL SCREWS AND THE NEW CABLE TIE, SECURE THE WOOFER WIRES TO
THE DIVIDER PANEL NEAR THE FRONT OF THE ENCLOSURE. (SEE FIG. 2 FOR LOCATION) REMEMBER
TO LEAVE PLENTY OF SLACK AT EACH END TO REACH BOTH THE WOOFER TERMINALS AND THE INPUT
PANEL. SNIP OFF THE EXCESS CABLE TIE AND DISCARD.
Rounded Corner Rounded Corner
Transducer
Wiring Harness
1/4” Hex Screw
and Wire Tie
Woofer Wires
Drywall Screws
in Recessed
Holes
(6 places)
Mounting Board to be
Centered on Divider
Panel
Bottom Side Top Side
Divider Panel Between
LF Chamber and HF
Chamber
12) APPLY SUPER 77 (OR CONTACT CEMENT) TO THE ENTIRE BOTTOM PANEL AND THE END PANEL. WAIT
ABOUT 1 MINUTE, (DO NOT ALLOW ADHESIVE TO DRY COMPLETELY) THEN FOLD THE NEW PIECE OF
BATTING IN HALF AND INSERT IT THROUGH THE WOOFER OPENING. PLACE THE FRONT EDGE OF THE
BATTING UP AGAINST THE BAFFLE AND TUCK THE ADJACENT EDGE DOWN BETWEEN THE BOTTOM
PANEL AND THE NEW MOUNTING BOARD. PRESS THE BATTING UP INTO THE CORNER WITH THE SIDE
PANEL AND FOLD IT AROUND AS FAR AS IT WILL GO. BATTING SHOULD NOT BLOCK ANY PART OF THE
PORT OPENING. ALLOW EXCESS TO FOLD OVER ONTO REAR PANEL BUT DO NOT GLUE TO REAR
PANEL. (SEE FIGURE 3)
13) PLACE A PLASTIC WASHER ON EACH OF THE SEVEN 10-24 MACHINE SCREWS AND INSERT ONE INTO
EACH OF THE SEVEN GROMMETS ON THE COMPONENT SIDE OF THE CROSSOVER. NOTE THAT THE
GROMMETS ARE FURTHER IN FROM THE END OF THE CIRCUIT BOARD ON ONE END. INSERT THE
CROSSOVER THROUGH THE WOOFER OPENING THIS END FIRST AND POSITION SO ALL SEVEN SCREWS
LINE UP WITH THEIR CORRESPONDING THREADED HOLES IN THE MOUNTING BOARD BEFORE
SECURELY TIGHTENING ALL SEVEN SCREWS. DO NOT TRAP ANY WIRES UNDER CIRCUIT BOARD.
14) ON THE INPUT PANEL, SELECT THE OPERATING MODE BY MOVING THE 4-WIRE JUMPER PLUG AT THE
EDGE OF THE CIRCUIT BOARD.
XLD: SELECT “BIAMP” OR “TRIAMP” OPERATION
XLE: SELECT “PASSIVE” OR “BIAMP” OPERATION
MAKE SURE ALL 4 PINS ARE COMPLETELY ENGAGED.
15) RE-CONNECT THE TRANSDUCER WIRING MOLEX CONNECTOR TO THE HEADER ON THE BACK OF THE
INPUT PANEL CIRCUIT BOARD NEAR THE TOP EDGE. CONNECT THE 4-WIRE MOLEX PLUG FROM THE
CROSSOVER TO THE 4-PIN HEADER LOCATED NEAR THE CENTER OF THE BOARD. DOUBLE CHECK
YOUR WORK. BE SURE ALL PINS ARE COMPLETELY AND SECURELY ENGAGED.
16) RE-INSTALL THE INPUT PANEL.

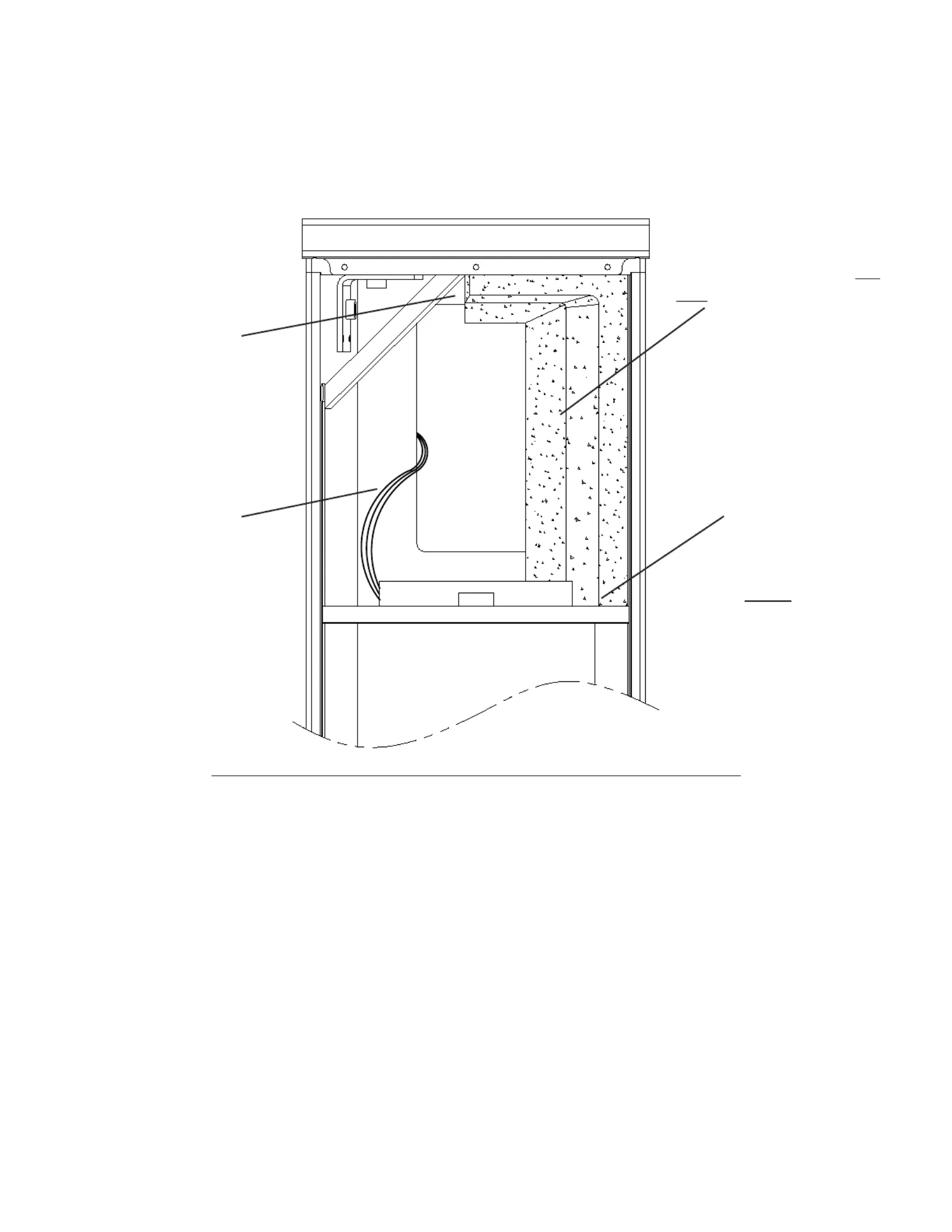

Figure 3: Installing New Batting in Low-Frequency Chamber
Fold Excess Batting over
onto Rear Panel but Do
Not Glue to Rear Panel
Batting must not
Obstruct Port Opening
Note: This View
Shows the
Enclosure without
the Baffle
or Components
Start Batting in this
Corner
Transducer Wiring
Harness
