Before using our product, please read this document carefully.
10 30-9-2013 2 ebode HDIK
User guide
Contents
1. CONFORMITY OF USE
2. INTRODUCTION
3. SET CONTENTS
4. SPECIFICATIONS
5. IR OPERATION WITH EBODE SWITCHER OR SPLITTER
6. IR OPERATION WITHOUT EBODE SWITCHER OR SPLITTER AS STAND-ALONE KIT
7. CEC OPERATION WITH EBODE SWITCHER OR SPLITTER
8. CEC OPERATION WITHOUT EBODE SWITCHER OR SPLITTER STAND-ALONE KIT AS
1. Conformity of Use
For carefree and safe use of this product, please read this manual and safety information
carefully and follow the instructions. The unit is registered as a device that does not
cause or suffer from radio-frequency interference. It is CE approved and it conforms with
the Low Voltage Directory. The safety and installation instructions must be observed.
Technical manipulation of the product, or any changes to the product, e forbidden, due ar
to security and approval issues. Please take care to set up the device correctly - consult
your user guide. Young children should use the device only under adult supervision. No
guarantee or liability will be accepted for any damage caused due to incorrect use of the
equipment supplied, other than indicated in this owner’s manual.
Safety warnings
To prevent short circuits, this product (except if specified for outdoor usage) should
only be used inside and only in dry spaces. Do not expose the components to rain or
humidity.
Only connect the power cord to the mains after checking whether the mains voltage
is the same as the values on the rating labels. Never connect a power cord when it is
damaged. In that case, contact your supplier. If there is any danger of a
thunderstorm, it is a good precaution to unplug the power supply from the mains
network in order to protect it from lightning. The same applies if the system is to be
out of action for any length of time.
Avoid strong mechanical tear and wear, extreme ambient temperatures, strong
vibrations and atmospheric humidity.
Do not disassemble any part of the product: the device contains live parts and no
user-serviceable parts are inside. The product should only be repaired or serviced by
qualified and authorized service personnel. Defected pieces must be replaced by
original (spare) parts.
In case of improper usage or if you have opened, altered and repaired the product
yourself, all guarantees expire. The supplier does not accept responsibility in the case of
improper usage of the product or when the product is used for purposes other than
specified. The supplier does not accept responsibility for additional damage other than
covered by the legal product responsibility.
10 30-9-2013 3 ebode HDIK
2. Introduction
Thank you for purchasing the ebode HDIK30. The ebode IR over HDMI set, HDIK30
contains two IR Adapters, one IR Receiver and one IR Blaster. These products are used for
the ebode HDMI splitters (HDSPLIT12 & HDSPLIT14), switchers (HDSWITCH31 &
HDSWITCH51) and could also be used as a stand-alone IR over HDMI solution This kit .
features two selectable IR modes; CEC and IR. CEC is used when your device (TV, DVD,
STB etc.) is CEC compatible. When your device is CEC compatible* you do not need to use
the included IR Receiver and IR Blaster since receiving and sending of IR is done over the
IR Receiver build into your TV and sources (DVD, STB etc.).
* Please note that in some cases your TV and source might be CEC compatible but cannot
use the CEC feature of our kit. At this moment there is no standard for IR control over CEC
so it’s a matter of testing and seeing the results.
3. Set Contents
When unpacking your ebode HDIK30 please check if the items below are included, if any
items are missed or damaged, please contact your distributor.

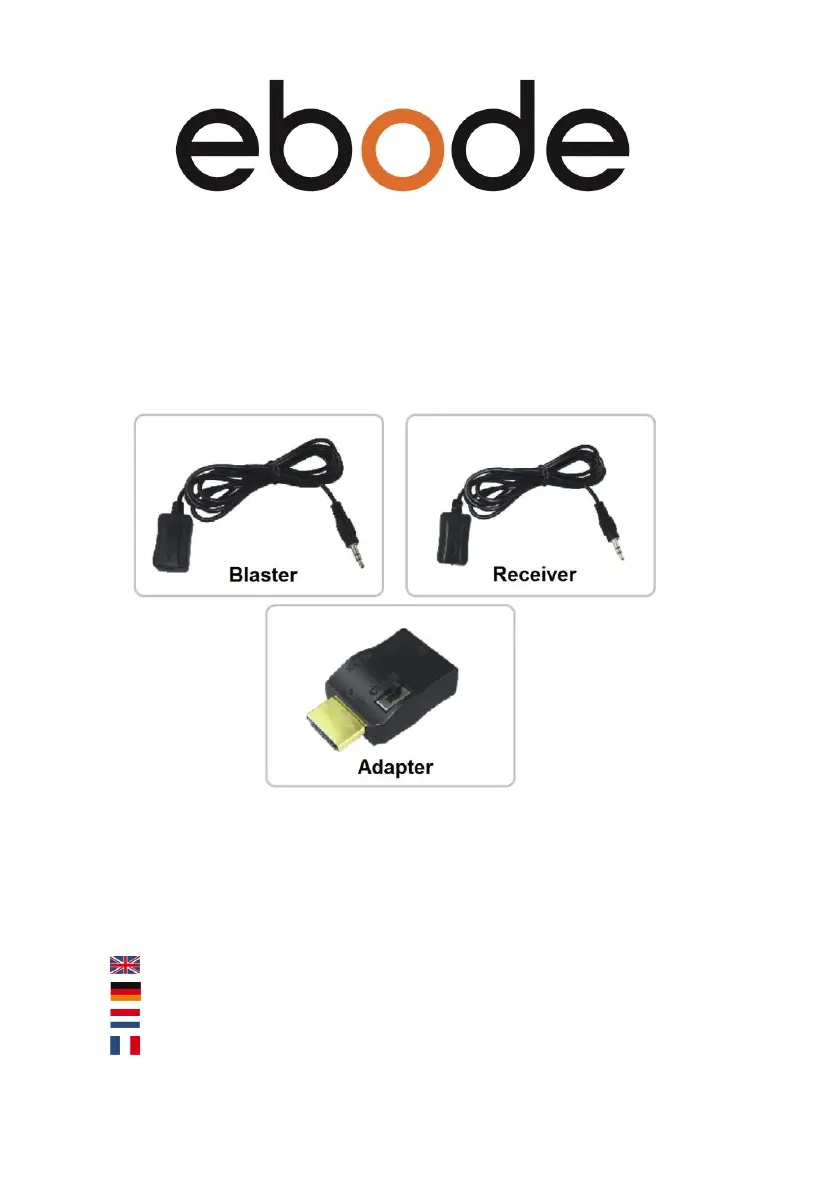

2x HDMI IR Adapter
1x IR Receiver
1x IR Blaster
4. Specifications
Dual band IR Blaster and Receiver
HDMI Male to Female Adapter
Blaster and receiver support 30KHz 60 KHz wide band IR –
3.5mm Stereo Jack connector for IR
Blaster and receiver working distance 3- 5m
IR over HDMI up to 100 meters
No external power adapter required
Switch between IR or CEC mode
5. IR operation with ebode switcher or splitter
When using the HDIK30 kit with ebode HDMI splitters (HDSPLIT12 & HDSPLIT14) the
or switche (HDSWITCH31 & HDSWITCH51) you would only need 1 adapter to send rs
the IR signal from the TV to the source (DVD, STB etc.). The receiving adapter is built
into our switchers and splitters.
Take the HDMI cable out of the TV and put the adapter on the HDMI cable.
Put the HDMI cable with adapter back into your TV.
Connect the IR receiver to the adapter at the TV side and place the Receiver on a good
clear visible spot near your TV so you can point at it with the remote of the source
(DVD, STB etc.).
Set the tiny switcher on the adapter at the TV side to “IR”.
Connect the Blaster to the IR output on the Switch or Splitter and place the Blaster in er
front but within 2 meters of your source or sources such as DVD, STB etc. It is no
problem if the sources are in a closed cabinet as long as the Blaster has clear visibility
to the IR receiving windows on each device.
Test your IR over HDMI connection by pointing the remote of the source of your choice
to the IR Receiver and send an IR command such as power-on. Please verify if the
source is powered and ready to receive IR commands by controlling it directly first.
