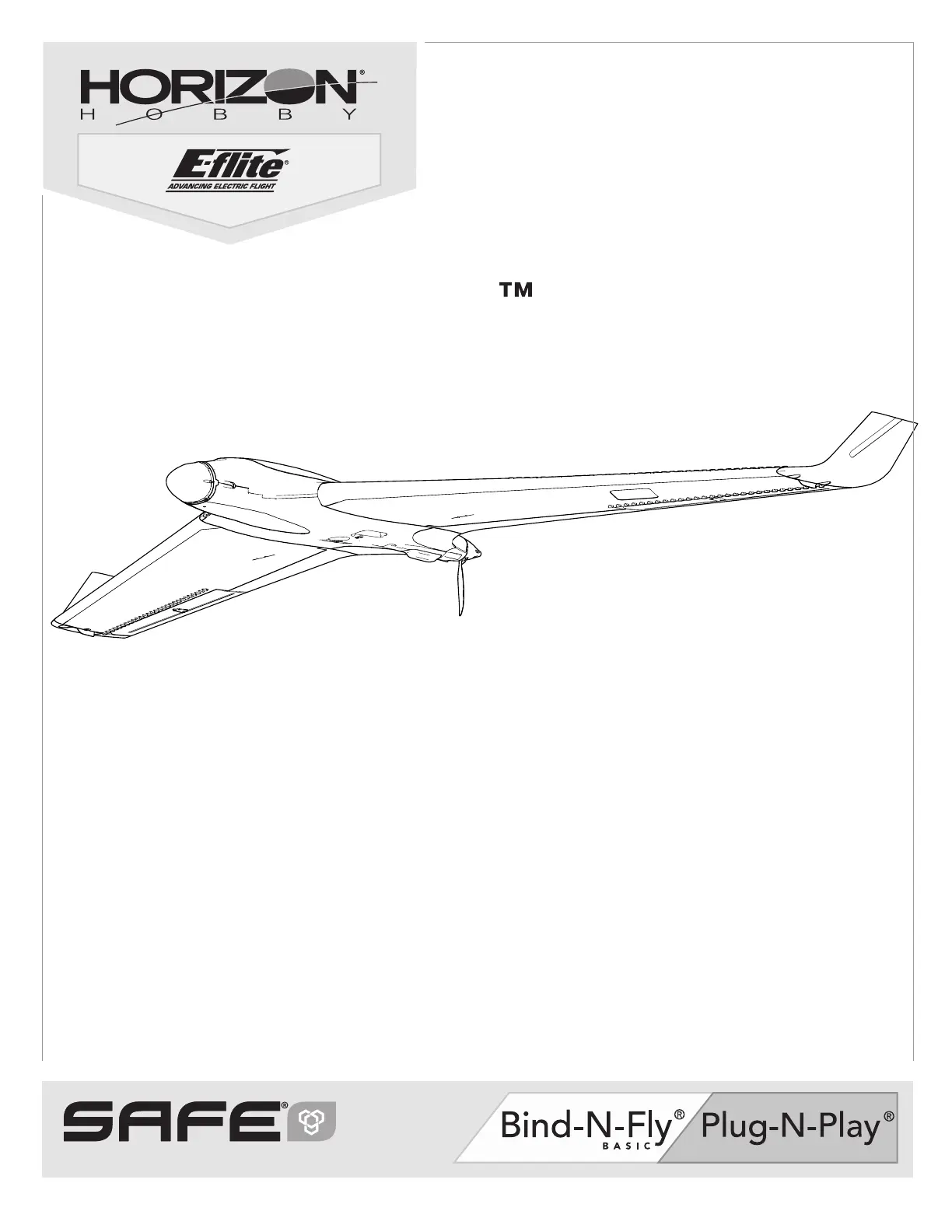

Opterra 2m
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
SAFE® Select Technology, Optional Flight Envelope Protection
EN
Opterra 2m
As the user of this product, you are solely responsible for operating in a man-
ner that does not endanger yourself and others or result in damage to the
product or the property of others.
• Always keep a safe distance in all directions around your model to avoid
collisions or injury. This model is controlled by a radio signal subject to
interference from many sources outside your control. Interference can cause
momentary loss of control.
• Always operate your model in open spaces away from full-size vehicles,
traffic and people.
• Always carefully follow the directions and warnings for this and any optional
support equipment (chargers, rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything electrical out of the
reach of children.
• Always avoid water exposure to all equipment not specifically designed and
protected for this purpose. Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as it could cause serious
injury or even death.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before flying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product
literature, visit www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high
probability of superficial injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product
correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to oper-
ate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by
children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by
Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warn-
ings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Safety Precautions and Warnings
14+AGE RECOMMENDATION:
Not for children under 14
years. This is not a toy.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found
in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to en-
sure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards,
but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with
DSM or Spektrum.
2
EN
Box Contents
Quick Start Information
Transmitter
Setup
Set up your transmitter using the
transmitter setup chart
Elevon
Throws
UP Down
elevator 15mm 16mm
aileron 22mm 19mm
Center of
Gravity (CG)
Inline with dimples located just in front of
finger pockets on bottom of fuselage, slightly
nose down when balanced at the dimples.
Table of Contents
78.3 in (1989 mm)
Specifications
Preflight 4 ..........................................................................................
Transmitter Setup 4 ..........................................................................
Model Assembly .............................................................................5
Optional Camera Mounts.................................................................6
Optional Camera Mounts Continued 7 ................................................
Control Horn and Servo Arm Settings 8 ..............................................
PNP Receiver Selection and Installation 8 ..........................................
Transmitter and Receiver Binding 9 ....................................................
Low Voltage Cutoff (LVC) 9 .................................................................
Battery Installation and ESC Arming 10 ..............................................
Center of Gravity (CG) 11 ..................................................................
AS3X/SAFE Control Direction Test 11 ................................................
In Flight Trimming .........................................................................12
Flying Tips and Repairs 12 .................................................................
Post Flight 13 ....................................................................................
Motor Service 13 ...............................................................................
Troubleshooting Guide AS3X .........................................................13
Troubleshooting Guide 14 ..................................................................
AMA National Model Aircraft Safety Code 15 ......................................
Limited Warranty ..........................................................................16
Contact Information 17 ......................................................................
FCC Information 17 ...........................................................................
IC Information 17 ...............................................................................
Compliance Information for the European Union 17 ............................
Replacement Parts 63 ........................................................................
Optional Parts 63 ...............................................................................
40.8 in (1035.6 mm)
67 oz
(1899 g)
1033 sq/in
(66.6 sq/dm)
Motor: 10BL Brushless outrunner
1300Kv (EFLM108018) Installed Installed
ESC: 40 A ESC wing (EFLA1040W) Installed Installed
13 gram servo (EFLR7156) Installed Installed
Receiver: Spektrum™ AR636A
6-Channel Sport Receiver
(SMPAR636)
Installed
Required
to
Complete
Recommended Battery:
11.1V 3S 2200-3200mAh
30C Li-Po (EFLB22003S30 or
EFLB32003S30)
Required
to
Complete
Required
to
Complete
Recommended Battery Charger:
3-cell Li-Po battery balancing
charger
Required
to
Complete
Required
to
Complete
Recommended Transmitter:
Full-Range 6 channel 2.4GHz with
Spektrum DSMX® technology
Required
to
Complete
Required
to
Complete
To register your product online, visit www.e-fliterc.com
As of this printing, you are required to register with the FAA if you own
this product.
For up-to-date information on how to register with the FAA, please visit
https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage, visit
knowbeforeyoufly.org/. 3
