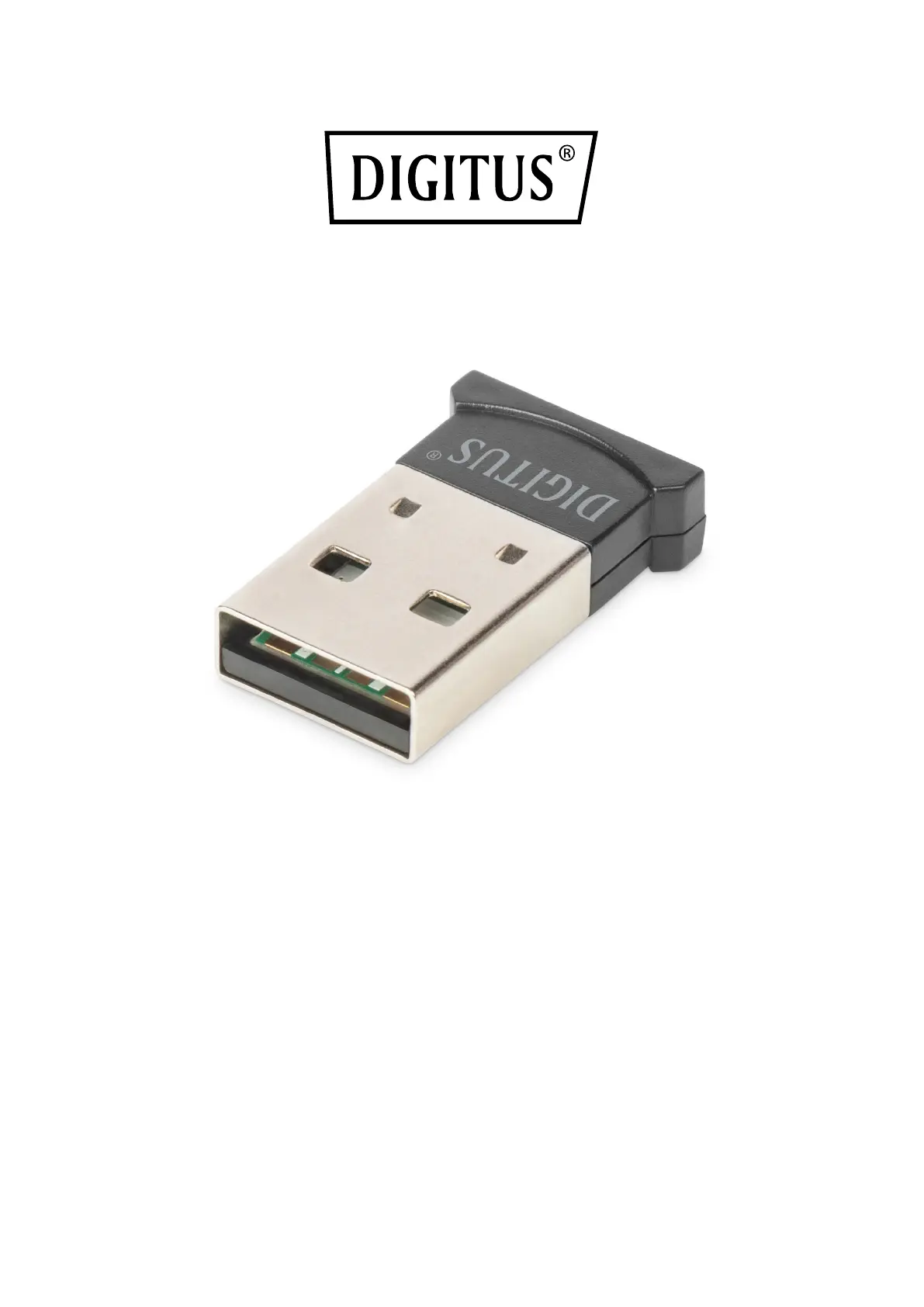

Bluetooth 5. Nano USB Adapter1

Manual

DN- 30211 Rev.2

With the DIGITUS® Bluetooth USB Adapter, you can use the fast standard with high 1 Bluetooth 5.

transmission rates of up to 3 Mbps. This allows you to transmit files, images or music quickly and in

high quality. The adapter can be used for mobile devices, for connections between computers, for

connecting Bluetooth accessories of all kinds and is supported by the most common gaming consoles.

These include controllers, headphones, speakers, keyboards, mouses, printers, tablets or

smartphones. It is also possible to use dual mode, LAN function, printer control and the serial port

function (SPP). The range of the Bluetooth dongle is between 10 and 20 meters depending on the on-

site conditions. The BLE function ensures that the power consumption is always adapted to the

capacity that is currently required.

Product Specification

1. Basic specifications and parameters

Product name： Bluetooth 5.1 Nano USB Adapter

Model： DN 30211-

Dimension： 23 mm (L) x 14 mm (W) x 5 mm (H)

Chip： BR86 51A01

Weight (NW)： 1.08g

BT Version： Bluetooth V5.1

Transmission distance： 10m 20m-

Rated Voltage： DC 5V

Interface type： USB

Frequency range: - 2.4GHz (2400 2484MHz)

Transmission rate：

Bluetooth: EIRP: 2.84dBm Maximum

Bluetooth: BLE: EIRP: 2.53dBm Maximum

Software version: V2.2

Hardware version: V3.1

Operating system： XP/ Win 7 Win 8 Win 10/ 11 / Linux / /

Temperature： 0 ℃~ 70℃

Humidity： 1. 40% ~ 60%

Features：

2. Small size, powerful function:

wireless listening to music, file sharing

(not supporting IOS mobile phone)

Powerful function (dual mode, low power

consumption, high audio quality,

supporting more than 3 Bluetooth devices,

supporting Bluetooth service sharing)

4. Comply with Bluetooth 5.1 ,

distance 10-20m

2. Support services

• Bluetooth LAN (PAN)

• Bluetooth high quality audio (A2DP, HFP)

• Bluetooth image transfer function (BIP)

• Serial port function (SPP)

• Bluetooth printing service (HCRP)

• Bluetooth file transfer service (FTP)

• Bluetooth information exchange service (OPP)

• Bluetooth dial up service (DUN) ……

• (chip supported protocols: GAP, HFP, HSP, PBAP, A2DP, AVRCP, FTP, OPP, MAP, HID, DUN, PAN, GATT,

IAP2, ANCS, SPP, BT5.1 And downward compatible)

3. Application scope

• Wireless communication between mobile phones and hands-free devices was also the first

popular application

• Wireless network between computers within a specific distance

• Wireless connection between computer and peripheral devices, such as Bluetooth keyboard,

mouse, headset, printer, etc

• File transfer between Bluetooth devices

• Wireless traditional wired equipment, such as: medical equipment, GPS, barcode scanner, traffic

control equipment

• Wireless bridge between several Ethernet Networks

• 7 generations of home game console handle, PS3, PSP go, Nintendo Wii ipega9017 ipega9017s

ipega9025 Bluetooth game handle

• With Bluetooth support, PC or PDA can realize dial-up Internet access through the modem of

mobile phone

• The real-time positioning system (RTLS) uses the "node" or "tag" embedded in the tracked object,

and the "reader" receives and processes the wireless signal from the tag to determine the location

of the object

4. Operation Instruction

1. Plug and play version, no needs to install the driver

Note:

(1) Most laptops have their own Bluetooth function, as shown in the figure. Before plug the BT

adaptor into any devices with own Bluetooth function, user needs to disable your own

Bluetooth in the device manager, and then re insert a new Bluetooth adapter.-

(2) IOS system mobile phone does not support file transfer

2. Once the USB adaptor is plugged you will see a Bluetooth icon on the task bar at the bottom

right of the screen. If you click on it (both right and left click work the same way), you will get a

list of options.
