Oldal 1/48

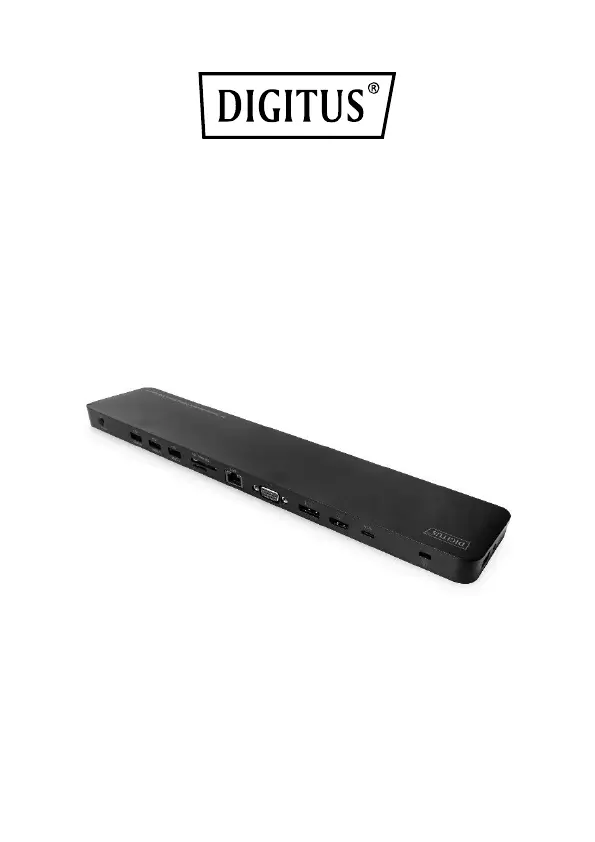

14" Universal
Notebook Docking Station,
USB Type- C™
User Manual
DA- 70868 Rev. 2
2
1.0 INTRODUCTION
The 14" docking station from DIGITUS® extends your notebook by 14
extra ports via one USB C™ connection. It contains, inter alia, three video -
ports (HDMI, DisplayPort, VGA) for connecting monitors, projectors, TVs,
etc. Thanks to triple monitor support, these can be used simultaneously.
Under Windows, a video signal can be output simultaneously to three
different ports (SST mode); additionally, three different video signals can
be output to three different graphics ports (MST mode). Mac OS supports
only SST mode. The other interfaces offer connectivity to all common
connections that a modern docking station should have. For example, a
network connection, other USB connections (USB- -C™, USB A), an audio
output or two independent card readers. The integrated USB C™ port -
with PD charging can charge your notebook whilst using the docking
station. The docking station also offers various USB 3.0 and 2.0 ports for
data transfer, connection to periphery devices such as mice and
keyboards and for charging mobile devices. Thanks to the smart cable
routing, the docking station can be connected to either side (left or right)
of your notebook. Get the most out of your notebook and extend your
options – all you need is one free USB C™ connection- .
2.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
• 1x Main Unit
• 1x User Manual
3
3.0 FEATURES
• Supports UHD up to 4K/30Hz to 3840 x 2160p resolution
• 3x Video interfaces (HDMI, DP, VGA) to connect up to three monitors
at the same time (triple display support)
• Triple display support under Windows OS - SST (Single Stream
Transport) and MST (Multi Stream Transport) mirror and extend –
monitor
• Triple display support under Mac OS - SST (Single Stream Transport)
- mirror the monitor
• 3x USB 3.0 connections with up to 5 Gbps SuperSpeed data transfer,
a port with BC 1.2 mobile device charging function (1.5 A max.)
• 1 x USB Type- C™ connection as a link to your notebook
• 1 x USB Type- - C™ connection data transfer (5 Gbps max.)
• 1 x USB Type- - C™ connection power delivery 3.0 (100 W max)
• Power Delivery: PD 3.0 up to max. 100 W (20V/5A)
• 1 x HDMI connection (max. 4K/30 Hz)
• 1 x DisplayPort connection (max. 4K/30 Hz)
• 1 x VGA connection (max. 1920 x 1200/60 Hz)
• 1 x Gigabit Ethernet connection - connect notebook to the
Internet / LAN
• 2x USB 2.0 connections with up to 480 Mbps data transfer and
500 mA (downstream) charging function per port
• 2 x Card readers (microSD / SDHC, SDHX, MMC)
– simultaneous use is possible
• 1 x Audio stereo jack (3.5 mm)
• Theft protection (use of a notebook lock is possible)
• Supports DisplayPort alternate mode
• DisplayPort (DP) 1.2 support
• Supports SST and MST Mode
(Single Stream Transport mode / Multi Stream Transport mode)
