SM50
User Guide English ( 2 – 7 )
Guía del usuario Español ( 8 – 13 )
Guide d’utilisation Français ( 14 – 19 )
Guida per l’uso Italiano ( 20 – 25 )
Benutzerhandbuch Deutsch ( 26 – 30 )
Appendix English ( 31 )
2
User Guide ( )English
Box Contents
SM50 Studio Monitor (1) User Guide
IEC Power Cable (1) Safety & Warranty Manual
Isolation Pad (1)
Support
For complete system requirements, compatibility information, and product registration, visit the
Denon DJ website: denondj.com.
For additional product support, visit denondj.com/support.
Specifications
Frequency response 50 Hz – 20 kHz (+3 dB)
Crossover frequenc
y
2.6 kHz
Low-frequency amplifier power 50 W with 20-gauge wiring to this transducer
High-frequency amplifier power 40 W with 20-gauge wiring to this transducer
LF cutoff flat, 80 Hz, 100 Hz
MF boost In/Out of 2 dB centered at 2 kHz
HF trim +2 dB, 0 dB, -2 dB above 3 kHz
Acoustic space 0 dB, -2 dB, and -4 dB
Maximum signal-to-noise
(dynamic range) > 97 dB (typical A-weighted)
Polarit
y
Positive signal at + input produces outward LF cone displacement
Input impedance 20 kΩ balanced, 10 kΩ unbalanced
Input sensitivity 100 mV pink noise input produces 92 dBA output SPL at 1 meter with
volume control at maximum
Power factory-programmed for either 115V ~50/60 Hz or 230V ~50/60 Hz
Protection
RF interference, output current limiting; over-temperature; transient
on/off protection to prevent speaker "pops"; subsonic filter; external
mains fuse
Cabinet Front and rear baffle 1" MDF with 0.75" MDF wrap. Black lacquer
paint on enclosure with soft touch black paint on curved front plate.
Size (width x height x depth) 8" x 12.5" x 10.1"
191 mm x 318 mm x 257 mm
Weight (monitor + power cable) 17.2 lbs./unit
7.8 kg/unit
Above specifications subject to change without notice.
3
Connection Diagrams
Denon DJ SM50 monitors feature balanced XLR and 1/4" connectors, as well as unbalanced
RCA-type analog inputs. Connect the outputs of your audio interface, mixer, or other line-level
device to these inputs.
Note: The XLR/TRS and RCA inputs are summed (i.e., mixed together) before arriving at the
SM50 amplifier, so it is possible to have two sound sources connected to a speaker at the
same time. However, we recommend that not playing audio through both connectors
simultaneously, which may overload the inputs and result in clipping (distortion) at the inputs.
Tip: If your mixer, interface, or other audio source features both XLR/TRS and RCA-type
outputs, use the XLR or TRS connectors instead of the RCA connectors whenever possible.
XLR and TRS cables incorporate a "balanced" design that carries a signal over three
conductors ("hot," "cold," and "ground") instead of two conductors as found in RCA cables
("hot," and "ground"). This results in lower noise, higher rejection of radio-frequency (RF)
interference, and better overall fidelity. If XLR/TRS jacks are unavailable, use RCA-style cables
but try to keep the cables as short as possible.

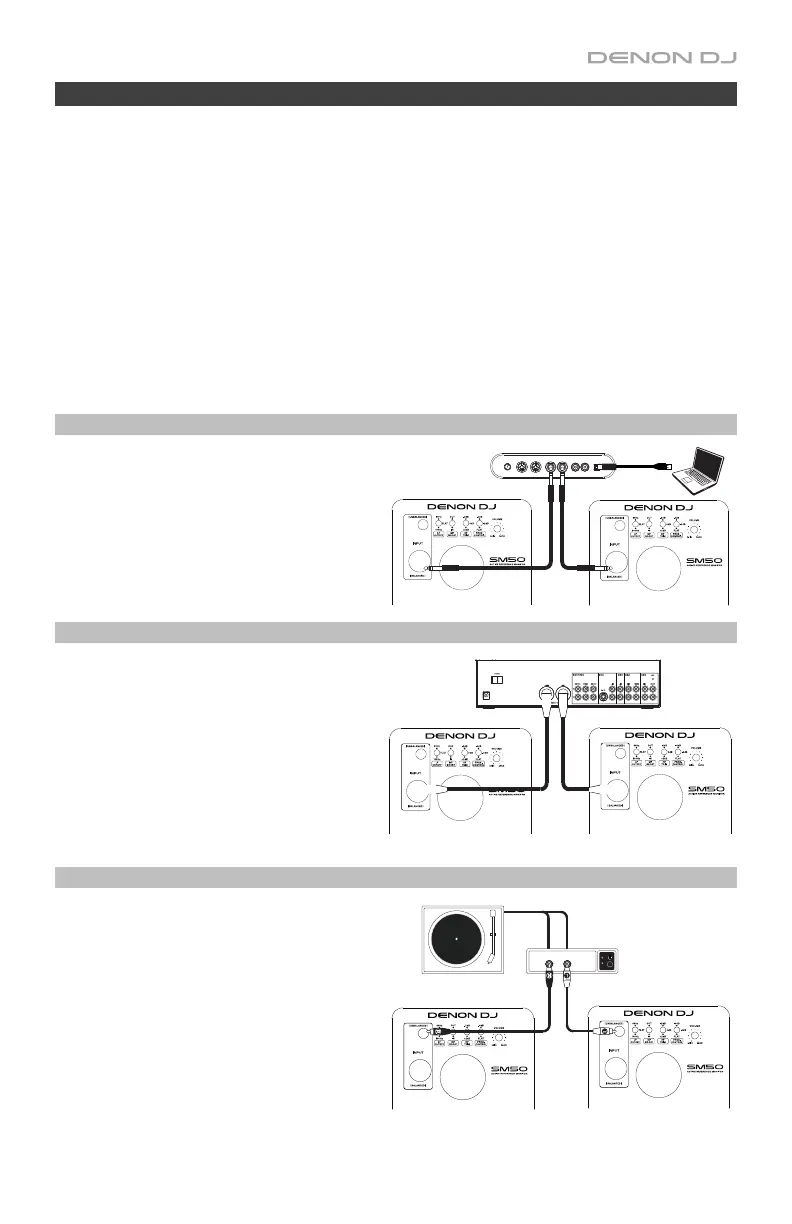

Scenario 1
Audio Interface
(Balanced TRS
to Balanced TRS)
Scenario 2
Mixer
(Balanced XLR
to Balanced XLR)
Scenario 3
Preamplifier
(Unbalanced RCA
to Unbalanced RCA)
MI DI INVO L MI DI O UT R L R L US B
LR
