Oldal 1/18
1

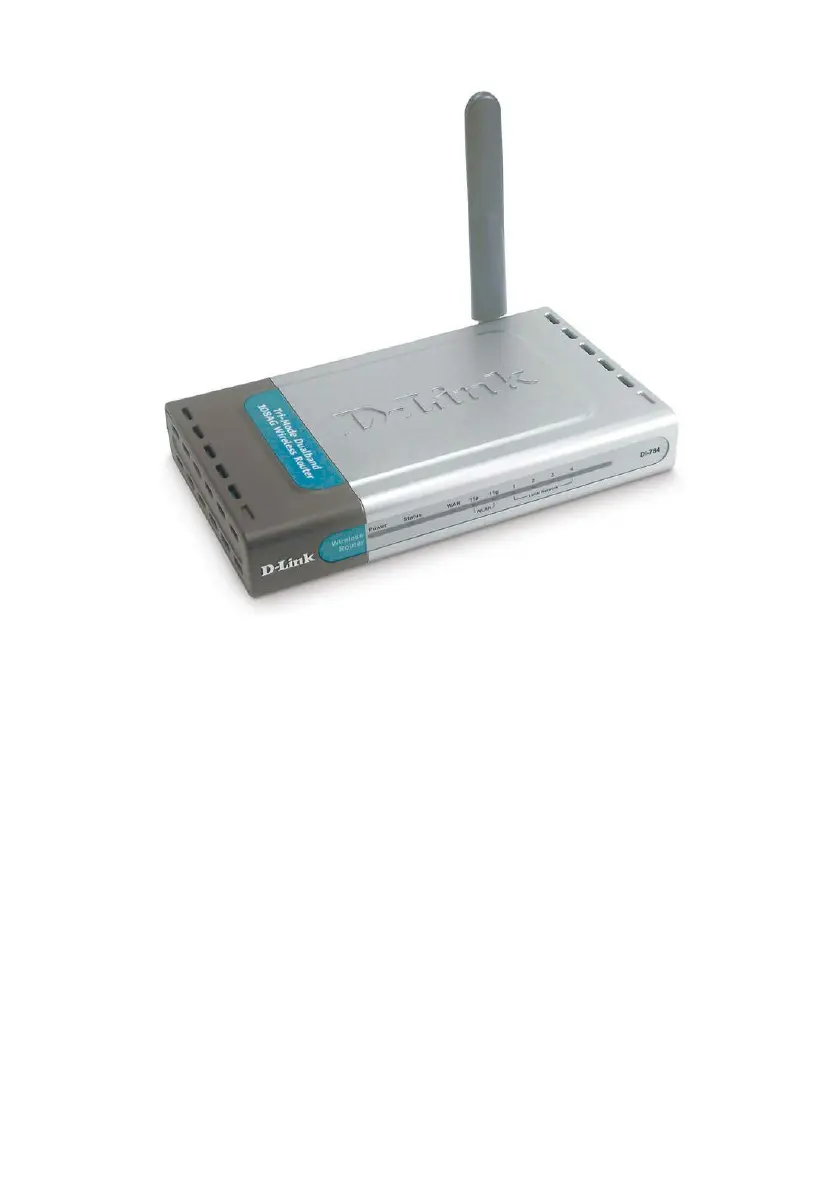

DI-784
11a/11g Dualband
108Mbps Wireless Router
5V DC Power Adapter
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice.
Before You Begin
1. If you purchased this router to share your high-speed Internet connection with other
computers, you must have either an Ethernet-based Cable or DSL modem with an
established Internet account from an Internet Service Provider (ISP).
2. It’s best to use the same computer that is connected to your modem for configuring the
DI-784 Dualband Wireless Router. The DI-784 acts as a DHCP server and will assign
all the necessary IP address information on your network. See Appendix at the end
of this Quick Installation Guide or the Manual on the CD-ROM for setting each
network adapter to automatically obtain an IP address.
Check Your Package Contents
DI-784 11a/11g Dualband 108Mbps Wireless
Router
CD-ROM (containing Manual and Warranty)
Ethernet (Straight-Through) Cable
If any of the above items are missing, please contact your reseller.
This product can be set
up using any current web
browser, i.e., Internet Explorer
6 or Netscape Navigator 7
Using a power supply
with a different voltage
rating will damage this product
and void the warranty
2
Connecting The DI-784 Wireless
Router To Your Network
C. LAN PORTS These
are the connections
for Ethernet cables
to Ethernet enabled
computers.
Reset Button
Pressing this button restores the Router to
its original factory default settings.
B. WAN PORT This is
for the connection of an
Ethernet cable to the Cable
or DSL modem.
A. Receptor for
Power Adapter.
A.
First, connect the power adapter to the at the back panel of the receptor
DI-784 and then plug the other end of the power adapter to a wall outlet or power
strip. The Power LED lights up indicating proper operation.
B. 1. Power off your Cable or DSL modem; devices that do not have a on/off switch and
will require you to unplug the power adapter. Now, the DI-784 should be powered on
and the Cable / DSL modem should be turned off.
Cable / DSL modem ( ) – DI-784 ( )
Power Off Power On
2.Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL modem.
After the Ethernet cable is securely connected, power on the Cable / DSL modem by
turning on the unit or plugging in the power adapter.
Cable / DSL modem ( ) – DI-784 ( )
Power On Power On
3. Insert the other end of the Ethernet cable to the WAN PORT on the back panel of
the DI-784. The WAN LED light will illuminate to indicate proper connection. If the
WAN LED is not illuminated, please go back to step B1 and repeat the steps.
C. Insert an Ethernet cable to on the back panel of the DI-784 and an LAN Port 1
available Ethernet port on the network adapter in the computer you are using to
configure the DI-784. The LED light for LAN Port 1 illuminates to indicate proper
connection. (Note: The LAN Ports on the DI-784 are Auto-MDI/MDI-X. Meaning you
can use a straight-through or crossover-Ethernet cable in the LAN Ports.)
D. Computers equipped with D-Link 802.11a/b/g wireless adapters will be able to
connect out of the box with the DI-784 using their default wireless settings.
D. Antenna
Used to
wirelessly
connect to
802.11a/b/g
adapters.
3
Restart Your Computer
Connecting Additional Computers
To The DI-784
Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped
computers to the remaining Ethernet LAN ports on the back panel of the DI-784.
WAN LED – a
solid light indicates
connection on the
WAN port. This
LED blinks during
data transmission.
LOCAL NETWORK
LEDs – a solid light
on the port indicates
a connection to an
Ethernet enabled
computer on ports 1-4.
This LED blinks during
data transmission.
11g and 11a LEDs – a
solid light indicates that
the wireless segment is
ready. This LED blinks
during wireless data
transmission.
When you have completed the steps in this your connected Quick Installation Guide,
network should look similar to this:
Status – a blinking light
indicates that the DI-784
is functioning properly.
Power LED – a solid light
indicates a proper connection
to the power supply.
