Oldal 1/8

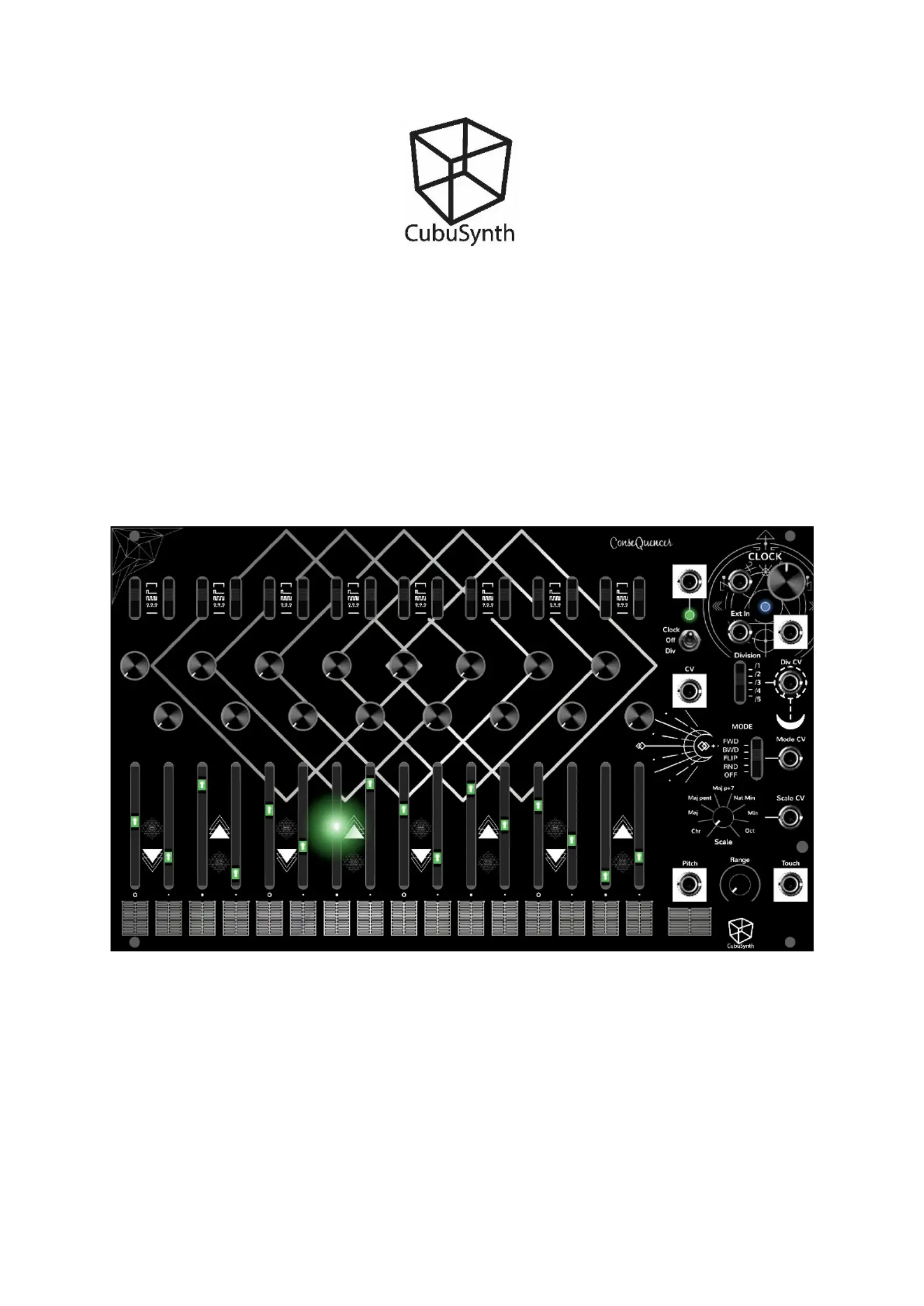

ConseQuencer
16 step Sequencer and Touch Controller for generative
Melodies
Manual
PCB V1.5 May 2024
Written and Illustrated by Ruben Sponar
CubuSynth ConseQuencer – Manual PCB V1.5 May 2024
Page 1
Contents
1. Introduction …........... ... Page 2..................
2.1 Key Features Page 2 ..................................
2.2 Specs .. . ... . .......... Page 2 .... ......... ......... ....
3.1 Step Select Touch Plates Page 3 .....................
3. Touch Plate Outputs . ... . . Page 32 ....... .... ........
4. Step action switches . Page 4 ........................
5. CV Knobs ................. Page 4 ................... ...
6.1 Clock Generator .............................. Page 5
6.2 Clock Division ............ ........... Page 5 ..........
7. Mode . . . Page 6 ... ... ..................................
8.1 Pitch Output / Quantizer Page 6 ....................
8.2 Quantizer Calibration Page 7 .........................
Limited Warranty:
CubuSynth guarantees this product to be without defects in materials and workmanship for a period
of one year from the date of purchase (proof of purchase/invoice needed).
Malfunctions due to improper supply voltages, incorrect or reversed Eurorack power cable
connection, misuse of the product, removal of knobs, changing faceplates, or other causes
determined by CubuSynth are the user's responsibility and are not covered by this warranty.
During the warranty period, all defective products will be repaired or replaced, in the CubuSynth
workshop with the customer paying the shipping costs to us.
CubuSynth takes no responsibility for any damage to persons or equipment caused by the operation
of this product.
Please contact cubusynth@gmail.com with any questions, authorization for return to manufacturer
or any needs and comments.
CubuSynth ConseQuencer – Manual PCB V1.5 May 2024
Page 2
1. Introduction
The CubuSynth ConseQuencer is a powerful tool to create generave, randomized, and
complex sequences and melodies on the y. Featuring touch-acvated step selecon,
versale gate modes, and congurable CV outputs, this sequencer oers unique possibilies
and control over every note. With built-in clock generaon and division, ve sequenc er
modes, and a pitch quanzer, the ConseQuencer inuences the behaviour of every note that
makes part of your Melody, ensuring dynamic and evolving paerns. Perfect for both live
performance and studio producon, the ConseQuencer brings your musical ideas to life with
precision and exibility.
2. 1 Key Features
• Touch-Activated Step Selection: Instantly activate and set start points with intuitive
touch plates.
• Five Gate Modes per step: Choose from HOLD, TRIGGER, REPEAT, RANDOM, and OFF
for versatile step behavior.
• Dual CV Outputs: One Quantized Pitch output from the faders plus a second CV
output
• Clock Division Control: Adjust the clock cycles per step with a five-position switch for
complex rhythmic patterns.
• Built-In Clock Generator: Internal clock with external sync capabilities, ensuring
seamless integration.
• Sequencing Modes: Five modes including Forward, Backward, Flip, Random, and Off
for flexible sequencing.
• Touch Output: 5V gate output for “Keyboard” mode
• Pitch Quantizer: Seven selectable scales for precise pitch quantization and musicality.
• Modular Integration: CV inputs and outputs are compatible with other modular
systems for expanded creativity.
• Real-Time Control: Perform live adjustments with ease, perfect for dynamic
performance and studio sessions.
2.2 Specs
Size: 42hp / 3u (212mm x 128.5mm)
Depth: 25mm (measured from front panel)
Current Draw: +12V: 40mA
-12V: 0mA
