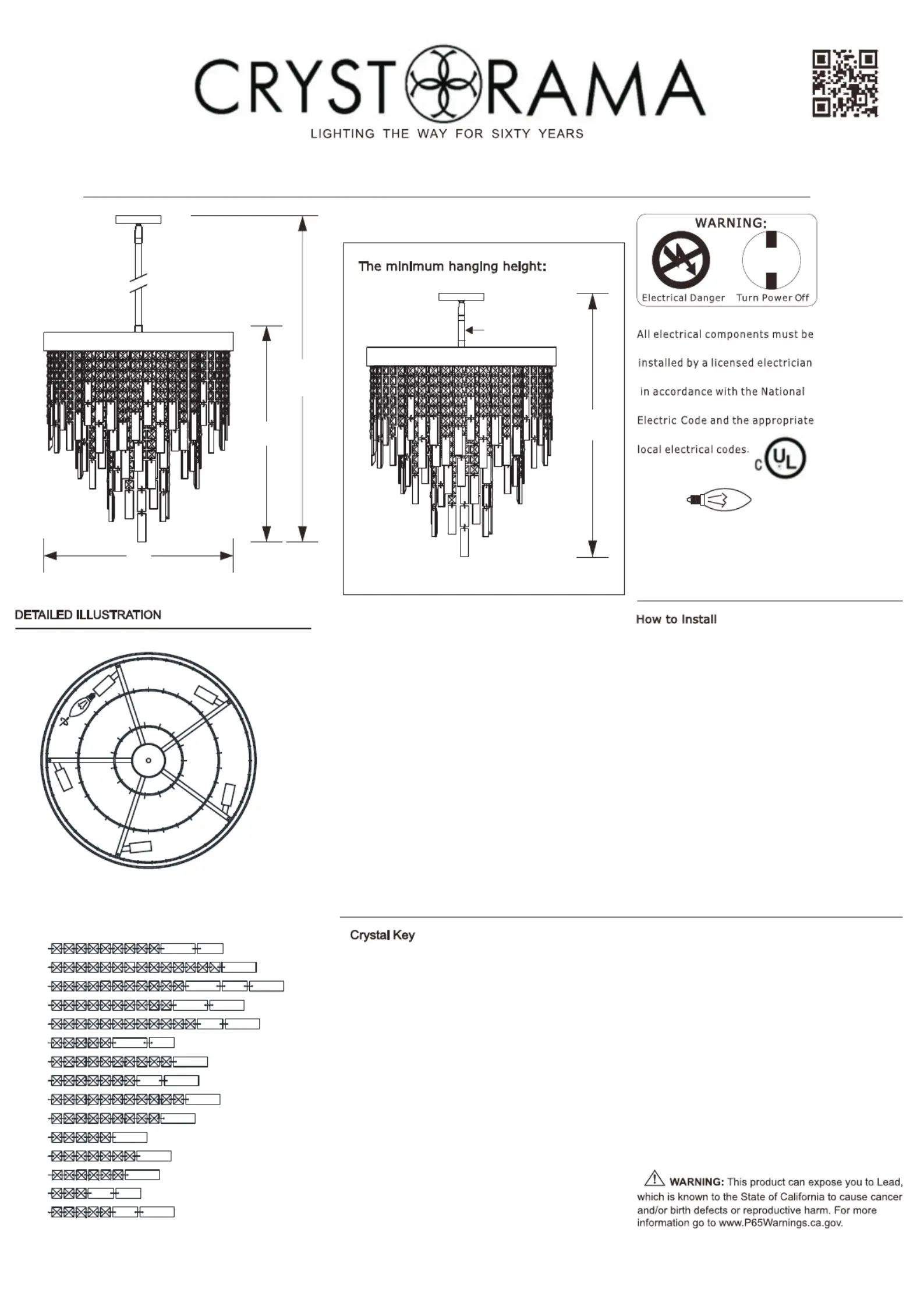

ASSEMBLY INSTRUCTION MODEL #WIN-215-GA-CL-MWP
You will need 5 -Candelabra Base Bulb
40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
SUGGESTED CRYSTAL PLACEMENT TOP VIEW
PLEASE REFERENCE CRYSTAL KEY
A=
B=
C=
D=
E=
F=
G=
H=
I=
J=
K=
L=
A.3 Sets.
M=
B.3 Sets.
C.3 Sets.
D.3 Sets.
E.3 Sets.
F.6 Sets.
G.6 Sets.
I.6 Sets.
J.6 Sets.
K.9 Sets.
L.9 Sets.
M.9 Sets.
32.5"
6" Rod
THIS FIXTURE IS DAMP RATED
Crystorama com.
N=
O=
H.6 Sets.
N.9 Sets.
O.9 Sets.
E
A
D
BC
A
D
E
C
A
B
EC
DB
N
O
KLM
I
J
G
H
F
IJ
GH
F
I
J
G
H
F
I
J
G
H
FI
JG
H
F
I
J
G
H
F
68.5"
(9)22X22mm+(1)22X76mm+(1)22X56mm
(14)22X22mm+(1)22X76mm
(11)22X22mm+(1)22X76mm+(1)22X56mm
(10)22X22mm+(2)22X76mm
(12)22X22mm+(1)22X56mm+(1)22X76mm
(5)22X22mm+(1)22X76mm+(1)22X56mm
(10)22X22mm+(1)22X76mm
(7)22X22mm+(1)22X56mm+(1)22X76mm
+(1)22X76mm
(5)22X22mm+(1)22X56mm+(1)22X76mm
(11)22X22mm+(1)22X76mm
(9)22X22mm+(1)22X76mm
(5)22X22mm+(1)22X76mm
(7)22X22mm+(1)22X76mm
(6)22X22mm+(1)22X76mm
(3)22X22mm+(2)22X56mm
K
K
K
K
K
K
K
KL
L
LL
L
L
L
L
M
M
M
M
M
M
M
MN
N
N
NN
N
N
N
O
O
O
O
O
O
O
O
1.Do a complete inventory of all parts
and components before you start
installation.
2.Attach all four rods together,
making sure the 6” rod is installed
and located at the top.
3.Feed fixture wiring through the
rod assembly prior to connection.
4.Attach the bottom of the rod assembly
(end with 12" rod) to the fixture frame.
5.Attach the top of the rod assembly
(end with 6" rod) to the swivel.
6.Insert recommended bulb (not
included).
7.Dress the fixture with crystal as
illustrated.
A
E
G
J

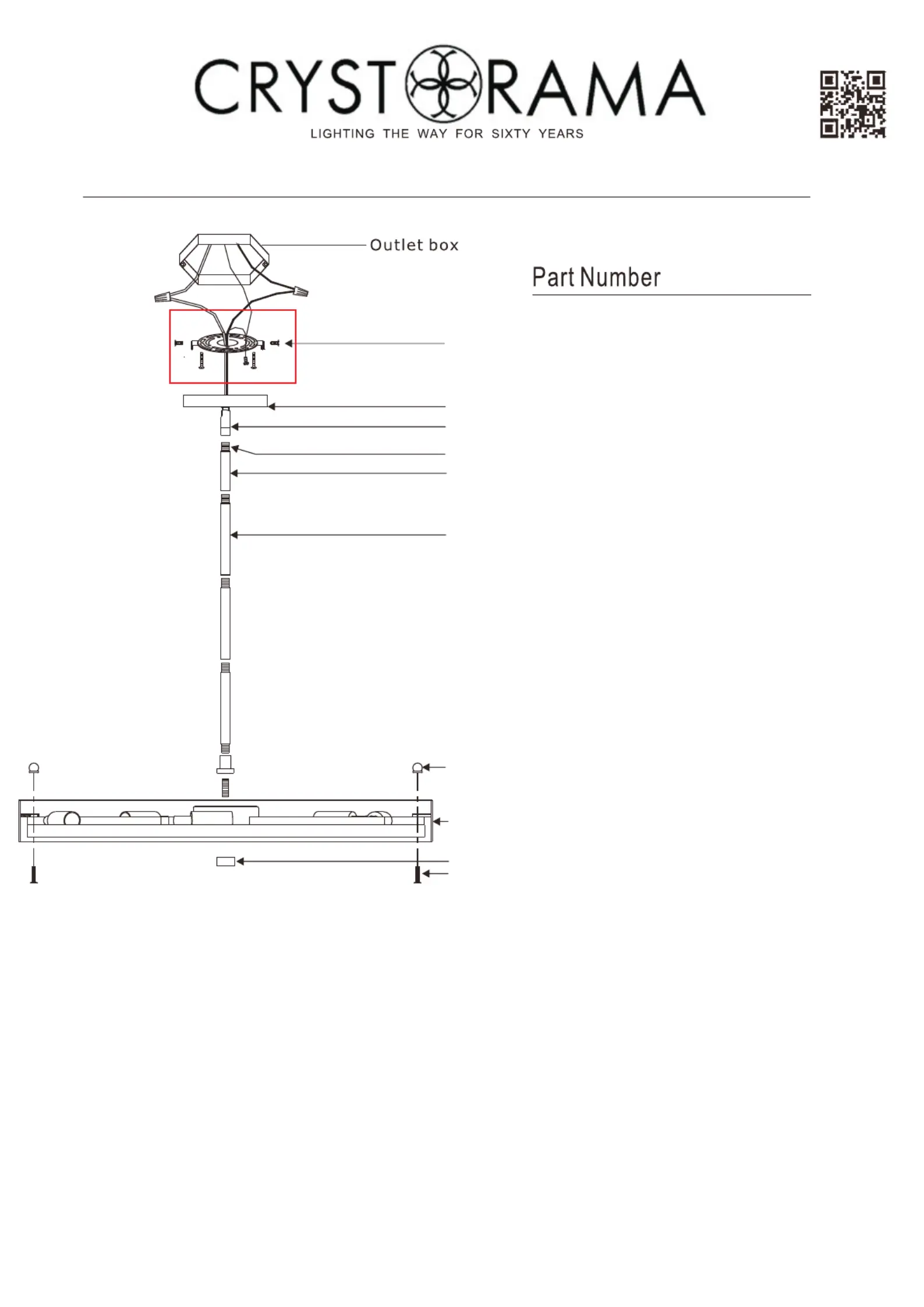

PART NUMBER MODEL #WIN-215-GA-CL-MWP
B
C
D
F
H
I
Crystorama com.
A. (1) - Mounting Hardware
B. (1) - Canopy(W5",H0.79") #XRE215GACAN5IN
C. (1) - Swivel
D. (5) - Threaded Pipe
E. (1) -
F. (3) -
Rod(6",15.9mm) #XRE215GAROD6IN
Rod(12",15.9mm) #XRE215GAROD12IN
G. (5) - Ball Nut #XRE212GABANUT
H. (1) - Metal Frame
I. (1) - Finial #XRE215GAFIN
J. (5) - Flat Screw
