Oldal 1/11
Quick Installation Guide
HU ES11 PBBI B
Schnellinstallationsanleitung
Guide d'Installation Rapide
Guía de Instalación Rápida
Guida di Installazione Rapida
Gyors Telepítési Útmutató
Szybka Instrukcja Instalacji
Guia de Instalação Rápida
PRODUCT OVERVIEW
SPECIFICATIONS
System Requirements
Windows XP/Vista/7/8/10/11
Mac OS, Linux, Chrome OS
Connector
USB-A male
Port Conguration
4 x USB- 0 (USB 3.2 Gen 1) A 3.
1 x Power jack
Data transfer speed
USB 3.2 Gen 1 up to 5Gbps
Operating temperature/humidity
0°C ~ 60°C
20 80% ~ % RH
Storage temperature/humidity
-20°C ~ 60°C
10% ~ % RH 95
Dimensions (W x D x H)
87 x 15 x 55 mm
Cable length
90cm
Weight
88g
Package Contents
HUBBIES11BP
USB-DC power cable
Power adapter (5V/2A)
Quick Installation Guide
USB-DC cable
Power adapter
USB de cevi
English
Congratulations on the purchase of your Conceptronic HUBBIES11BP.
When problems occur, we advise you to visit our support site (go to
www.conceptronic.net and click on 'Support'). If you have other questions about your
product and cannot nd it on our website, please contact us at
support@conceptronic.net.
For more information about Conceptronic products, please visit the Conceptronic
website: www.conceptronic.net.

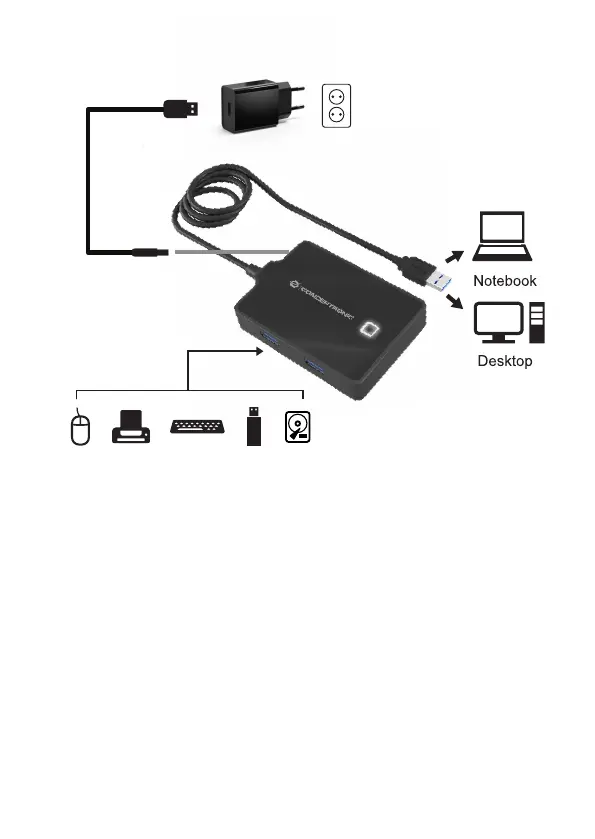

Installation & usage
1. Connect the USB-DC power cable to the USB hub and the power adapter. Then,
plug the power adapter into an available wall outlet.
2. Connect the USB-A connector of the USB hub to a free USB 3.0 port on your
device.
Safety a Warnings instructions nd
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on proper
handling in this manual, we assume no liability for any resulting personal injury or
damage to property. Such cases will invalidate the warranty/guarantee.
◼ Keep the device away from water, humidity, re or hot environments.
◼ Keep your device and all its parts and accessories out of the reach of small
children.
◼ Do not leave the packaging material lying around carelessly. This may become
dangerous playing material for children.
◼ Do not use the device if there are any signs of damage to the housing, plug, or
cable.
◼ Avoid dropping, throwing or crushing the device.
◼ Do not open, change or damage the device.
◼ Conrm that the wall outlet provides the same type of power indicated on the
device (both Voltage [V] and frequency [Hz]).
◼ Use the product only in dry indoor rooms and protect it from moisture.
◼ Disconnect the product from the mains before cleaning.
◼ Clean the product with a dry, bre-free cloth.
Disposal of waste electrical equipment: Dispose of the product at a
recycling point. Do not dispose of together with household waste.
Incorrect storage/disposal can harm the environment and/or cause
injury.
CE marking: Conceptronic declares that this product complies with
the directives listed in the section 'Declaration of Conformity'.
