adamhall.com
Features and specifications
subject to change without notice.

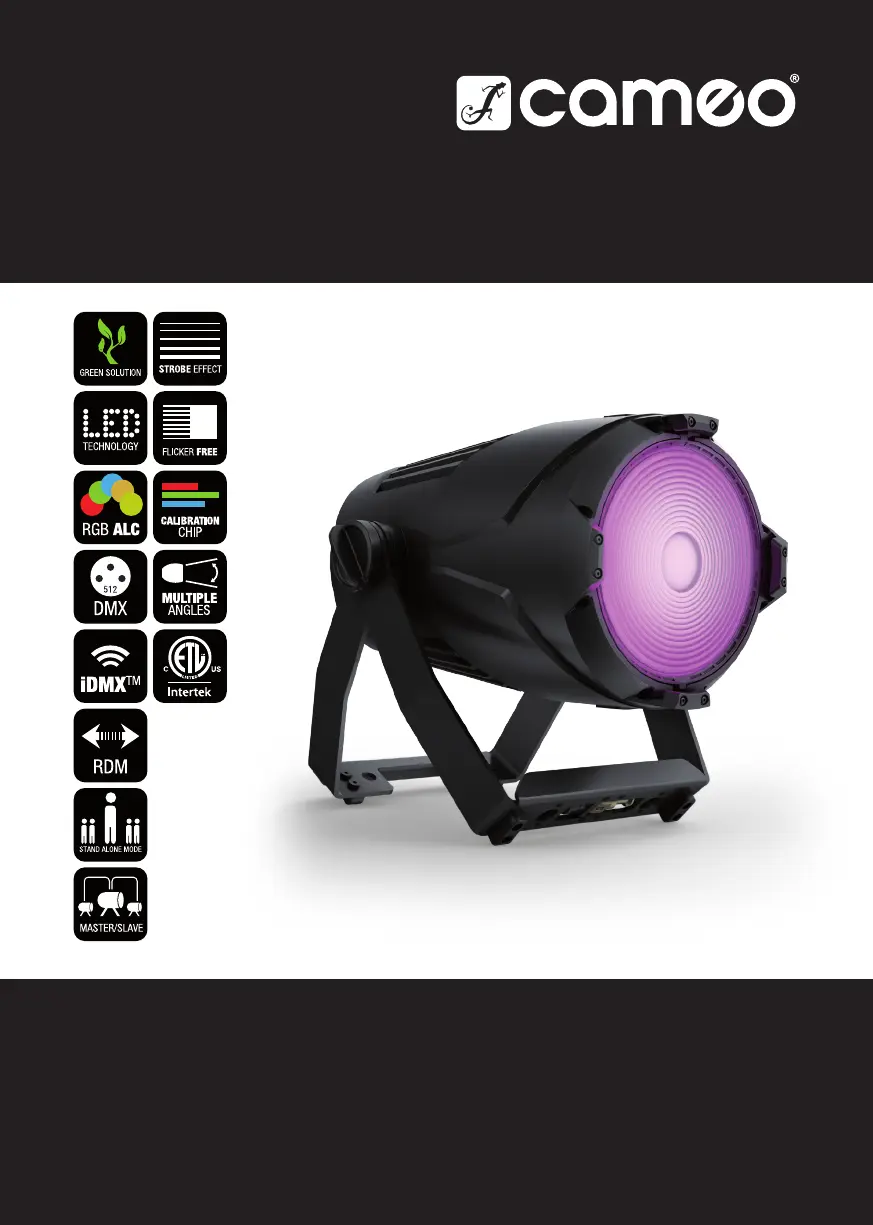

LUXIS® FC
FULL COLOUR LED PAR 200 W RGBALC
Static spotlight with RGBALC single source COB light source
Compatible with the patented SPIN16® technology (CLZSPIN16)
No multishadows or unsightly colour edges
High CRI 94Ra, strong light output of over 8500lm
CCT infinitely variable from 1900K - 8000K
Strong primary colours and beautiful pastel shades
Easily exchangeable front lens for beam angles between 9° and 48
Push encoder on the back for simple and quick operation of the
most important functions such as dimmer, CCT or Green-Magenta Shift
Very quiet fan with different fan modes for every application purpose
Calibrated LED for cross-batch colour fidelity
USB port for optionally available iDMX® stick
DESCRIPTION
Innovative standard at the highest level of lighting technology
As a lighting designer or lighting technician, you depend on high-quality
lighting components. In TV or film studios, in the theatre and generally on
any stage you have to illuminate, you make no compromises. PAR spot-
lights are part of your indispensable basic equipment. It is all the more
important that these spotlights with rich colours, high light output and in-
novative functionality leave no questions unanswered. The Cameo LUXIS
®
FC meets all these challenges with flying colours.
Optimal light quality with high CRI free of multishadows
When it comes to colours and mixed colours, the LUXIS
® FC literally gives
you the full range. The 6-in-1 COB LED provides you with strong primary
colours and beautiful pastel shades with very good colour rendering. Due
to the single source COB light source, there are no multishadows or un-
wanted colour edges. The high colour rendering index of CRI 94Ra speaks
its own unmistakable language of quality. Not to mention that an LED cali-
bration is installed ex works, which ensures colour fidelity across batches.
Practical operation at the central hub
In the live scenario, the LED PAR spotlight scores with intuitive control and
operability. Depending on your individual setup, you can control the LUXIS
®
FC wired via DMX-512 or wirelessly via W-DMX with the optionally avai-
lable iDMX
® stick from Cameo. A USB port is on board for the use of this
function. You can also access the most important functions such as dim-
mer, CCT or green magenta shift quickly and easily via the practical push
encoder on the back of the unit. You can also access the intuitively structu-
red menu via the control buttons and the double-line OLED display without
delay. As a lighting technician, you have many things, but certainly no time:
the front lens can be changed between 9° and 48° in just a few steps.
Attractive design and minimal noise
Especially in theatre and genre-similar locations, spotlights must not be-
come a visual end in themselves. Rather, the lighting components must be
subordinate to the overall picture in a harmonious and unpretentious way.
This fact results in a high challenge for the sophisticated and well thought-
out design. The LUXIS
® FC is designed with an elegant and discreetly roun-
ded, edge-free housing shape that is second to none. At the same time,
the „acoustic design factor“ has been taken into account: extremely quiet
fans are installed for cooling. You can choose from different fan modes,
which makes the Cameo LUXIS® suitable for any application and also for
noise-sensitive events.
adamhall.com
Features and specifications
subject to change without notice.
LUXIS® FC
FULL COLOUR LED PAR 200 W RGBALC
SPECIFICATIONS
Product type LED PAR Lighting
Colour spectrum RGBALC
LED type 200 W 6in1 RGBALC COB LED
Refresh rate 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz,
25000 Hz
Dispersion Beam Angle: 21 - Field Angle: 29 °, Beam Angle: 51
- Field Angle: 63 °, Beam Angle: 9 - Field Angle: 16 °
DMX input 3-Pol XLR, 5-Pol XLR
DMX output 3-pin & 5-pin, 3-Pol XLR, 5-Pol XLR
DMX mode 10-channel, 12-channel, 16-channel, 1-channel,
20-channel, 3-channel, 5-channel, 6-channel,
7-channel, 9-channel
DMX Functions Colour presets, Colour temperature correction, De-
vice Settings, Dimmer, Dimmer Response, EZ-Chase,
RGBALC, Signal Fail, strobe
Standalone modes Auto programs, Dimmer Mode, Loop, preset, Static
Controls Down, Enter, menu, Push encoder, Up
Indicators OLED Display
PHOTOMETRICAL DATA
Don‘t forget useful accessories
Everything you need as a TV/film, theatre, stage or dry hire operator is included. The SPIN16
® adapter (CLZSPIN16), lockable power cable and beam, narrow
and wide lenses are included. With optional accessories such as the Quicklock bracket, wing barn door, IDMX
® stick and the asymmetrical 10° x 60° lens,
you can complete the accessories for an all-round perfect application.
243k
15
27
27k
44
82
9.7k
73
136
2.4k
147
272
607
294
544
Illuminance (full on) [lux]
Beam width (1/2 peak) [cm]
Beam width (1/10 peak) [cm]
Beam angle
(1/2 peak): 8.4°
Field angle
(1/10 peak): 15.5°
Distance (m) 1 3 5 10 20
12°
8.4° 15.5°
Light distribution curv 0.1 0.5 1
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption 280 W
Housing material Die-cast aluminium, Magnesium
Cabinet colour Black
Protection class IP IP20
Cooling low-noise fan
Luminous flux 8500 lm
CRI 94 Ra
Ambient temperature (operating) -10 - 40 °C
Width 302 mm
Height 466 mm
Length 216 mm
Weight 7,9 kg
53k
36
51
5.9k
108
153
2.1k
181
255
533
362
510
133
723
1020
Illuminance (full on) [lux]
Beam width (1/2 peak) [cm]
Beam width (1/10 peak) [cm]
Beam angle
(1/2 peak): 20.5°
Field angle
(1/10 peak): 28.6°
Distance (m) 1 3 5 10 20
24°
20.5° 28.6°
Light distribution curv 0.1 0.5 1
12k
95
123
1.3k
285
368
502
475
613
126
950
1.2k
31.4
1.8k
2.4k
Illuminance (full on) [lux]
Beam width (1/2 peak) [cm]
Beam width (1/10 peak) [cm]
Beam angle
(1/2 peak): 50.8°
Field angle
(1/10 peak): 63°
Distance (m) 1 3 5 10 20
45°
50.8° 63°
Light distribution curv 0.1 0.5 1
Luminous flux Chromaticity coordinates
7590 lm
840 lm
1710 lm
420 lm
5330 lm
1240 lm
9110 lm
8540 lm
8280 lm
Full on
Red
Green
Blue
Amber
Cyan
Lime
3200K
5600K
x 0.306 y 0.301
x 0.677 y 0.296
x 0.177 y 0.603
x 0.160 y 0.036
x 0.521 y 0.402
x 0.112 y 0.258
x 0.390 y 0.488
x 0.442 y 0.419
x 0.337 y 0.357
CCT Ra
2700-6500 97.4
400 500 600 700
Wavelength [nm]
UV IR
Full on - RAW
adamhall.com
Features and specifications
subject to change without notice.
LUXIS® FC
FULL COLOUR LED PAR 200 W RGBALC
DIMENSIONS (mm)
466.3
216.5
301.4
253.5
368.0
215.8
