DA22XLR-WP QUICK REFERENCE GUIDE
01
Contact: support@blustream.com.au support@blustream-us.com | | support@blustream.co.uk

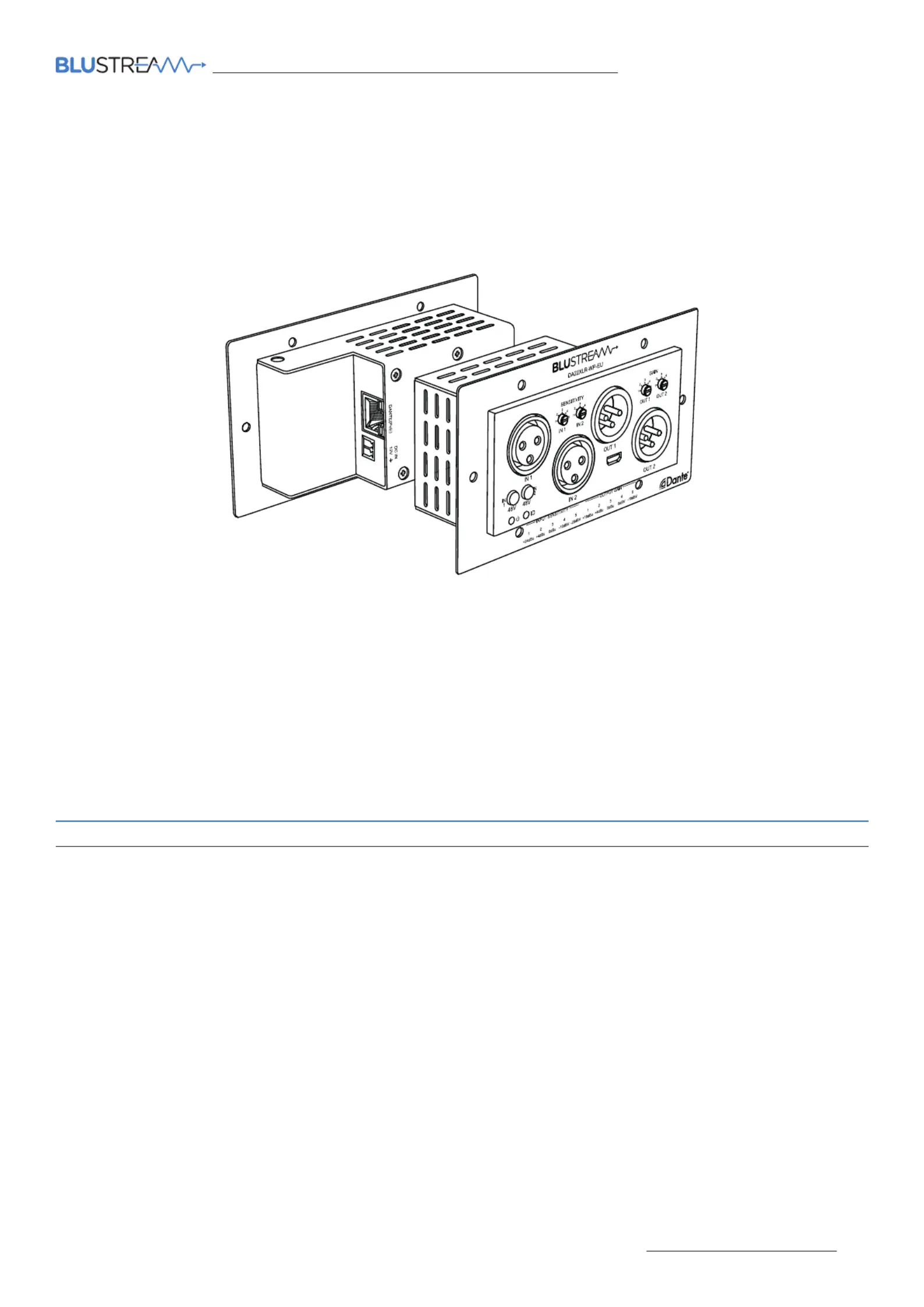

The DA22XLR-WP is a multi-input / output wall plate to convert analogue audio
within a digital Dante® networked audio system. The DA22XLR-WP features 2 input
channels of balanced / unbalanced / MIC audio with switchable 48V phantom
power and 2 output channels of balanced / unbalanced audio.
The DA22XLR-WP is a plug & play device that is powered using PoE (Power over
Ethernet), or via 12V power supply, oers support for AES67 RTP audio transport
and magnetic faceplate design allows for both UK & EU backbox compatibility. The
DA22XLR-WP is the ideal BYOD interface to a Dante® audio system.
Introduction
DA22XLR-WP
Quick Reference Guide
• Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
• Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs
• Switchable 48V Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
• Adjustable line gain from +18 dBu to -10 dBV for each XLR output
• Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
• Supports power via 12V DC adapter (supplied) for when network switch does not support PoE
• Magnetic faceplate surround allowing for both UK & EU backbox compatibility
FEATURES:
DA22XLR-WP QUICK REFERENCE GUIDE
02 www.blustream.com.au | www.blustream-us.com www.blustream.co.uk|
Connections:

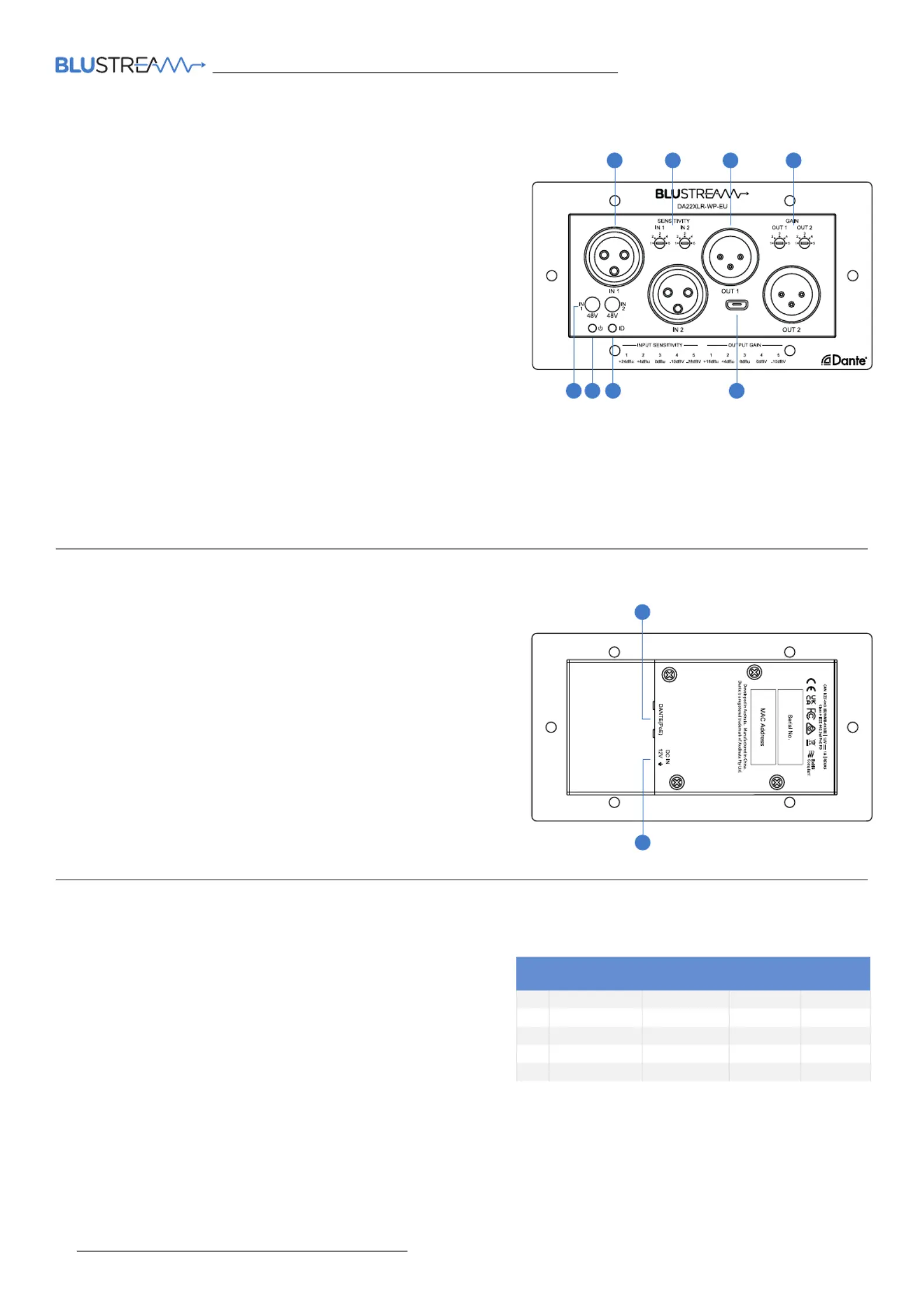

1 Analogue Audio Input - XLR connector for balanced or
unbalanced analogue audio input
2 Input Sensitivity Dial - Rotate to adjust the input sensitivity of the
analogue audio input connections
3 Analogue Audio Output - XLR connector for balanced or
unbalanced analogue audio output
4 Output Gain Dial - Rotate to adjust the output gain of the
analogue audio output connections
5 48V Phantom Power Switch - Press to enable/disable 48V
phantom power for microphones on corresponding input,
illuminates when 48V is enabled
6 Power Status Indicator - Illuminates when the device is powered
on power input
7 ID LED Indicator - Flashes when this device is identified through
Dante Configurator®
8 Micro USB Port - Used for firmware updates
Front Panel
Rear Panel
1
5
Connections:
1 Dante® Network Connection (PoE) - RJ45 connection to connect
to network switch
2 Power Port – Use 12V/1A DC adaptor (not included) when PoE is
not available to power device
2
1
Input Senstivity / Output Gain
The DA22XLR-WP features rotary dials that allow for the
adjustment of both the input sensitivity and output gain of each
of the analogue channels.
Simply rotate the dial and align the arrow to one of the 5
switch positions. The input sensitivity or output gain level will
correspond to the position as per the table adjacent (also
printed under the faceplate of the device itself).
Please note: Due to the low input signal from microphones, when using a microphone we recommend only using
switch positions 3-5 to avoid clipping of the input signal.
DIP INPUT
SENSITIVITY
LINE INPUT
VRMS
OUTPUT
GAIN
OUTPUT
VRMS
1 +24dBu 12.28 +18dBu 6.153
2 +4dBu 1.228 +4dBu 1.228
3 0dBu 0.775 0dBu 0.775
4 -10dBV 0.316 0dBV 1
5 -28dBV 0.04 -10dBV 0.316
2 3 4
6 7 8
DA22XLR-WP QUICK REFERENCE GUIDE
03
Contact: support@blustream.com.au support@blustream-us.com | | support@blustream.co.uk

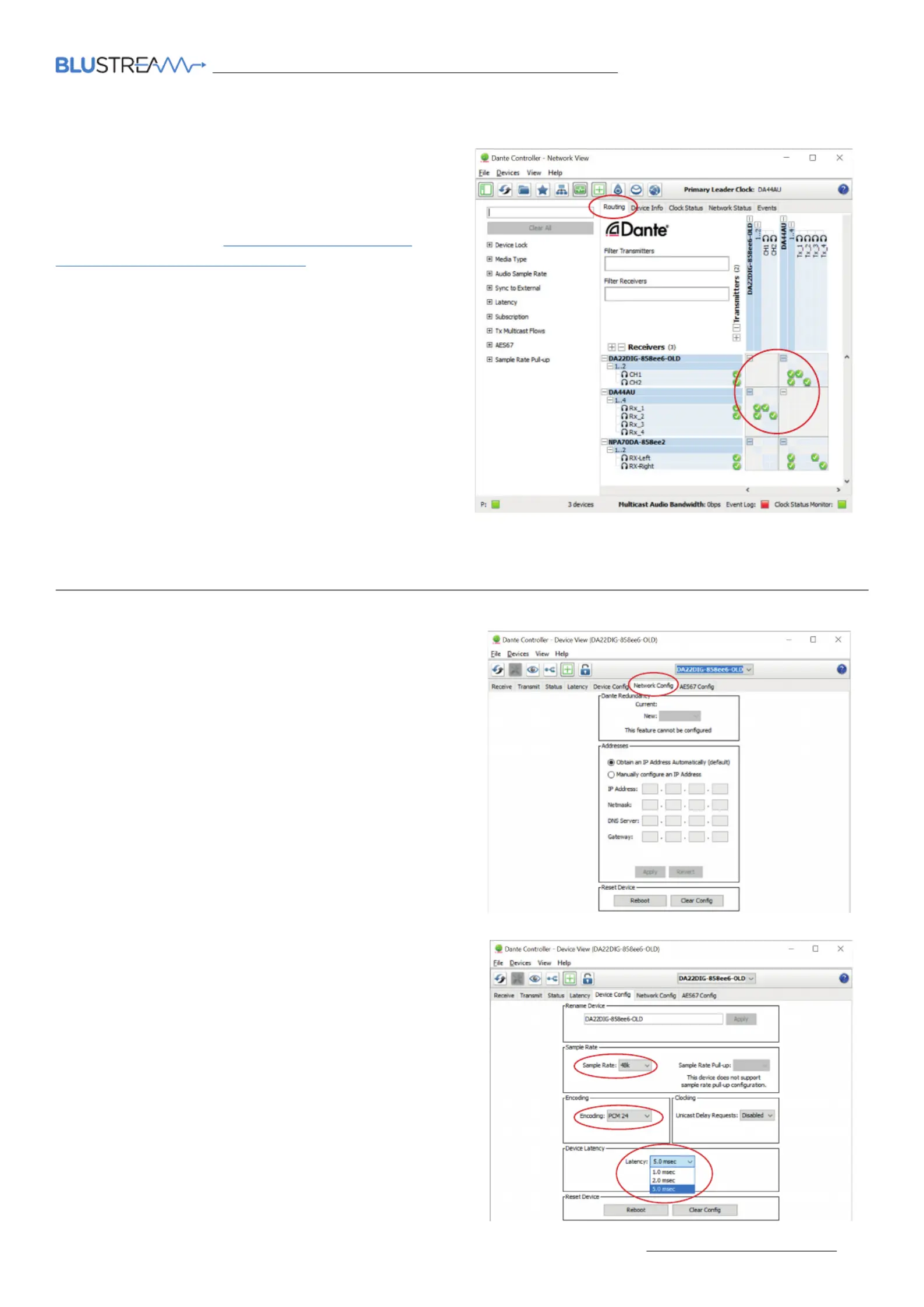

Dante® Controller soware is required in order to set
up and configure the DA22XLR-WP as well as control
the Dante network. Audinate provide extensive ®
training videos and documentation on their website.
This can be found here: http://www.audinate.com/
products/soware/dante-controller
Upon connecting the DA22XLR-WP to a compatible
network, the Dante Controller soware will ®
automatically discover the device. The DA22XLR-WP
will appear in the Dante Controller with a name ®
prefixed as “DA22XLR-WP”. On the “Routing” screen,
audio can can be routed between Dante transmitters ®
and receivers in the system.
Please ensure the PC is on the same network as the
Dante® ® devices. Dante is not able to transmit over
WiFi, and it is recommended to hardwire into the
Dante® network. Having multiple network devices
enabled can also confuse the Dante Controller ®
soware so it is recommended to disable WiFi during
configuration.
Dante® Controller
RevA4_QRG_DA22XLR-WP
Advanced Dante Settings®
It is also possible to change the settings of the
DA22XLR-WP within the “Device Info” screen in the
Dante® Controller soware. To do so, select the
“Device Config” menu.
The sample rate of the DA22XLR-WP can be
adjusted here. Please note: Dante products can ®
only transmit or receive audio from other Dante®
products that are set up with the same sample rate.
A mismatch in sample rate may stop audio from
transmitting.
Under the “Device Config” screen, the latency of
the DA22XLR-WP can be adjusted from 1, 2 or 5
milliseconds.
By default the DA22XLR-WP is shipped with its
network settings set to obtain an IP address
automatically. This means that if a DHCP server is
present on the network, it will provide the DA22XLR-
WP with an IP address. If no DHCP server is present
then the DA22XLR-WP will receive a default IP
address in the 169.254.xxx.xxx range.
To change the IP address of the DA22XLR-WP, enter
the “Network Config” menu in the “Device Info”
screen of the Dante Controller soware.®
