User ManUal

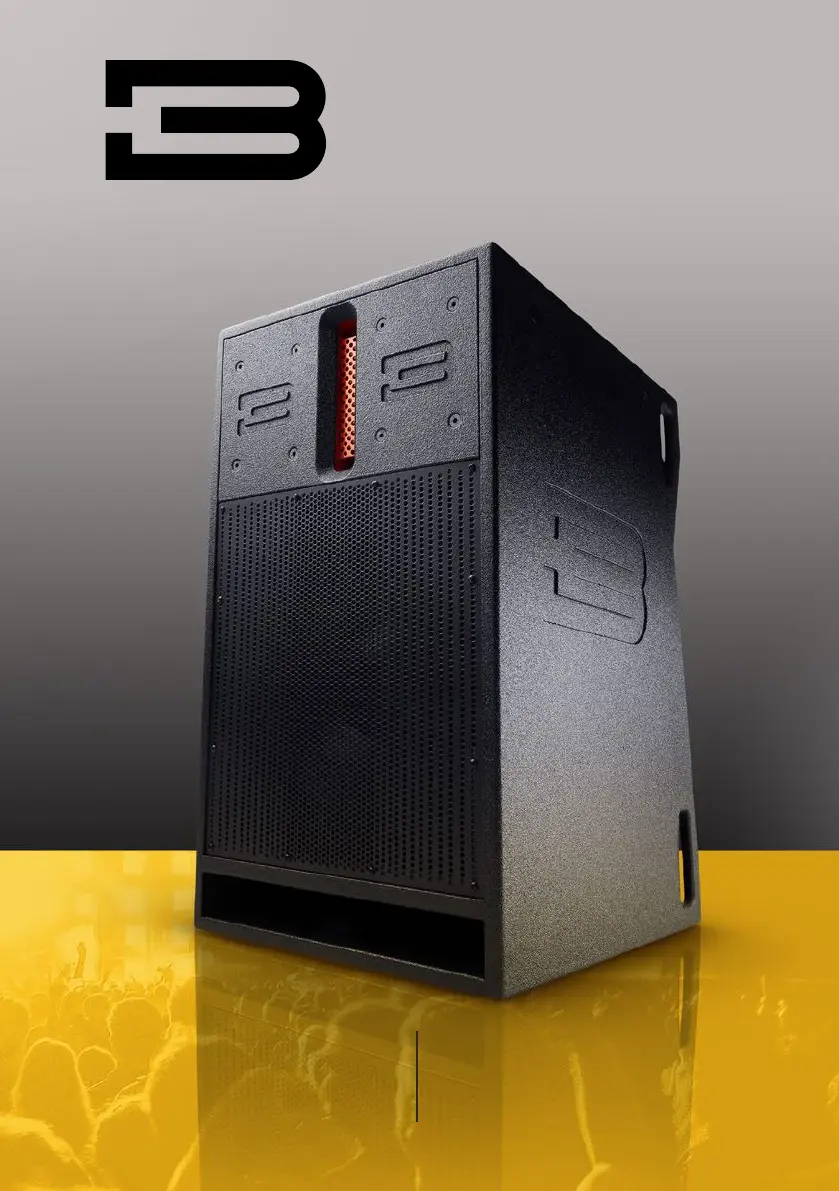

Single 12”
Powered Loudspeaker
DV12-MK3
DV12-MK3 User Manual
2
Table of Contents
Overview 2
QuickStartGuide 4
OutboardProcessorWarning 5
SetupProcedure 5
OperationandControls 6
IndicatorLEDs 6
HowtoUsethePresets 7
Pre-InstalledOnboardPresets 8
PowerDistribution 9
Troubleshooting 9
Specifications 10
Warranty 11
SafetyInformation 12
ImportantNotes 13
FCCComplianceNotice 13
Overview
The DV12-MK3 uses a line-array derived 1.4” throat isophasic wave guide instead of a conventional horn. Coupled to
the wave-guide is a 3” diaphragm, Neodymium motor compression driver.. This combination provides eortlessly high
SPL over very wide and consistent horizontal coverage of 120° with a tight vertical pattern of 20°. This extends high
frequency intelligibility farther than a conventional horn and allows for two arrayed cabinets to provide coherent, line-
array style performance.
The lower frequencies are produced by a 12” woofer that features a Neodymium magnet for light weight and high
eiciency, a 4” voice coil for high power handling, and a symmetrical, long-excursion suspension for accurate and
extended bass response. So much bass response that it could easily serve as a subwoofer driver.
Power is supplied by an amplifier that can deliver output peaks of 163V, to provide amazing dynamic resolution and
impact. The fully integrated and comprehensive digital processing ensures smooth response and reliable operation
thanks to meticulous filter alignments and five- stage limiters that protect the drivers from excessive peaks, and also from
thermal overload, by monitoring real power output over time. The amplifier features a large heat sink and 2 temperature-
controlled fans to ensure consistent operation under even the most extreme conditions.
Estemanualestádisponibleenespañolennuestrositiowebenbassboss.com/support
Single 12”
Powered Loudspeaker
DV12-MK3
bassboss.com
3
The DV12-MK3 is the ultimate in plug and play, with universal voltage compatibility and no need for any outboard gear
other than a sound source. The processing features presets that allow it to run in multiple configurations. The full-
range mode, Preset 1, provides response down to 40Hz (-3dB). Each successive preset filters the lows out at higher
frequencies, allowing the DV12-MK3 to be perfectly integrated with various types and sizes of subwoofers.
Each preset has a specific high-pass filter frequency and alignment filters that ensure it’s always phase coherent with
any BASSBOSS sub. As low-frequency demand is reduced, higher sound levels can be achieved. In the higher presets,
this allows each DV12 to provide enough mid-high power for multiple subwoofers. The DV12-MK3 can be combined
with any BASSBOSS subwoofer because all the presets are programmed to align with all the subs. Each preset oers
advantages that suit certain applications and preferences. No matter which preset you choose, your BASSBOSS subs
and tops will always play in harmony.
The cabinet is made from 15mm Birch and features bracing for additional rigidity. The design incorporates a 4-degree
down-angle that ensures the even distribution of high-frequency energy from the front to the back of a venue when the
DV12-MK3 is placed at the appropriate height on a tripod or support pole. Additional features include a 35mm (1-3/8”)
steel pole socket, eight fly points and six handles. The amplifier is recessed from the back of the cabinet to protect it in
transit. A perforated steel grille protects the woofer, and its progressive perforation pattern serves to broaden midrange
dispersion. The high-frequency lens and port are left clear of the grille to minimize reflections and air flow noise that
could compromise sound quality.
Should you ever need more sound than can be produced by one DV12-MK3 per side, their invertible array feature allows
the perfect summing of two speakers, which provides a big increase in output and projection without compromising the
crystal clarity. This is an additional benefit of the line-array waveguides. When two DV12-MK3s are vertically stacked
with the HF lenses adjacent, (top cabinet inverted) the high-frequency sections of the two boxes sum perfectly, as they
would in a line-array, while the low-frequency sections sum in a column for improved low-frequency directivity and greatly
increased output. Compared to conventionally arrayed boxes, this results in 3dB more SPL and much smoother response in the
high-frequency ranges.
The MK3 features an all-new DSP. The comprehensive suite of processing includes high-pass and low-pass filters
as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible, including
thermal, excursion and clipping. The five levels of protection actively prevent overheating of the voice coil, minimize
long-term thermal compression and limit excursion. Because they operate in 5 dierent modes, the limiters are
sophisticated enough to have a largely unnoticable eect on the transient response and allow the subwoofer to deliver
peak output safely.
The new DSP features an Ethernet interface. This can be used to control the cabinets from a computer or to load
software or firmware updates. The ethernet connectivity in conjunction with the DSP board allows signal to be sent via
Milan AVB. Firmware updates will provide access to this feature.
Within the software, multiple cabinets can be grouped together, allowing them to respond to commands simultaneously.
This permits the levels of multiple loudspeakers to be adjusted together and yet independently from the levels of other
groups of loudspeakers. In addition to individual and grouped level controls, presets can be loaded and signal levels
and temperatures can be monitored. Each cabinet includes a two-port switch so multiple cabinets can be chained on
the same data cable.
The MK3 DSP features storage capacity of up to 100 presets, eight of which can be accessed at the touch of a button with
no need for a connected computer. The eight directly accessible presets are compatible with all the presets in the MK3
Top Boxes and are also compatible with previous generation tops and subs.
