SVS 1-00
DE
EN
Swiss design and development
AXING AG
Gewerbehaus Moskau
CH-8262 Ramsen
info@axing.com
www.axing.com
BETRIEBSANLEITUNG
basic
SAT-Verstärker
-line
OPERATION INSTRUCTIONS
basic
SAT Amplifier
-line
Swiss design and development
Swiss design and development
Dieses Symbol weist darauf hin, dass das Produkt gemäß WEEE-Richtlinie
(Richtlinie über Elektro- und Elektronik-Altgeräte) (2002/96/EC) und
nationalen Gesetzen nicht über den Hausmüll entsorgt werden darf.
Dieses Produkt muss bei einer dafür vorgesehenen Sammelstelle
abgegeben werden. Dies kann z. B. durch Rückgabe beim Kauf eines
ähnlichen Produkts oder durch Abgabe bei einer autorisierten Sammelstelle
für die Wiederaufbereitung von Elektro- und Elektronik-Altgeräten
geschehen.
Informationen zu Sammelstellen für Altgeräte erhalten Sie bei Ihrer
Stadtverwaltung, dem öffentlich-rechtlichen Entsorgungsträger, einer
autorisierten Stelle für die Entsorgung von Elektro- und Elektronik-
Altgeräten oder Ihrer Müllabfuhr.
This symbol indicates that this product is not to be disposed of with your
household waste, according to the WEEE Directive (2002/96/EC) and your
national law.
This product should be handed over to a designated collection point, e.g.,
on an authorized one-for-one basis when you buy a new similar product or
to an authorized collection site for recycling waste electrical and electronic
equipment (WEEE).
For more information about where you can drop off your waste equipment
for recycling, please contact your local city office, waste authority, approved
WEEE scheme or your household waste disposal service.
WEEE Nr.
DE14023300
WEEE Nr.
DE14023300
Lesen und aufbewahren
Read and keep
Stand 11.10.06 - Konstruktions- und Typenänderung vorbehalten - keine Haftung für Druckfehler
State of the art 11.10.06 - Reserving change in design and type - We cannot be held liable for printing errors
Artikel
Article SVS 1-00
Frequenzbereich (terr./SAT)
Frequency range (terr./SAT) 47...862/950...2200 MHz
Verstärkung (terr./SAT)
Gain (terr./SAT) 18...21/20...25 dB
Dämpfung, regelbar
Attenuator adjustment range 20 dB
Rauschmaß
Noise figure 8 dB
Ausgangspegel
Output level
3rd order max.
2
3rd order SAT max.
5
99 dBµV
110 dBµV
Anschlüsse
Connectors F
DC-Durchlass
DC power pass ja
yes
Integriertes Netzteil
Built-in power supply 230 V~ / 50 Hz
Leistungsaufnahme
Power consumption 3 W
Maße ca.
Dimensions appr. 160 × 100 × 45 mm
1
EN50083-3 60dB KMA
5
EN50083-3 35dB KMA
Stand 15.11.06 - Konstruktions- und Typenänderung vorbehalten - keine Haftung für Druckfehler
State of the art 11.15.06 - Reserving change in design and type - We cannot be held liable for printing errors
1 2
HF-Anschluss:
!
!
Schließen Sie den LNB einer Satellitenantenne am Eingang des
Verstärkers oder z. B. über eine Einspeiseweiche an .
direkt
1 2 Verbinden Sie
den Ausgang des Verstärkers mit den verwendeten Antennensteckdosen
oder Abzweigern.
Verwenden Sie hierfür ein hochgeschirmtes Koaxialkabel mit einem F-
Anschlussstecker. Passende Kabel und Stecker finden Sie im aktuellen
AXING-Katalog oder unter www.axing.com.
RF Installation:
!Connect your LNB either directly to the amplifier input or via a combiner
in case you would like to combine terrestrial and Satellite signals.
1
2
Connect the output of the amplifier to the antenna sockets or the taps used.
Use a highly shielded coaxial cable with an F connector. Suited cables and
plugs can be found in the current AXING catalogue or at www.axing.com.
!
5
Pegeleinstellungen:
Den Eingangspegel können Sie am Dämpfungsregler einstellen.5
Level Adjustment:
The input level may be adjusted with the attenuator .5
Verwendungsbereich:
Die Geräte sind ausschließlich für den Einsatz zum Verstärken sowie Verteilen
von Radio- und Fernsehsignalen im Haus geeignet! Wird das Gerät für andere
Einsätze verwendet, wird keine Garantie übernommen!

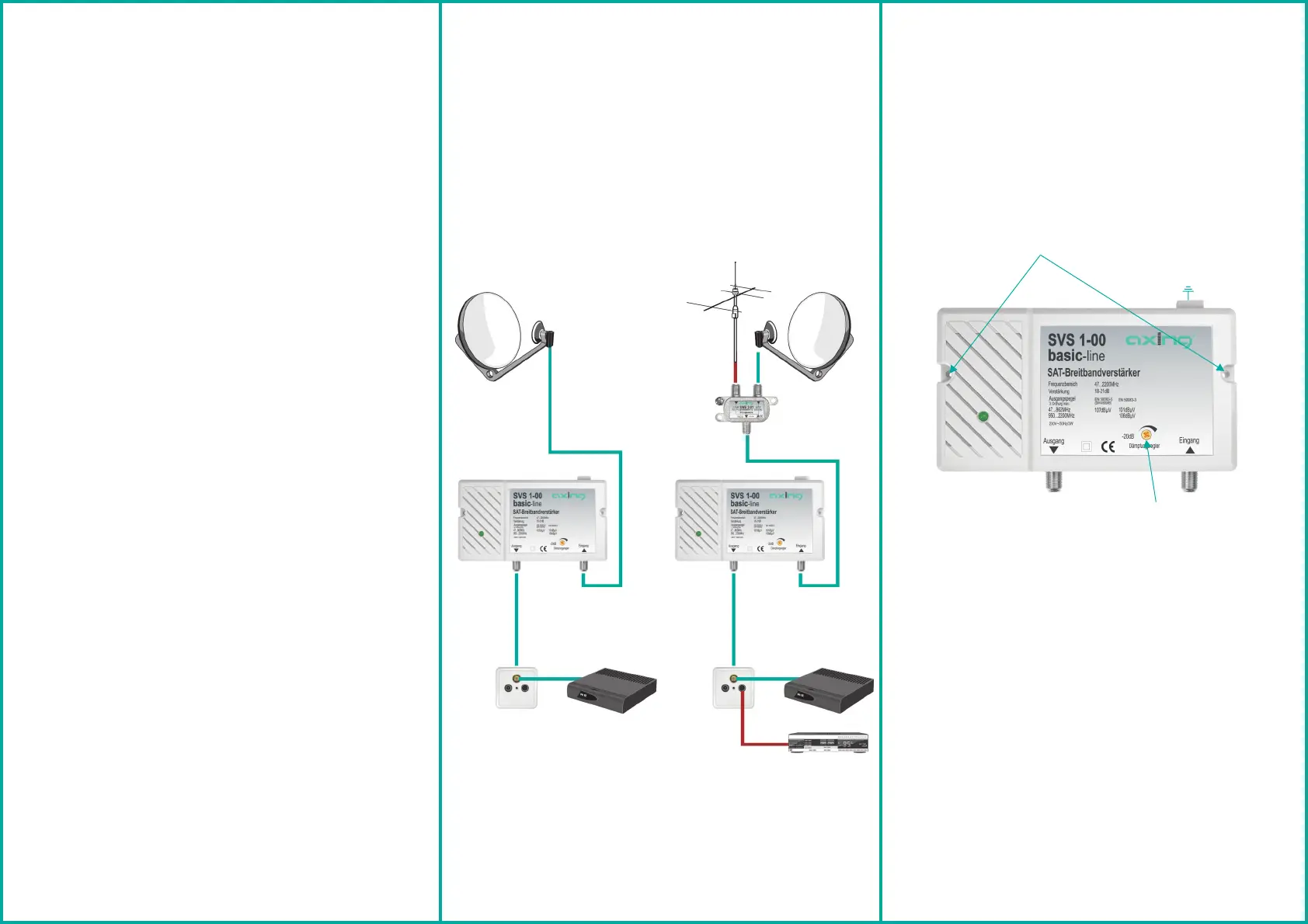

Die Abbildungen zeigen Anwendungsbeispiele für die Verstärkung von SAT-
Signalen bzw. für die Verstärkung von zusammengeführten Signalen einer
terrestrischen und einer SAT-Antenne .
1
2
Field of application:
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!
The illustrations show application examples of the amplification of SAT signals
respc. the amplification of combined signals of a terrestrial and a Satellite antenna
.
1
2
3
Erdung und Montage:
!Zur Vermeidung gefährlicher Überspannungen (Achtung: Brand-
/Lebensgefahr), müssen die Geräte geerdet werden. Verwenden Sie die am
Gerät angebrachte Erdungsklemme .
Verwenden Sie die dem Gerät beiliegenden Montagsschrauben und die
Montagelöcher an den Geräten .
3
4
!
Grounding and Mounting:
!
!
To avoid dangerous power surges (e.g. risk of fire and electrocution) all
devices must be grounded. Use the screw terminal at the device .
.
3
4
Use the mounting screws included in the delivery and the mounting holes of
the devices
4
ÉSicherheitshinweise:
·
·
·
·
·
·
·
·
Die Installation des Geräts und Reparaturen am Gerät sind ausschließlich vom Fachmann unter
Beachtung der geltenden VDE-Richtlinien durchzuführen. Bei nicht fachgerechter Installation und
Inbetriebnahme wird keine Haftung übernommen.
Vor Öffnen des Gerätes Netzstecker ziehen bzw. Stromzuführung entfernen, andernfalls besteht
Lebensgefahr. Dies gilt auch, wenn Sie das Gerät reinigen oder an den Anschlüssen arbeiten.
Verwenden Sie nur das am Gerät angeschlossene Netzkabel. Es dürfen am Netzkabel auf keinen Fall
Teile ausgetauscht oder Veränderungen vorgenommen werden. Es besteht sonst Lebensgefahr, für
die keine Haftung übernommen wird.
Sofern eine austauschbare Sicherung vorhanden ist, ist vor dem Wechsel der Sicherung der
Netzstecker zu ziehen. Defekte Sicherungen nur durch normgerechte Sicherungen des gleichen
Nennwertes ersetzen.
Das Gerät darf nur in trockenen Räumen betrieben werden. In feuchten Räumen oder im Freien
besteht die Gefahr von Kurzschlüssen (Achtung: Brandgefahr) oder elektrischem Schlägen (Achtung:
Lebensgefahr).
Planen Sie den Montage- bzw. Aufstellort so, dass Sie in Gefahrensituationen den Netzstecker leicht
erreichen und aus der Steckdose ziehen können. Wählen Sie den Montage- bzw. Aufstellort so, dass
Kinder nicht unbeaufsichtigt am Gerät und dessen Anschlüssen spielen können. Der Montage- bzw.
Aufstellort muss eine sichere Verlegung aller angeschlossenen Kabel ermöglichen.
Stromversorgungskabel sowie Zuführungskabel dürfen nicht durch irgendwelche Gegenstände
beschädigt oder gequetscht werden.
Wählen Sie einen Montage- bzw. Aufstellungsort, an dem unter keinen Umständen Flüssigkeiten oder
Gegenstände in das Gerät gelangen können (z. B. Kondenswasser, Dachundichtigkeiten, Gießwasser
etc.)
Setzen Sie das Gerät niemals direkter Sonneneinstrahlung aus und vermeiden Sie die direkte Nähe
von Wärrmequellen (z. B. Heizkörper, andere Elektrogeräte, Kamin etc.) Bei Geräten, die Kühlkörper
oder Lüftungsschlitze haben, muss daher unbedingt darauf geachtet werden, dass diese keinesfalls
abgedeckt oder verbaut werden. Sorgen Sie außerdem für eine großzügig bemessene Luftzirkulation
um das Gerät. Damit verhindern Sie mögliche Schäden am Gerät sowie Brandgefahr durch
Überhitzung. Achten Sie unbedingt darauf, dass Kabel nicht in die Nähe von Wärmequellen (z.B.
Heizkörper, andere Elektrogeräte, Kamin etc.) kommen.
ÉSafety advice:
·
·
·
·
·
·
·
Installation and repairs to the equipment may only be carried out by technicians observing the current
VDE guidelines. No liability will be assumed in the case of faulty installation and commissioning.
Before opening the equipment pull out the power plug or remove the power supply, otherwise there is
danger of electrocution. This is also valid for cleaning the equipment or working on the connections.
Providing that a serviceable fuse exists, the power cord must be pulled out before changing the fuse.
Defective fuses may only be replaced with standard compliant fuses that have the same nominal
value.
The equipment may only be operated in dry rooms. In humid rooms or outdoors there is danger of
short-circuit (caution: risk of fire) or electrocution.
Choose the location of installation or mounting so that the power plug can be reached and pulled out
of the socket easily in case of danger. Choose the location of installation or mounting such that
children may not play unsupervised near the equipment and its connections. The location of
installation or mounting must allow a safe installation of all cables connected. Power feeding cables
as well as feeder lines may not be damaged or clamped by objects of any kind. To prevent damage to
your equipment and to avoid possible peripheral damages, the devices foreseen for wall mounting
may only be installed on a flat surface.
Choose the location of installation or mounting so that under no circumstances liquids or objects can
get into the equipment (e.g. condensation, water coming from leaking roofs or flowing water, etc.).
Avoid exposure of the equipment to direct sunlight and to other heat sources (e. g. radiators. other
electrical devices, chimney, etc.). Devices that are equipped with heat sinks or ventilation slots must
under no circum-stances be covered or blocked. Also ensure for a generous air circulation around the
equipment. In this way you avoid possible damage to the equipment as well as a risk of fire caused by
overheating. Absolutely avoid that cables come near any source of heat (e.g. radioators, other
electrical devices, chimney, etc.).
·Only use the mains cable connected to the device. Never replace any parts or make any
modifications on the mains cable. Otherwise there is a risk of mortal injury for which we cannot be
held liable.
